Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Carburetor Assembly

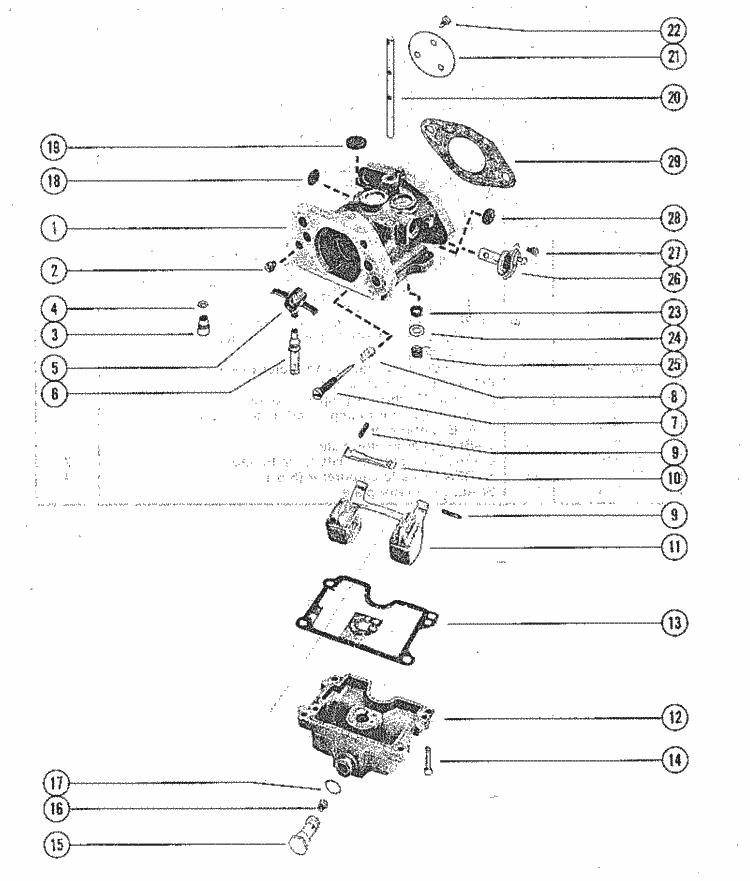

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

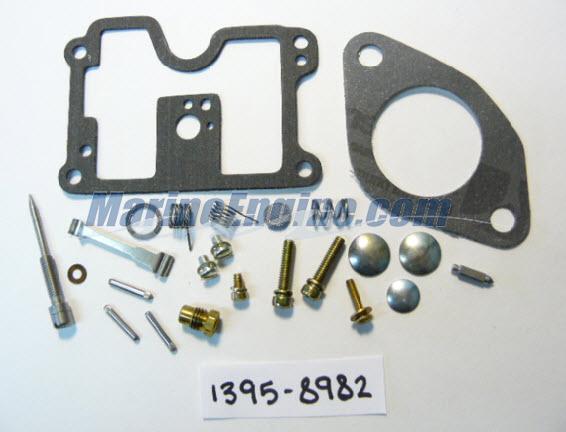

| # | 1395-8982 | REPAIR PARTS KIT (WM-14) (2 required per assembly) |
  |
|
1395-8982 - 1395-8982 - REPAIR PARTS KIT [ More info ] Unavailable Replaced by -19274 |
  |
|
19274 - 19274 - REPAIR KIT [ More info ] Unavailable Replaced by -812953 |
  |
|

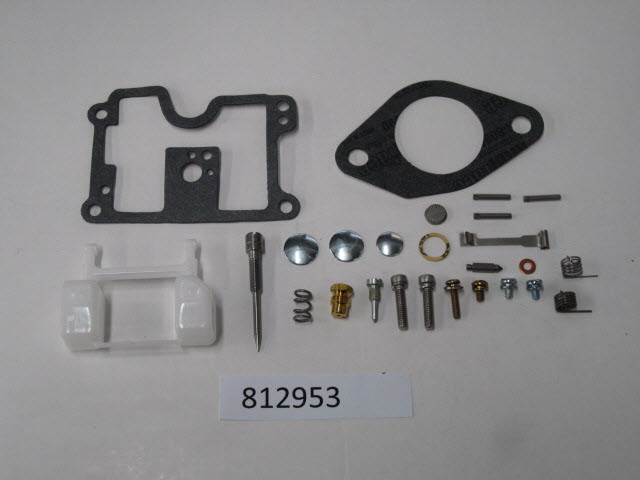

812953 - Carburetor Repair Kit [ More info ]
|
| # | 1395-6360 | REPAIR PARTS KIT (WM-10) (2 required per assembly) |
 |
|
1395-6360 - 1395-6360 - REPAIR PARTS KIT [ More info ] Unavailable Replaced by -812954 |
  |
|

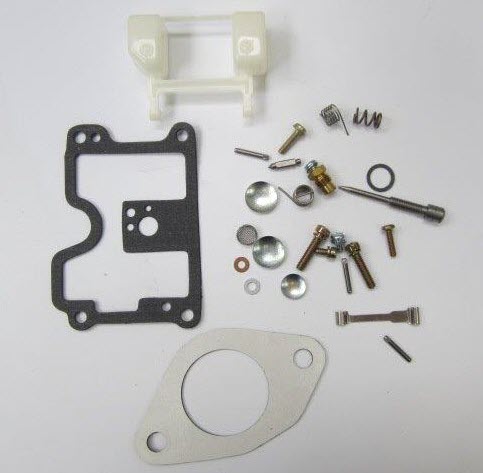

812954 - 812954 - REPAIR KIT - CARB [ More info ] Unavailable Replaced by -812953 |
| # | 27-73645A32 | GASKET SET |
|
|
27-73645A32 - 27-73645A32 - GASKET SET [ More info ] Unavailable Replaced by 27-73645A87 |
  |
|
27-73645A87 - GASKET SET [ More info ] Unavailable |
| # | 1395-7834 | REPAIR PARTS KIT (WM-12) (2 required per assembly) |
|
|
1395-7834 - 1395-7834 - REPAIR PARTS KIT [ More info ] Unavailable Replaced by -812985 |
|
|
812985 - 812985 - REPAIR KIT - CARB [ More info ] Unavailable Replaced by -812953 |
| # | 1395-6200 | GASKET KIT (2 required per assembly) |
  |
|
1395-6200 - Carburetor Gasket Kit [ More info ]
|
  |
|

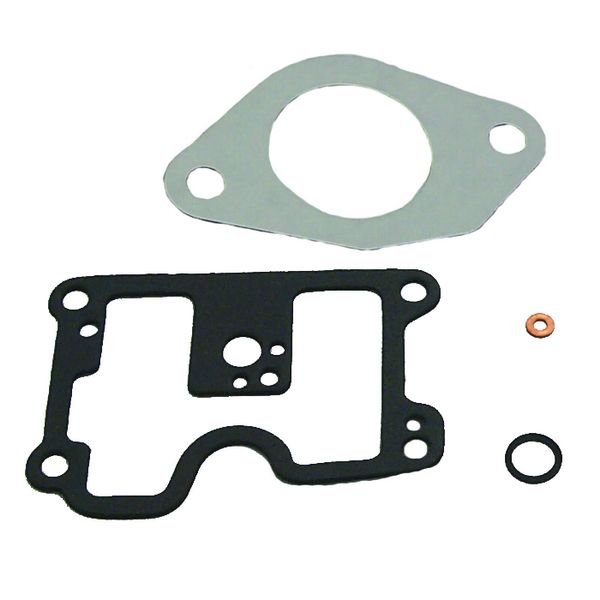

18-7004 - Carburetor Kit 1395-6200 [ More info ]
|
| #1 | 1379-6071A32 | CARBURETOR ASSEMBLY (TOP) STAMPED WM-12 (1 required per assembly) |
|
|
1379-6071A32 - 1379-6071A32 - CARBURETOR ASSEMB [ More info ] Unavailable Replaced by 1379-6071A41 |
  |
|
1379-6071A41 - 1379-6071A41 - CARBURETOR ASSEMB [ More info ] Unavailable Replaced by 1379-6071A57 |
|
|
1379-6071A57 - CARBURETOR NLA [ More info ] Unavailable |
| #1 | 1379-6071A33 | CARBURETOR ASSEMBLY (BOTTOM) (1 required per assembly) STAMPED WM-12 |
|
|
1379-6071A33 - 1379-6071A33 - CARBURETOR ASSEMB [ More info ] Unavailable Replaced by 1379-6071A42 |
  |
|
1379-6071A42 - 1379-6071A42 - CARBURETOR ASSEMB [ More info ] Unavailable Replaced by 1379-6071A58 |
|
|
1379-6071A58 - CARBURETOR NLA [ More info ] Unavailable |
| #1 | 1379-6071A41 | CARBURETOR ASSEMBLY (TOP) STAMPED WM-14 (1 required per assembly) |
| #1 | 1379-6071A42 | CARBURETOR ASSEMBLY (BOTTOM) (1 required per assembly) STAMPED WM-14 |

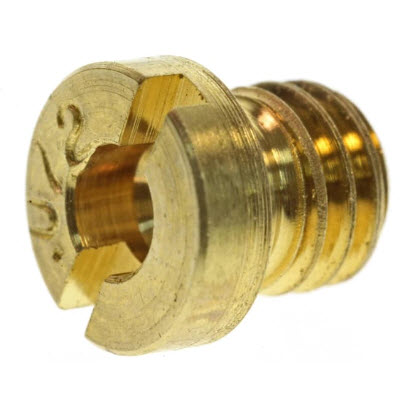

| #2 | 1395-6207 | JET, VENT BOWL (.072) (WM-10) (2 required per assembly) |
  |
|
1395-6207 - Jet -.072 [ More info ]
|
| #2 | 1395-5733 | JET, VENT BOWL (.092) (WM-12) (WM-14) (2 required per assembly) |
  |
|
1395-5733 - Jet -.092 [ More info ]
|

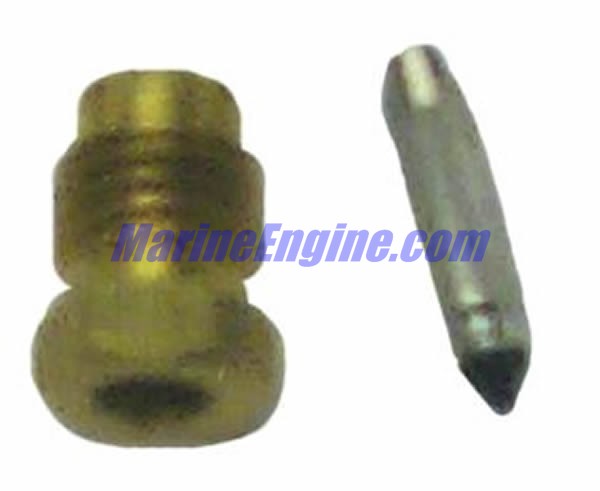

| #3 | 1395-4555 | INLET NEEDLE AND SEAT (2 required per assembly) |
|
|
1395-4555 - 1395-4555 - NEEDLE Inlet [ More info ] Unavailable Replaced by 1395-8318 |
  |
|
1395-8318 - 1395-8318 - NEEDLE Inlet [ More info ] Unavailable Replaced by 1395-83181 |
  |
|
1395-8318 1 - Valve Seat Kit [ More info ]
|
  |
|

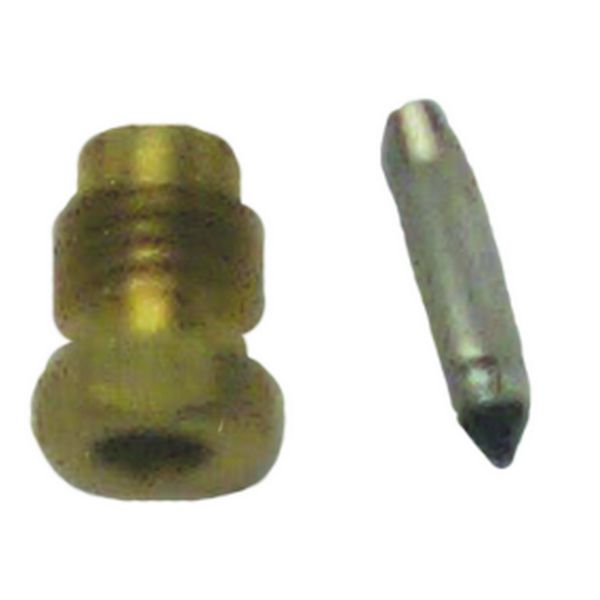

18-7061 - Needle And Seat 1395-8318 [ More info ]
|

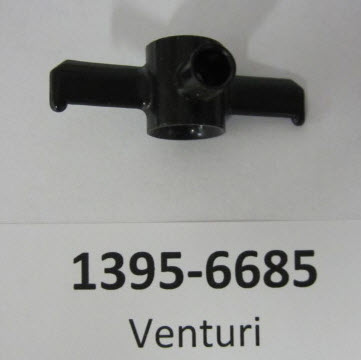

| #5 | 395-6685 | VENTURI (WM-10) (2 required per assembly) |
  |
|
1395-6685 - Venturi, NLA [ More info ]
|

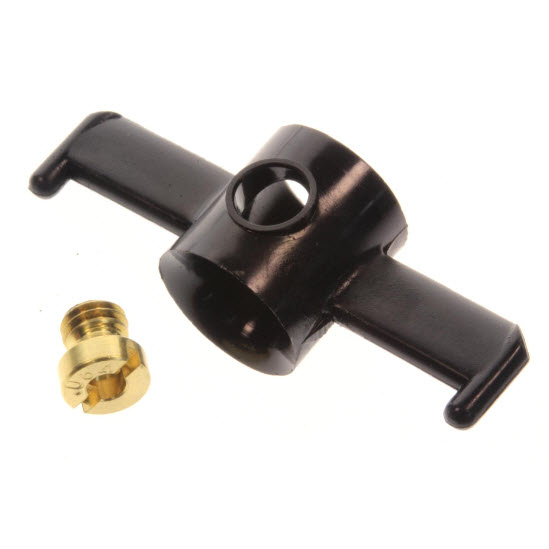

| #5 | 52106A 1 | VENTURI (WM-12) (WM-14) (2 required per assembly) |
  |
|
52106A 1 - Venturi Assembly [ More info ]
|
| #11 | 1395-6197 | FLOAT (2 required per assembly) |
|
|
1395-6197 - 1395-6197 - FLOAT [ More info ] Unavailable Replaced by -19273 |
  |
|
19273 - Float Kit [ More info ]
|
  |
|
18-7249 - Float, 19273 [ More info ]
|

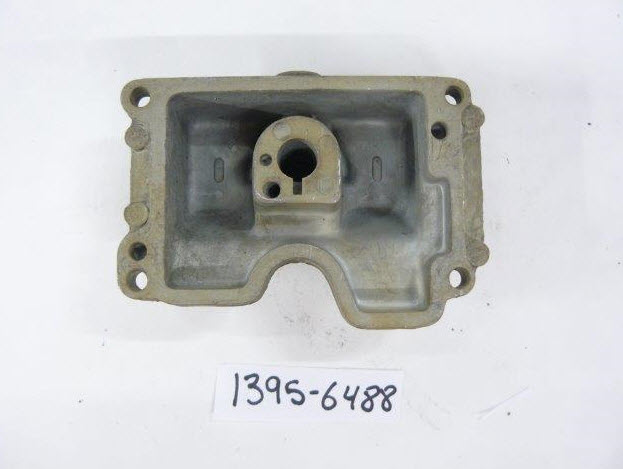

| #12 | 1395-6488 | FUEL BOWL (2 required per assembly) |
  |
|
1395-6488 - Fuel Bowl Assembly , NLA [ More info ]
|

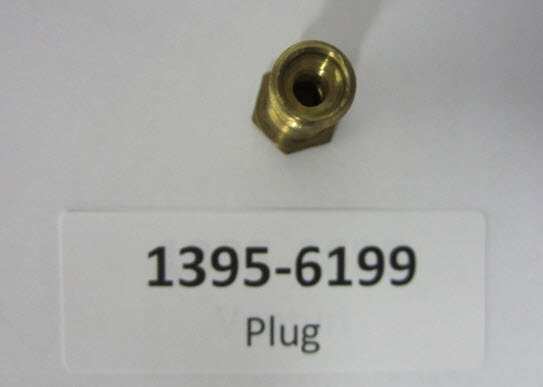

| #15 | 1395-6199 | PLUG, MAIN JET (2 required per assembly) |
  |
|
1395-6199 - PLUG NLA [ More info ] Unavailable |
| #16 | 1395-6247 | JET, MAIN (.090) (WM-10) (2 required per assembly) |
|
|
1395-6247 - Jet -.090 [ More info ]
|
| #16 | 1399-3518 | JET, MAIN (.082) (WM-12) (WM-14) (2 required per assembly) |
  |
|
1399-3518 - Jet -.082 [ More info ]
|
| #20 | 1395-4807 | SHAFT, THROTTLE (TOP) (1 required per assembly) |
|
|
1395-4807 - SHAFT Throttle NLA [ More info ] Unavailable |

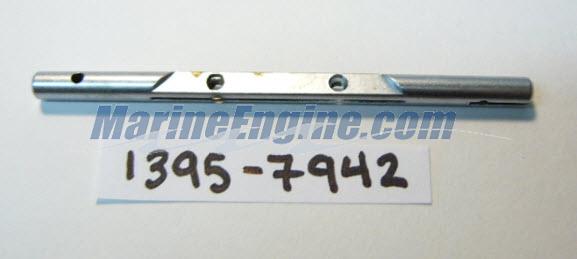

| #20 | 1395-7942 | SHAFT, THROTTLE (BOTTOM) (1 required per assembly) |
  |
|
1395-7942 - SHAFT NLA [ More info ] Unavailable |
| #21 | 1395-6196 | VALVE, THROTTLE (WM-10) (2 required per assembly) |
|
|
1395-6196 - VALVE NLA [ More info ] Unavailable |
| #21 | 1395-7639 | VALVE, THROTTLE (WM-12) (WM-14) (2 required per assembly) |
|
|
1395-7639 - Shutter, NLA [ More info ]
|
| #23 | 1395-6204 | SEAL, THROTTLE SHAFT (2 required per assembly) |
|
|
1395-6204 - SEAL [ More info ] Unavailable |
| #24 | 1395-6203 | WASHER, THROTTLE SHAFT (2 required per assembly) |
|
|
1395-6203 - Washer, Throttle Shaft, NLA [ More info ]
|

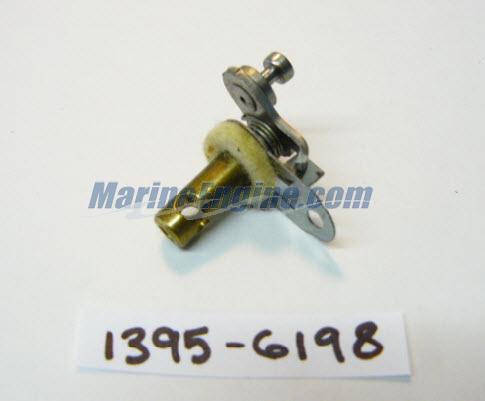

| #26 | 1395-6198 | VALVE ASSEMBLY, ENRICHMENT (2 required per assembly) |
  |
|
1395-6198 - VALVE ASSEMBLY NLA [ More info ] Unavailable |
| #28 | WELCH PLUG (7/16") (2 required per assembly) | |

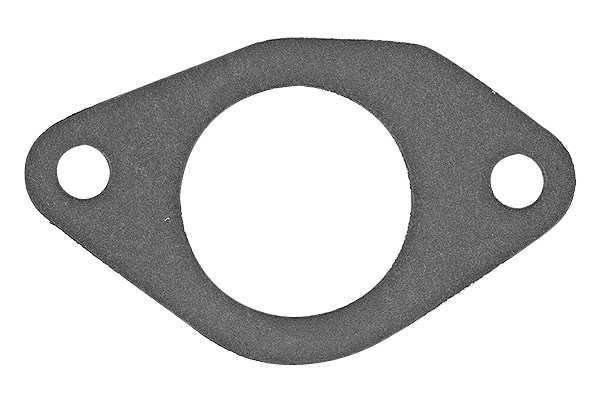

| #29 | 27-73377 | GASKET, CARBURETOR (2 required per assembly) |
|
|
27-73377 - 27-73377 - GASKET [ More info ] Unavailable Replaced by 27-733771 |
  |
|
27-73377 1 - Gasket [ More info ]
|
