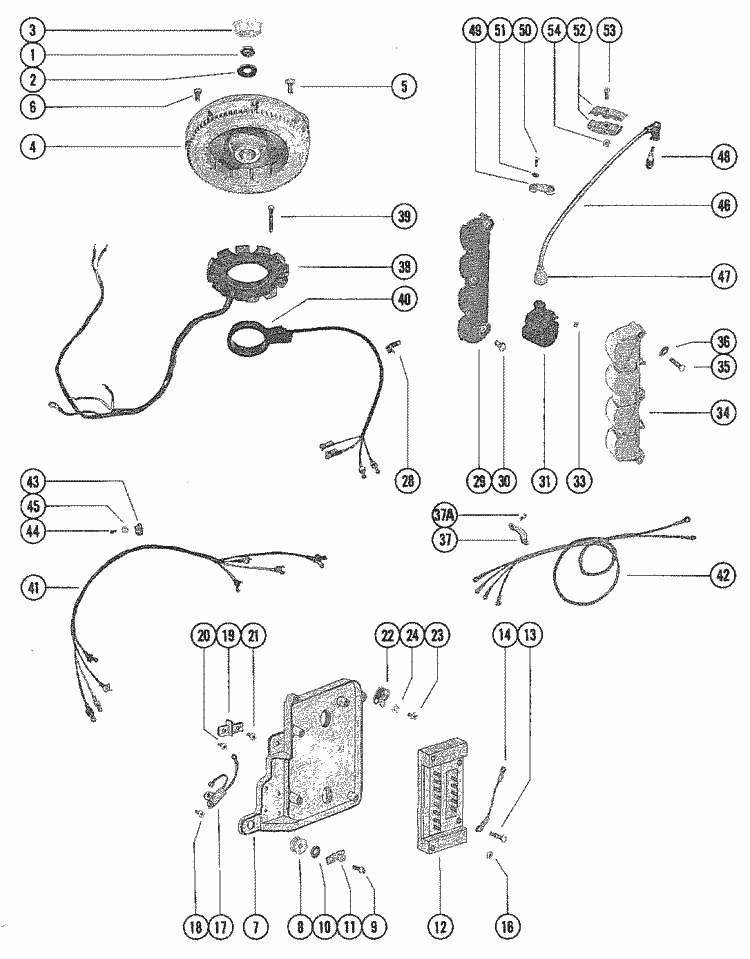

Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Flywheel, Stator & Ignition Coil
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

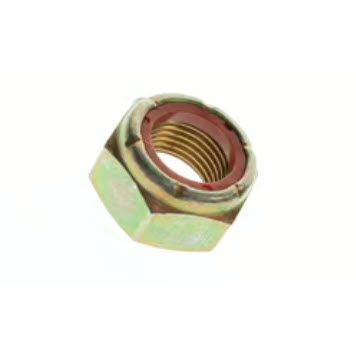

| #1 | 11-52901 | NUT, FLYWHEEL (1 required per assembly) |
  |
|
11-52901 - Nut (5/8-18)-tailstock Screw [ More info ]
|
| #2 | 12-68229 | WASHER, FLYWHEEL NUT (1 required per assembly) |
 |
|
12-68229 - 12-68229 - WASHER (.641 x 1. [ More info ] Unavailable Replaced by 12-33001 |
|
|
12-33001 - Washer, Flywheel Nut [ More info ]
|
| #3 | 19-45907 | PLUG, FLYWHEEL PULLER THREADS (1 required per assembly) |
  |
|
|
| #4 | 248-5977A 9 | FLYWHEEL ASSEMBLY (1 required per assembly) UNITED STATES 5141096 AND BELOW AUSTRALIA 8056519 AND BELOW BELGIUM 9207925 AND BELOW CANADA 7122587 AND BELOW |
|
|
248-5977A 9 - 248-5977A 9 - FLYWHEEL [ More info ] Unavailable Replaced by 248-5977A24 |
|
|
248-5977A24 - 248-5977A24 - FLYWHEEL ASSEMBLY [ More info ] Unavailable Replaced by 248-8722A6 |
|
|
248-8722A6 - FLYWHEEL NLA [ More info ] Unavailable |
| #4 | 248-5977A24 | FLYWHEEL ASSEMBLY (1 required per assembly) UNITED STATES 5141097 AND UP AUSTRALIA 8056520 AND UP BELGIUM 9207928 AND UP CANADA 7122588 ANDUP |
| #5 | 10-68997 | SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4") (8 required per assembly) |
|
|
10-68997 - Screw, NLA [ More info ]
|

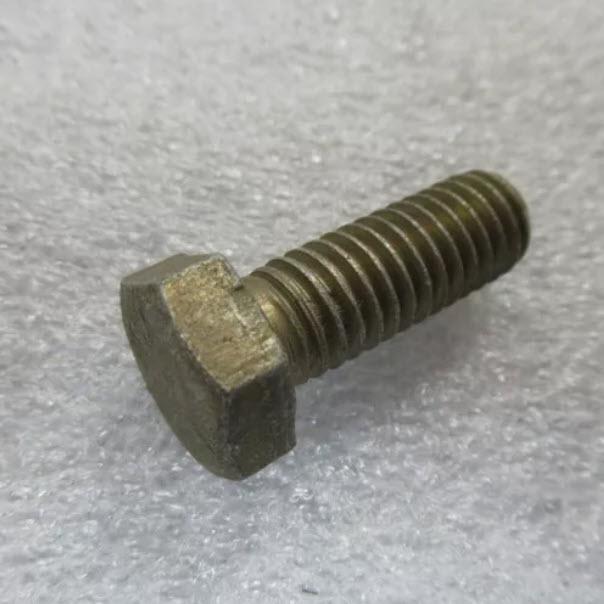

| #6 | 10-32417 | SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8") (8 required per assembly) |
  |
|
10-32417 - SCREW (.250-28 x [ More info ] Unavailable |
| #7 | 73189 | PLATE, SWITCH BOX (1 required per assembly) |
|
|
73189 - 73189 - PLATE [ More info ] Unavailable Replaced by -90332 |
|
|
|
| #8 | 25-57009 | GROMMET, SWITCH BOX PLATE (3 required per assembly) |
|
|
25-57009 - Grommet [ More info ]
|
|
|
25-57009001 - Grommet [ More info ]
|
| #9 | 10-59645 | SCREW (3 required per assembly) SWITCH BOX PLATE TO CYLINDER BLOCK (3/4") |
|
|
10-59645 - 10-59645 - SCREW (.312-18 x [ More info ] Unavailable Replaced by 10-824941 |
  |
|
10-824941 - Screw [ More info ]
|
| #10 | 12-56720 | WASHER, SWITCH BOX PLATE SCREW (3 required per assembly) |
|
|
12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ]
|
| #11 | 54-47483 | "J" CLIP, SWITCH BOX WIRES AND FUEL LINE (1 required per assembly) |
|
|
54-47483 - J Clip [ More info ]
|
| #12 | 332-5772A 1 | SWITCH BOX ASSEMBLY (1 required per assembly) |
|
|
332-5772A 1 - 332-5772A 1 - SWITCHBOX ASSEMBL [ More info ] Unavailable Replaced by 332-5772A 2 |
|
|
332-5772A 2 - Switch Box Assembly [ More info ]
|
  |
|
332-5772A 5 - 332-5772A 5 - SWITCHBOX ASSEMBL [ More info ] Unavailable Replaced by 332-5772A 7 |
  |
|
332-5772A 7 - Switch Box [ More info ]
|
  |
|

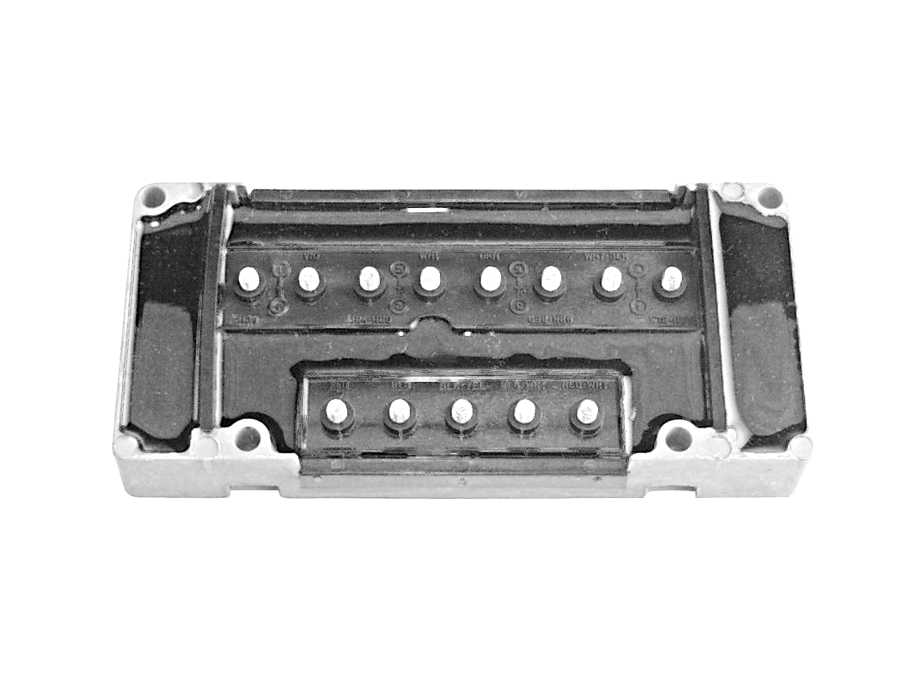

18-5881 - Switch Box, 332-5772A5 [ More info ]
|
  |
|
114-5772 - Switch Box [ More info ]
|
| #13 | 10-20619 | SCREW, SWITCH BOX TO PLATE (1 3/8") (4 required per assembly) |
|
|
10-20619 - Screw, NLA [ More info ]
|

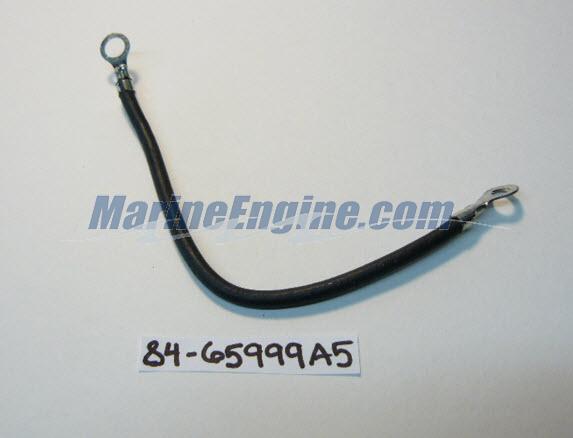

| #14 | 84-65999A 5 | WIRE ASSEMBLY (2 required per assembly) |
  |
|
84-65999A 5 - Wire Assembly, NLA [ More info ]
|
| #16 | 11-45076 | NUT, SWITCH BOX TERMINAL (13 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #17 | 58124A19 | MERCURY SWITCH ASSEMBLY (1 required per assembly) |
|
|
58124A19 - Mercury Switch Assembly [ More info ]
|
| #18 | 10-37571 | SCREW, MERCURY SWITCH TO PLATE (1/2") (1 required per assembly) |
  |
|
10-37571 - Screw - Priced Individually [ More info ]
|
| #19 | 86-66986 | TERMINAL BLOCK (1 required per assembly) |
|
|
86-66986 - Terminal Block, NLA [ More info ]
|
| #20 | 10-20646 | SCREW, TERMINAL BLOCK TO PLATE (5/8") (1 required per assembly) |
|
|
10-20646 - Screw - Priced Individually [ More info ]
|
  |
|
10-38055 - Screw - Priced Individually [ More info ]
|

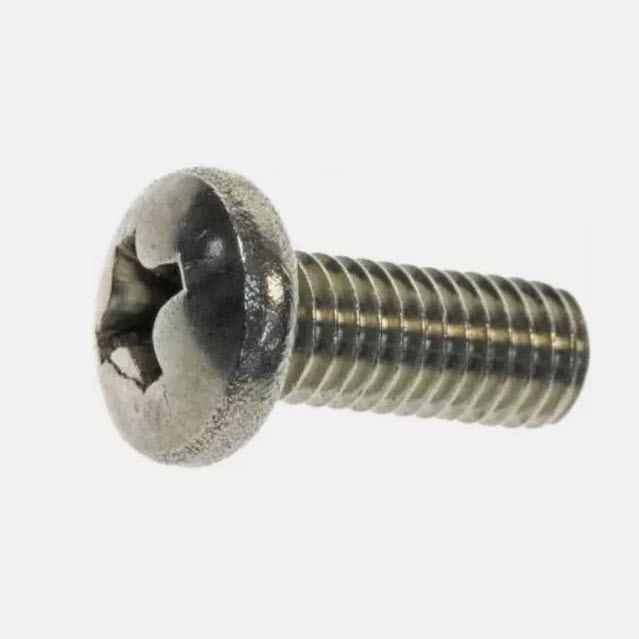

| #21 | 10-37655 | SCREW, WIRE TO TERMINAL BLOCK (1/2") (1 required per assembly) |
  |
|
10-37655 - Screw - Priced Individually [ More info ]
|
| #22 | 54-23567 | CLIP, WIRES AND HARNESS (2 required per assembly) |
|
|
|
| #23 | 10-48408 | SCREW, CLIP TO PLATE (3/8") (2 required per assembly) |
  |
|
10-48408 - Screw - Priced Individually [ More info ]
|
| #24 | 69205 | "D" WAHER, CLIP SCREW (2 required per assembly) |
  |
|
69205 - 69205 - C WASHER [ More info ] Unavailable Replaced by -8M0084613 |
|
|
8M0084613 - Washer [ More info ]
|
| #29 | 73395 | PLATE, MOUNTING - IGNITION COIL (1 required per assembly) |
|
|
|
| #30 | 10-28668 | SCREW, MOUNTING PLATE TO CRANKCASE (7/8") (3 required per assembly) |
  |
|
10-28668 - Screw - Priced Individually [ More info ]
|
| #31 | 339-5748A 2 | IGNITION COIL ASSEMBLY (4 required per assembly) UNITED STATES 5141096 AND BELOW AUSTRALIA 8056519 AND BELOW BELGIUM 9207925 AND BELOW CANADA 7122587 AND BELOW |
|
|
339-5748A 2 - 339-5748A 2 - COIL ASSEMBLY [ More info ] Unavailable Replaced by 339-5288A 2 |
|
|
339-5288A 2 - 339-5288A 2 - COIL ASSEMBLY Ign [ More info ] Unavailable Replaced by 339-5288T 2 |
  |
|

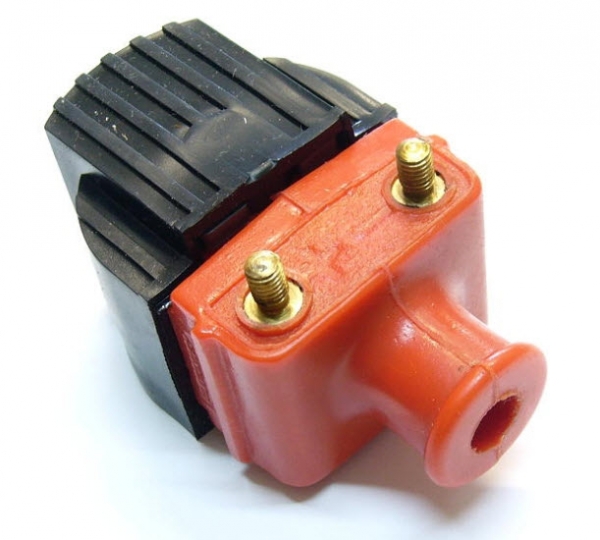

339-5288T 2 - 339-5288T 2 - COIL [ More info ] Unavailable Replaced by 300-8M0166172 |
  |
|
300-8M0166172 - Ignition Coil [ More info ]
|
| #31 | 338-4995A 2 | IGNITION COIL ASSEMBLY (4 required per assembly) UNITED STATES 5141097 AND UP AUSTRALIA 8056520 AND UP BELGIUM 9207928 AND UP CANADA 7122588 ANDUP |
|
|
338-4995A 2 - 338-4995A 2 - COIL ASSY [ More info ] Unavailable Replaced by 339-7370A 2 |
|
|
339-7370A 2 - 339-7370A 2 - COIL ASSEMBLY Ign [ More info ] Unavailable Replaced by 339-7370A 8 |
|
|
339-7370A 8 - 339-7370A 8 - COIL ASSEMBLY Ign [ More info ] Unavailable Replaced by 339-7370A13 |
  |
|

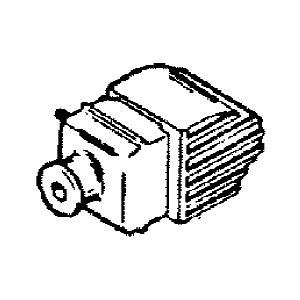

339-7370A13 - 339-7370A13 - COIL ASSEMBLY Ign [ More info ] Unavailable Replaced by 339-832757A4 |
  |
|
339-832757A 4 - Ignition Coil [ More info ]
|
  |
|
18-5186 - Ignition Coil 339-7370A13 [ More info ]
|
| #34 | 73192 | COVER, IGNITION COIL (1 required per assembly) |
|
|
|
  |
|

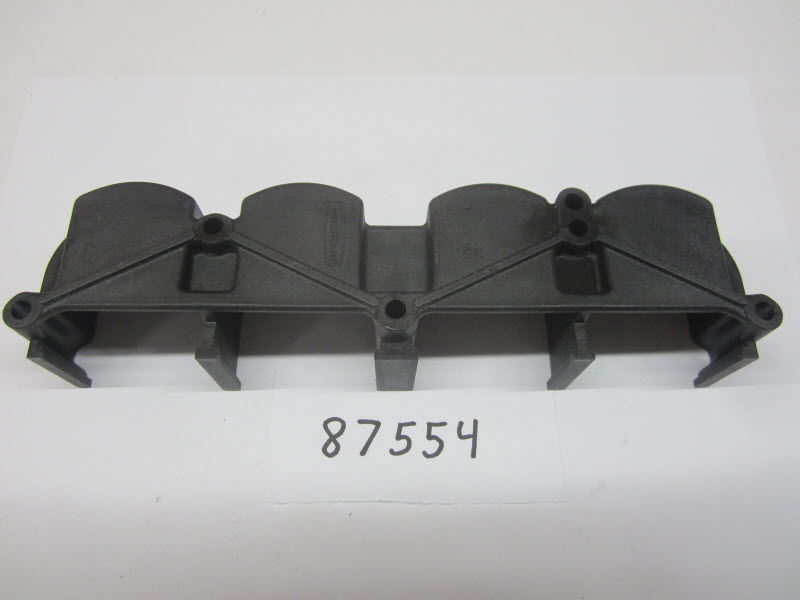

87554 - Ignition Coil Cover, NLA [ More info ]
|
| #35 | 10-69046 | SCREW, COVER TO MOUNTING PLATE (2") (5 required per assembly) |
|
|
10-69046 - Screw [ More info ]
|
|
|
10-88856 - Screw, NLA [ More info ]
|
| #36 | 12-30164 | WASHER, COVER SCREW (5 required per assembly) |
|
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #37 | 77672 | STRAP, PRIMARY HARNESS (1 required per assembly) |
|
|
77672 - Strap, NLA [ More info ]
|
| #38 | 398-5919A 3 | STATOR ASSEMBLY (1 required per assembly) |
|
|
398-5919A 3 - 398-5919A 3 - STATOR ASSEMBLY [ More info ] Unavailable Replaced by 398-5919A 7 |
|
|
398-5919A 7 - 398-5919A 7 - STATOR [ More info ] Unavailable Replaced by 398-5454A22 |
|
|
398-5454A22 - 398-5454A22 - STATOR ASSY [ More info ] Unavailable Replaced by 398-5454A26 |
  |
|
398-5454A26 - Stator Assembly [ More info ]
|
  |
|
18-5859 - Stator 398-5454A [ More info ]
|
  |
|
174-5454K 1 - Stator 9 AMP - Not for use with Glued Magnets [ More info ]
|

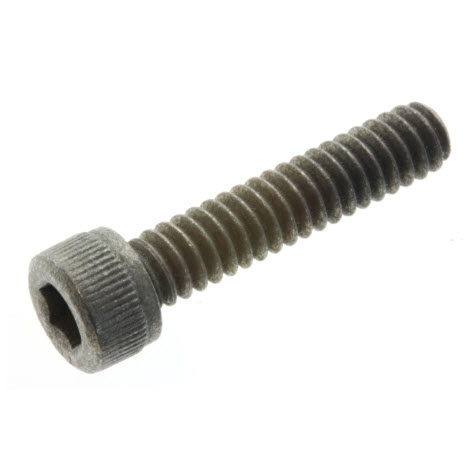

| #39 | 10-75840 | SCREW, STATOR TO UPPER END CAP (7/8") (4 required per assembly) |
  |
|
10-75840 - Screw [ More info ]
|
| #40 | 77000A 2 | TRIGGER PLATE ASSEMBLY (1 required per assembly) |
|
|
77000A 2 - 77000A 2 - TRIGGER ASSY [ More info ] Unavailable Replaced by -96453A 2 |
  |
|
96453A 2 - TRIGGER PLATE ASS [ More info ] Unavailable |
  |
|

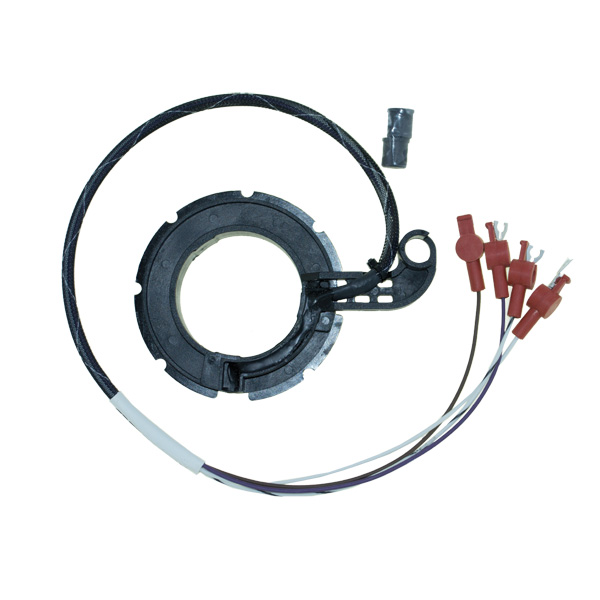

134-6454 - Trigger 4 Cylinder, Curved Linkage Arm [ More info ]
|
  |
|

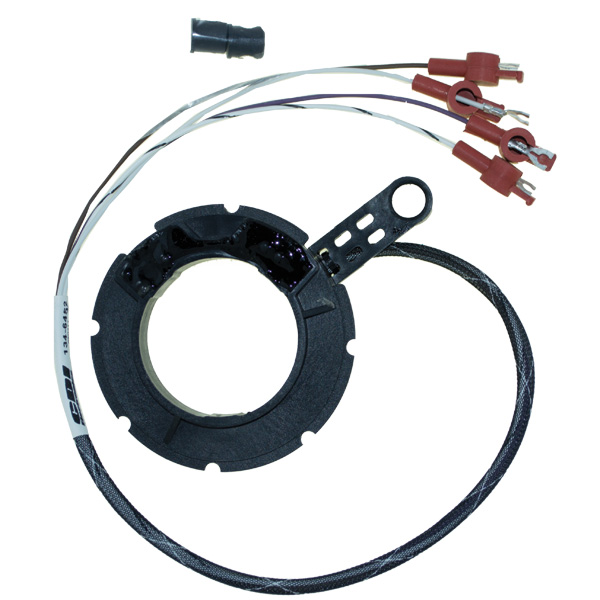

134-6452 - Trigger 4 Cylinder, Straight Linkage Arm [ More info ]
|
| #41 | 84-77617 | HARNESS, PRIMARY (CYLINDERS 1 AND 2) (1 required per assembly) |
  |
|
84-77617 - Harness [ More info ]
|
| #42 | 84-77618 | HARNESS, PRIMARY (CYLINDERS 3 AND 4) (1 required per assembly) |
|
|
84-77618 - Harness [ More info ]
|
| #43 | 54-39844 | CLAMP, HARNESS ATTACHING (1 required per assembly) |
  |
|
54-39844 - Clamp [ More info ]
|
  |
|
54-45806 - Clamp [ More info ]
|
| #46 | 84-73451A 8 | WIRE ASSEMBLY, SPARK PLUG (4 required per assembly) |
|
|
84-73451A 8 - 84-73451A 8 - CABLE ASSY [ More info ] Unavailable Replaced by 84-90816A25 |
|
|
84-90816A25 - 84-90816A25 - WIRE ASSEMBLY [ More info ] Unavailable Replaced by 84-93475A25 |
|
|
84-93475A25 - 84-93475A25 - LEAD ASSEMBLY [ More info ] Unavailable Replaced by 84-99215A25 |
|
|
84-99215A25 - 84-99215A25 - LEAD ASSEMBLY [ More info ] Unavailable Replaced by 84-813715A1 |
  |
|
84-813715A 1 - Ignition Cable Assembly [ More info ]
|
  |
|
18-5228-1 - Spark Plug Wire, 9 Inch, 84-813715A1 [ More info ]
|
  |
|
18-5227-1 - Spark Plug Wire, 9 Inch Pre-made [ More info ]
|
| #47 | 332-2854 | BOOT, IGNITION COIL END (4 required per assembly) |
|
|
332-2854 - Boot - Priced Individually [ More info ]
|
|
|
332-2854T01 - Boot - Priced Individually [ More info ]
|
| #48 | 33-58194 | SPARK PLUG (AC#V40FFK) (4 required per assembly) FOR CANADA AND BELGIUM, USE C-33-68098 (CHAMPION #QL-76V) |
|
|
33-58194 - 33-58194 - SPARK PLUG [ More info ] Unavailable Replaced by 33-97182 |
  |
|
33-97182 - 33-97182 - SPARK PLUG [ More info ] Unavailable Replaced by 33-97182Q |
  |
|
33-97182Q - NGK BUHW-2 @10 [ More info ] Unavailable |
  |
|
L78V - Champion Spark Plug ( #833M) [ More info ]
|
| #49 | 78278 | RETAINER, WIRE (2 required per assembly) |
|
|
78278 - Retainer, NLA [ More info ]
|
| #51 | 12-21273 | WASHER, WIRE RETAINER SCREW (2 required per assembly) |
|
|
12-21273 - Washer - Priced Individually [ More info ]
|
| #52 | 63319 | RETAINER, SPARK PLUG WIRE (2 required per assembly) |
  |
|
63319 - Retainer, NLA [ More info ]
|
| #53 | 10-46378 | SCREW, RETAINER TO CYLINDER BLOCK COVER (1") (1 required per assembly) |
|
|
10-46378 - Screw, NLA [ More info ]
|
| #54 | 11-20013 | NUT, RETAINER SCREW (1 required per assembly) |
  |
|
11-20013 - Nut, (.250-28) [ More info ]
|
