Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Drive Shaft Housing Assembly

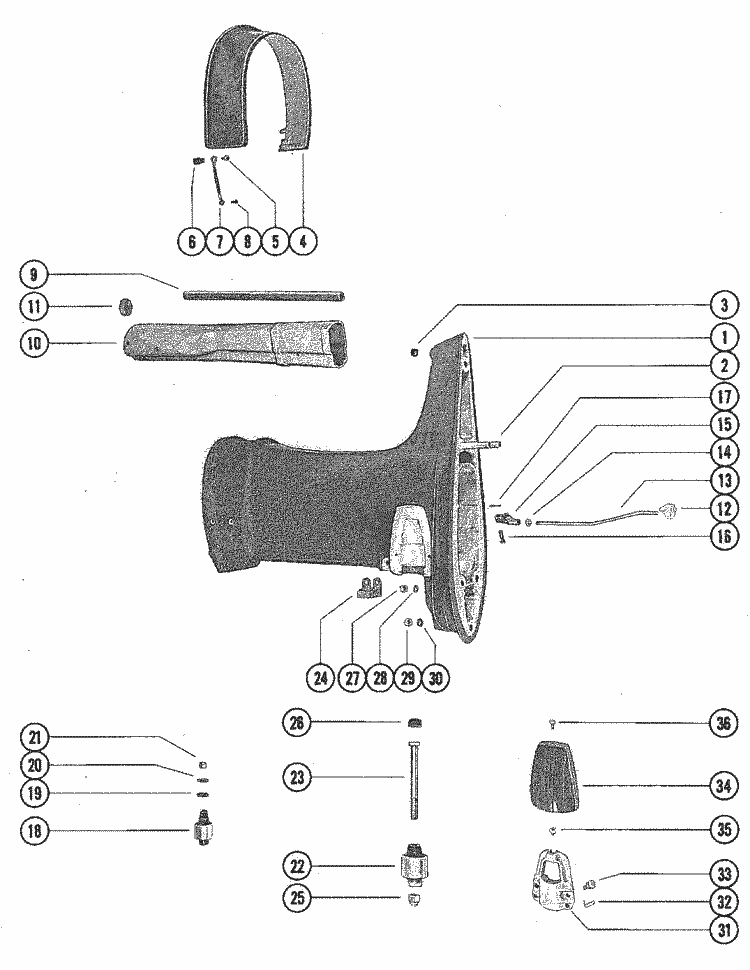

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1575-5240A 4 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT) (1 required per assembly) |
 |
|
1575-5240A 4 - HOUSING ASSEMBLY NLA [ More info ] Unavailable |
| #1 | 1573-5239A 4 | DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT) (1 required per assembly) |
|
|
1573-5239A 4 - HOUSING ASSEMBLY NLA [ More info ] Unavailable |
| #2 | 16-56295 | STUD (2 required per assembly) DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16") |
|
|
16-56295 - Stud - Priced Individually [ More info ]
|
| #3 | 19-64649 | PLUG, PLASTIC-TRIM TAB SCREW HOLE (1 required per assembly) |
  |
|
19-64649 - Plug - Priced Individually [ More info ]
|
| #5 | 10-57807 | SCREW, TRIM COVER TO BOTTOM COWL (3/4") (4 required per assembly) |
  |
|
10-57807 - Screw - Priced Individually [ More info ]
|
| #6 | 25-57806 | GROMMET, TRIM COVER SCREW (4 required per assembly) |
|
|
25-57806 - Grommet, Trim Cover Screw [ More info ]
|
|
|
25-92012 - Grommet, Trim Cover Screw [ More info ]
|
| #7 | 46933A 2 | GROUND STRAP ASSEMBLY, TRIM COVER SCREW (2 required per assembly) |
|
|
46933A 2 - Strap , NLA [ More info ]
|
| #8 | 10-62568 | SCREW, GROUNG STRAP ATTACHING (2 required per assembly) |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #9 | 32-62864 | TUBE, WATER INLET (SHORT SHAFT) (1 required per assembly) |
|
|
32-62864 - TUBE NLA [ More info ] Unavailable |
| #9 | 32-60897 | TUBE, WATER INLET (LONG SHAFT) (1 required per assembly) |
  |
|
32-60897 - Tubing, NLA [ More info ]
|
| #10 | 65370 | TUBE, EXHAUST (SHORT SHAFT) (1 required per assembly) |
|
|
65370 - TUBE NLA [ More info ] Unavailable |
| #10 | 78184 | TUBE, EXHAUST (LONG SHAFT) (1 required per assembly) |
|
|
78184 - Exhaust Tube [ More info ]
|
  |
|
78184T - Exhaust Tube, NLA [ More info ]
|
| #11 | 65638 | BOOT, EXHAUST TUBE (2 required per assembly) |
|
|
65638 - BOOT NLA [ More info ] Unavailable |

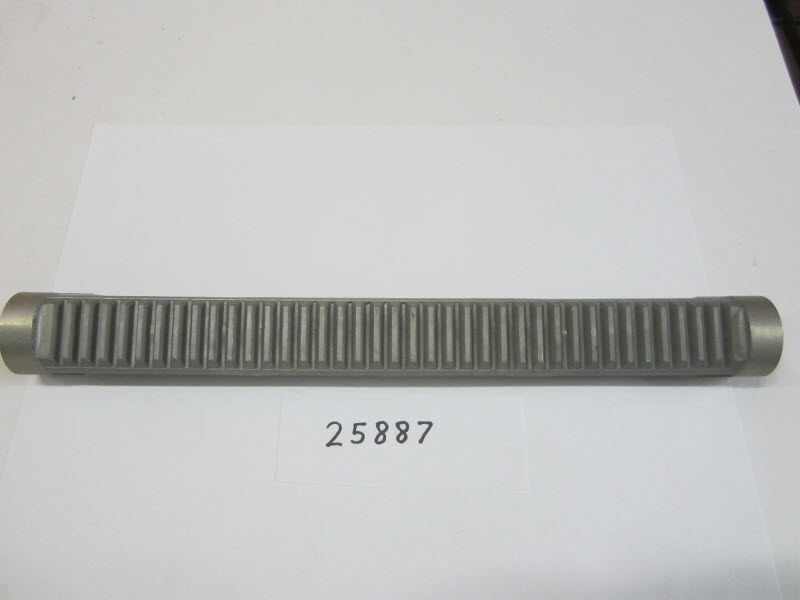

| #12 | 25887 | GUIDE, PUSH ROD-REVERSE LOCKING (1 required per assembly) |
  |
|
25887 - Rack, NLA [ More info ]
|
| #13 | 47591 | ROD, PUSH-REVERSE LOCK (SHORT SHAFT) (1 required per assembly) |
  |
|
47591 - Push Rod, NLA [ More info ]
|
| #13 | 47558 | ROD, PUSH-REVERSE LOCK (LONG SHAFT) (1 required per assembly) |
|
|
47558 - Push Rod, NLA [ More info ]
|
| #14 | 11-47661 | NUT, JAM-PUSH ROD (1 required per assembly) |
|
|
11-47661 - Nut, Jam [ More info ]
|
|
|
11-69254 - Nut, (3/4-24) [ More info ]
|
| #15 | 47559 | YOKE, PUSH ROD (1 required per assembly) |
  |
|
47559 - Push Rod [ More info ]
|
| #16 | 17-39023 | PIN, PUSH ROD TO REVERSE LOCK (1 required per assembly) |
|
|
17-39023 - Pin, Push Rod To Recerse Lock [ More info ]
|
|
|

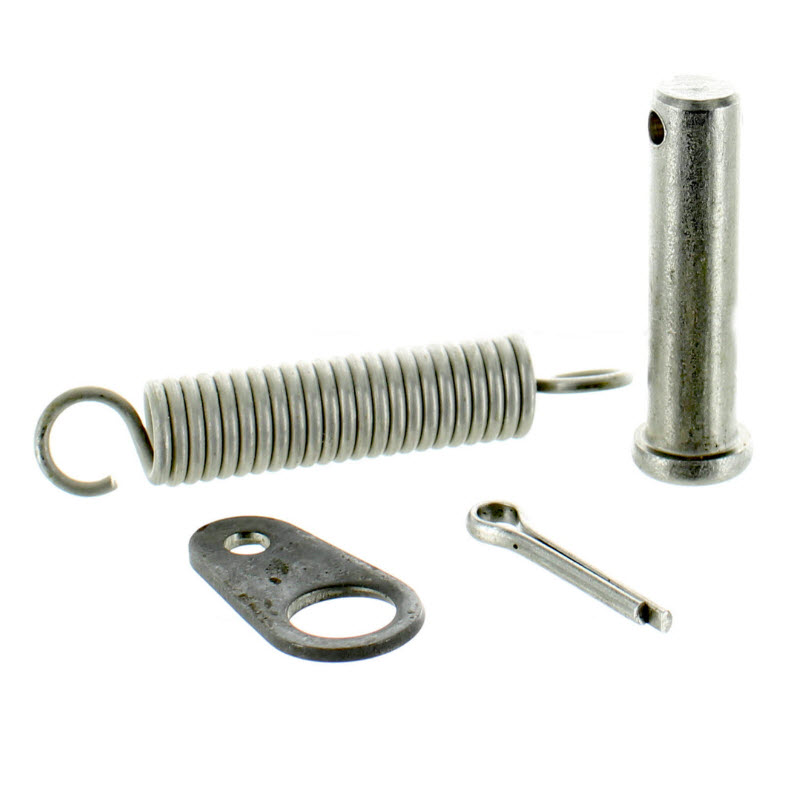

24-78203A1 - 24-78203A1 - ->78203A2 [ More info ] Unavailable Replaced by -78203A2 |
  |
|
24-78203A 2 - Pin & Spring Assembly, NLA [ More info ]
|
| #17 | 18-25191 | COTTER PIN, PUSH ROD PIN (1 required per assembly) |
|
|
18-25191 - Cotter Pin - Priced Individually [ More info ]
|
| #18 | 75297 | MOUNT, RUBBER-UPPER (SHORT SHAFT) (2 required per assembly) |
|
|
75297 - MOUNT NLA [ More info ] Unavailable |
| #18 | 75296 | MOUNT, RUBBER-UPPER (LONG SHAFT) (1 required per assembly) |
  |
|
|
| #19 | 12-47840 | WASHER, RUBBE5R-UPPER MOUNT BOLT (2 required per assembly) |
|
|
12-47840 - Washer, Rubber, NLA [ More info ]
|
| #20 | 12-31263 | WASHER, UPPER MOUNT BOLT (2 required per assembly) |
|
|
12-31263 - Washer - Priced Individually [ More info ]
|
| #21 | 11-34933 | NUT, UPPER MOUNT BOLT (2 required per assembly) |
  |
|
11-34933 - 11-34933 - NUT (.437-20) Sta [ More info ] Unavailable Replaced by -8M0204653 |
|
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ]
|
| #22 | 75300 | MOUNT, RUBBER-LOWER (SHORT SHAFT) (2 required per assembly) |
|
|
75300 - MOUNT NLA [ More info ] Unavailable |
| #22 | 75298 | MOUNT, RUBBER-LOWER (LONG SHAFT) (2 required per assembly) |
|
|
75298 - MOUNT NLA [ More info ] Unavailable |
| #23 | 10-49318 | SCREW, UPPER MOUNT (5 1/2") (2 required per assembly) |
|
|
10-49318 - 10-49318 - SCREW [ More info ] Unavailable Replaced by 10-75284 |
  |
|
10-75284 - Screw [ More info ]
|

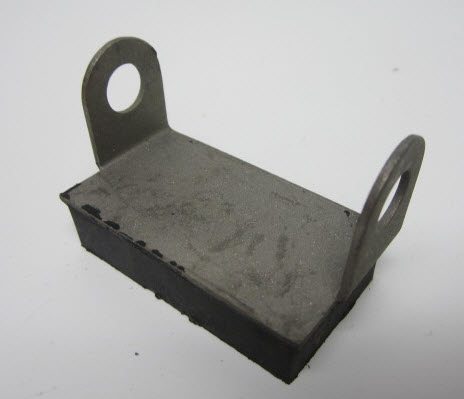

| #24 | 66336 | MOUNT, RUBBER-LOWER (SHORT SHAFT) (1 required per assembly) |
  |
|
66336 - BUMPER NLA [ More info ] Unavailable |
| #25 | 11-25096 | NUT, MOUNT SCREW (2 required per assembly) |
  |
|
11-25096 - Nut, Mount Screw [ More info ]
|
| #26 | 25067 | BUMPER, RUBBER-MOUNTIN SCREW (2 required per assembly) |
|
|
25067 - Bumper, NLA [ More info ]
|
| #28 | 12-45176 | WASHER (2 required per assembly) GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS |
  |
|
12-45176 - Washer, (.453 X .812 X .105) [ More info ]
|
| #29 | 11-29489 | NUT (1 required per assembly) GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS |
|
|
11-29489 - Nut, Gear Hosuing Studs [ More info ]
|
| #31 | 35608 | CLAMP (2 required per assembly) LOWER MOUNT TO DROVE SHAFT HOUSING |
  |
|
35608 - Lower Mount Clamp [ More info ]
|
| #32 | 24-35522 | SPRING, TENSION-LOWER MOUNT CLAMP (4 required per assembly) |
|
|
24-35522 - Spring Tension - Lower Mount Clamp,NLA [ More info ]
|
| #33 | 10-29256 | SCREW (4 required per assembly) LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8") |
  |
|
10-29256 - Screw - Priced Individually [ More info ]
|
| #34 | 35474 | COVER, LOWER MOUNT CLAMP (2 required per assembly) |
|
|
|
  |
|
35474T - COVER NLA [ More info ] Unavailable |
| #35 | 11-35521 | NUT, LOWER MOUNT CLAMP COVER (2 required per assembly) |
|
|
11-35521 - Nut - Priced Individually [ More info ]
|
| #36 | 10-29722 | SCREW, COVER TO LOWER CLAMP MOUNT (5/8") (2 required per assembly) |
|
|
10-29722 - Screw, NLA [ More info ]
|
