Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Clamp Bracket & Reverse Lock

Revise Search: All Models > 800 (4 Cylinder) , 80 (4 Cylinder) > 4831999 - 5582561 (USA) > Clamp Bracket & Reverse Lock

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

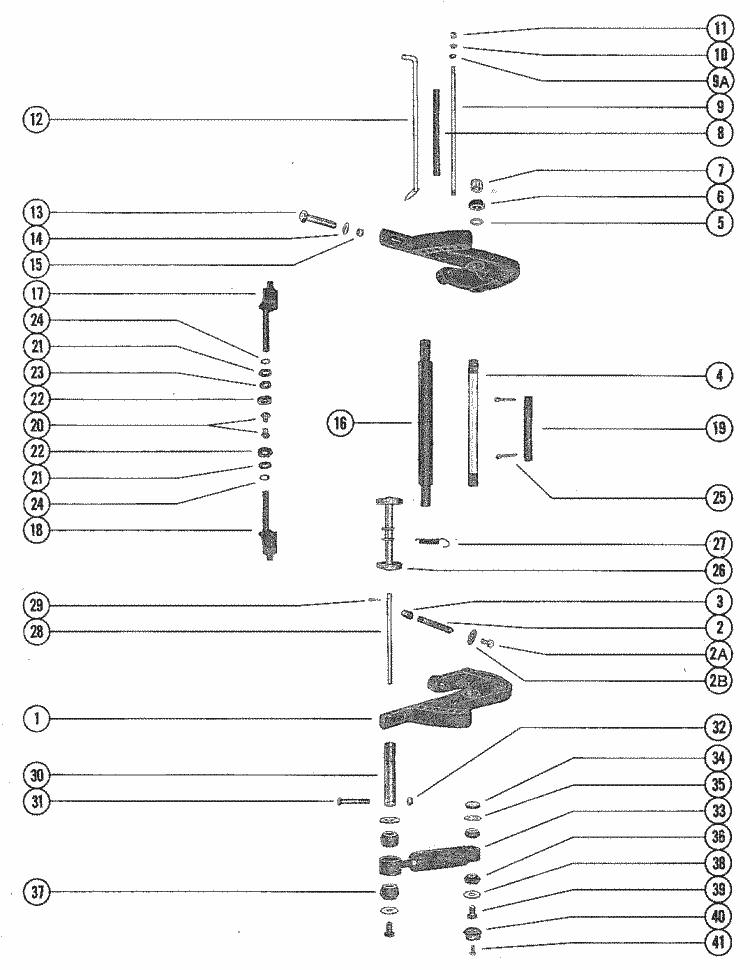

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	27-73645A76	GASKET SET
		27-73645A76 - 27-73645A76 - GASKET SET [ More info ] Unavailable Replaced by 27-73645A32
		27-73645A32 - 27-73645A32 - GASKET SET [ More info ] Unavailable Replaced by 27-73645A87
		27-73645A87 - GASKET SET [ More info ] Unavailable
#1	1440-6625A 3	CLAMP BRACKET ASSEMBLY (2 required per assembly)
		1440-6625A 3 - 1440-6625A 3 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-7374A 2
		1440-7374A 2 - 1440-7374A 2 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-8394A 1
		1440-8394A 1 - Clamp Bracket Assembly [ More info ] $65.00 2 In Stock.

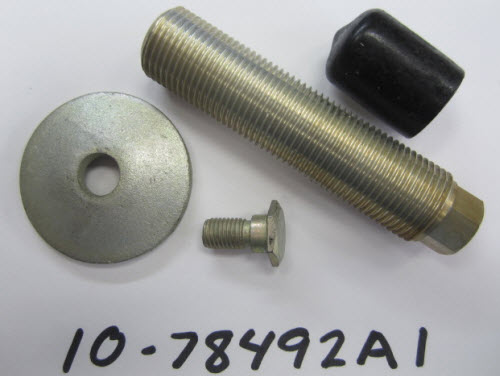

#2	10-78492A 1	THUMB SCREW ASSEMBLY (2 required per assembly)
		10-78492A 1 - Screw Assembly, NLA [ More info ] $32.00 5 In Stock.

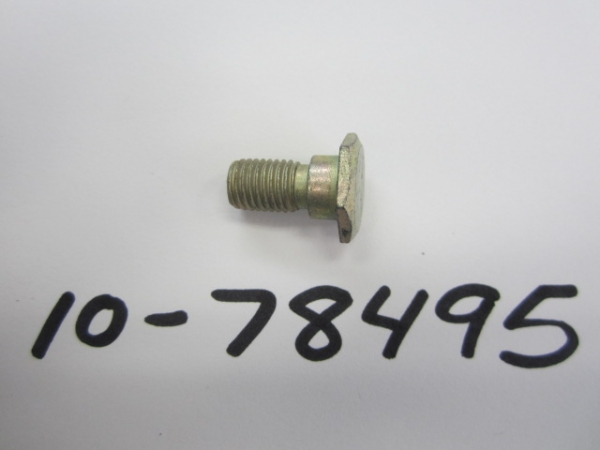

#2A	10-78495	SCREW, THUMB SCREW (2 required per assembly)
		10-78495 - Screw - Priced Individually [ More info ] $21.08 $5.06 10+ In Stock.

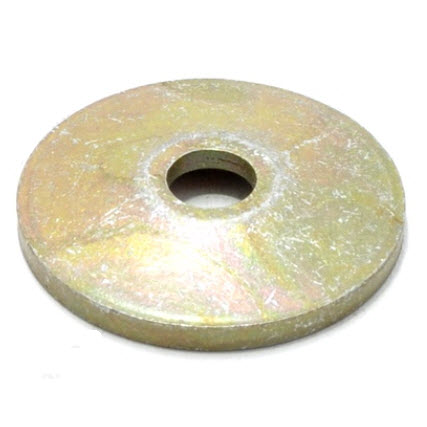

#2B	12-78493	WASHER, THUMB SCREW (2 required per assembly)
		12-78493 - Wahser, Thumb Screw, NLA [ More info ] $5.00 10+ In Stock.
#3	75043	COVER, THUMB SCREW (1 required per assembly)
		75043 - Cover [ More info ] $6.38 10+ In Stock.

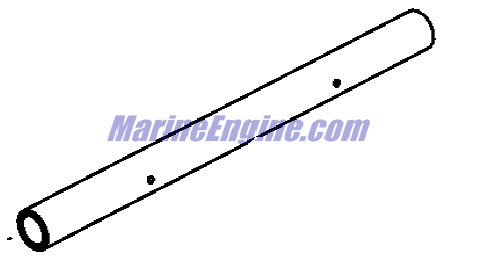

#4	74528	TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET (1 required per assembly)
		74528 - 74528 - TILT TUBE [ More info ] Unavailable Replaced by -883067
		883067 - 883067 - TILT TUBE [ More info ] Unavailable Replaced by -8M0035074
		8M0035074 - 8M0035074 - TILT TUBE [ More info ] Unavailable Replaced by -8M0041936
		8M0041936 - Tilt Tube [ More info ] $26.57 3 In Stock.
#5	12-52864	WASHER, CLAMP BRACKET TILT TUBE (2 required per assembly)
		12-52864 - Washer, Tilt Tube, NLA [ More info ] $3.69 10+ In Stock.
#6	11-56041	NUT, TILT TUBE FASTENING (2 required per assembly)
		11-56041 - 11-56041 - NUT (.875-14) [ More info ] Unavailable Replaced by 11-30499
		11-30499 - 11-30499 - NUT (7/8-14) [ More info ] Unavailable Replaced by 11-858869
		11-858869 - Nut, (.875-14) [ More info ] $4.80 10+ In Stock.
#7	53078	CAP, PLASTIC - TILT TUBE (2 required per assembly)
		53078 - Plastic Cap, NLA [ More info ] $7.99 10+ In Stock.
#8	23-59624	SPACER, CLAMP BRACKET STUD (1 required per assembly)
		23-59624 - Spacer - Clamp Bracket Stud [ More info ] $10.00 9 In Stock.
#9	16-59625	STUD, CLAMP BRACKET (1 required per assembly)
		16-59625 - Stud, NLA [ More info ] $19.50 2 In Stock.
#9A	12-36001	WASHER, CLAMP BRACKET STUD (1 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.40 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $0.74 $0.48 10+ In Stock.
#10	13-26993	LOCKWASHER, CLAMP BRACKET STUD (2 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $1.10 10+ In Stock.
		13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable
#11	11-28770	NUT, CLAMP BRACKET STUD (2 required per assembly)
		11-28770 - Nut (5/16-24) [ More info ] $3.50 10+ In Stock.
#12	17-49930A 1	TILT LOCK PIN ASSEMBLY (1 required per assembly)
		17-49930A 1 - 17-49930A 1 - PIN ASSEMBLY Tilt [ More info ] Unavailable Replaced by 17-8M0026068
		17-8M0026068 - Pin Assembly - Tilt [ More info ] $53.25 Available to Order: Usually ships within 10 days.
#13	10-68298	BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4") (2 required per assembly)
		10-68298 - Screw, NLA [ More info ] $7.88 10+ In Stock.
#14	12-68410	WASHER, CLAMP BRACKET BOLT (2 required per assembly)
		12-68410 - Washer, NLA [ More info ] $2.99 10+ In Stock.
#13	10-68299	BOLT, CLAMP BRACKET TO TRANSOM (3") (2 required per assembly)
		10-68299 - Screw - Priced Individually [ More info ] $6.70 $3.76 10+ In Stock.
#14	12-68300	WASHER, CLAMP BRACKET BOLT (2 required per assembly)
		12-68300 - Washer, (..88 X .39 X .06) [ More info ] $3.99 10+ In Stock.
#15	11-68411	NUT, CLAMP BRACKET BOLT (4 required per assembly)
		11-68411 - Nut (3/8-16) [ More info ] $5.99 10+ In Stock.
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.50 10+ In Stock.
#16	55-28416	PIN, UPPER SHOCK MOUNTING (1 required per assembly)
		55-28416 - Upper Shock Pin, NLA [ More info ] $39.99 10+ In Stock.
#19	47802	TUBE, TILT LOCK (SHORT SHAFT) (1 required per assembly)
		47802 - Tube, NLA [ More info ] $23.99 2 In Stock.
#20	23-47803	BUSHING, TILT LOCK TUBE (SHORT SHAFT) (2 required per assembly)
		23-47803 - Bushing, NLA [ More info ] $4.00 10+ In Stock.
#21	13-69150	WASHER, WAVE-TILT LOCK TUBE (SHORT SHAFT) (2 required per assembly)
		13-69150 - Wave Washer - Priced Individually [ More info ] $3.70 10+ In Stock.
#17	76386	TILT LOCK ASSEMBLY, STARBOARD (1 required per assembly)
		76386 - Tilt Lock, Starboard [ More info ] $48.99 10+ In Stock.
#18	76385	TILT LOCK ASSEMBLY, PORT (1 required per assembly)
		76385 - Lever [ More info ] $23.99 2 In Stock.
		76385T - Lever [ More info ] $20.00 10+ In Stock.

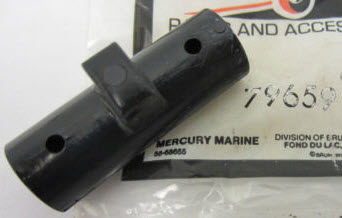

#19	76387	TUBE, TILT LOCK (LONG SHAFT) (1 required per assembly)
		76387 - Coupling [ More info ] $2.50 10+ In Stock.
		79659 - Tilt Lock Coupling, NLA [ More info ] $17.99 10 In Stock.
#22	26-22734	OIL SEAL (2 required per assembly) SWIVEL BRACKET (TILT LOCK) -LONG SHAFT
		26-22734 - SEAL Oil NLA [ More info ] Unavailable
#23	12-76388	WASHER (3 required per assembly) TILT LOCK (STARBOARD SIDE ONLY) -LONG SHAFT
		12-76388 - Washer, Tilt Lock (starboar Side Only), NLA [ More info ] $9.99 10+ In Stock.
#24	25-62702	"O" RING, TILT LOCK (LONG SHAFT) (2 required per assembly)
		25-62702 - 25-62702 - O-RING (.301 x .0 [ More info ] Unavailable Replaced by 25-627021
		25-62702 1 - O-Ring [ More info ] $1.60 4 In Stock.
		18-7413-9 - O-Ring (PK5) 25-62702, 303191 [ More info ] $4.49 2 In Stock.
#25	18-47959	COTTER PIN, TILT LOCK (2 required per assembly)
		18-47959 - Cotter Pin - Priced Individually [ More info ] $2.90 10+ In Stock.
#26	70692	REVERSE LOCK ASSEMBLY (2 required per assembly)
		70692 - 70692 - HOOK [ More info ] Unavailable Replaced by -87431
		87431 - LOCK ASSEMBLY Rev NLA [ More info ] Unavailable
#27	24-29821	SPRING, REVERSE LOCK (SHORT SHAFT) (1 required per assembly)
		24-29821 - Spring, Reverse Lock Tension,NLA [ More info ] $6.99 10+ In Stock.
#27	24-78203A 1	SPRING ASSEMBLY, REVERSE LOCK (LONG SHAFT) (1 required per assembly)
		24-78203A 1 - 24-78203A 1 - SPRING [ More info ] Unavailable Replaced by 24-78203A 2
		24-78203A 2 - Pin & Spring Assembly, NLA [ More info ] $24.20 10+ In Stock.
#28	56349	SHAFT, REVERSE LOCK PIVOT (1 required per assembly)
		56349 - Shaft, NLA [ More info ] $35.20 10+ In Stock.
#29	18-45882	COTTER PIN, REVERSE LOCK TO SHAFT (1 required per assembly)
		18-45882 - Cotter Pin - Priced Individually [ More info ] $2.72 Available to Order: Usually ships within 10 days.
#30	55-65447	PIN, LOCK SHOCK MOUNTING (SHORT SHAFT) (2 required per assembly)
		55-65447 - 55-65447 - PIN [ More info ] Unavailable Replaced by 55-69653
		55-69653 - 55-69653 - PIN [ More info ] Unavailable Replaced by 55-696531
		55-696531 - PIN NLA [ More info ] Unavailable
#30	55-28414	PIN, LOWER SHOCK MOUNTING (LONG SHAFT) (2 required per assembly)
		55-28414 - Shock Pin, NLA [ More info ] $20.00 2 In Stock.

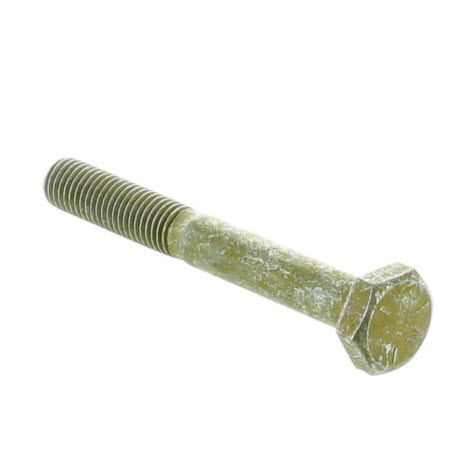

#31	10-21937	SCREW, LOWER SHOCK PIN (2") (LONG SHAFT) (2 required per assembly)
		10-21937 - Screw - Priced Individually [ More info ] $1.25 10+ In Stock.
#32	11-46887	NUT, LOWER SHOCK PIN SCREW (LONG SHAFT) (2 required per assembly)
		11-46887 - 11-46887 - NUT (1/4-28) [ More info ] Unavailable Replaced by 11-20184
		11-20184 - Nut, (1/4-28x7/32) [ More info ] $1.50 10+ In Stock.
		118M0207775 - NUT Note: Priced Individually [ More info ] $9.30 Available to Order: Usually ships within 10 days.
#33	55-58780A 2	SHOCK ABSORBER (2 required per assembly)
		55-58780A 2 - Shock Absorber [ More info ] $139.99 4 In Stock.
		55-58780A 3 - 55-58780A 3 - SHOCK ABSORBER ME [ More info ] Unavailable Replaced by 55-58780A 7
		55-58780A 7 - SHOCK ABSORBER NLA [ More info ] Unavailable

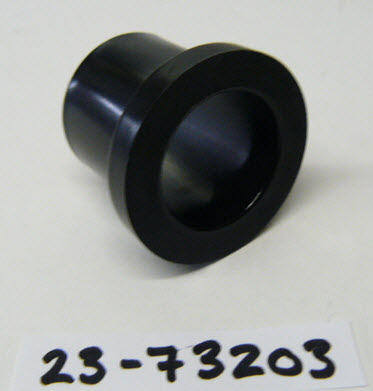

#34	23-73203	SPACER (2 required per assembly) UPPER SHOCK BUSHING TO CLAMP BRACKET
		23-73203 - Bushing, NLA [ More info ] $17.99 10+ In Stock.
#35	12-28196	WASHER, UPPER BUSHING RETAINER (INNER) (2 required per assembly)
		12-28196 - Washer, Upper Bushing Reainer(inner), NLA [ More info ] $1.25 10+ In Stock.
#36	23-32171	BUSHING, RUBBER-SHOCK ABSORBER (UPPER) (4 required per assembly)
		23-32171 - Bushing, NLA [ More info ] $11.99 10+ In Stock.
#37	23-28198	BUSHING, RUBBER-SHOCK ABSORBER (LOWER) (4 required per assembly)
		23-28198 - BUSHING NLA [ More info ] Unavailable
#38	12-69374	WASHER (4 required per assembly) UPPER/LOWER SHOCK MOUNTING PIN (LOWER)
		12-69374 - Washer [ More info ] $2.29 10+ In Stock.
#39	10-69375	SCREW (4 required per assembly) UPPER AND LOWER SHOCK MOUNTING PIN
		10-69375 - Screw, NLA [ More info ] $4.99 10+ In Stock.
#40	23-69132	BUSHING PIVOT SHAFT (2 required per assembly)
		23-69132 - Bushing, NLA [ More info ] $6.60 10+ In Stock.
