Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Carburetor Linkage

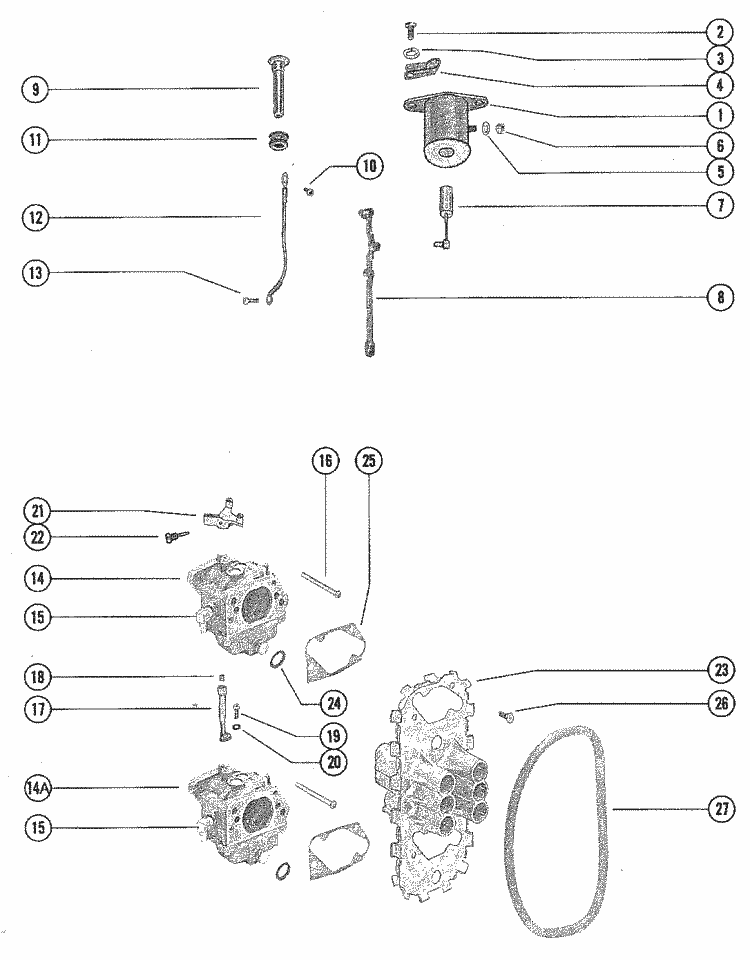

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-73645A76 | GASKET SET |
 |
|
27-73645A76 - 27-73645A76 - GASKET SET [ More info ] Unavailable Replaced by 27-73645A32 |
|
|
27-73645A32 - 27-73645A32 - GASKET SET [ More info ] Unavailable Replaced by 27-73645A87 |
  |
|
27-73645A87 - GASKET SET [ More info ] Unavailable |
| #1 | 54293A 4 | CHOKE SOLENOID ASSEMBLY (1 required per assembly) |
|
|
54293A 4 - 54293A 4 - SOLENOID ASSEMBLY [ More info ] Unavailable Replaced by -54293A10 |
|
|
54293A10 - SOLENOID ASSEMBLY NLA [ More info ] Unavailable |
  |
|
SW926 - Solenoid, 54293A13 [ More info ]
|
| #2 | 10-59645 | SCREW (2 required per assembly) CHOKE SOLENOID TO F RON BRACKET (3/4") |
|
|
10-59645 - 10-59645 - SCREW (.312-18 x [ More info ] Unavailable Replaced by 10-824941 |
  |
|
10-824941 - Screw [ More info ]
|
| #3 | 13-26993 | LOCKWASHER, CHOKE SOLENOID SCREW (2 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
|
|
13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable |
| #4 | 54-52905 | CLAMP, HARNESS - CHOKE SOLENOID SCREW (1 required per assembly) |
|
|
54-52905 - Clamp [ More info ]
|
| #5 | 13-26996 | LOCKWASHER, CHOKE SOLENOID TERMINAL (1 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #6 | 11-68219 | NUT, CHOKE SOLENOID TERMINAL (1 required per assembly) |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #7 | 56074A 9 | PLUNGER AND LINK ASSEMBLY (1 required per assembly) |
|
|
56074A 9 - 56074A 9 - PLUNGER ASSY [ More info ] Unavailable Replaced by -89008A 2 |
  |
|
89008A 2 - PLUNGER ASSEMBLY [ More info ] Unavailable |
| #8 | 73400 | CHOKE ROD (1 required per assembly) |
|
|
73400 - ROD Choke NLA [ More info ] Unavailable |
| #9 | 73755A 1 | CHOKE KNOB ASSEMBLY (1 required per assembly) |
|
|
73755A 1 - 73755A 1 - KNOB [ More info ] Unavailable Replaced by -88097A 1 |
  |
|
88097A 1 - 88097A 1 - KNOB ASSY [ More info ] Unavailable Replaced by -90242A 1 |
  |
|
90242A 1 - KNOB ASSEMBLY NLA [ More info ] Unavailable |
| #10 | 10-76196 | SCREW, WIRE TO CHOKE KNOB (1 required per assembly) |
|
|
10-76196 - 10-76196 - SCREW [ More info ] Unavailable Replaced by 10-77137 |
  |
|
10-77137 - Screw [ More info ]
|
| #11 | 25-20116 | GROMMET, CHOKE KNOB (1 required per assembly) |
  |
|
25-20116 - Grommet - Priced Individually [ More info ]
|
| #12 | 84-74263 | WIRE, CHOKE KNOB TO CHOKE ROB (BLACK) (1 required per assembly) |
  |
|
84-74263 - Wire, NLA [ More info ]
|
| #13 | 10-62568 | SCREW, WIRE TO CHOKE ROD (1 required per assembly) |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #14 | 1379-6071A10 | CARBURETOR ASSEMBLY (TOP) (1 required per assembly) |
|
|
1379-6071A10 - 1379-6071A10 - CARBURETOR [ More info ] Unavailable Replaced by 1379-6071A26 |
|
|
1379-6071A26 - 1379-6071A26 - CARBURETOR [ More info ] Unavailable Replaced by 1379-6071A32 |
|
|
1379-6071A32 - 1379-6071A32 - CARBURETOR ASSEMB [ More info ] Unavailable Replaced by 1379-6071A41 |
  |
|
1379-6071A41 - 1379-6071A41 - CARBURETOR ASSEMB [ More info ] Unavailable Replaced by 1379-6071A57 |
|
|
1379-6071A57 - CARBURETOR NLA [ More info ] Unavailable |
| #14A | 1379-6071A11 | CARBURETOR ASSEMBLY (BOTTOM) (1 required per assembly) |
|
|
1379-6071A11 - 1379-6071A11 - CARBURETOR [ More info ] Unavailable Replaced by 1379-6071A27 |
|
|
1379-6071A27 - 1379-6071A27 - CARBURETOR [ More info ] Unavailable Replaced by 1379-6071A33 |
|
|
1379-6071A33 - 1379-6071A33 - CARBURETOR ASSEMB [ More info ] Unavailable Replaced by 1379-6071A42 |
  |
|
1379-6071A42 - 1379-6071A42 - CARBURETOR ASSEMB [ More info ] Unavailable Replaced by 1379-6071A58 |
|
|
1379-6071A58 - CARBURETOR NLA [ More info ] Unavailable |
| #15 | 22-64704 | ELBOW, CARBURETOR (2 required per assembly) |
|
|
22-64704 - 22-64704 - FITTING [ More info ] Unavailable Replaced by 22-19688 |
  |
|
22-19688 - FITTING NLA [ More info ] Unavailable |
| #16 | 10-52743 | SCREW, CARBURETOR TO CRANKCASE (3 3/4") (4 required per assembly) |
  |
|
10-52743 - Screw [ More info ]
|
| #17 | 53720A 2 | COUPLING ASSEMBLY (LOWER CARBURETOR) (1 required per assembly) |
  |
|
53720A 2 - Coupling, NLA [ More info ]
|
| #18 | 53665 | INSERT, COUPLING (1 required per assembly) |
|
|
53665 - 53665 - INSERT [ More info ] Unavailable Replaced by 28-89694 |
  |
|
|
| #19 | 10-66104 | SCREW, COUPLING TO CARBURETOR (3/4") (1 required per assembly) |
  |
|
10-66104 - Screw - Priced Individually [ More info ]
|
| #20 | 12-74726 | WASHER, COUPLING SCREW (1 required per assembly) |
|
|
12-74726 - Washer, NLA [ More info ]
|
| #21 | 73847 | ACTUATOR, THROTTLE (UPPER CARBURETOR) (1 required per assembly) |
|
|
73847 - Throttle Actuator, NLA [ More info ]
|
| #22 | 10-60293 | SCREW, ACTUATOR TO UPPER CARBURETOR (1/2") (1 required per assembly) |
|
|
10-60293 - Screw, NLA [ More info ]
|
| #23 | 73408 | PLATE, CARBURETOR (1 required per assembly) |
|
|
73408 - PLATE NLA [ More info ] Unavailable |
| #24 | 27-73398 | GASKET, CARBURETOR PLATE (2 required per assembly) |
  |
|
27-73398 - Carburetor Plate Gasket [ More info ]
|
| #25 | 27-76952 | GASKET, CARBURETOR PLATE TO CARBURETOR (2 required per assembly) |
  |
|
27-76952 - Carburetor Plate To Carburetor Gasket [ More info ]
|
| #26 | 10-28635 | SCREW, PLATE TO CAR BURETOR (5/8") (4 required per assembly) |
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
| #27 | 73647 | SEAL, CARBURETOR PLATE (1 required per assembly) |
|
|
73647 - SEAL NLA [ More info ] Unavailable |
