Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Gear Housing Assembly, Complete (Continued)

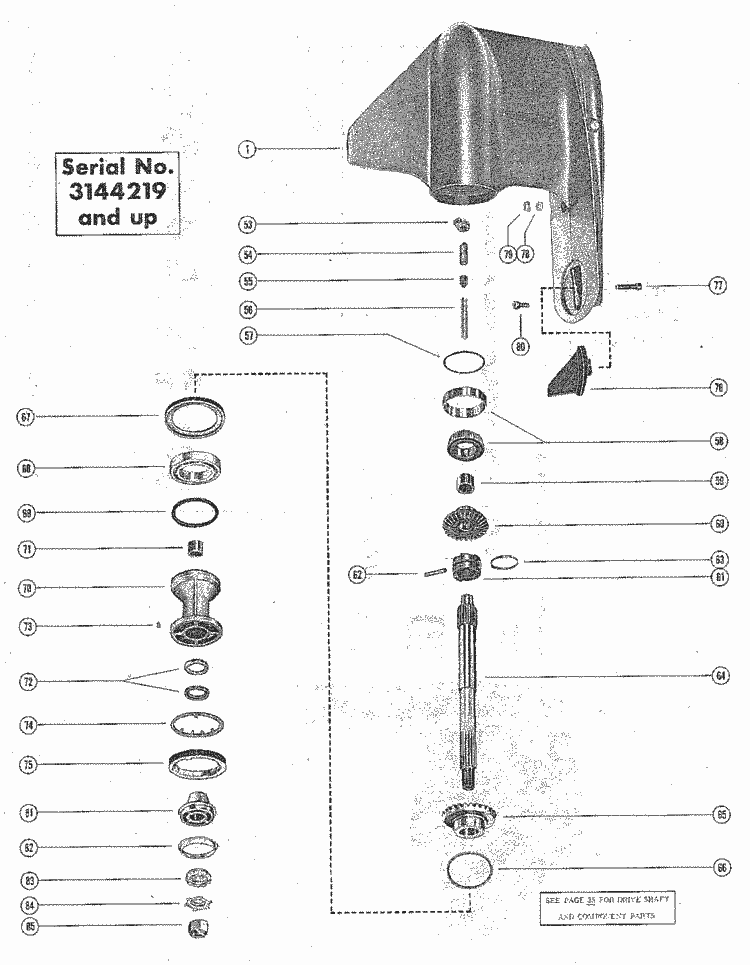

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 1623-4021A 4 | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) (1 required per assembly) A-1623-4021A4 AND A-1623-4021A5 GEAR HOUSING ASSEMBLIES COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 35 AND 38 |
 |
|
1623-4021A 4 - 1623-4021A 4 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-5246A 5 |
|
|
1623-5246A 5 - 1623-5246A 5 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-5246A12 |
|
|
1623-5246A12 - 1623-5246A12 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-5892A3 |
|
|
1623-5892A3 - 1623-5892A3 - ->6047A2 [ More info ] Unavailable Replaced by -6047A2 |
|
|
1623-6047A2 - 1623-6047A2 - ->6048A7 [ More info ] Unavailable Replaced by -6048A7 |
|
|
1623-6048A7 - 1623-6048A7 - ->7339A2 [ More info ] Unavailable Replaced by -7339A2 |
|
|
1623-7339A2 - GEAR HOUSING ASSY NLA [ More info ] Unavailable |
| # | 1623-4021A 5 | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) (1 required per assembly) A-1623-4021A4 AND A-1623-4021A5 GEAR HOUSING ASSEMBLIES COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #1 THRU #78 AS LISTED ON PAGES 35 AND 38 |
|
|
1623-4021A 5 - 1623-4021A 5 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-5246A 6 |
|
|
1623-5246A 6 - 1623-5246A 6 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-5246A13 |
|
|
1623-5246A13 - 1623-5246A13 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-5892A4 |
|
|
1623-5892A4 - 1623-5892A4 - ->6052A3 [ More info ] Unavailable Replaced by -6052A3 |
|
|
1623-6052A3 - 1623-6052A3 - ->6053A13 [ More info ] Unavailable Replaced by -6053A13 |
|
|
1623-6053A13 - 1623-6053A13 - GEAR HOUSING [ More info ] Unavailable Replaced by 1623-6053A23 |
|
|
1623-6053A23 - 1623-6053A23 - GEAR HOUSING [ More info ] Unavailable Replaced by 1655-7333A25 |
|
|
1655-7333A25 - GEAR HOUSING ASSE NLA [ More info ] Unavailable |
| #1 | 1623-4021A 6 | GEAR HOUSING ASSEMBLY - SEE PAGE 35 FOR BREAKDOWN (1 required per assembly) |
|
|
1623-4021A 6 - 1623-4021A 6 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-5246A 7 |
|
|
1623-5246A 7 - 1623-5246A 7 - GEAR HSG ASSY [ More info ] Unavailable Replaced by 1623-5892A 5 |
|
|
1623-5892A 5 - 1623-5892A 5 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-6052A 4 |
|
|
1623-6052A 4 - GEAR HOUSING NLA [ More info ] Unavailable |
| #53 | 54346 | CAM, SHIFT (1 required per assembly) |
|
|
54346 - 54346 - CAM [ More info ] Unavailable Replaced by -76039 |
  |
|
76039 - 76039 - CAM Shift Control [ More info ] Unavailable Replaced by -760394 |
  |
|

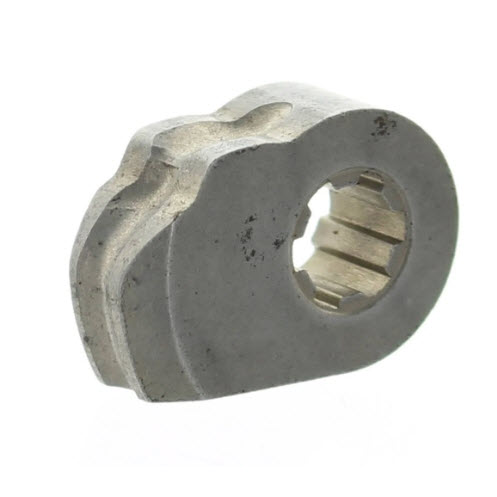

76039 4 - Shift Cam - Priced Individually [ More info ]
|

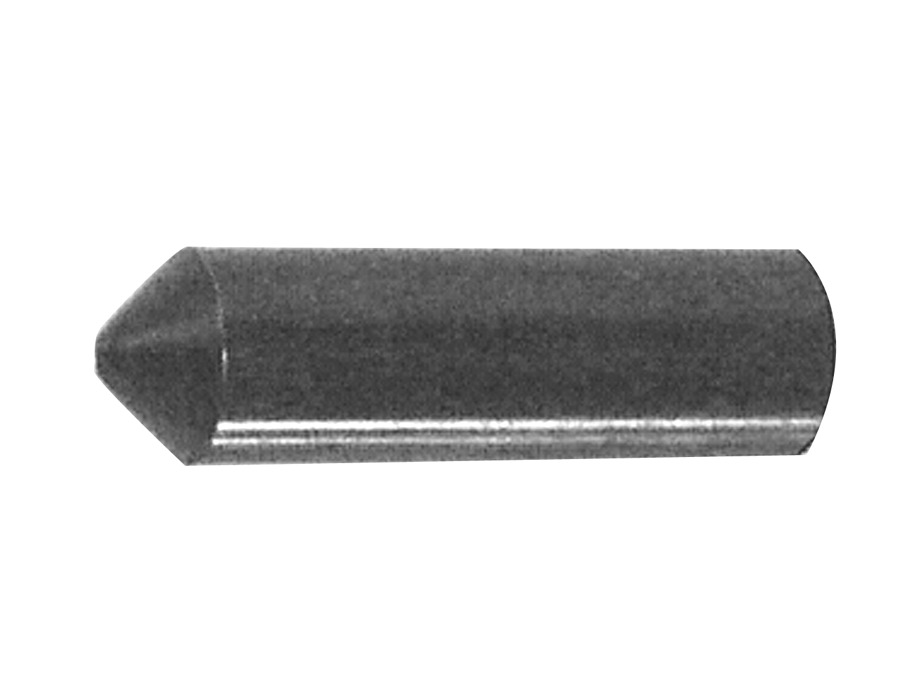

| #54 | 30625 | FOLLOWER, CAM (1 required per assembly) |
  |
|
30625 - Cam Follower [ More info ]
|
| #55 | 30624 | SLIDE, CROSS PIN (1 required per assembly) |
  |
|
30624 - Slide, NLA [ More info ]
|

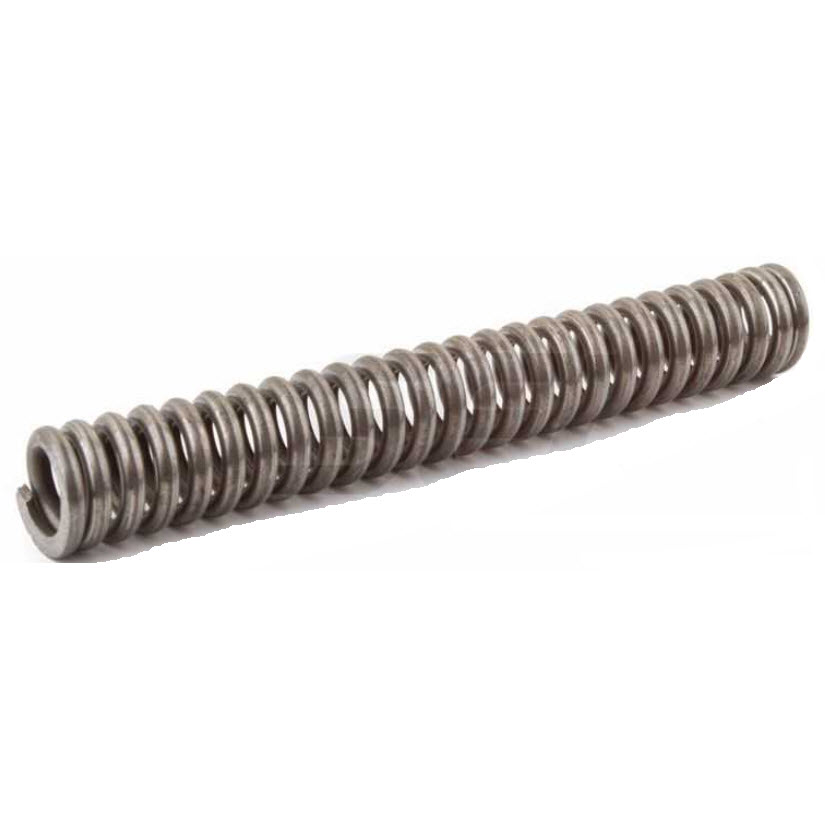

| #56 | 24-30622 | SPRING, COMPRESSION - CAM FOLLOWER (1 required per assembly) |
  |
|
24-30622 - Spring, Cam Follower [ More info ]
|

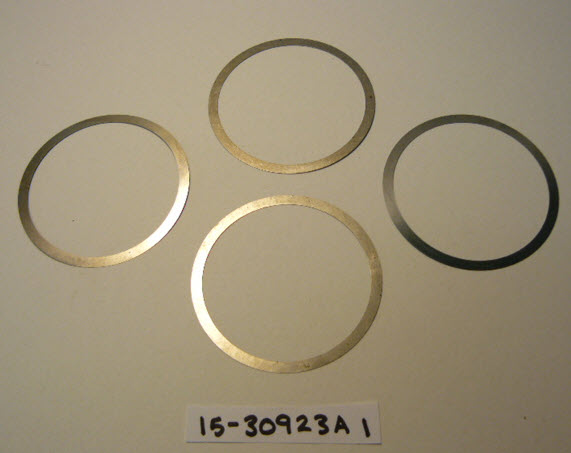

| #57 | 15-30923A 1 | SHIM, BEARING OUTER RACE TO GEAR HOUSING (AR required per assembly) |
  |
|
15-30923A 1 - SHIM NLA [ More info ] Unavailable |
| #58 | 31-30894A 1 | TAPERED ROLLER BEARING ASSEMBLY (1 required per assembly) |
  |
|
31-30894A 1 - BEARING SET Cup A [ More info ] Unavailable |
  |
|
18-1156 - Bearing 31-30894A1 [ More info ]
|

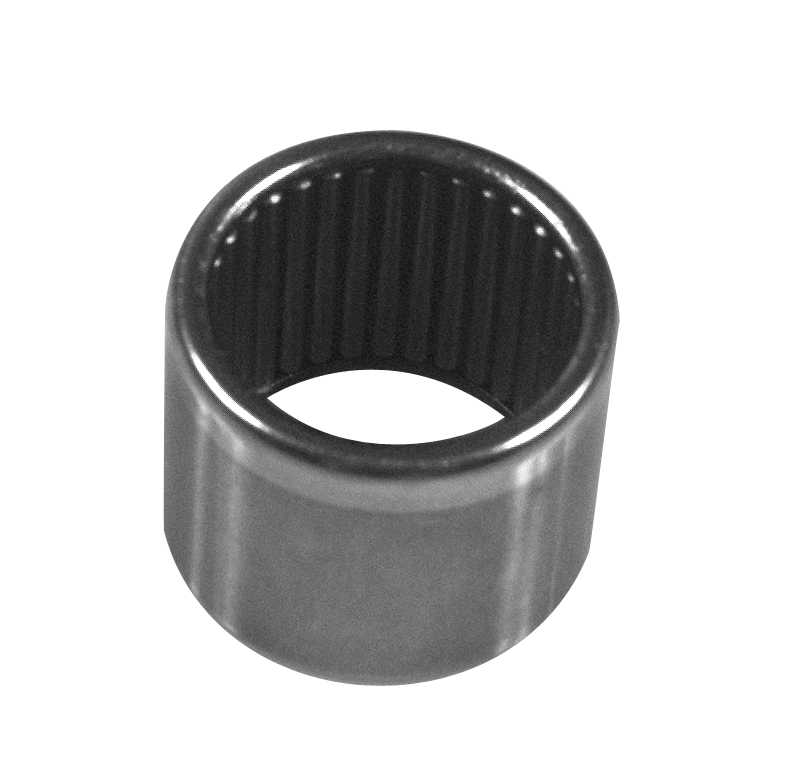

| #59 | 31-30895 | BEARING, ROLLER - FORWARD GEAR (1 required per assembly) |
  |
|
31-30895 - Roller Bearing -Forward Gear [ More info ]
|
  |
|
31-30895T - Bearing - Roller [ More info ]
|
  |
|
18-1157 - Bearing 31-30895 [ More info ]
|
| #60 | 43-56517 | FORWARD GEAR ASSEMBLY (1 required per assembly) |
|
|
43-56517 - 43-56517 - GEAR-FORWARD [ More info ] Unavailable Replaced by 43-56517A3 |
|
|
43-56517A 3 - Forward Gear [ More info ]
|
|
|
43-56517T3 - GEAR ASSY-FORWARD NLA [ More info ] Unavailable |

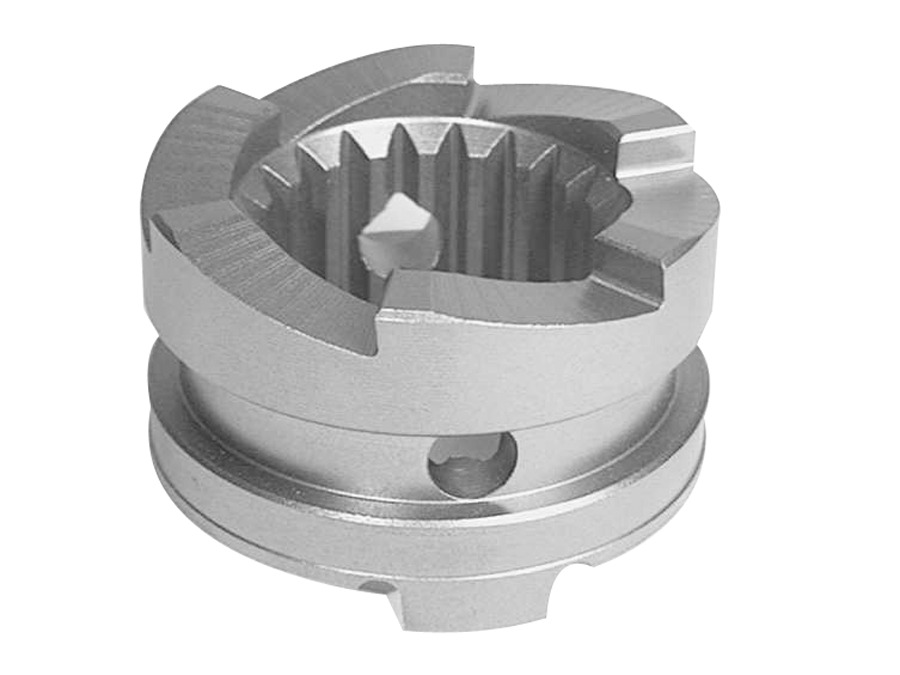

| #61 | 52-34239 | RATCHET, SLIDING CLUTCH (1 required per assembly) |
  |
|
52-34239 - 52-34239 - RATCHET [ More info ] Unavailable Replaced by 52-12777 |
  |
|
52-12777 - 52-12777 - RATCHET [ More info ] Unavailable Replaced by 52-814756 |
  |
|
52-814756 - 52-814756 - CLUTCH [ More info ] Unavailable Replaced by 52-822539 |
  |
|
52-822539 - 52-822539 - CLUTCH [ More info ] Unavailable Replaced by 52-822539T |
  |
|
52-822539T - Clutch [ More info ]
|
  |
|
18-2236 - Clutch Dog 52-822539T [ More info ]
|
| #62 | 17-30632 | PIN, CROSS - RATCHET TO PROPELLAR SHAFT (1 required per assembly) |
  |
|
17-30632 - Pin - Cross - Priced Individually [ More info ]
|
  |
|
17-8M0020941 - 17-8M0020941 - PIN Cross [ More info ] Unavailable Replaced by 17-8M0084681 |
  |
|
17-8M0084681 - 17-8M0084681 - PIN Cross [ More info ] Unavailable Replaced by 17-8M0100263 |
  |
|
17-8M0100263 - Pin - Priced Individually [ More info ]
|
| #63 | 24-30893 | SPRING, RETAINING - CROSS PIN (1 required per assembly) |
  |
|
24-30893 - Spring, Reatiner - Cross Pin [ More info ]
|
  |
|
18-2348 - Spring, 24-30893 [ More info ]
|

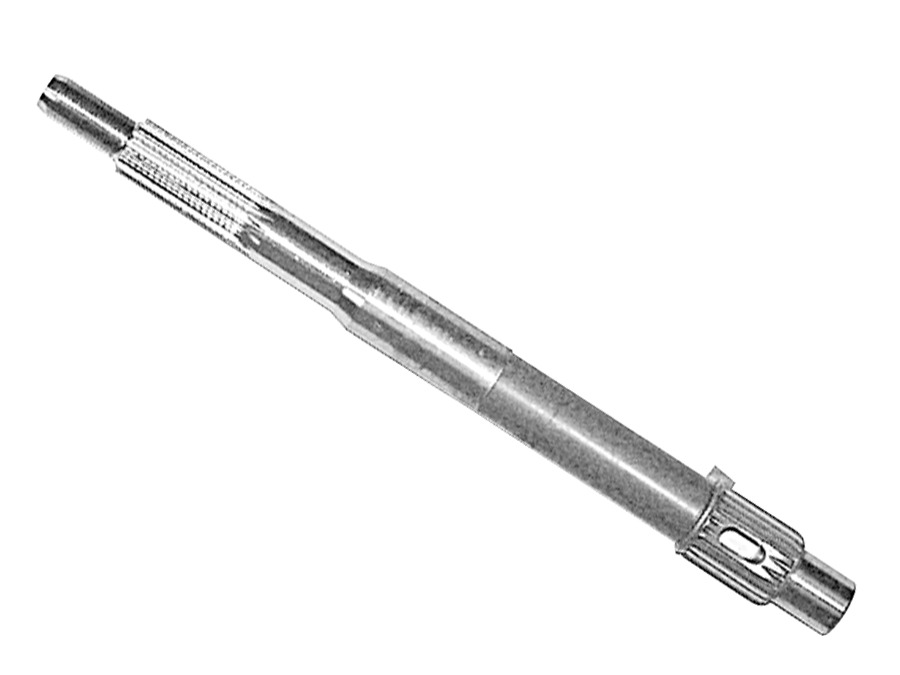

| #64 | 44-52542 | SHAFT, PROPELLER (1 required per assembly) |
|
|
44-52542 - 44-52542 - PROPELLER SHAFT [ More info ] Unavailable Replaced by 44-93003 |
  |
|
44-93003 - Prop Shaft [ More info ]
|

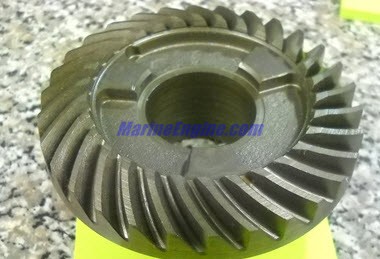

| #65 | 43-56516 | REVERSE GEAR ASSEMBLY (1 required per assembly) |
|
|
43-56516 - Reverse Gear [ More info ]
|
  |
|
43-56516T - GEAR-REVERSE NLA [ More info ] Unavailable |

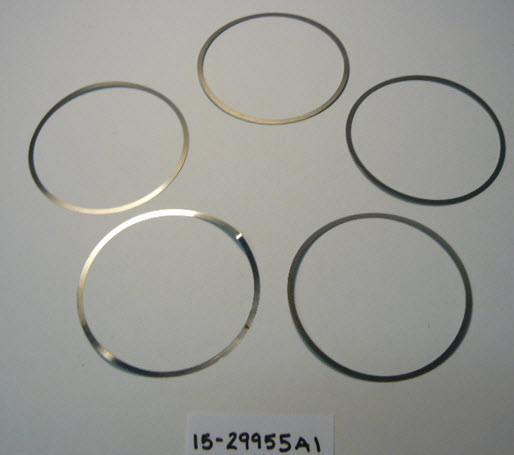

| #66 | 15-29955A 1 | SHIM, THRUST WASHER TO GEAR HOUSING (AR required per assembly) |
  |
|
15-29955A 1 - Shim Set [ More info ]
|
| #67 | 12-30633 | WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING (1 required per assembly) |
|
|
12-30633 - 12-30633 - WASHER [ More info ] Unavailable Replaced by 12-65679 |
|
|
12-65679 - 12-65679 - WASHER @4 [ More info ] Unavailable Replaced by 12-65679A1 |
|
|
12-65679A1 - 12-65679A1 - ->71143A1 [ More info ] Unavailable Replaced by -71143A1 |
|
|
12-71143A1 - WASHER NLA [ More info ] Unavailable |

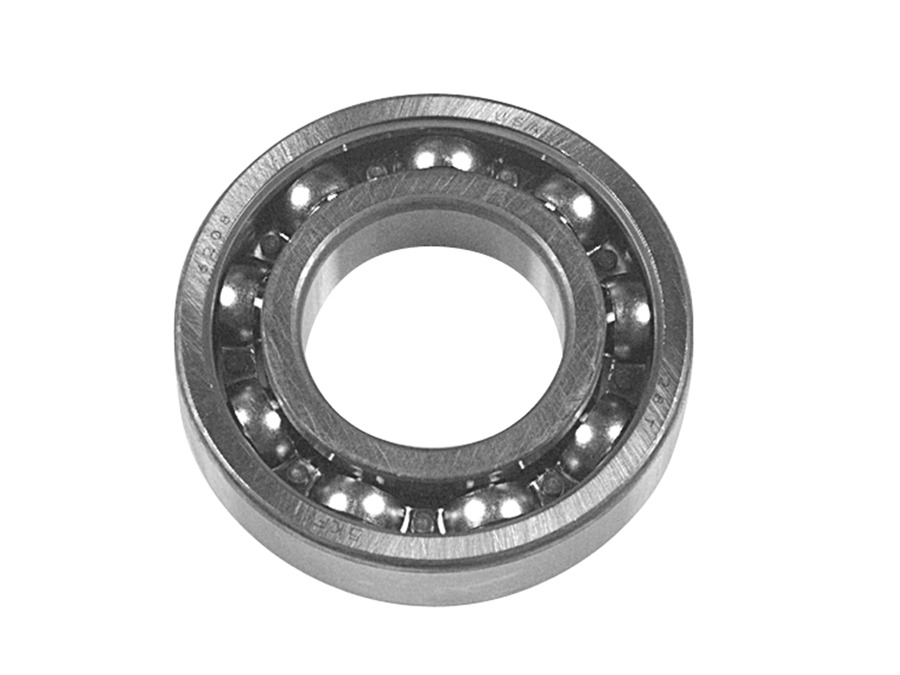

| #68 | 30-31265 | BEARING, BALL - REVERSE GEAR (1 required per assembly) |
  |
|
30-31265 - Ball Bearing [ More info ]
|

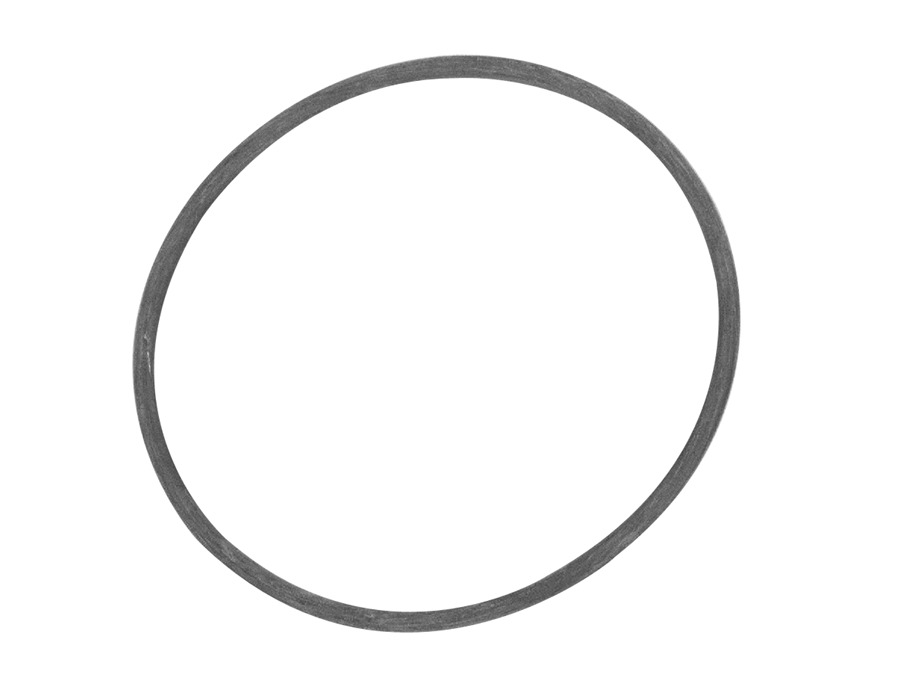

| #69 | 25-29976 | "O" RING, BEARING CARRIER (1 required per assembly) |
  |
|
25-29976 - O-Ring, Bearing Carrier [ More info ]
|
  |
|
18-7157 - O-Ring 25-29976 [ More info ]
|

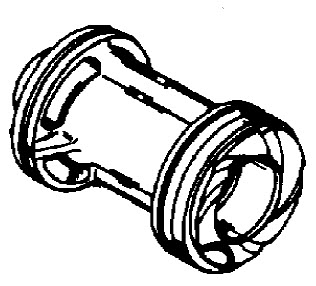

| #70 | 52132A 1 | BEARING CARRIER ASSEMBLY (1 required per assembly) |
  |
|
52132A 1 - Carrier Assembly [ More info ]
|
  |
|
52132T 1 - CARRIER ASSY NLA [ More info ] Unavailable |

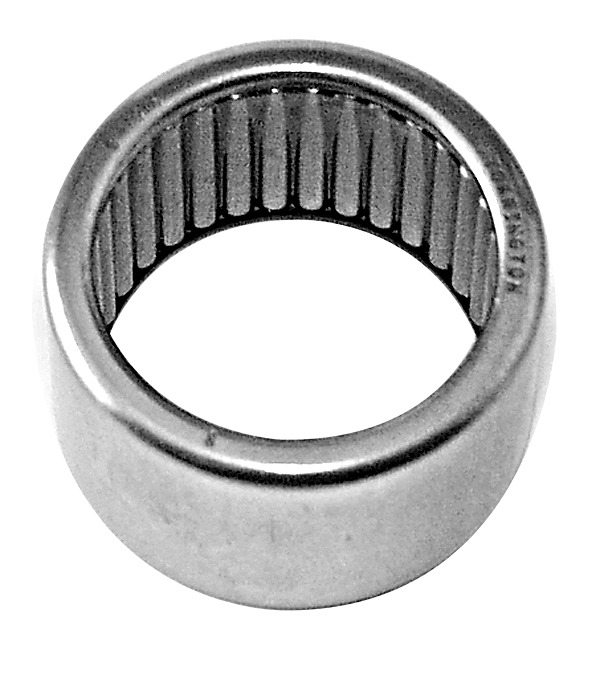

| #71 | 31-30956 | BEARING, ROLLER - BEARING CARRIER (1 required per assembly) |
  |
|
31-30956 - 31-30956 - BEARING Needle [ More info ] Unavailable Replaced by 31-30956T |
  |
|
31-30956T - Roller Bearing [ More info ]
|
  |
|
18-1158 - Bearing 31-30956, 387247 [ More info ]
|
| #72 | 26-30550 | OIL SEAL, BEARING CARRIER (2 required per assembly) |
|
|
26-30550 - 26-30550 - SEAL @5 [ More info ] Unavailable Replaced by 26-76868 |
  |
|
26-76868 - 26-76868 - SEAL [ More info ] Unavailable Replaced by -8M0204670 |
  |
|
26-8M0204670 - Gearcase Seal, Priced Individually E/J O/B [ More info ]
|
  |
|
18-2002 - Seal 26-76868, 320862 [ More info ]
|
| #73 | 28-30281 | KEY, LOCATING - BEARING CARRIER (1 required per assembly) |
  |
|
28-30281 - Key - Priced Individually [ More info ]
|

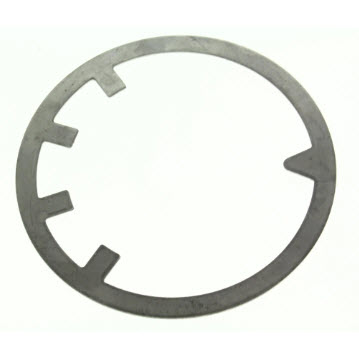

| #74 | 14-52700 | TAB WASHER, GEAR HOUSING COVER (1 required per assembly) |
  |
|
14-52700 - Tab Washer - Priced Individually [ More info ]
|

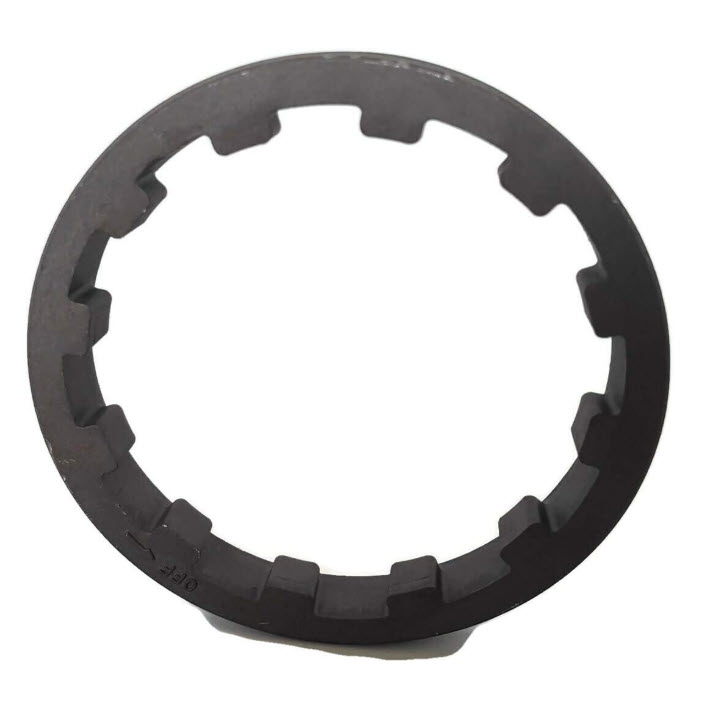

| #75 | 52699 | COVER, GEAR HOUSING (1 required per assembly) |
  |
|
52699 - Gear Housing Cover [ More info ]
|
|
|
0775418 - Spanner Nut [ More info ]
|

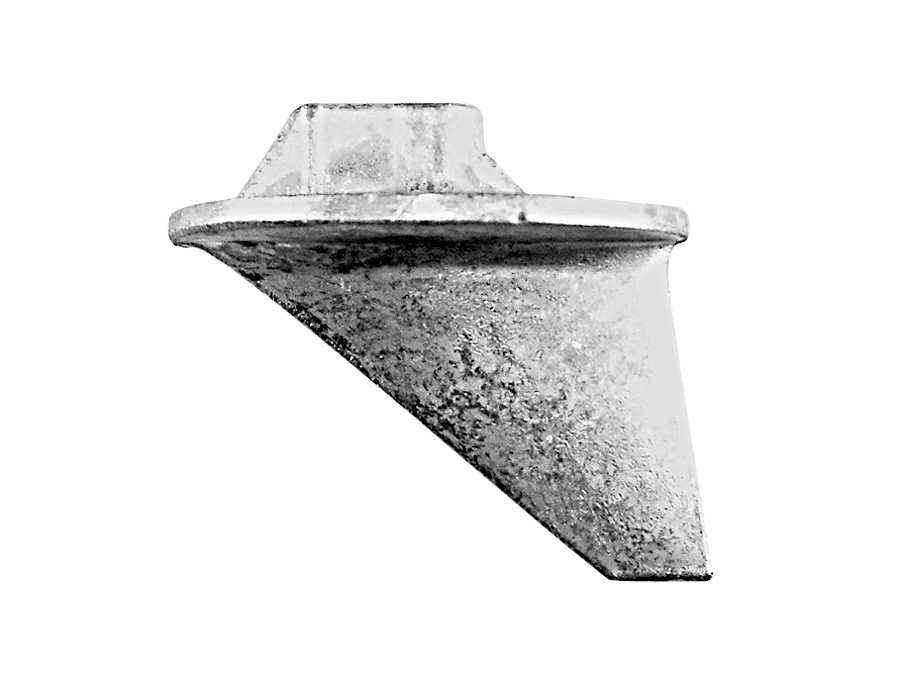

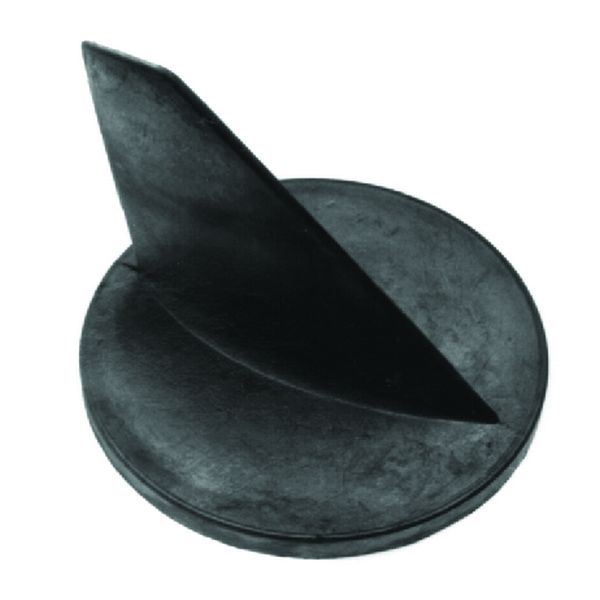

| #76 | 31640A 1 | TRIM TAB ASSEMBLY, GEAR HOUSING (1 required per assembly) |
  |
|
31640A 1 - 31640A 1 - TRIM TAB ASSEMBLY [ More info ] Unavailable Replaced by -31640 3 |
  |
|
31640 3 - 31640 3 - TRIM TAB [ More info ] Unavailable Replaced by -31640 4 |
  |
|
31640 4 - 31640 4 - TRIM TAB [ More info ] Unavailable Replaced by 97-31640Q 4 |
  |
|
97-31640Q4 - Anode/Trim Tab [ More info ]
|
  |
|

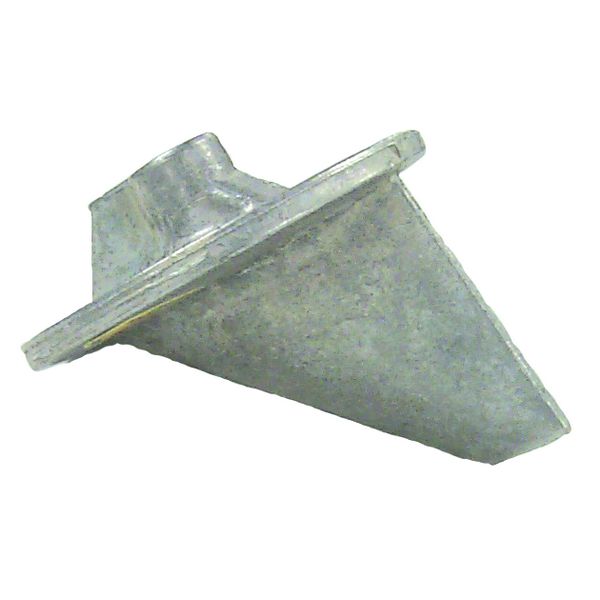

18-6241 - Trim Tab Anode, Magnesium, 31640 [ More info ]
|
  |
|

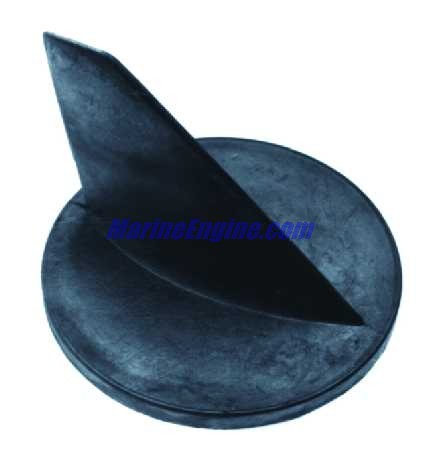

18-6011A - Trim Tab Anode, Aluminum [ More info ]
|
  |
|
18-6011 - Trim Tab, Zinc, 31640A1 [ More info ]
|
  |
|

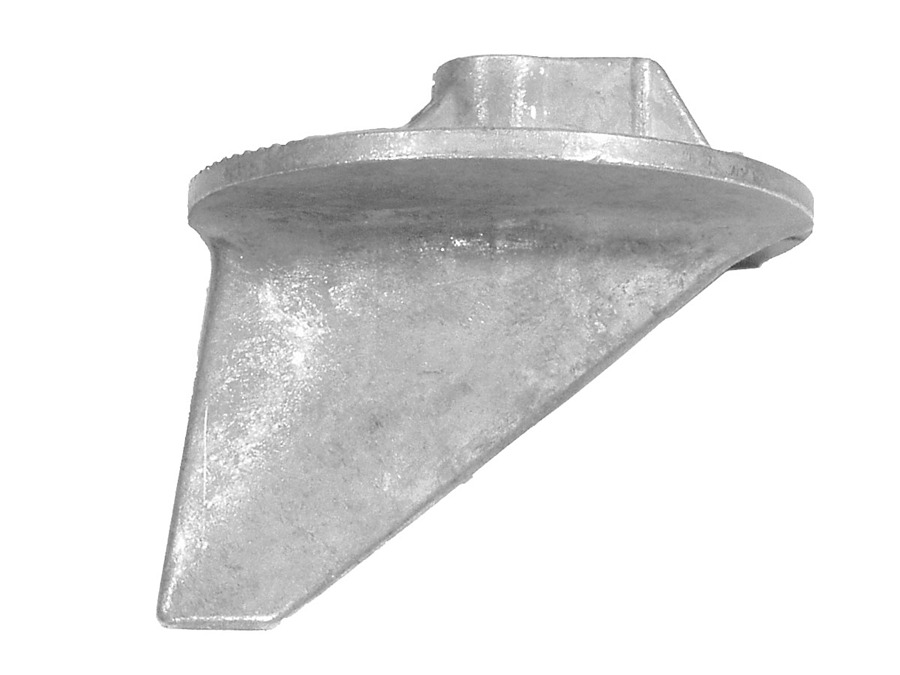

97-31640T 4 - Trim Tab Anode [ More info ]
|
| #77 | 10-55726 | SCREW, TRIM TAB TO GEAR HOUSING (1 3/4") (1 required per assembly) |
|
|
10-55726 - 10-55726 - SCREW @5 [ More info ] Unavailable Replaced by 10-66024 |
  |
|
10-66024 - Screw - Priced Individually [ More info ]
|

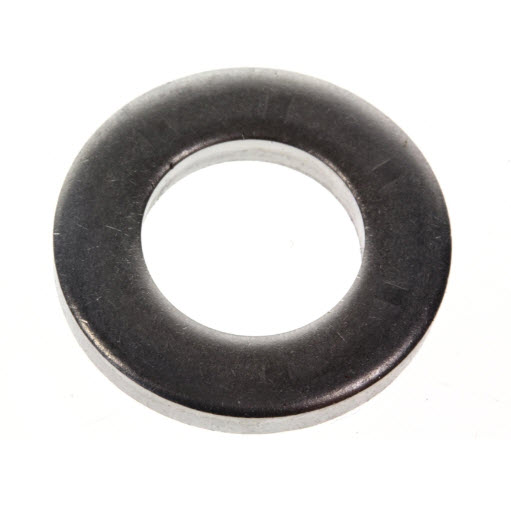

| #78 | 12-45176 | WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (2 required per assembly) |
  |
|
12-45176 - Washer, (.453 X .812 X .105) [ More info ]
|
| #79 | 11-34933 | NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (2 required per assembly) |
  |
|
11-34933 - 11-34933 - NUT (.437-20) Sta [ More info ] Unavailable Replaced by -8M0204653 |
|
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|

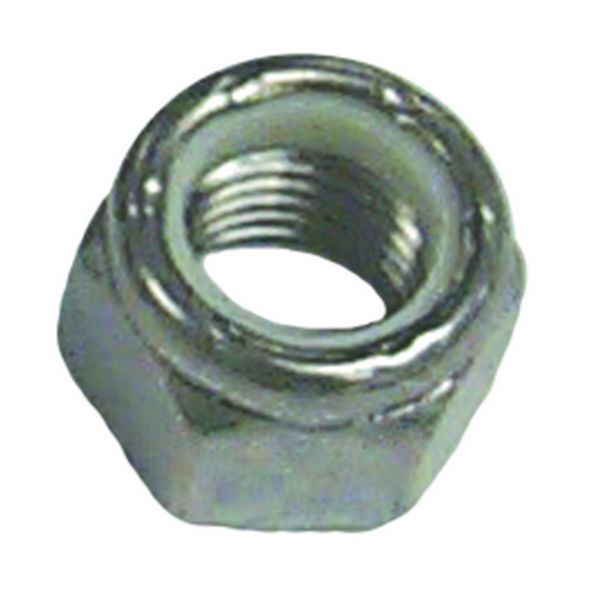

18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ]
|
| #80 | 10-34353 | SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1") (1 required per assembly) |
  |
|
10-34353 - Screw - Priced Individually [ More info ]
|

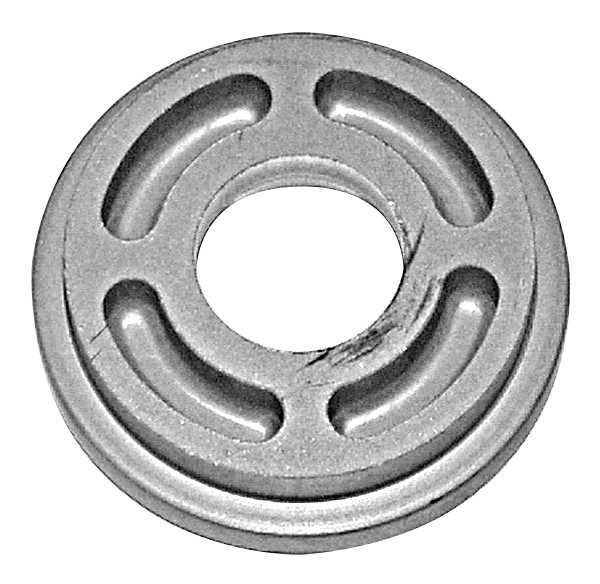

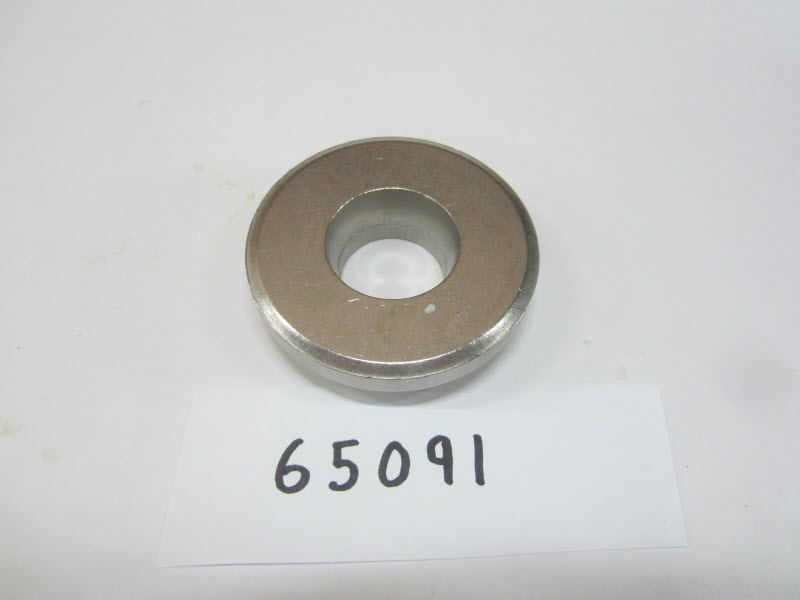

| #81 | 46961A 1 | THRUST HUB AND WASHER ASSEMBLY (1 required per assembly) |
|
|
46961A 1 - 46961A 1 - HUB ASSY [ More info ] Unavailable Replaced by -65091 |
  |
|
65091 - Thrust Washer [ More info ]
|
  |
|
65091T - Thrust Washer [ More info ]
|
  |
|
65091T 1 - Thrust Washer [ More info ]
|
  |
|

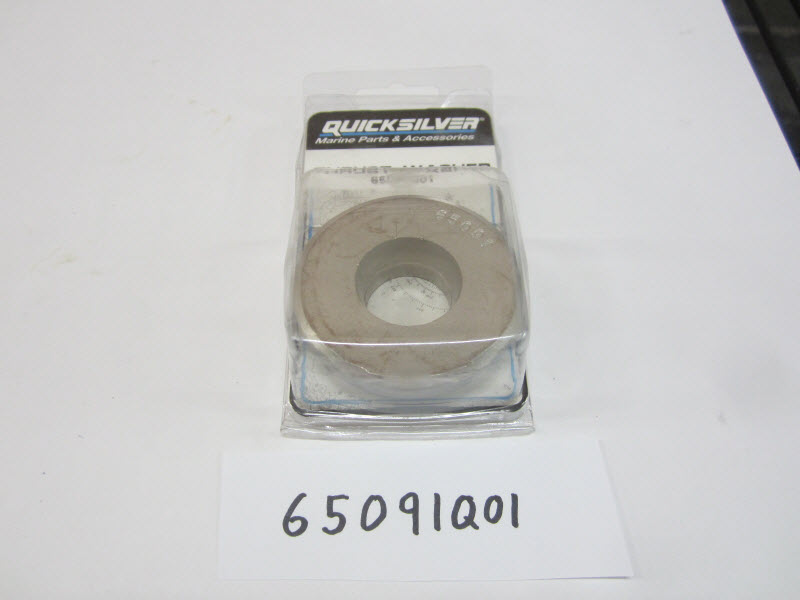

65091Q01 - Thrust Washer - Priced Individually [ More info ]
|
| #82 | 12-29590 | WASHER, CUPPED - THRUST HUB (1 required per assembly) |
|
|
12-29590 - Washer, Cupped - Thrust Hub, NLA [ More info ]
|

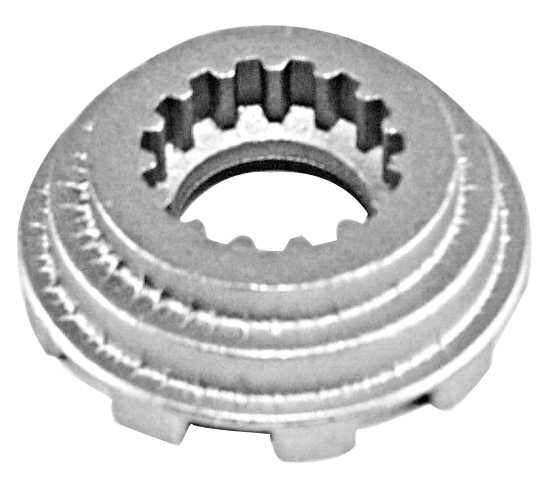

| #83 | 12-31211 | WASHER, SPLINED - PROPELLER NUT (1 required per assembly) |
  |
|
12-31211 - 12-31211 - WASHER [ More info ] Unavailable Replaced by 12-31211A2 |
  |
|
12-31211A2 - 12-31211A2 - ->31211A3 [ More info ] Unavailable Replaced by -31211A3 |
  |
|
12-31211A3 - 12-31211A3 - ->31211Q03 [ More info ] Unavailable Replaced by -31211Q03 |
  |
|
12-31211Q03 - Washer - Priced Individually [ More info ]
|
  |
|

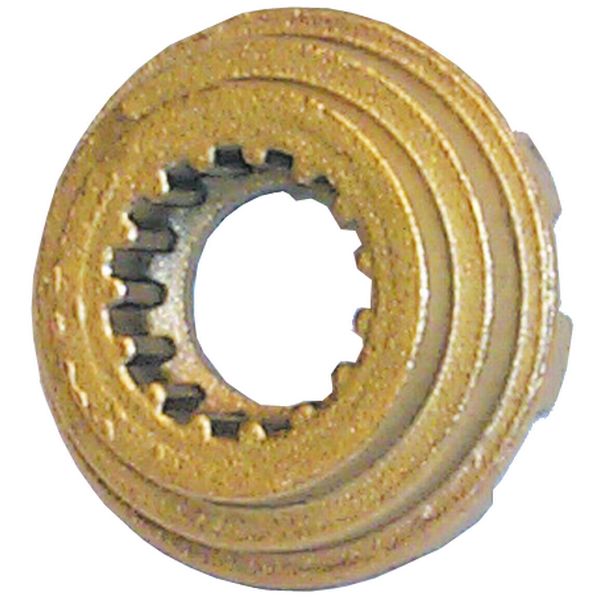

18-3714 - Washer, 12-31211A2 [ More info ]
|
  |
|

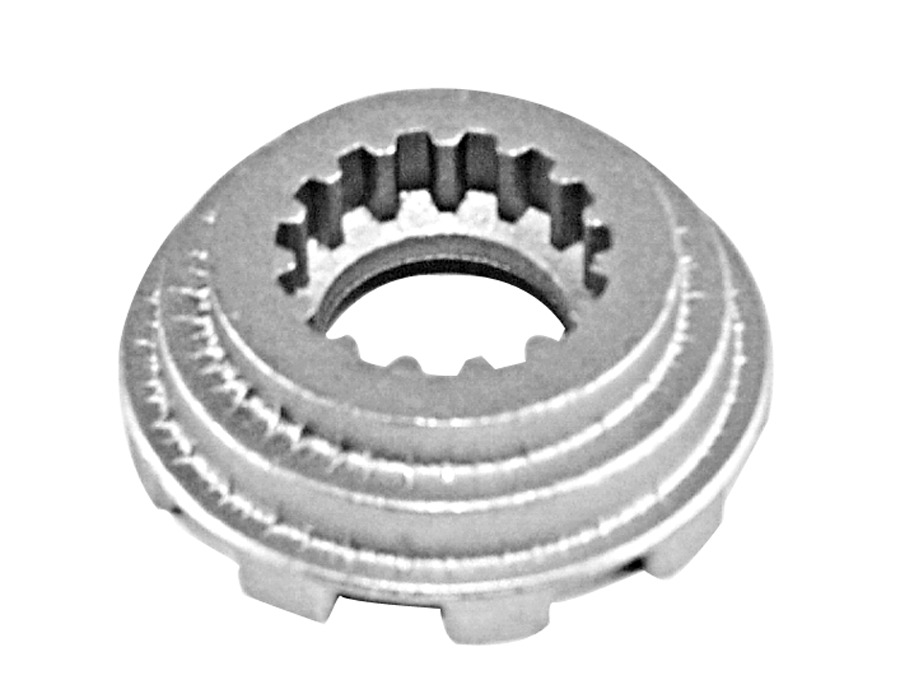

12-31211K03 - Washer - Priced Individually [ More info ]
|

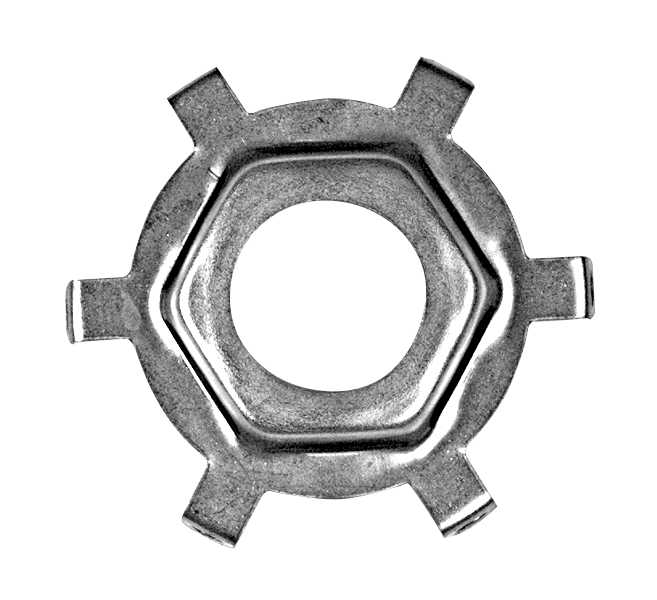

| #84 | 14-31210 | TAB WASHER, PROPELLER NUT (1 required per assembly) |
  |
|
14-31210 - 14-31210 - TAB WASHER [ More info ] Unavailable Replaced by 14-816629 |
  |
|
14-816629 - 14-816629 - TAB WASHER [ More info ] Unavailable Replaced by 14-816629Q |
  |
|
14-816629Q - Tab Washer - Priced Individually [ More info ]
|
  |
|
18-3200-9 - Washer, 14-816629, 10PK [ More info ]
|
  |
|
14-816629K - Tab Washer - Priced Individually [ More info ]
|

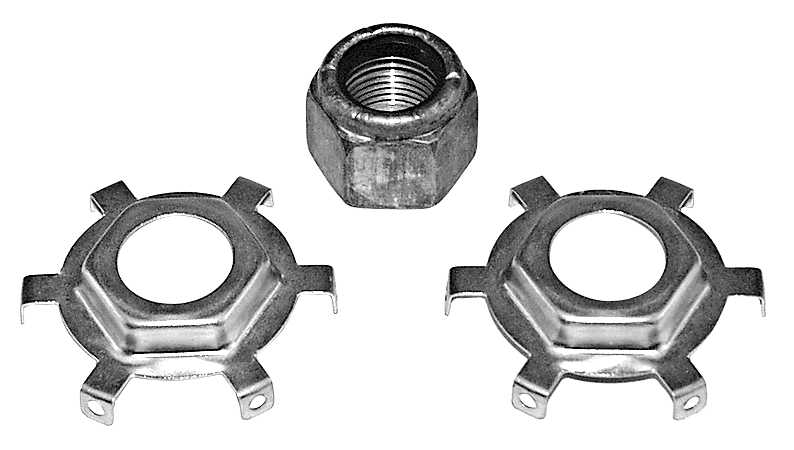

| #85 | 11-52707 | NUT, PROPELLER (1 required per assembly) |
|
|
11-52707 - 11-52707 - NUT [ More info ] Unavailable Replaced by 11-52707A1 |
  |
|
11-52707A1 - 11-52707A1 - ->52707Q1 [ More info ] Unavailable Replaced by -52707Q1 |
  |
|
11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ]
|
  |
|
18-3701 - Nut Kit, 11-52707A1 [ More info ]
|
  |
|
18-3700 - Prop Nut Only, 11-52707 [ More info ]
|
  |
|
11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ]
|
