Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Fuel Pump & Fuel Line Assembly - Single Fuel Pump
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 58888A 4 | FUEL PUMP ASSEMBLY (1 required per assembly) |
 |
|
58888A 4 - FUEL PUMP ASSY NLA [ More info ] Unavailable |
| #2 | 21-30430A 5 | CHECK VALVE ASSEMBLY (1 required per assembly) |
  |
|
21-30430A 5 - 21-30430A 5 - CHECK VALVE ASSEM [ More info ] Unavailable Replaced by 21-30430A13 |
  |
|
21-30430A13 - 21-30430A13 - CHECK VALVE ASSEM [ More info ] Unavailable Replaced by 21-8M0084276 |
  |
|
21-8M0084276 - Check Valve Kit [ More info ]
|

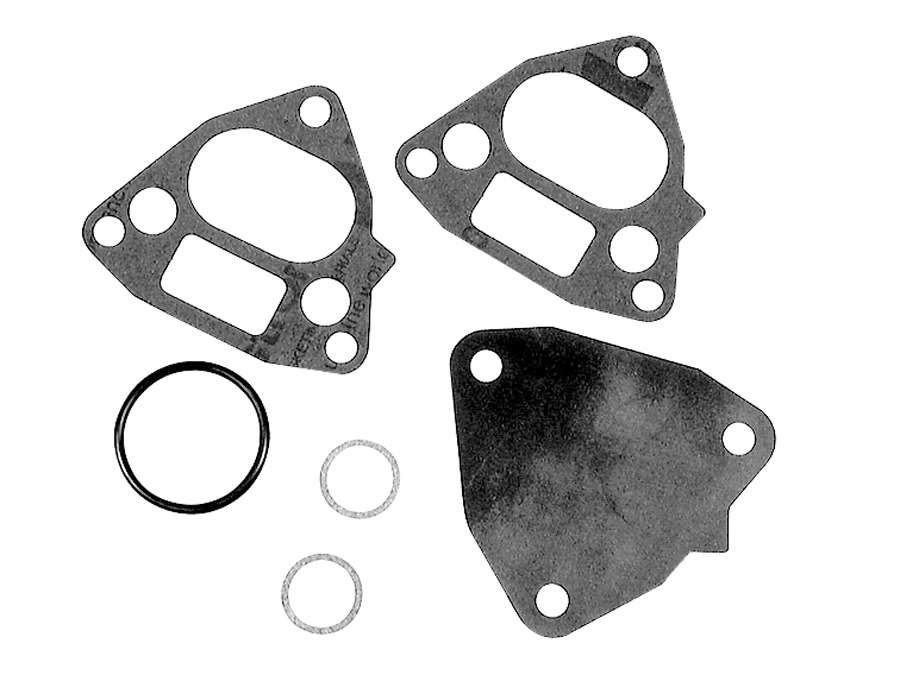

| #3 | 55278A 2 | DIAPHRAGM KIT (1 required per assembly) |
  |
|
55278A 2 - 55278A 2 - DIAPHRAGM KIT [ More info ] Unavailable Replaced by -55278A 5 |
  |
|
55278A 5 - Diagphragm Kit [ More info ]
|
  |
|
18-7808 - Fuel Pump Kit, 55278A5 [ More info ]
|
|
|
0508427 - Diaphragm Kit - 111 [ More info ]
|
| #5 | GASKET, CHECK VALVE TO HOUSING (2 required per assembly) | |
| #6 | 23004 | RETAINER, CHECK VALVE (1 required per assembly) |
  |
|
23004 - Check Valve Retainer, NLA [ More info ]
|
| #7 | 10-20037 | SCREW, RETAINER TO HOUSING (2 required per assembly) |
|
|
10-20037 - Screw - Priced Individually [ More info ]
|
  |
|
10-43725 - Screw [ More info ]
|
| #8 | 10-27281 | SCREW, PUMP MOUNTING (1 3/8") (3 required per assembly) |
|
|
10-27281 - 10-27281 - SCREW @5 [ More info ] Unavailable Replaced by 10-69067 |
  |
|
10-69067 - Screw - Priced Individually [ More info ]
|
| #9 | 32-55827A 1 | FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 1/2") (1 required per assembly) |
|
|
32-55827A 1 - HOSE NLA [ More info ] Unavailable |
| #10 | 22-59351 | ELBOW, UPPER CARBURETOR (90) (1 required per assembly) |
|
|
22-59351 - Elbow [ More info ]
|
| #11 | 22-30175 | SLEEVE, UPPER CARBURETOR ELBOW (1 required per assembly) |
|
|
22-30175 - Fitting, NLA [ More info ]
|
| #12 | 22-30177 | NUT, UPPER CARBURETOR ELBOW (1 required per assembly) |
|
|
22-30177 - Nut, NLA [ More info ]
|
| #13 | 32-54578A 1 | FUEL LINE, CARB. TO CARB. (5 1/2") (1 required per assembly) SERIAL 00000000-02991033 |
|
|
32-54578A 1 - Fuel Line, NLA [ More info ]
|
| #13 | 32-59352 | FUEL LINE, CARB. TO CARB. (6 5/8") (1 required per assembly) SERIAL 03051041-09999999 |
|
|
32-59352 - FUEL LINE NLA [ More info ] Unavailable |
| #14 | 22-29085 | ELBOW, UPPER CARBURETOR (45) (1 required per assembly) SERIAL 00000000-02991033 |
|
|
22-29085 - 22-29085 - FITTING Elbow (45 [ More info ] Unavailable Replaced by 22-8M0109010 |
|
|
22-8M0109010 - 22-8M0109010 - FITTING Elbow (45 [ More info ] Unavailable Replaced by -8M0123050 |
|
|
22-8M0123050 - Fitting [ More info ]
|
| #15 | 22-32802 | PLUG, BOTTOM FILTER COVER (1 required per assembly) SERIAL 00000000-02991033 |
  |
|
22-32802 - 22-32802 - PLUG Pipe (.125-2 [ More info ] Unavailable Replaced by 22-328021 |
  |
|
22-328021 - 22-328021 - ->328022 [ More info ] Unavailable Replaced by -328022 |
  |
|
22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ]
|
  |
|
18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ]
|
| #16 | 22-30468 | CONNECTOR, FUEL PUMP (2 required per assembly) |
  |
|
22-30468 - Connector, NLA [ More info ]
|
| #19 | 32-55829 | FUEL LINE, ADAPTOR TO UPPER FUEL PUMP (15") (1 required per assembly) |
  |
|
32-55829 - Fuel Line [ More info ]
|
| #20 | 30186 | ADAPTOR, CHECK UNIT (FUEL LINE) (1 required per assembly) |
  |
|
30186 - Check Unit Adapter, See Detail Page for Important Info [ More info ]
|
| #21 | 30187 | STEM, CHECK UNIT ADAPTOR (1 required per assembly) |
  |
|
30187 - Bayonet Body Stem - Priced Individually [ More info ]
|
  |
|
30185Q 3 - Fuel Connector, 5/16 Inch Barb - Priced Individually [ More info ]
|
| #22 | 24-30189 | SPRING, ADAPTOR STEM (1 required per assembly) |
  |
|
24-30189 - Spring, Adaptor Stem [ More info ]
|
| #23 | 25-20415 | "O"RING, ADAPTOR STEM (1 required per assembly) |
  |
|
25-20415 - 25-20415 - O-RING [ More info ] Unavailable Replaced by 25-16524 |
  |
|
25-16524 - O Ring-fuel Connector [ More info ]
|
| #24 | 30188 | CUP WASHER, ADAPTOR (1 required per assembly) |
  |
|
30188 - Cup Washer Adaptor - Priced Individually [ More info ]
|
| #25 | 10-31471 | SCREW, ADAPTOR TO BOTTOM COWL (3 1/4") (1 required per assembly) |
|
|
10-31471 - Screw [ More info ]
|
|
|
10-88488 - Screw, NLA [ More info ]
|
| #25 | 10-37990 | SCREW, ADAPTOR TO BOTTOM COWL (1 3/4") (1 required per assembly) |
|
|
10-37990 - 10-37990 - SCREW @5 [ More info ] Unavailable Replaced by 10-69029 |
|
|
10-69029 - Screw, NLA [ More info ]
|
| #26 | 11-46887 | NUT, ADAPTOR FASTENING SCREW (2 required per assembly) |
|
|
11-46887 - 11-46887 - NUT (1/4-28) [ More info ] Unavailable Replaced by 11-20184 |
  |
|
11-20184 - Nut, (1/4-28x7/32) [ More info ]
|
|
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
