Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Drive Shaft Housing Assembly

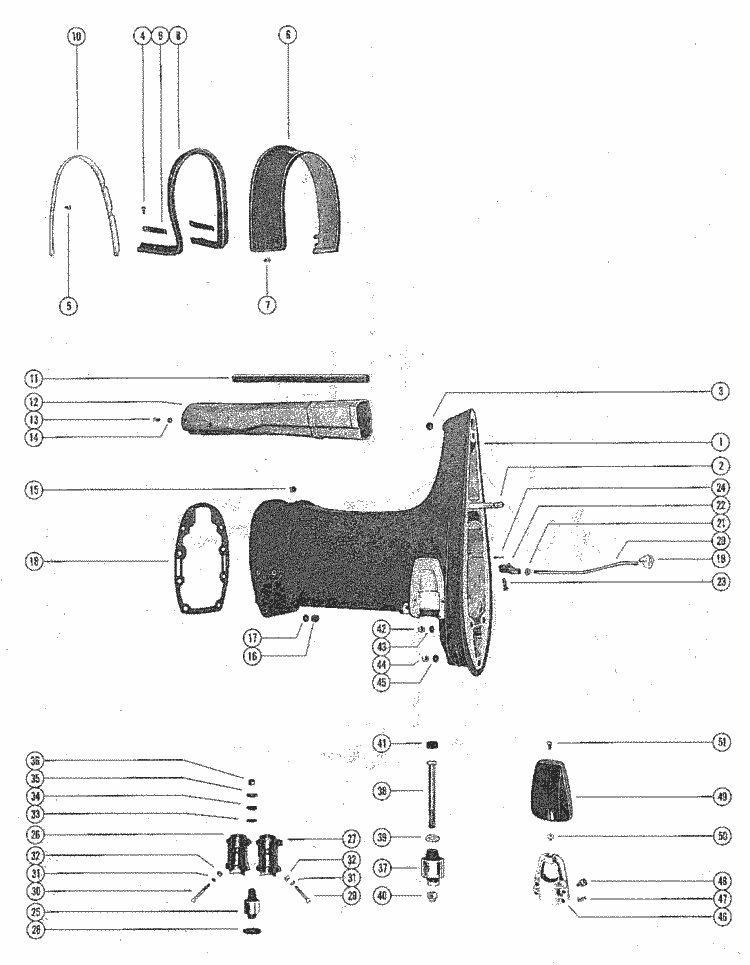

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | 25-57806 | GROMMET, TRIM COVER SCREW (4 required per assembly) SERIAL 02881082-09999999 |
25-92012 - Grommet, Trim Cover Screw [ More info ] Unavailable |
||
#1 | 1552-3670A 3 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT) (1 required per assembly) SERIAL 00000000-02670574 |
1552-3670A 3 - Drive Shaft Housing [ More info ] Unavailable |
||
1552-3911A 3 - Drive Shaft, NLA [ More info ] Unavailable |
||
#1 | 1551-3669A 4 | DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT) (1 required per assembly) SERIAL 00000000-02670574 |
1551-3669A 4 - Drive Shaft Housing [ More info ] Unavailable |
||
1551-3918A 3 - Drive Shaft, NLA [ More info ] Unavailable |
||
#1 | 1552-3911A 3 | DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT) (1 required per assembly) SERIAL 02783253-09999999 |
#1 | 1551-3918A 3 | DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT) (1 required per assembly) SERIAL 02783253-09999999 |
#2 | 16-56295 | STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16") (2 required per assembly) |

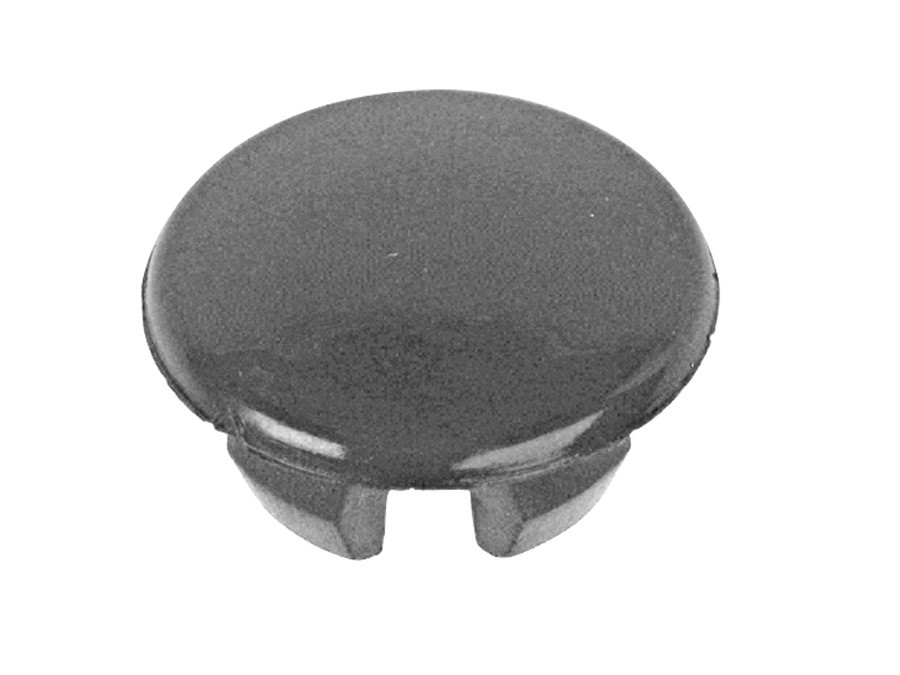

#3 | 19-47579 | PLUG, PLASTIC-TRIM TAB SCREW HOLE (1 required per assembly) SERIAL 00000000-02670574 |
#3 | 19-32297 | PLUG, PLASTIC-TRIM TAB SCREW HOLE (1 required per assembly) SERIAL 02783253-09999999 |
19-824928 - Plug [ More info ] Unavailable |
||
#4 | 10-48409 | SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8") (2 required per assembly) |
#5 | 10-48408 | SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2") (6 required per assembly) |
#6 | 37417 | COVER, TRIM-DRIVE SHAFT HOUSING (1 required per assembly) |
37417 - Cover, NLA [ More info ] Unavailable |
||
#7 | 10-37571 | SCREW, TRIM COVER TO BOTTOM COWL (1/2") (4 required per assembly) SERIAL 00000000-02786462 |
#7 | 10-57807 | SCREW, TRIM COVER TO BOTTOM COWL (3/4") (4 required per assembly) SERIAL 02881082-09999999 |
#8 | 37919 | SEAL, TRIM COVER TO DRIVE SHAFT HOUSING (1 required per assembly) |
37919 - Seal, NLA [ More info ] Unavailable |
||
#9 | 37665 | STRIP, RETAINING-TRIM COVER SEAL (SIDE) (2 required per assembly) |
#10 | 38052 | STRIP, RETAINING-TRIM COVER SEAL (REAR) (1 required per assembly) |
#11 | 32-37446 | TUBE, WATER INLET (SHORT SHAFT) (1 required per assembly) |
32-37446 - Tube, NLA [ More info ] Unavailable |
||
#11 | 32-37438 | TUBE, WATER INLET (LONG SHAFT) (1 required per assembly) |
32-37438 - Tubing, NLA [ More info ] Unavailable |
||
#12 | 38469 | TUBE, EXHAUST (SHORT SHAFT) (1 required per assembly) |
#12 | 38470 | TUBE, EXHAUST (LONG SHAFT) (1 required per assembly) |
38470 - Tube, NLA [ More info ] Unavailable |
||
#13 | 10-38601 | SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (5/8") (2 required per assembly) |
#14 | 11-46886 | NUT, EXHAUST TUBE SCREW (2 required per assembly) |
11-46886 - Nut - Priced Individually [ More info ] Unavailable |
||
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
$11.99 $6.88 |
||
#15 | 11-23161 | NUT, POWERHEAD STUDS (3/8-24) (6 required per assembly) |
#15 | 11-21528 | NUT, POWERHEAD STUDS (5/16-24) (2 required per assembly) |
11-21528 - Nut, (5/16x24) [ More info ] Unavailable |
||
11-35814 - Nut (5/16-24) [ More info ] Unavailable |
||
#16 | 11-20509 | NUT, POWERHEAD STUDS (3/8-24) (2 required per assembly) |
11-20509 - Nut, (3/8X24) [ More info ] Unavailable |
||
11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable |
||
11-8M0042636 - Nut - Brass , Priced Individually [ More info ] |
||
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] Unavailable |
||
#17 | 12-20086 | WASHER, POWERHEAD STUDS (2 required per assembly) |

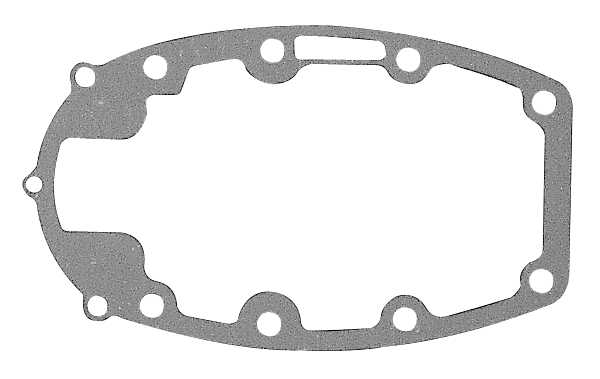

#18 | 27-48801 | GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING (1 required per assembly) |
27-48801 - Exhaust Extension Plate To Drive Shaft Housing Gasket [ More info ] |
||
#19 | 52887 | GUIDE, PUSH ROD-REVERSE LOCKING (1 required per assembly) |
#20 | 47591 | ROD, PUSH-REVERSE LOCK (SHORT SHAFT) (1 required per assembly) |
#20 | 47558 | ROD, PUSH-REVERSE LOCK (LONG SHAFT) (1 required per assembly) |
#21 | 11-47661 | NUT, JAM-PUSH ROD (1 required per assembly) |
#22 | 47559 | YOKE, PUSH ROD (1 required per assembly) |
#23 | 17-39023 | PIN, PUSH ROD TO REVERSE LOCK (1 required per assembly) |
24-78203A 1 - Spring, Reverse Lock Tension Not Used With Full Power Trim [ More info ] Unavailable |
||
#24 | 18-25191 | COTTER PIN, PUSH ROD PIN (1 required per assembly) |
#25 | 37396 | MOUNT -UPPER (2 required per assembly) |
#26 | 26218 | COVER, UPPER MOUNT-OUTSIDE HALF (2 required per assembly) |
#27 | 26217 | COVER, UPPER MOUNT-INSIDE HALF (2 required per assembly) SERIAL 00000000-02670574 |
#27 | 57931 | COVER, UPPER MOUNT-INSIDE HALF (2 required per assembly) SERIAL 02783253-09999999 |
#28 | 24929 | PACKING, "U" CUP (2 required per assembly) |
#29 | 10-28773 | SCREW, UPPER MOUNT COVER (1 5/8") (4 required per assembly) |
#30 | 10-28775 | SCREW, UPPER MOUNT COVER (2 1/8") (4 required per assembly) |
#31 | 12-29245 | WASHER, UPPER MOUNT COVER SCREW (AR required per assembly) |
12-8M0204649 - WASHER Note: Priced Individually [ More info ] |
||
#33 | 12-30515 | WASHER, UPPER MOUNT BOLT (2 required per assembly) |
#34 | 12-47894 | WASHER, RUBBER-UPPER MOUNT BOLT (2 required per assembly) |
12-47894 - Washer, Rubber - Upper Mount Bolt, NLA [ More info ] |
||
#35 | 12-30514 | WASHER, UPPER MOUNT BOLT (2 required per assembly) |
12-30514 - Washer, Upper Mount Bolt (7/16 I.d.) NLA [ More info ] Unavailable |
||
#37 | 54140 | MOUNT, RUBBER-LOWER (2 required per assembly) |
54140 - Mount [ More info ] Unavailable |
||
75298 - Mount, NLA [ More info ] Unavailable |
||
#38 | 10-49318 | SCREW, UPPER MOUNT (5 1/2") (2 required per assembly) |
10-49318 - Screw [ More info ] Unavailable |
||
#39 | 12-49339 | WASHER, MOUNT SCREW (2 required per assembly) |
#40 | 11-25096 | NUT, MOUNT SCREW (2 required per assembly) |
#41 | 25067 | BUMPER, RUBBER-MOUNTING SCREW (2 required per assembly) |
#42 | 11-34933 | NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (2 required per assembly) |
11-34933 - Nut (7/16-20) [ More info ] Unavailable |
||
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] |
||
18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ]
$19.49 $13.18 |
||
#44 | 11-29489 | NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (1 required per assembly) |
#45 | 12-45176 | WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (1 required per assembly) |
#46 | 35608 | CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING (2 required per assembly) |
#47 | 24-35522 | SPRING, TENSION-LOWER MOUNT CLAMP (4 required per assembly) |
24-35522 - Spring Tension - Lower Mount Clamp,NLA [ More info ] |
||
#48 | 10-29256 | SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8") (4 required per assembly) |
#49 | 35474 | COVER, LOWER MOUNT CLAMP (2 required per assembly) |
35474T - Cover [ More info ] Unavailable |
||
#50 | 11-35521 | NUT, LOWER MOUNT CLAMP COVER (2 required per assembly) |
#51 | 10-29722 | SCREW, COVER TO LOWER CLAMP MOUNT (2 required per assembly) |
