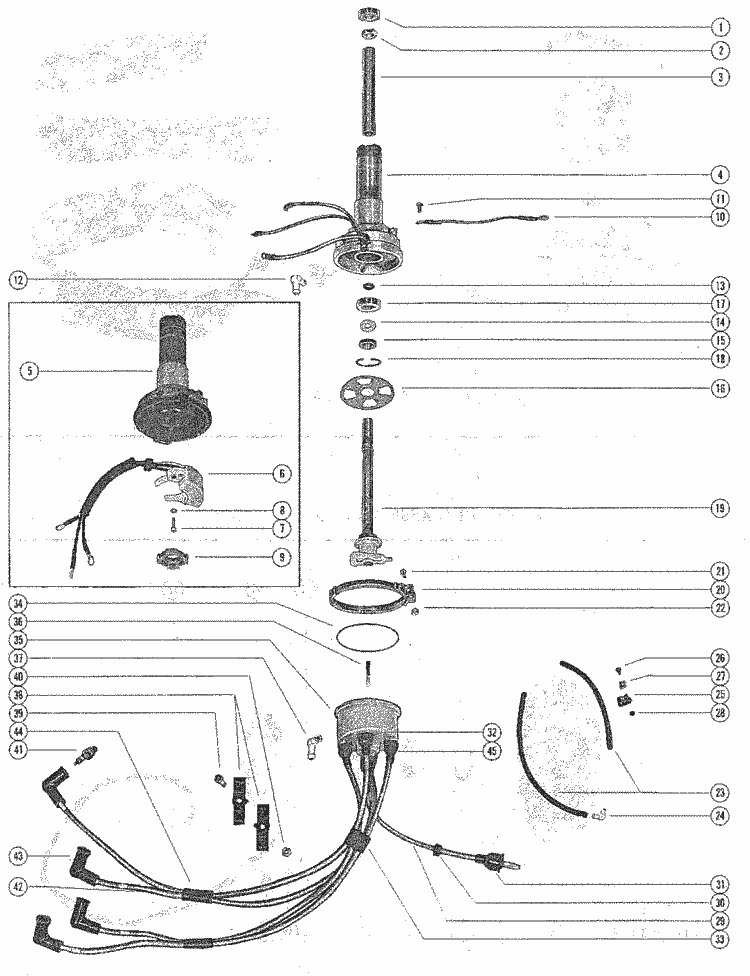

Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Distributor Housing & Rotor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 20121 | CONNECTOR, SPARK PLUG LEAD (4 required per assembly) |
  |
|
20121 - Terminal - Priced Individually [ More info ]
|
  |
|
8M0084600 - Terminal, Sold Individually [ More info ]
|
  |
|
18-5224-9 - 10-Pack Spark Plug Wire Terminals [ More info ]
|
  |
|
0510364 - Lead Terminal [ More info ]
|
| #1 | 30-20066 | BALL BEARING, DISTRIBUTOR HOUSING (UPPER) (1 required per assembly) |
  |
|
30-20066 - Ball Bearing [ More info ]
|
| #2 | 11-54209 | NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING (1 required per assembly) |
 |
|
11-54209 - Nut, Rotor Shaft To Distributor Housing,NLA [ More info ]
|
| #3 | 23-53539 | SLEEVE, ROTOR SHAFT (1 required per assembly) |
|
|
23-53539 - Sleeve [ More info ]
|
| #4 | 332-4177A 3 | HOUSING ASSEMBLY, DISTRIBUTOR (1 required per assembly) SERIAL 00000000-02991033 |
  |
|
332-4177A 3 - 332-4177A 3 - DIST BODY ASSY [ More info ] Unavailable Replaced by 393-3736A23 |
  |
|
393-3736A23 - 393-3736A23 - DIST HOUSING [ More info ] Unavailable Replaced by 393-3736A77 |
  |
|

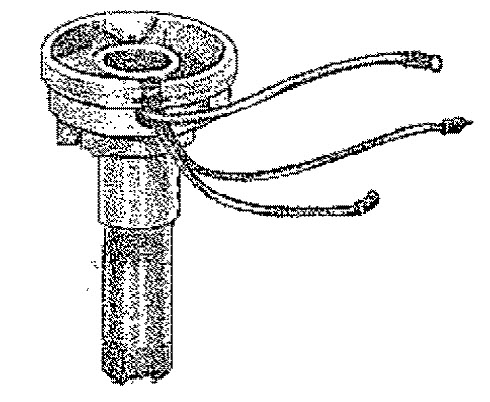

393-3736A77 - 393-3736A77 - DIST BODY ASSY [ More info ] Unavailable Replaced by 393-3736A79 |
  |
|
393-3736A79 - Distributor Body Assembly [ More info ]
|
  |
|
134-3736 - Trigger, 393-3736A79 [ More info ]
|

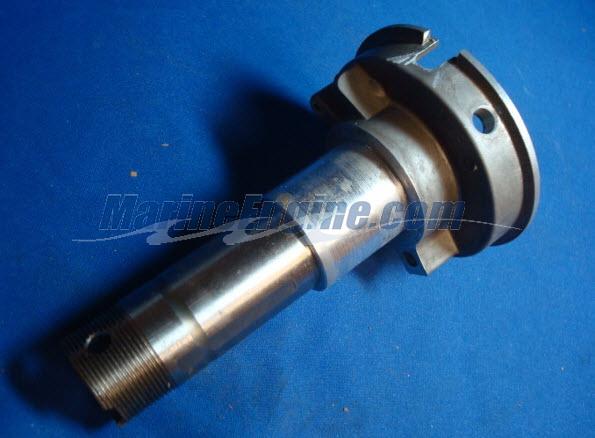

| #5 | 337-4479 | HOUSING, DISTRIBUTOR (1 required per assembly) SERIAL 03051041-03052380 |
  |
|
337-4479 - Distributor Housing, NLA [ More info ]
|
| #6 | 337-4406A 2 | TRIGGER ASSEMBLY, DISTRIBUTOR (1 required per assembly) SERIAL 03051041-03052380 |
|
|
337-4406A 2 - ORD 393- 3736A78 NLA [ More info ] Unavailable |
| #7 | 10-29072 | SCREW, TRIGGER COIL TO DISTRIBUTOR HOUSING (2 required per assembly) SERIAL 03051041-03052380 |
  |
|
10-29072 - Screw [ More info ]
|
| #8 | 13-22238 | LOCKWASHER, TRIGGER COIL SCREW (2 required per assembly) SERIAL 03051041-03052380 |
|
|
13-22238 - 13-22238 - LOCKWASHER @5 [ More info ] Unavailable Replaced by 13-69432 |
|
|
13-69432 - LockWasher - Priced Individually [ More info ]
|
| #9 | 337-4481 | CAM, DISTRIBUTOR TRIGGER (1 required per assembly) SERIAL 03051041-03052380 |
|
|
337-4481 - Cam, NLA [ More info ]
|
| #10 | 53417 | GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE (1 required per assembly) |
|
|
53417 - GROUND STRAP NLA [ More info ] Unavailable |
| #11 | 10-30663 | SCREW, GROUND STRAP ATTACHING (3/8") (1 required per assembly) |
|
|
10-30663 - 10-30663 - SCREW (#10-16 x . [ More info ] Unavailable Replaced by 10-62568 |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #12 | 22-31521 | ELBOW, VENT-DISTRIBUTOR HOUSING (1 required per assembly) SERIAL 00000000-02670574 |
|
|
22-31521 - Elbow - Priced Individually, NLA [ More info ]
|
| #12 | 22-55262 | ELBOW, VENT- DISTRIBUTOR HOUSING (1 required per assembly) SERIAL 02783253-03148653 |
|
|
22-55262 - Elbow, NLA [ More info ]
|
| #12 | 58807A 1 | FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING (1 required per assembly) SERIAL 03186263-09999999 |
|
|
58807A 1 - Flame Arrestor Vent - Priced Individually, NLA [ More info ]
|
| #13 | 15-21148A 1 | SHIM, ROTOR (1 required per assembly) SERIAL 00000000-02991033 |
|
|
15-21148A 1 - Shim Set, NLA [ More info ]
|
| #14 | 15-55853 | SHIM, ROTOR (AR required per assembly) SERIAL 00000000-02991033 |
|
|
15-55853 - Shim, NLA [ More info ]
|
| #15 | 23-53538 | SPACER, ROTOR SHAFT (1 required per assembly) SERIAL 00000000-02991033 |
|
|
23-53538 - Spacer - Rotor Shaft [ More info ]
|
| #16 | 393-3236 | DISC, ROTOR (1 required per assembly) SERIAL 00000000-02991033 |
|
|
393-3236 - Trigger Disc, NLA [ More info ]
|
  |
|
1343236S - Mercury Trigger Disc (4 Cylinder) [ More info ]
|
| #17 | 30-26379 | BALL BEARING, DISTRIBUTOR HOUSING (LOWER) (1 required per assembly) |
  |
|
30-26379 - Ball Bearing [ More info ]
|
| #18 | 53-26406 | RING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSING (1 required per assembly) |
|
|
53-26406 - Snap Ring - Priced Individually [ More info ]
|
| #19 | 393-3738 | ROTOR, DISTRIBUTOR (1 required per assembly) SERIAL 00000000-02670574 |
|
|
393-3738 - 393-3738 - ROTOR [ More info ] Unavailable Replaced by 393-4371 |
  |
|
393-4371 - ROTOR NLA [ More info ] Unavailable |
  |
|
994-4371 - Rotor Assembly, 393-4371 [ More info ]
|
| #19 | 393-4371 | ROTOR, DISTRIBUTOR (1 required per assembly) SERIAL 02783253-09999999 |
| #20 | 54-53541 | CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING (1 required per assembly) SERIAL 00000000-02670574 |
|
|
54-53541 - CLAMP NLA [ More info ] Unavailable |

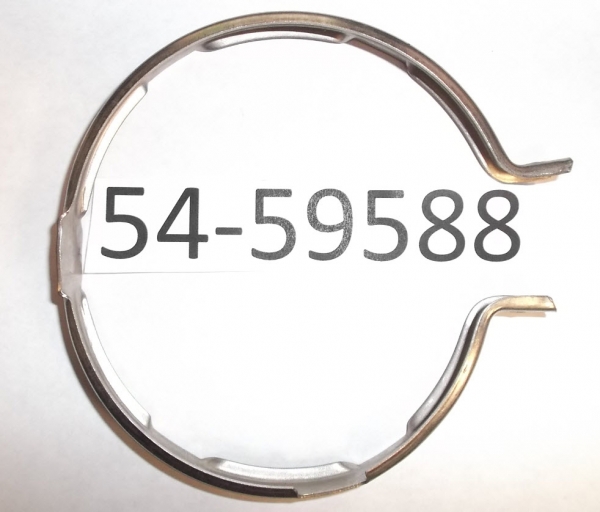

| #20 | 54-59588 | CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING (1 required per assembly) SERIAL 02783253-03192962 |
  |
|
54-59588 - Clamp [ More info ]
|
| #20 | 54-60768 | CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING (1 required per assembly) SERIAL 03307347-09999999 |
|
|
54-60768 - Distributor Cap To Distributor Housing Clamp [ More info ]
|
| #21 | 10-54281 | SCREW, DISTRIBUTOR CAP CLAMP (1") (1 required per assembly) |
|
|
10-54281 - Screw, NLA [ More info ]
|

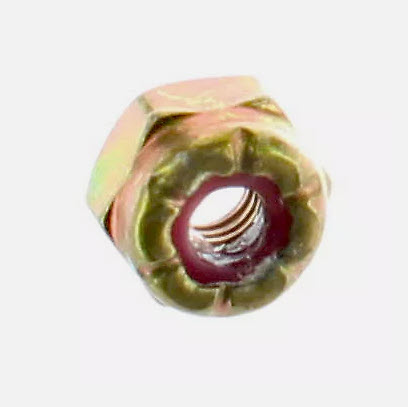

| #22 | 11-26768 | NUT, DISTRIBUTOR CAP CLAMP SCREW (1 required per assembly) |
  |
|
11-26768 - Nut (8-32) [ More info ]
|
| #23 | 32-34395A 1 | HOSE, VENT- DISTRIBUTOR TO ELBOW (10 1/2") (1 required per assembly) SERIAL 00000000-03148653 |
|
|
32-34395A 1 - 32-34395A 1 - HOSE [ More info ] Unavailable Replaced by 32-99127109 |
  |
|
32-99127109 - 32-99127109 - LINE (57.00 Inche [ More info ] Unavailable Replaced by 32-830756109 |
  |
|
32-830756109 - 32-830756109 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0047428 |
  |
|
32-8M0047428 - 32-8M0047428 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0108355 |
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #25 | 54-22875 | CLAMP, VENT HOSE TO FRONT SUPPORT BRACKET (1 required per assembly) SERIAL 00000000-02670574 |
|
|
54-22875 - Clip - Priced Individually [ More info ]
|
| #26 | 10-48591 | SCREW, VENT HOSE CLAMP (1/2") (1 required per assembly) SERIAL 00000000-02670574 |
  |
|
10-48591 - Screw - Priced Individually [ More info ]
|
| #27 | 22789 | "D" WASHER, CLAMP FASTENING SCREW (1 required per assembly) SERIAL 00000000-02670574 |
|
|
22789 - 22789 - D WASHER [ More info ] Unavailable Replaced by -69205 |
  |
|
69205 - 69205 - C WASHER [ More info ] Unavailable Replaced by -8M0084613 |
|
|
8M0084613 - Washer [ More info ]
|
| #28 | 11-24656 | NUT, CLAMP FASTENING SCREW (1 required per assembly) SERIAL 00000000-02670574 |
|
|
11-24656 - Nut, NLA [ More info ]
|
| #29 | 393-3294A 1 | CABLE ASSEMBLY, CAP TO COIL (1 required per assembly) SERIAL 00000000-02991033 |
|
|
393-3294A 1 - 393-3294A 1 - LEAD ASSY [ More info ] Unavailable Replaced by 84-813706A 4 |
|
|
84-813706A 4 - 84-813706A 4 - CABLE ASSEMBLY [ More info ] Unavailable Replaced by 84-821945A 4 |
|
|
84-821945A 4 - CABLE ASSY NLA [ More info ] Unavailable |
| #29 | 393-3836A 1 | CABLE ASSEMBLY, CAP TO COIL (1 required per assembly) SERIAL 03051041-03052380 |
|
|
393-3836A 1 - 393-3836A 1 - LEAD ASSY [ More info ] Unavailable Replaced by 84-813706A 5 |
|
|
84-813706A 5 - 84-813706A 5 - CABLE ASSEMBLY [ More info ] Unavailable Replaced by 84-821945A 5 |
|
|
84-821945A 5 - CABLE ASSY [ More info ] Unavailable |
| #30 | 25-26547 | GROMMET, CABLE (1 required per assembly) |
|
|
25-26547 - Grommet, High Tension Cable,NLA [ More info ]
|
| #31 | 332-2854 | BOOT, CABLE TO COIL (1 required per assembly) |
|
|
332-2854 - Boot - Priced Individually [ More info ]
|
|
|
332-2854T01 - Boot - Priced Individually [ More info ]
|
| #33 | 32-46398 | SLEEVE, (LEADS 1, 2, 3, 4,) - (3/4") (1 required per assembly) |
|
|
32-46398 - Sleeve, NLA [ More info ]
|

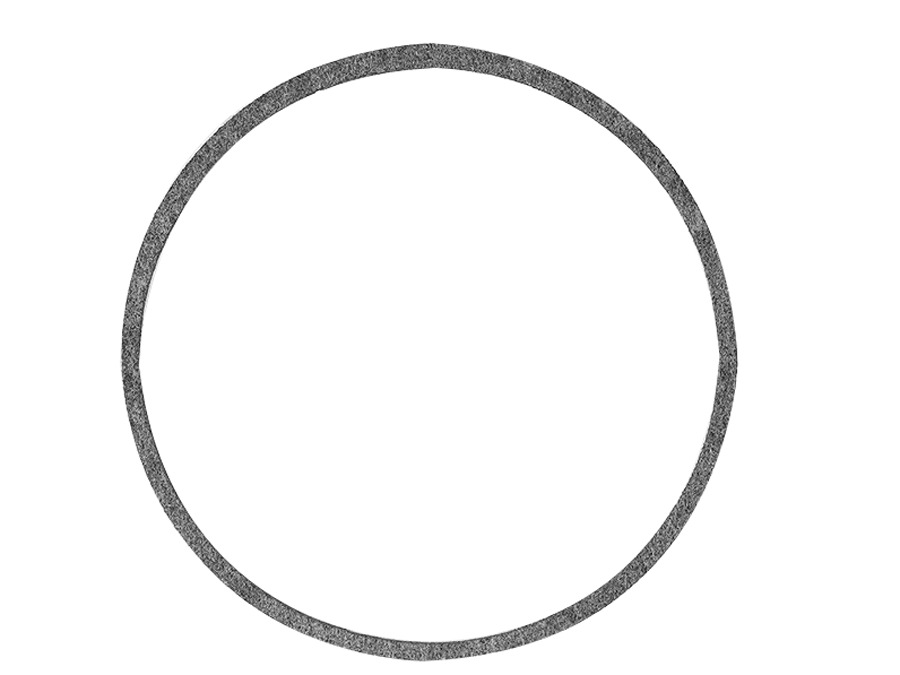

| #34 | 27-55896 | GASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING (1 required per assembly) SERIAL 02783253-09999999 |
  |
|
27-55896 - Distributor Cap Gasket [ More info ]
|
| #35 | 393-3726A 2 | DISTRIBUTOR CAP ASSEMBLY (1 required per assembly) SERIAL 00000000-03148653 |
|
|
393-3726A 2 - 393-3726A 2 - DISTRIBUTOR CAP [ More info ] Unavailable Replaced by 393-3726A10 |
  |
|
393-3726A10 - DISTRIBUTOR CAP NLA [ More info ] Unavailable |

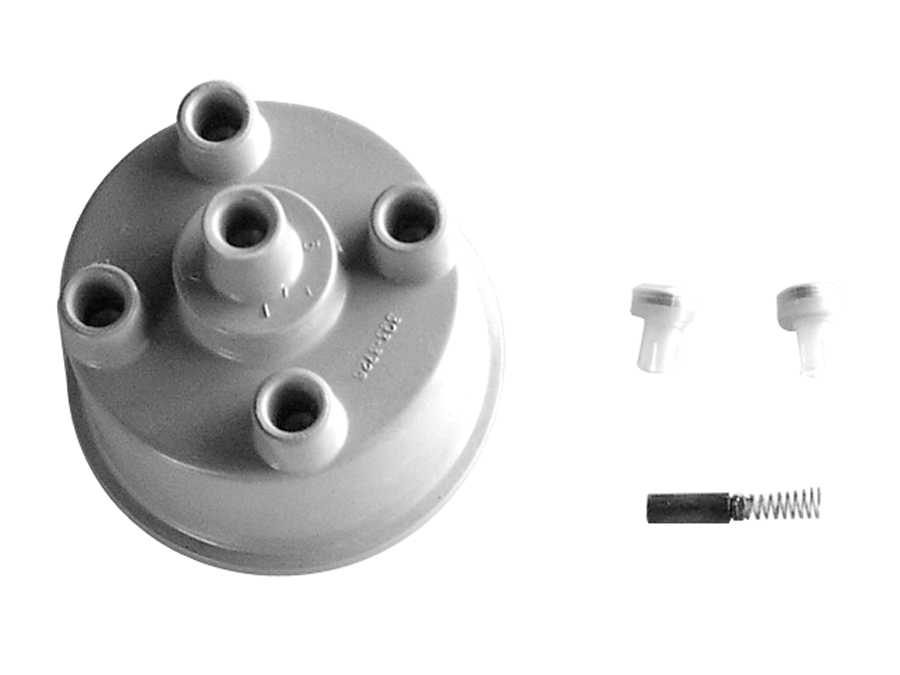

| #35 | 393-3726A10 | DISTRIBUTOR CAP ASSEMBLY (1 required per assembly) SERIAL 03186263-09999999 |
| #36 | 393-1293A 1 | BRUSH AND SPRING ASSEMBLY (1 required per assembly) SERIAL 03186263-09999999 |
  |
|
393-1293A 1 - Brush Kit - Priced Individually [ More info ]
|
| #38 | 46281 | RETAINER, LEADS (4 required per assembly) |
|
|
46281 - 46281 - BRACKET [ More info ] Unavailable Replaced by -63319 |
  |
|
63319 - Retainer, NLA [ More info ]
|
| #39 | 10-46378 | SCREW, LEAD RETAINER (1") (2 required per assembly) |
|
|
10-46378 - Screw, NLA [ More info ]
|
| #40 | 11-20013 | NUT, RETAINER SCREW (2 required per assembly) |
  |
|
11-20013 - Nut, (.250-28) [ More info ]
|
| #41 | 33-45191 | SPARK PLUG (CHAMPION - L19V) (4 required per assembly) SERIAL 00000000-02670574 |
|
|
33-45191 - 33-45191 - SPARK PLUG @10 [ More info ] Unavailable Replaced by 33-57451 |
|
|
33-57451 - 33-57451 - SPARK PLUG [ More info ] Unavailable Replaced by 33-97180 |
  |
|

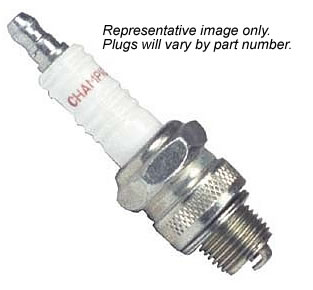

33-97180 - 33-97180 - SPARK PLUG [ More info ] Unavailable Replaced by 33-97180Q |
  |
|
33-97180Q - 33-97180Q - NGK BUHW @10 [ More info ] Unavailable Replaced by -896329827 |
  |
|
33-896329827 - SP #L76V @4 [ More info ] Unavailable |
  |
|

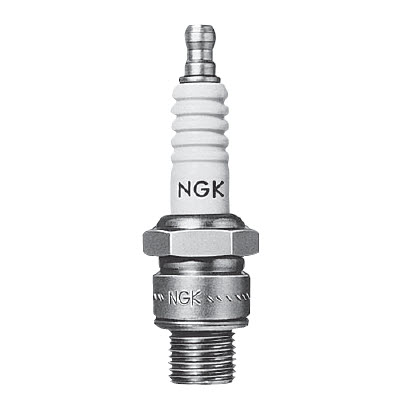

BUH - NGK Spark Plug, 2422 [ More info ]
|
  |
|

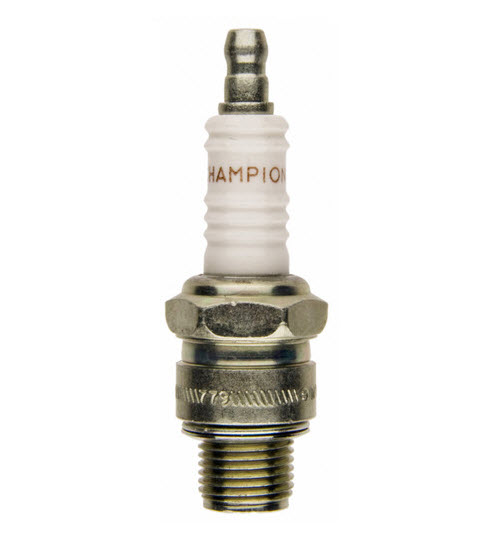

L76V - Champion Spark Plug ( #827M) [ More info ]
|
  |
|
L20V - Champion Spark Plug (#837) [ More info ]
|
| #41 | 33-57451 | SPARK PLUG (AC V-40FFM) (4 required per assembly) SERIAL 02783253-09999999 |
| #42 | 47899A 9 | SPARK PLUG LEAD ASSEMBLY #1, #2, #3 AND #4 (4 required per assembly) ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS |
|
|
47899A 9 - 47899A 9 - LEAD ASSY [ More info ] Unavailable Replaced by 84-63212A 2 |
|
|
84-63212A 2 - 84-63212A 2 - LEAD ASSEMBLY [ More info ] Unavailable Replaced by 84-90816A25 |
|
|
84-90816A25 - 84-90816A25 - WIRE ASSEMBLY [ More info ] Unavailable Replaced by 84-93475A25 |
|
|
84-93475A25 - 84-93475A25 - LEAD ASSEMBLY [ More info ] Unavailable Replaced by 84-99215A25 |
|
|
84-99215A25 - 84-99215A25 - LEAD ASSEMBLY [ More info ] Unavailable Replaced by 84-813715A1 |
  |
|
84-813715A 1 - Ignition Cable Assembly [ More info ]
|
  |
|
18-5228-1 - Spark Plug Wire, 9 Inch, 84-813715A1 [ More info ]
|
  |
|
18-5227-1 - Spark Plug Wire, 9 Inch Pre-made [ More info ]
|
| #43 | 47604A 1 | PROTECTOR, SPARK PLUG LEAD (4 required per assembly) |
|
|
47604A 1 - 47604A 1 - [email protected] [ More info ] Unavailable Replaced by 85-71006A 1 |
|
|
85-71006A 1 - 85-71006A 1 - PROTECTOR [ More info ] Unavailable Replaced by 85-63709A 1 |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #44 | 32-26527 | SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3, 4) (2 required per assembly) |
|
|
32-26527 - 32-26527 - SLEEVE [ More info ] Unavailable Replaced by 32-265271 |
|
|
32-265271 - 32-265271 - ->46768 [ More info ] Unavailable Replaced by -46768 |
|
|
32-46768 - Sleeve [ More info ]
|
| #45 | 393-1275 | SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR (4 required per assembly) |
|
|
393-1275 - 393-1275 - MERC PERF PROD [ More info ] Unavailable Replaced by -60096 |
|
|
60096 - 60096 - SLEEVE [ More info ] Unavailable Replaced by 85-94589 |
|
|
85-94589 - NIPPLE NLA [ More info ] Unavailable |
