Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Distributor Adaptor & Vertical Linkage

Revise Search: All Models > 800 (4 Cylinder) , 80 (4 Cylinder) > 2559001 - 3493912 > Distributor Adaptor & Vertical Linkage

« Previous

NEED PARTS OR KITS?

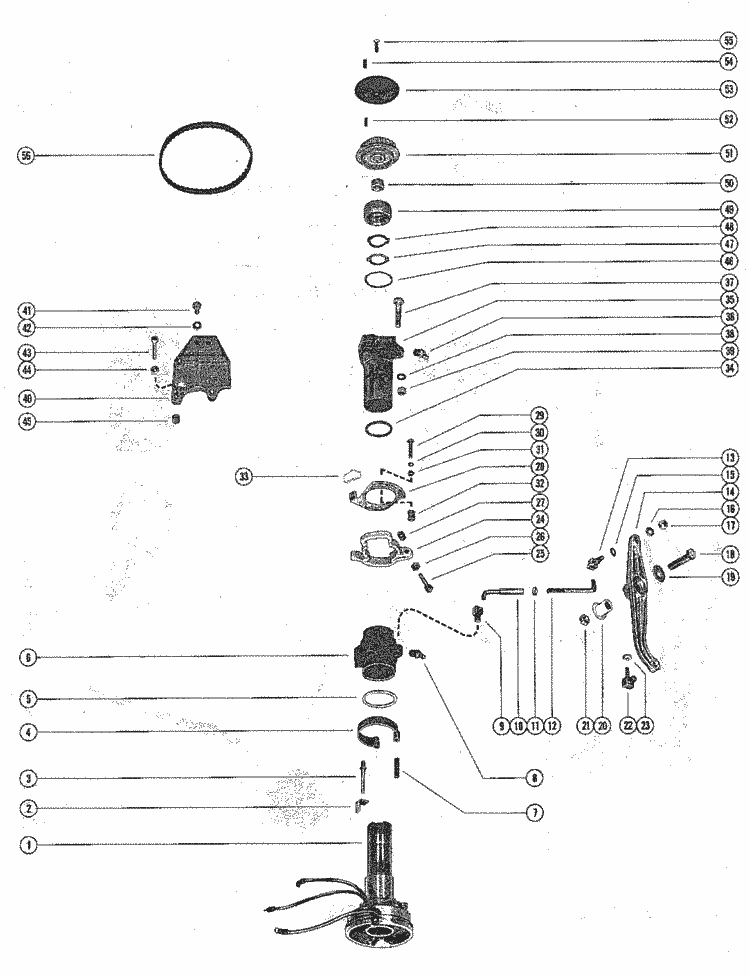

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	332-4177A 3	HOUSING ASSEMBLY, DISTRIBUTOR (1 required per assembly) SERIAL 00000000-02991033
		332-4177A 3 - 332-4177A 3 - DIST BODY ASSY [ More info ] Unavailable Replaced by 393-3736A23
		393-3736A23 - 393-3736A23 - DIST HOUSING [ More info ] Unavailable Replaced by 393-3736A77
		393-3736A77 - 393-3736A77 - DIST BODY ASSY [ More info ] Unavailable Replaced by 393-3736A79
		393-3736A79 - Distributor Body Assembly [ More info ] $634.57 Available to Order: Usually ships within 10 days.
		134-3736 - Trigger, 393-3736A79 [ More info ] $594.31 1 In Stock.
#1	337-4479	HOUSING, DISTRIBUTOR (1 required per assembly) SERIAL 03051040-03052380
		337-4479 - Distributor Housing, NLA [ More info ] $20.00 4 In Stock.
#2	32197	STOP, SPARK ADVANCE-DISTRIBUTOR HOUSING (1 required per assembly)
		32197 - Stop, NLA [ More info ] $2.50 7 In Stock.
#3	17-27962	PIN, ANCHOR SPRING-DISTRIBUTOR HOUSING (1 required per assembly)
		17-27962 - Anchor Pin, NLA [ More info ] $4.00 10+ In Stock.
#4	24-27944	SPRING, HORSESHOE -DISTRIBUTOR HOUSING (1 required per assembly)
		24-27944 - Spring, Horseshoe - Disributor Housing,NLA [ More info ] $5.00 8 In Stock.
#5	12-53540	WASHER, ECONOMIZER COLLAR-DISTRIBUTOR HOUSING (1 required per assembly)
		12-53540 - Washer, Economizer Collar - Distributor Housing, NLA [ More info ] $4.99 7 In Stock.
#6	30580A 1	ECONOMIZER COLLAR ASSEMBLY (1 required per assembly) SERIAL 00000000-02670574
		30580A 1 - 30580A 1 - COLLAR ASSY [ More info ] Unavailable Replaced by -55804A 1
		55804A 1 - Collar Assembly, NLA [ More info ] $25.00 10+ In Stock.
#6	55804A 1	ECONOMIZER COLLAR ASSEMBLY (1 required per assembly) SERIAL 02783253-09999999
#7	17-27961	PIN, ECONOMIZER COLLAR-SPRING RETAINER (1 required per assembly)
		17-27961 - Roll Pin, NLA [ More info ] $1.50 10+ In Stock.
#9	27947	SWIVEL, LINKAGE-ECONOMIZER COLLAR (1 required per assembly)
		27947 - Swivel [ More info ] $6.00 10+ In Stock.
#10	25996A 1	SWIVEL AND LINK ROD ASSEMBLY (1 required per assembly)
		25996A 1 - Link Rod Assembly [ More info ] $10.00 10+ In Stock.
#11	11-25168	NUT, UPPER LINK ROD ADJUSTING (1 required per assembly)
		11-25168 - Nut (1/4-28) NLA [ More info ] $1.59 10+ In Stock.
#12	37588	ROD, LINK-UPPER (1 required per assembly)
		37588 - Upper Link Rod [ More info ] $2.50 5 In Stock.
#13	27948	SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER (1 required per assembly)
		27948 - Swivel [ More info ] $8.44 10+ In Stock.
#14	48562	LEVER, THROTTLE CONTROL (1 required per assembly)
		48562 - Lever [ More info ] $35.20 9 In Stock.

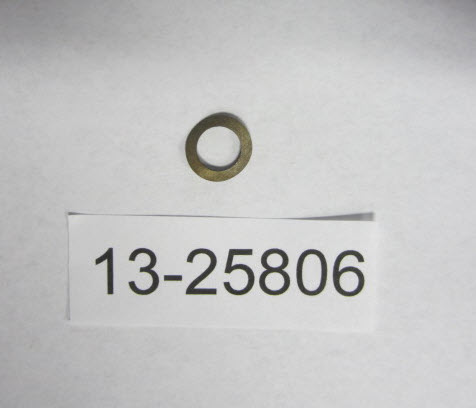

#15	13-25806	WASHER, WAVE-THROTTLE CONTROL LEVER SWIVEL (1 required per assembly)
		13-25806 - Wave Washer - Priced Individually [ More info ] $2.78 2 In Stock.
#16	12-29245	WASHER, THROTTLE CONTROL LEVER SWIVEL (1 required per assembly)
		12-29245 - Washer [ More info ] $0.80 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 Available to Order: Usually ships within 10 days.
		18-4275 - SS Washer [ More info ] $0.79 $0.76 1 In Stock.
#18	10-37559	SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4") (1 required per assembly)
		10-37559 - Screw - Priced Individually [ More info ] $0.70 5 In Stock.
		10-31830 - Screw, NLA [ More info ] $1.65 10+ In Stock.
#19	12-29395	WASHER, THROTTLE CONTROL LEVER SCREW (1 required per assembly)
		12-29395 - 12-29395 - WASHER (.390 x 1. [ More info ] Unavailable Replaced by 12-8M0042641
		12-8M0042641 - Washer [ More info ] $1.60 1 In Stock.
		18-4267-9 - Washer, 12-29395, 2PK [ More info ] $2.99 $2.52 4 In Stock.

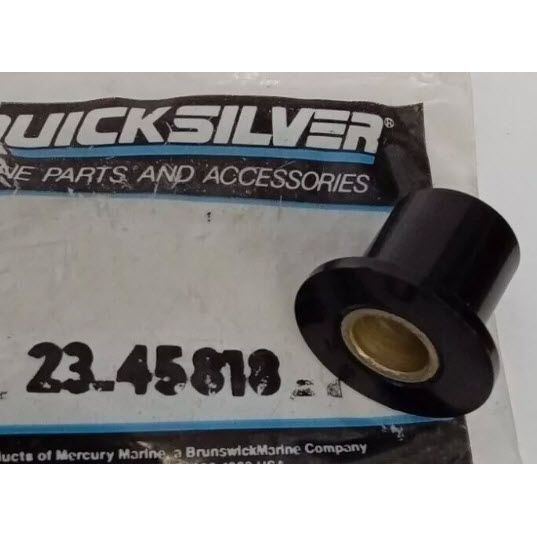

#20	23-45818	BUSHING, THROTTLE CONTROL LEVER SCREW (1 required per assembly)
		23-45818 - Bushing, NLA [ More info ] $11.99 9 In Stock.
#21	11-20509	NUT, THROTTLE CONTROL LEVER SCREW (1 required per assembly)
		11-20509 - 11-20509 - NUT [ More info ] Unavailable Replaced by 11-34863
		11-34863 - 11-34863 - NUT (.375-24) [ More info ] Unavailable Replaced by 11-826709113
		11-826709113 - 11-826709113 - NUT (.375-24) Sta [ More info ] Unavailable Replaced by -8M0042636
		11-8M0042636 - 11-8M0042636 - NUT (.375-24) Bra [ More info ] Unavailable Replaced by -8M0204726
		11-8M0204726 - NUT-BRASS @3 [ More info ] Unavailable
#22	37587	SWIVEL, LOWER-THROTTLE CONTROL LEVER TO THROTTLE CABLE (1 required per assembly)
		37587 - Swivel [ More info ] $22.50 10+ In Stock.
#23	11-20361	NUT, THROTTLE CABLE TO LOWER SWIVEL (1 required per assembly)
		11-20361 - 11-20361 - NUT (.250-28) [ More info ] Unavailable Replaced by 11-8267089
		11-826708 9 - Nut - Priced Individually [ More info ] $1.40 Available to Order: Usually ships within 10 days.
		18-3722 - Lock Nut, 121731, 11-35888 [ More info ] $2.29 $0.25 10+ In Stock.
#24	48692	COLLAR, THROTTLE ACTUATOR (1 required per assembly)
		48692 - COLLAR NLA [ More info ] Unavailable
#25	10-48675	SCREW, ADJUSTING-ACTUATOR COLLAR (1 1/2") (1 required per assembly) SERIAL 00000000-03148653
		10-48675 - Screw, NLA [ More info ] $1.25 2 In Stock.
#25	10-61658	SCREW, ADJUSTING-ACTUATOR COLLAR (1 3/4") (1 required per assembly) SERIAL 03186263-09999999
		10-61658 - SCREW NLA [ More info ] Unavailable
#28	48671	PLATE, THROTTLE ACTUATOR (1 required per assembly)
		48671 - Throttle Actuator Plate [ More info ] $6.00 10 In Stock.
#29	10-37892	SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1") (2 required per assembly)
		10-37892 - Screw, NLA [ More info ] $3.49 10+ In Stock.
#30	12-20128	WASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW (2 required per assembly)
		12-20128 - Washer - Priced Individually [ More info ] $0.55 10+ In Stock.
		12-847883 - Washer, (.192 X .375 X .033) [ More info ] $4.30 9 In Stock.
#31	13-26996	LOCKWASH, THROTTLE ACTUATOR PLATE FASTENING SCREW (2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#32	23-48674	SPACER, THROTTLE ACTUATOR PLATE SCREW (1 required per assembly)
		23-48674 - Spacer - Actuator Plate Screw [ More info ] $14.00 1 In Stock.
#33	54239	CAM, THROTTLE ACTUATOR PLATE (1 required per assembly)
		54239 - Throttle Actuator Plate Cam, NLA [ More info ] $2.00 10+ In Stock.
#34	12-46246	WASHER, ADAPTOR-DISTRIBUTOR HOUSING (1 required per assembly)
		12-46246 - Washer, NLA [ More info ] $4.99 1 In Stock.
#35	48666A 1	ADAPTOR ASSEMBLY, DISTRIBUTOR (1 required per assembly)
		48666A 1 - 48666A 1 - ADAPTOR ASSY [ More info ] Unavailable Replaced by -66165A 2
		66165A 2 - Adaptor Assembly, NLA [ More info ] $32.00 10+ In Stock.
#36	22-25094	FITTING, GREASE-DISTRIBUTOR ADAPTOR (1 required per assembly)
		22-25094 - Fitting, NLA [ More info ] $1.88 10+ In Stock.
#37	10-22040	SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2") (3 required per assembly)
		10-22040 - Screw - Priced Individually [ More info ] $0.30 10+ In Stock.
		10-69097 - Screw [ More info ] $0.50 6 In Stock.
		10-78841 - Bolt, NLA [ More info ] $1.82 10+ In Stock.
#38	12-20084	WASHER, DISTRIBUTOR HOUSING SCREW (3 required per assembly)
		12-20084 - Washer, (.328 X .562 X .062) [ More info ] $2.73 10+ In Stock.
#39	11-20083	NUT, DISTRIBUTOR HOUSING SCREW (3 required per assembly)
		11-20083 - Nut, Starter Solenoid Terminal (5/16X24) [ More info ] $1.10 10+ In Stock.
		11-22053 - Nut (5/16x24) [ More info ] $2.50 10+ In Stock.
#40	30585	BRACKET, STOP (1 required per assembly) SERIAL 00000000-02670574
		30585 - Bracket [ More info ] $1.60 3 In Stock.
		55805 - Stop Bracket, NLA [ More info ] $10.00 10+ In Stock.
#40	55805	BRACKET, STOP (1 required per assembly) SERIAL 02783253-09999999
#41	10-28636	SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4") (2 required per assembly)
		10-28636 - Screw - Priced Individually [ More info ] $1.70 10+ In Stock.
#42	12-20533	WASHER, STOP BRACKET FASTENING SCREW (2 required per assembly)
		12-20533 - Washer, 9/16 Inch O.D. [ More info ] $1.40 Available to Order: Usually ships within 10 days.
#43	10-24228	SCREW, STOP BRACKET ADJUSTING (1 7/8") (3 required per assembly)
		10-24228 - Screw, NLA [ More info ] $2.63 6 In Stock.
#44	11-20890	NUT, STOP BRACKET ADJUSTING SCREWS (3 required per assembly)
		11-20890 - Nut (1/4 x20) [ More info ] $1.60 10 In Stock.
#45	52023	CAP, NYLON-STOP BRACKET ADJUSTING SCREWS (3 required per assembly)
		52023 - Nylon Cap, NLA [ More info ] $1.99 6 In Stock.
#46	12-27939	WASHER, DISTRIBUTOR HOUSING (1 required per assembly)
		12-27939 - Washer, Distributor Adaptor, NLA [ More info ] $4.99 10+ In Stock.
#47	14-27960	TAB WASHER, ADAPTOR CAP FASTENING (1 required per assembly)
		14-27960 - Tab Washer, NLA [ More info ] $6.99 10+ In Stock.
#48	13-27959	WASHER, WAVE-DISTRIBUTOR BALL BEARING TENSION (1 required per assembly)
		13-27959 - Wave Washer, NLA [ More info ] $5.99 10+ In Stock.
#49	54567	CAP, DISTRIBUTOR HOUSING (1 required per assembly)
		54567 - Distributor Housing Cap, NLA [ More info ] $10.00 10+ In Stock.
#50	23-47250	SPACER, DRIVE PULLEY (1 required per assembly)
		23-47250 - Spacer, NLA [ More info ] $2.50 5 In Stock.
#51	29906A 1	DRIVEN PULLEY ASSEMBLY (1 required per assembly)
		29906A 1 - Pulley Assembly, NLA [ More info ] $16.00 10+ In Stock.
#52	17-29908	PIN, ROLL-FLANGE LOCATING (1 required per assembly)
		17-29908 - Pin -roll - Priced Individually [ More info ] $2.78 9 In Stock.
#53	29907	FLANGE, DRIVEN PULLEY (1 required per assembly)
		29907 - Driven Pulley Flange, NLA [ More info ] $9.00 10+ In Stock.
#54	28-29910	KEY, DISTRIBUTOR DRIVER (1 required per assembly)
		28-29910 - Key, NLA [ More info ] $6.00 10+ In Stock.
#55	10-58534	SCREW, PULLEY CLAMPING SCREW (1 required per assembly)
		27-58534 - Cylinder Head Plug Gasket [ More info ] $1.25 1 In Stock.
#56	20140	BELT, TIMING (1 required per assembly)
		20140 - Timing Belt [ More info ] $45.75 1 In Stock.
