Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Clamp & Swivel Bracket Assembly

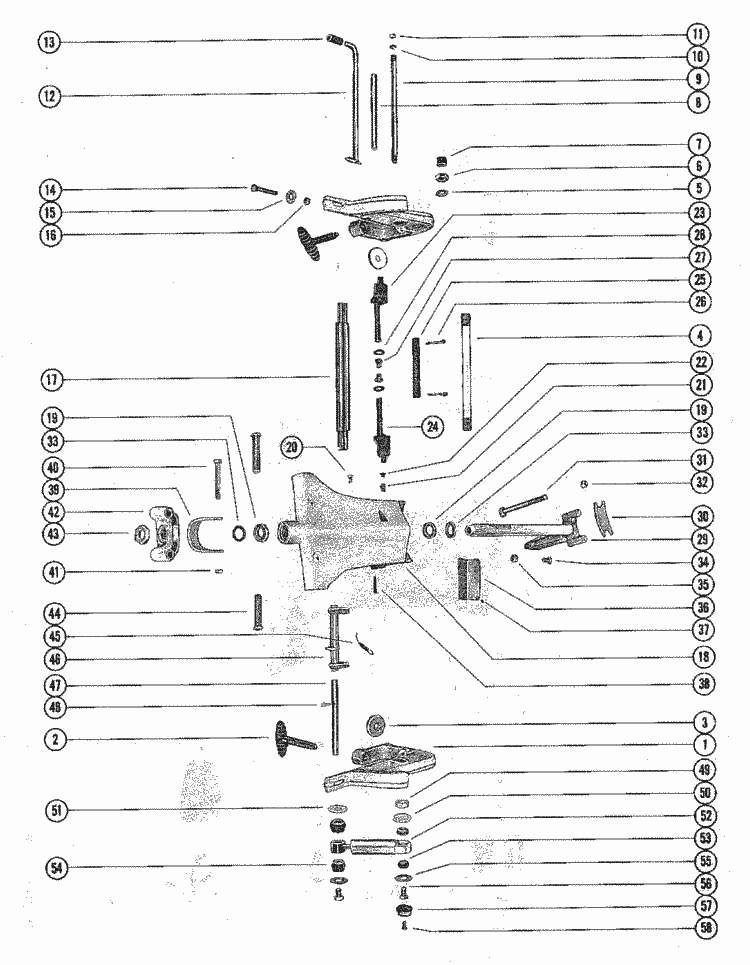

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 11-46887 | NUT, LOWER SHOCK PIN SCREW -LONG SHAFT (2 required per assembly) |
 |
|
11-46887 - 11-46887 - NUT (1/4-28) [ More info ] Unavailable Replaced by 11-20184 |
  |
|

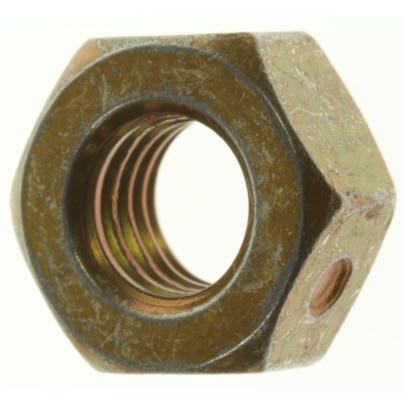

11-20184 - Nut, (1/4-28x7/32) [ More info ]
|
|
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| # | 10-28424 | SCREW, LOWER SHOCK PIN -LONG SHAFT (2 required per assembly) |
|
|
10-28424 - Screw, NLA [ More info ]
|
| #1 | 1440-3291A 1 | CLAMP BRACKET ASSEMBLY (2 required per assembly) |
|
|
1440-3291A 1 - 1440-3291A 1 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-5311A 1 |
|
|
1440-5311A 1 - 1440-5311A 1 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-5520A 1 |
|
|
1440-5520A 1 - 1440-5520A 1 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-6044A 2 |
|
|
1440-6044A 2 - 1440-6044A 2 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-6044A 6 |
|
|
1440-6044A 6 - 1440-6044A 6 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-6625A 3 |
|
|
1440-6625A 3 - 1440-6625A 3 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-7374A 2 |
|
|
1440-7374A 2 - 1440-7374A 2 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1440-8394A 1 |
  |
|

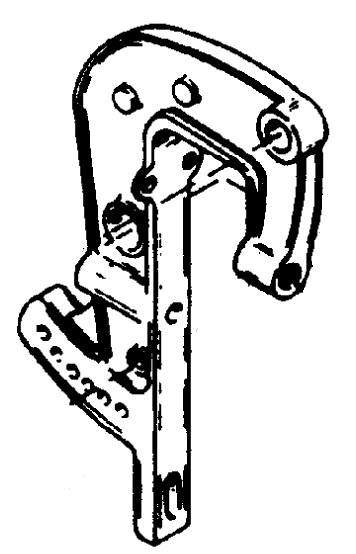

1440-8394A 1 - Clamp Bracket Assembly [ More info ]
|

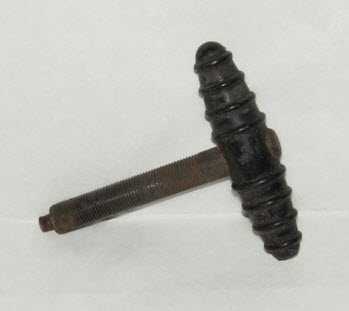

| #2 | 28403A 3 | THUMB SCREW ASSEMBLY (2 required per assembly) |
  |
|
28403A 3 - Thumb Screw , NLA [ More info ]
|
| #3 | 12-28404 | WASHER, THUMB SCREW (2 required per assembly) |
|
|
12-28404 - Wahser, Thumb Screw, NLA [ More info ]
|

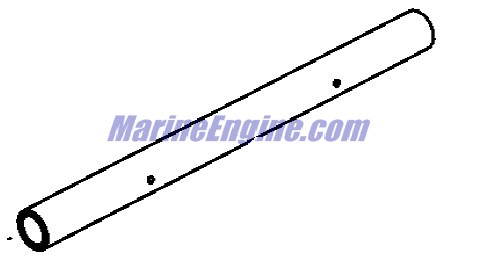

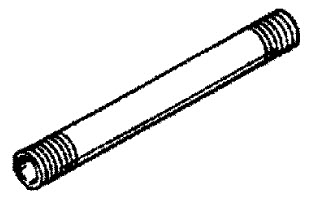

| #4 | 30664 | TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET (1 required per assembly) |
|
|
30664 - 30664 - TUBE [ More info ] Unavailable Replaced by -306641 |
|
|
306641 - 306641 - ->306642 [ More info ] Unavailable Replaced by -306642 |
  |
|
306642 - 306642 - ->883067 [ More info ] Unavailable Replaced by -883067 |
  |
|
883067 - 883067 - TILT TUBE [ More info ] Unavailable Replaced by -8M0035074 |
  |
|
8M0035074 - 8M0035074 - TILT TUBE [ More info ] Unavailable Replaced by -8M0041936 |
  |
|

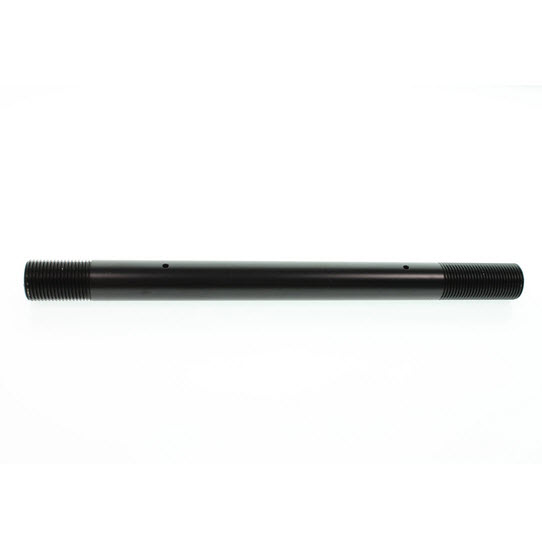

8M0041936 - Tilt Tube [ More info ]
|
| #5 | 12-52864 | WASHER, CLAMP BRACKET TILT TUBE (2 required per assembly) |
|
|
12-52864 - Washer, Tilt Tube, NLA [ More info ]
|
| #6 | 11-30499 | NUT, TILT TUBE FASTENING (2 required per assembly) |
|
|
11-30499 - 11-30499 - NUT (7/8-14) [ More info ] Unavailable Replaced by 11-858869 |
  |
|
11-858869 - Nut, (.875-14) [ More info ]
|
| #7 | 53078 | CAP, PLASTIC-TILT TUBE (2 required per assembly) |
|
|
53078 - Plastic Cap, NLA [ More info ]
|

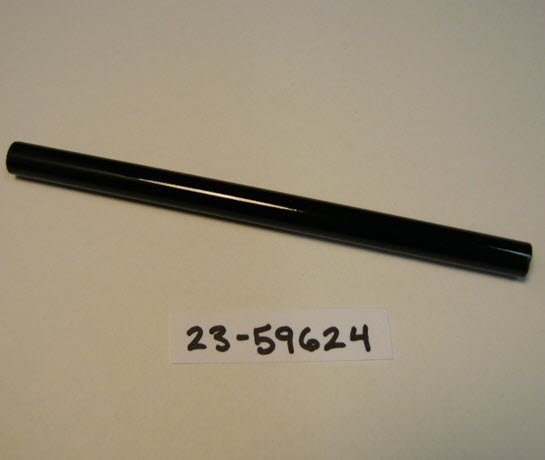

| #8 | 23-59624 | SPACER, CLAMP BRACKET STUD (1 required per assembly) |
  |
|
23-59624 - Spacer - Clamp Bracket Stud [ More info ]
|
| #9 | 16-59625 | STUD, CLAMP BRACKET (1 required per assembly) |
|
|
16-59625 - Stud, NLA [ More info ]
|
| #10 | 13-26993 | LOCKWASHER, CLAMP BRACKET STUD (2 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
|
|
13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable |
| #11 | 11-28770 | NUT, CLAMP BRACKET STUD (2 required per assembly) |
  |
|

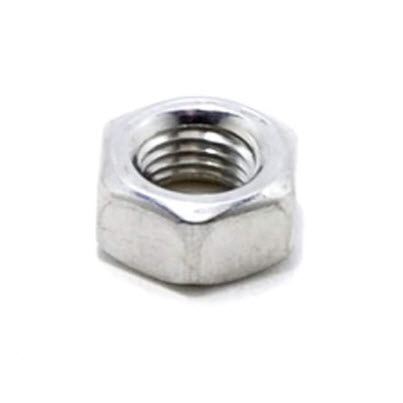

11-28770 - Nut (5/16-24) [ More info ]
|
| #12 | 17-49930A 1 | TILT LOCK PIN ASSEMBLY (1 required per assembly) |
|
|
17-49930A 1 - 17-49930A 1 - PIN ASSEMBLY Tilt [ More info ] Unavailable Replaced by 17-8M0026068 |
  |
|
17-8M0026068 - Pin Assembly - Tilt [ More info ]
|
| #13 | 32-28052 | SLEEVE, RUBBER-TILT LOCK PIN BUMPER (1 required per assembly) |
|
|
32-28052 - SLEEVE NLA [ More info ] Unavailable |
| #14 | 10-28009 | BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4") (2 required per assembly) |
|
|
10-28009 - 10-28009 - BOLT [ More info ] Unavailable Replaced by 10-68298 |
|
|
10-68298 - Screw, NLA [ More info ]
|
| #15 | 12-28008 | WASHER, CLAMP BRACKET BOLT (2 required per assembly) |
|
|
12-28008 - 12-28008 - WASHER @10 [ More info ] Unavailable Replaced by 12-68410 |
|
|
12-68410 - Washer, NLA [ More info ]
|
| #14 | 10-31827 | BOLT, CLAMP BRACKET TO TRANSOM (3") (2 required per assembly) |
|
|
10-31827 - 10-31827 - SCREW @3 [ More info ] Unavailable Replaced by 10-68299 |
  |
|
10-68299 - Screw - Priced Individually [ More info ]
|
| #15 | 12-21040 | WASHER, CLAMP BRACKET BOLT (2 required per assembly) |
|
|
12-21040 - 12-21040 - WASHER [ More info ] Unavailable Replaced by 12-68300 |
|
|
12-68300 - Washer, (..88 X .39 X .06) [ More info ]
|
| #16 | 11-28010 | NUT, CLAMP BRACKET BOLT (4 required per assembly) |
|
|
11-28010 - 11-28010 - NUT @10 [ More info ] Unavailable Replaced by 11-68411 |
|
|
11-68411 - Nut (3/8-16) [ More info ]
|
|
|
11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ]
|
| #17 | 55-28416 | PIN, UPPER SHOCK MOUNTING (1 required per assembly) |
  |
|
55-28416 - Upper Shock Pin, NLA [ More info ]
|
| #18 | 1453-3258A 4 | SWIVEL BRACKET ASSEMBLY (SHORT SHAFT) (1 required per assembly) |
|
|
1453-3258A 4 - 1453-3258A 4 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1453-4886A 4 |
|
|
1453-4886A 4 - 1453-4886A 4 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1453-5271A 3 |
|
|
1453-5271A 3 - 1453-5271A 3 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1453-5597A 2 |
|
|
1453-5597A 2 - 1453-5597A 2 - CLAMP BRACKET [ More info ] Unavailable Replaced by 1453-6019A 2 |
|
|
1453-6019A 2 - 1453-6019A 2 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1490-7256A 2 |
|
|
1490-7256A 2 - SWIVEL BRACKET AS NLA [ More info ] Unavailable |
| #18 | 1447-3257A 4 | SWIVEL BRACKET ASSEMBLY (LONG SHAFT) (1 required per assembly) |
|
|
1447-3257A 4 - 1447-3257A 4 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1447-4885A 4 |
|
|
1447-4885A 4 - 1447-4885A 4 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1447-5270A 3 |
|
|
1447-5270A 3 - 1447-5270A 3 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1447-5596A 3 |
|
|
1447-5596A 3 - 1447-5596A 3 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1447-5916A 3 |
|
|
1447-5916A 3 - 1447-5916A 3 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1447-6017A 4 |
|
|
1447-6017A 4 - 1447-6017A 4 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1482-6386A 4 |
|
|
1482-6386A 4 - SWIVEL BRACKET NLA [ More info ] Unavailable |

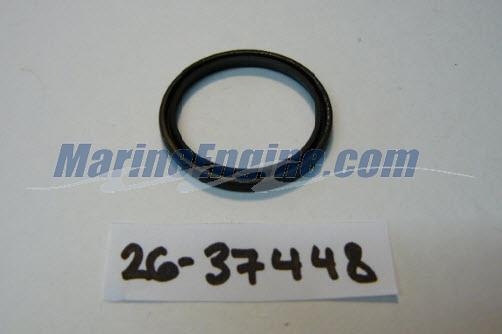

| #19 | 26-37448 | OIL SEAL, SWIVEL BRACKET (2 required per assembly) |
  |
|
26-37448 - Seal, NLA [ More info ]
|
| #20 | 10-47828 | SCREW, DRIVE-SWIVEL BRACKET (1 required per assembly) |
|
|
10-47828 - Screw, NLA [ More info ]
|
| #21 | 22-23612 | FITTING, GREASE (1 required per assembly) |
|
|
22-23612 - Fitting - Priced Individually [ More info ]
|
  |
|
22-69059 - Fitting, Grease - Priced Individually [ More info ]
|

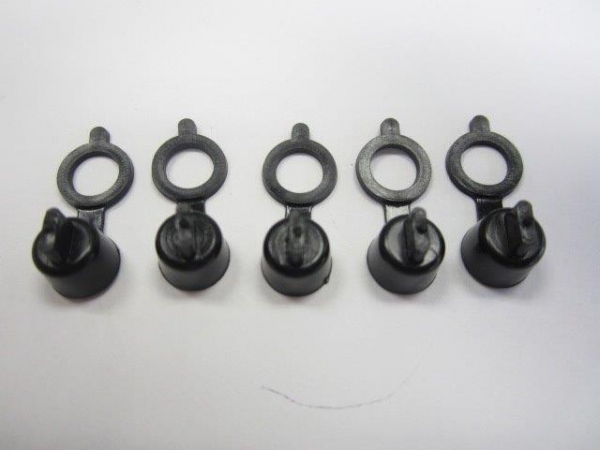

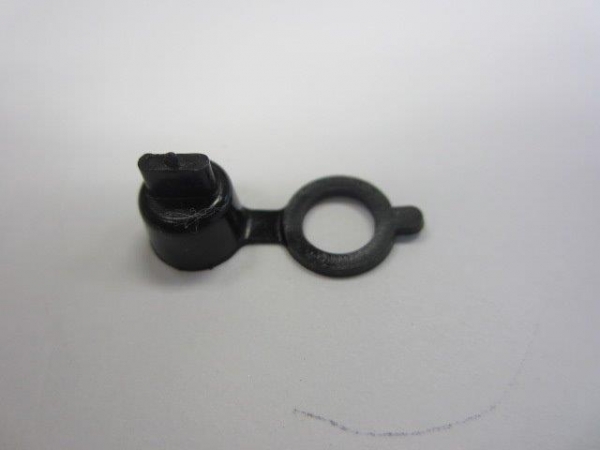

| #22 | 53216 | LUBRICAP, SWIVEL BRACKET GREASE FITTING (1 required per assembly) SERIAL 00000000-02670574 |
|
|
53216 - 53216 - LUBRICAP [ More info ] Unavailable Replaced by 19-77633 |
  |
|
19-77633 - Cap - Priced Individually [ More info ]
|
  |
|
19-77633Q - Cap - Pack of 5 as shown [ More info ]
|
  |
|
19-77633T - Caps - Pack of 5 as shown [ More info ]
|
| #22 | 29359 | LUBRICAP, SWIVEL BRACKET GREASE FITTING (1 required per assembly) SERIAL 02783253-09999999 |
|
|
29359 - Lubricap - Priced Individually [ More info ]
|
| #23 | 47799A 1 | TILT LOCK ASSEMBLY, STARBOARD (1 required per assembly) |
|
|
47799A 1 - 47799A 1 - TILT LOCK ASSY [ More info ] Unavailable Replaced by -76386 |
  |
|

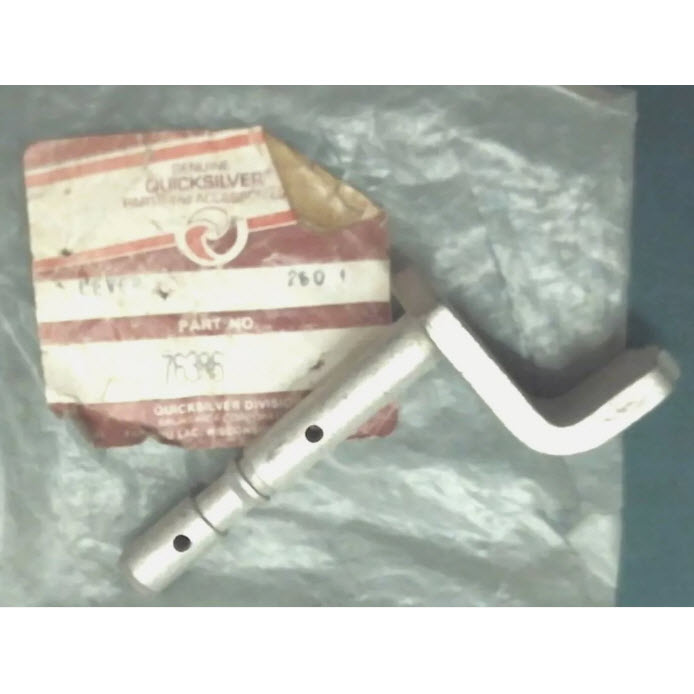

76386 - Tilt Lock, Starboard [ More info ]
|
| #24 | 47800A 1 | TILT LOCK ASSEMBLY, PORT (1 required per assembly) |
|
|
47800A 1 - 47800A 1 - TILT LOCK ASSY [ More info ] Unavailable Replaced by -76385 |
|
|
|
|
|
|
| #25 | 47802 | TUBE, TILT LOCK (1 required per assembly) |
|
|
47802 - Tube, NLA [ More info ]
|
| #26 | 18-47959 | COTTER PIN, TILT LOCK TUBE (2 required per assembly) |
|
|
18-47959 - Cotter Pin - Priced Individually [ More info ]
|
| #27 | 23-47803 | BUSHING, TILT LOCK TUBE (2 required per assembly) |
|
|
23-47803 - Bushing, NLA [ More info ]
|
| #28 | 13-24850 | WASHER, WAVE-TILT LOCK TUBE (2 required per assembly) |
|
|
13-24850 - 13-24850 - WAVE WASHER @5 [ More info ] Unavailable Replaced by 13-69150 |
|
|
13-69150 - Wave Washer - Priced Individually [ More info ]
|
| #29 | 17-49841A 1 | SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT) (1 required per assembly) |
  |
|
17-49841A 1 - SWIVEL PIN ASSY NLA [ More info ] Unavailable |
| #29 | 17-49840A 1 | SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT) (1 required per assembly) |
|
|
17-49840A 1 - Swivel Pin Assembly, NLA [ More info ]
|
| #30 | 28203 | BUMPER, STEERING ARM (1 required per assembly) |
  |
|
28203 - Bumper, NLA [ More info ]
|
| #31 | 10-30453 | BOLT, STEERING ARM TO UPPER MOUNT (5 1/2") (2 required per assembly) |
|
|
10-30453 - Screw, NLA [ More info ]
|
| #32 | 11-34933 | NUT, STEERING ARM BOLT FASTENING (2 required per assembly) |
  |
|
11-34933 - 11-34933 - NUT (.437-20) Sta [ More info ] Unavailable Replaced by -8M0204653 |
|
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ]
|
| #33 | 12-37429 | WASHER, SWIVEL PIN-LOWER (TOP WASHER OPTIONAL) (1 required per assembly) |
  |
|

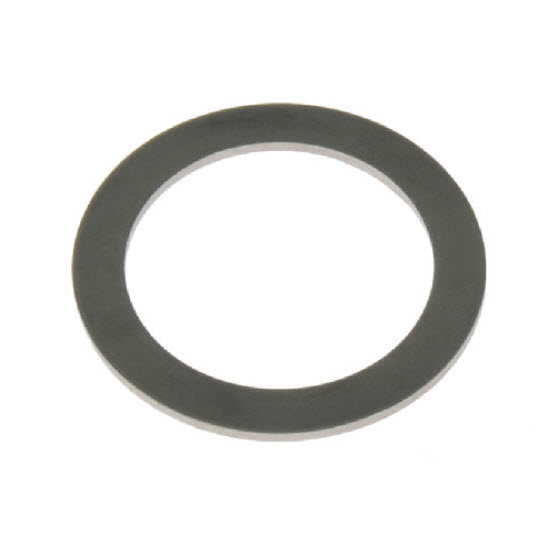

12-37429 - Washer [ More info ]
|
| #34 | 10-31830 | SCREW, RIDE-GUIDE ATTACHING (1 3/4") (1 required per assembly) |
|
|
10-31830 - Screw, NLA [ More info ]
|
| #35 | 11-20509 | NUT, RIDE-GUIDE ATTACHING SCREW (1 required per assembly) |
|
|
11-20509 - 11-20509 - NUT [ More info ] Unavailable Replaced by 11-34863 |
|
|
11-34863 - 11-34863 - NUT (.375-24) [ More info ] Unavailable Replaced by 11-826709113 |
  |
|
11-826709113 - 11-826709113 - NUT (.375-24) Sta [ More info ] Unavailable Replaced by -8M0042636 |
|
|
11-8M0042636 - 11-8M0042636 - NUT (.375-24) Bra [ More info ] Unavailable Replaced by -8M0204726 |
|
|
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ]
|
| #36 | 38-56267 | SERIAL PLATE (1 required per assembly) |
|
|
38-56267 - SERIAL PLATE NLA [ More info ] Unavailable |
| #37 | 10-25612 | SCREW, DRIVE-SERIAL PLATE TO SWIVEL BRACKET (4 required per assembly) |
|
|
10-25612 - Screw, NLA [ More info ]
|
| #38 | 17-25598 | PIN, REVERSE LOCK SPRING ATTACHING (1 required per assembly) |
|
|
17-25598 - Pin -roll, NLA [ More info ]
|
| #39 | 28205 | STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET (1 required per assembly) |
|
|
|
  |
|

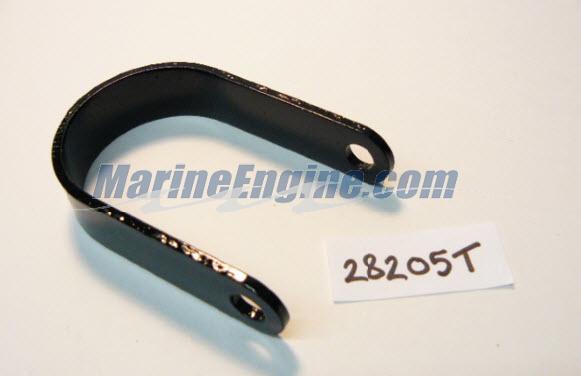

28205T - Strap, NLA [ More info ]
|
| #40 | 10-28200 | SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8") (1 required per assembly) |
|
|
10-28200 - Screw, NLA [ More info ]
|
| #41 | 11-25269 | NUT, STRAP STOP FASTENING SCREW (1 required per assembly) |
  |
|
11-25269 - Nut (3/8-24) [ More info ]
|
| #42 | 37419 | YOKE, BOTTOM (1 required per assembly) SERIAL 00000000-02670574 |
|
|
|
|
|
73984 - Bottom Yoke [ More info ]
|
|
|
73984T - BOTTOM YOKE NLA [ More info ] Unavailable |
| #42 | 55482 | YOKE, BOTTOM (1 required per assembly) SERIAL 02783253-09999999 |
|
|
55482 - 55482 - BOTTOM YOKE [ More info ] Unavailable Replaced by -37419 |
| #43 | 11-37424 | NUT, SWIVEL PIN RETAINING (1 required per assembly) |
|
|
11-37424 - Nut, Bottom Yoke Attaching,NLA [ More info ]
|
| #44 | 55-29247 | PIN, LOWER SHOCK MOUNTING (SHORT SHAFT) (2 required per assembly) |
|
|
55-29247 - 55-29247 - SHOCK PIN [ More info ] Unavailable Replaced by 55-65447 |
|
|
55-65447 - 55-65447 - PIN [ More info ] Unavailable Replaced by 55-69653 |
|
|
55-69653 - 55-69653 - PIN [ More info ] Unavailable Replaced by 55-696531 |
|
|
55-696531 - PIN NLA [ More info ] Unavailable |

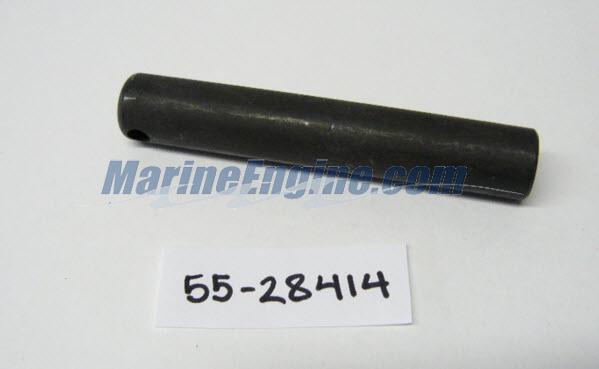

| #44 | 55-28414 | PIN, LOWER SHOCK MOUNTING-LONG SHAFT (2 required per assembly) |
  |
|
55-28414 - Shock Pin, NLA [ More info ]
|
| #45 | 24-29821 | SPRING, REVERSE LOCK TENSION (1 required per assembly) |
|
|
24-29821 - Spring, Reverse Lock Tension,NLA [ More info ]
|
| #46 | 39015A 1 | REVERSE LOCK ASSEMBLY (1 required per assembly) |
|
|
39015A 1 - 39015A 1 - REVERSE LOCK ASSY [ More info ] Unavailable Replaced by -70692 |
|
|
70692 - 70692 - HOOK [ More info ] Unavailable Replaced by -87431 |
|
|
87431 - LOCK ASSEMBLY Rev NLA [ More info ] Unavailable |
| #47 | 56349 | SHAFT, REVERSE LOCK PIVOT (1 required per assembly) |
  |
|

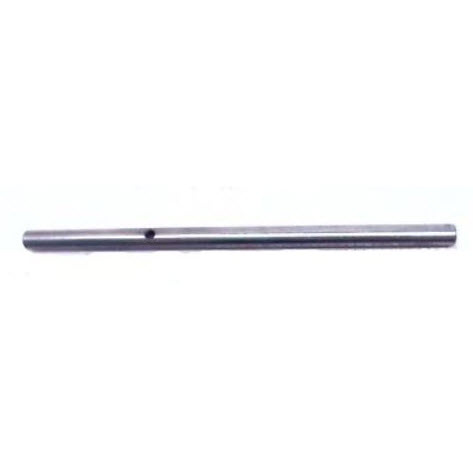

56349 - Shaft, NLA [ More info ]
|
| #48 | 18-45882 | COTTER PIN, REVERSE LOCK TO SHAFT (1 required per assembly) |
  |
|
18-45882 - Cotter Pin - Priced Individually [ More info ]
|
| #49 | 23-28199 | SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET (2 required per assembly) |
|
|
23-28199 - Spacer - Upper Shock Bushing To Clamp Bracket - NLA [ More info ]
|
| #50 | 12-28196 | WASHER, UPPER BUSHING RETAINER (INNER) (2 required per assembly) |
|
|
12-28196 - Washer, Upper Bushing Reainer(inner), NLA [ More info ]
|
| #51 | 12-28264 | WASHER, LOWER BUSHING RETAINER (INNER) (2 required per assembly) SERIAL 00000000-02670574 |
|
|
12-28264 - 12-28264 - WASHER [ More info ] Unavailable Replaced by 12-63099 |
|
|
12-63099 - 12-63099 - WASHER (1.50 x .7 [ More info ] Unavailable Replaced by 12-840400 |
|
|
12-840400 - Washer [ More info ]
|
|
|
12-8M0204695 - WASHER [ More info ] Unavailable |
| #51 | 12-56850 | WASHER, LOWER BUSHING RETAINER (INNER) (2 required per assembly) SERIAL 02783253-02886331 |
|
|
12-56850 - 12-56850 - WASHER [ More info ] Unavailable Replaced by 12-63099 |
| #51 | 12-59378 | WASHER, LOWER BUSHING RETAINER (INNER) (2 required per assembly) SERIAL 02986444-09999999 |
|
|
12-59378 - Washer, NLA [ More info ]
|
| #52 | 55-31933 | SHOCK ABSORBER (2 required per assembly) |
|
|
55-31933 - 55-31933 - SHOCK ABSORBER [ More info ] Unavailable Replaced by 55-58780A1 |
|
|
55-58780A1 - 55-58780A1 - ->58780A2 [ More info ] Unavailable Replaced by -58780A2 |
|
|
55-58780A 2 - Shock Absorber [ More info ]
|
|
|
55-58780A3 - 55-58780A3 - ->58780A7 [ More info ] Unavailable Replaced by -58780A7 |
|
|
55-58780A7 - SHOCK ABS ASY-BLK NLA [ More info ] Unavailable |
| #53 | 23-32171 | BUSHING, RUBBER-SHOCK ABSORBER (UPPER) (4 required per assembly) |
|
|
23-32171 - Bushing, NLA [ More info ]
|
| #54 | 23-28198 | BUSHING, RUBBER-SHOCK ABSORBER (LOWER) (4 required per assembly) |
|
|
23-28198 - BUSHING NLA [ More info ] Unavailable |
| #55 | 12-28421 | WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER) (4 required per assembly) |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
|
|
12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable |
| #56 | 10-53077 | SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4") (4 required per assembly) |
|
|
|
  |
|

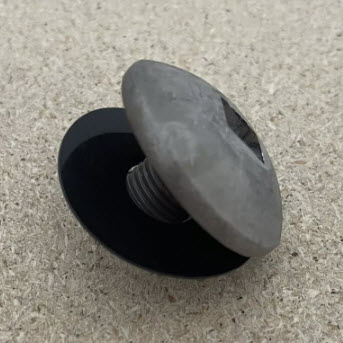

10-69375A1 - SCREW & WASHER NLA [ More info ] Unavailable |
| #57 | 53071 | COVER, UPPER AND LOWER SHOCK MOUNTING PIN (4 required per assembly) |
|
|
|
  |
|

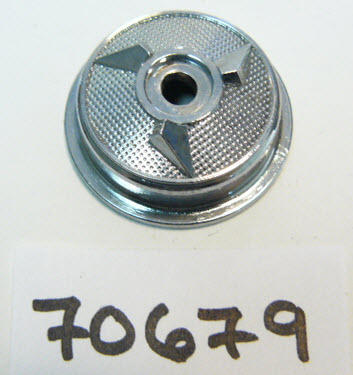

70679 - Trim Cylinder Cover, NLA [ More info ]
|
