Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Carburetor Linkage & Choke Solenoid

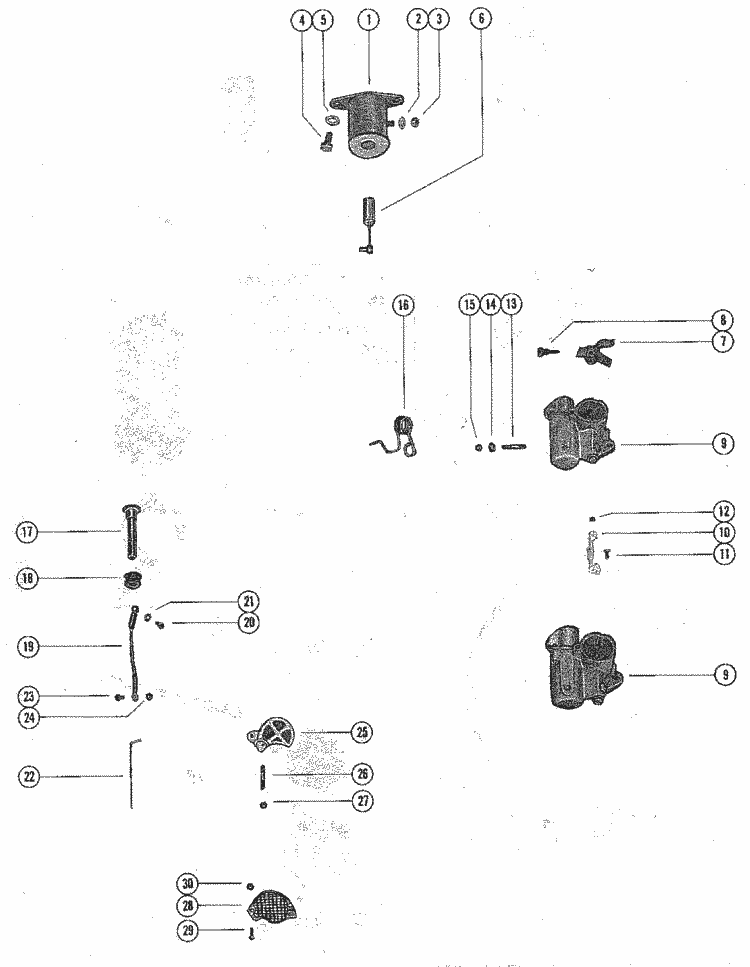

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 24-57818 | SPRING, FILTER SCREEN (2 required per assembly) SERIAL 02885850-09999999 |
 |
|
24-57818 - SPRING NLA [ More info ] Unavailable |

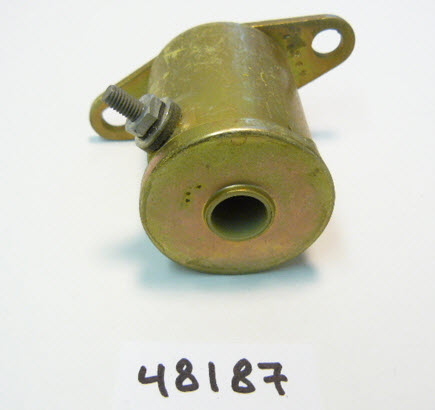

| #1 | 48187 | CHOKE SOLENOID (1 required per assembly) SERIAL 00000000-02670574 |
  |
|
48187 - Choke Solenoid, NLA [ More info ]
|
| #1 | 54293A 4 | CHOKE SOLENOID (1 required per assembly) SERIAL 02783253-09999999 |
|
|
54293A 4 - 54293A 4 - SOLENOID ASSEMBLY [ More info ] Unavailable Replaced by -54293A10 |
|
|
54293A10 - SOLENOID ASSEMBLY NLA [ More info ] Unavailable |
  |
|
SW926 - Solenoid, 54293A13 [ More info ]
|
| #2 | 13-26996 | LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID (1 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #3 | 11-20645 | NUT, WIRE HARNESS LEAD TO CHOKE SOLENOID (1 required per assembly) |
|
|
11-20645 - Nut,(10X32) [ More info ]
|
  |
|
11-68219 - Nut (#10-32) [ More info ]
|

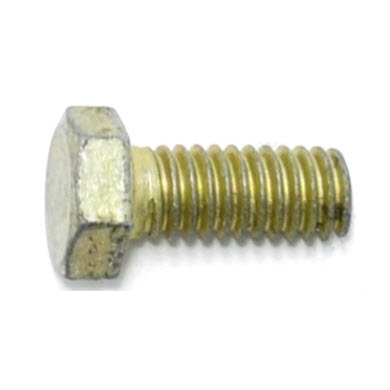

| #4 | 10-25299 | SCREW, CHOKE SOLENOID ATTACHING (3/4") (2 required per assembly) |
  |
|
10-25299 - Screw - Priced Individually [ More info ]
|
| #5 | 13-26993 | LOCKWASHER, CHOKE SOLENOID ATTACHING SCREW (2 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
|
|
13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable |
| #6 | 48315A 2 | PLUNGER/LINK ASS"Y, CHOKE SOLENOID (1 required per assembly) SERIAL 00000000-02670574 |
|
|
48315A 2 - Plunger Assembly, NLA [ More info ]
|
| #6 | 54283A 1 | PLUNGER/LINK ASS'Y, CHOKE SOLENOID (1 required per assembly) SERIAL 02783253-09999999 |
|
|
54283A 1 - 54283A 1 - PLUNGER AND LINK [ More info ] Unavailable Replaced by -90548A 1 |
|
|
90548A 1 - PLUNGER AND LINK NLA [ More info ] Unavailable |
| #7 | 52518 | CLUSTER, THROTTLE LEVER (1 required per assembly) |
|
|
52518 - CLUSTER NLA [ More info ] Unavailable |
| #8 | 10-20847 | SCREW, CLUSTER TO THROTTLE LEVER (1 required per assembly) |
|
|
10-20847 - 10-20847 - SCREW [ More info ] Unavailable Replaced by 1395-6027 |
|
|
1395-6027 - Screw [ More info ]
|
| #9 | 1352-3737 | CARBURETOR ASSEMBLY, COMPLETE (SERIAL #2991033 AND BELOW) (2 required per assembly) |
|
|
1352-3737 - 1352-3737 - CARBURETOR [ More info ] Unavailable Replaced by 1352-4440A1 |
|
|
1352-4440A1 - CARBURETOR NLA [ More info ] Unavailable |
| #9 | 1352-4440A 1 | CARBURETOR ASSEMBLY, COMPLETE (SERIAL #3051041 AND UP) (2 required per assembly) |
|
|
1352-4440A 1 - CARBURETOR NLA [ More info ] Unavailable |
| #10 | 53720A 2 | THROTTLE PICK-UP COUPLING ASSEMBLY (1 required per assembly) |
  |
|
53720A 2 - Coupling, NLA [ More info ]
|
| #11 | 10-53651 | SCREW, THROTTLE COUPLING MOUNTING (3/4") (1 required per assembly) |
|
|
10-53651 - Screw, NLA [ More info ]
|
| #12 | 53665 | INSERT, THROTTLE COUPLING (1 required per assembly) |
|
|
53665 - 53665 - INSERT [ More info ] Unavailable Replaced by 28-89694 |
  |
|
|
| #13 | 16-39937 | STUD, CHOKE ROD SPRING TO CARBURETOR (7/8") (1 required per assembly) |
|
|
16-39937 - 16-39937 - STUD [ More info ] Unavailable Replaced by 16-66357 |
  |
|

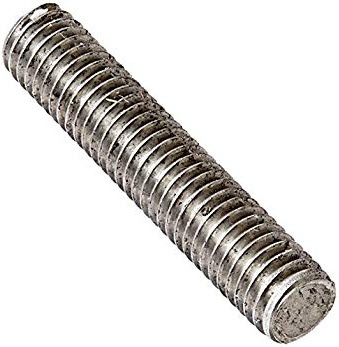

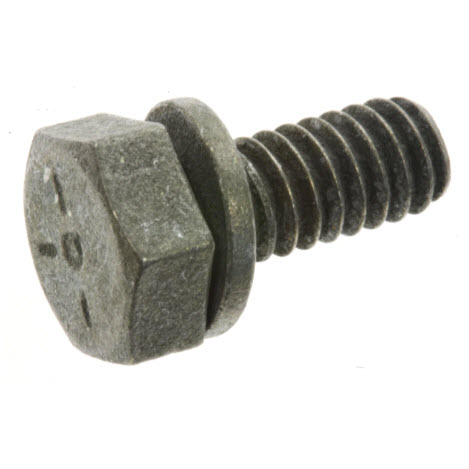

16-66357 - 16-66357 - STUD (.250-28 x 1 [ More info ] Unavailable Replaced by 10-657461 |
  |
|
10-65746 1 - Screw [ More info ]
|
| #14 | 23-32427 | SPACER, CHOKE ROD SPRING STUD (1 required per assembly) |
|
|
23-32427 - Spacer, NLA [ More info ]
|
| #15 | 11-46887 | NUT, CHOKE ROD SPRING TO CARBURETOR STUD (1 required per assembly) |
|
|
11-46887 - 11-46887 - NUT (1/4-28) [ More info ] Unavailable Replaced by 11-20184 |
  |
|
11-20184 - Nut, (1/4-28x7/32) [ More info ]
|
|
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|

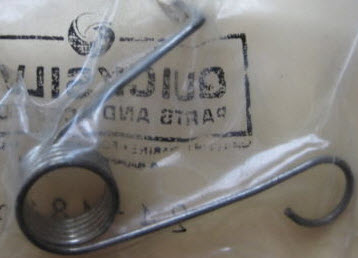

| #16 | 24-48230 | SPRING, TENSION-CHOKE ROD (1 required per assembly) |
  |
|
24-48230 - Spring, Choke Rod Tension,NLA [ More info ]
|
| #17 | 22463 | KNOB, CHOKE ROD (1 required per assembly) |
|
|
22463 - Choke Knob [ More info ]
|
|
|

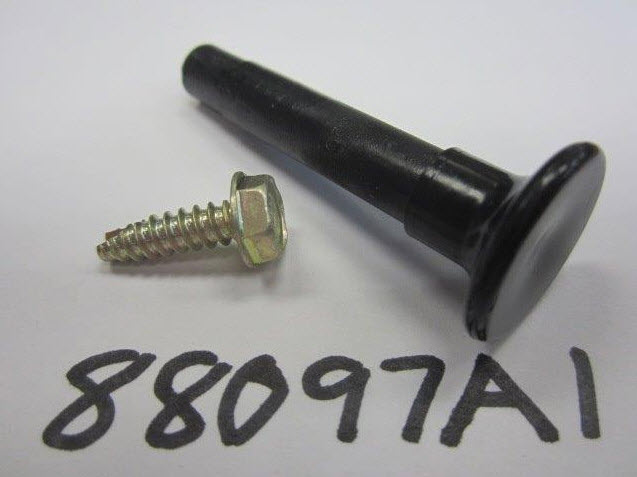

73755A1 - 73755A1 - ->88097A1 [ More info ] Unavailable Replaced by -88097A1 |
  |
|
88097A1 - 88097A1 - ->90242A1 [ More info ] Unavailable Replaced by -90242A1 |
  |
|
90242A1 - CHOKE KNOB ASSY NLA [ More info ] Unavailable |
| #18 | 25-20116 | GROMMET, CHOKE ROD (1 required per assembly) |
  |
|
25-20116 - Grommet - Priced Individually [ More info ]
|

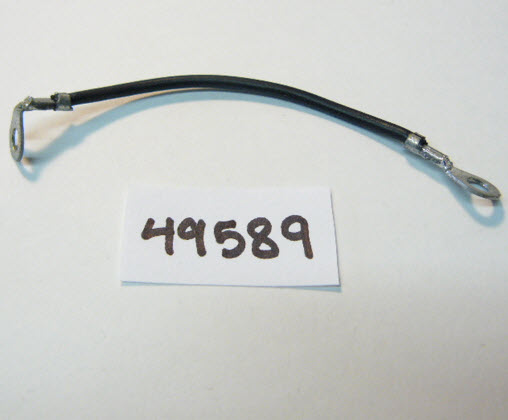

| #19 | 49589 | STRAP, CHOKE KNOB TO CHOKE ROD (1 required per assembly) |
  |
|
49589 - STRAP NLA [ More info ] Unavailable |

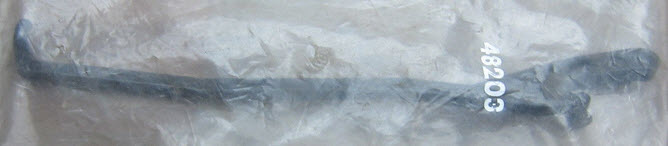

| #22 | 48203 | ROD, CHOKE (1 required per assembly) |
  |
|
48203 - Choke Rod, NLA [ More info ]
|
| #23 | 10-20100 | SCREW, STRAP TO CHOKE ROD (2 required per assembly) |
|
|
10-20100 - Screw - Priced Individually [ More info ]
|
  |
|
10-69022 - Screw [ More info ]
|
| #24 | 11-20565 | NUT, STRAP TO CHOKE ROD SCREW (2 required per assembly) |
|
|
11-20565 - 11-20565 - NUT @5 [ More info ] Unavailable Replaced by 11-46438 |
|
|
11-46438 - Nut (#10-32) [ More info ]
|

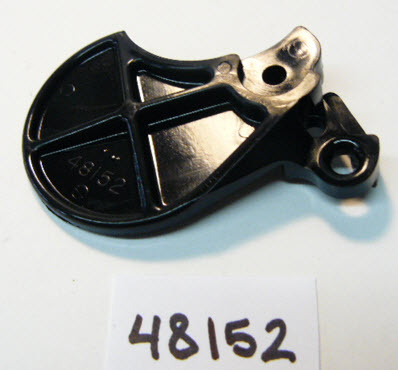

| #25 | 48152 | SHUTTER, CHOKE-CARBURETOR (2 required per assembly) |
  |
|
48152 - Choke Shutter [ More info ]
|
| #26 | 16-52898 | STUD, FILTER SCREEN TO CARBURETOR (1 1/8") (2 required per assembly) |
|
|
16-52898 - 16-52898 - STUD @3 [ More info ] Unavailable Replaced by 16-69037 |
|
|
16-69037 - Stud, NLA [ More info ]
|
| #27 | 11-20110 | NUT, CHOKE SHUTTER STUD (2 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #28 | 35-52900 | SCREEN, FILTER-CARBURETOR (2 required per assembly) SERIAL 00000000-02885849 |
|
|
35-52900 - 35-52900 - SCREEN [ More info ] Unavailable Replaced by 35-57819A1 |
|
|
35-57819A1 - SCREEN ASSY NLA [ More info ] Unavailable |
| #29 | 10-22523 | SCREW, FILTER SCREEN TO CARBURETOR (3/4") (2 required per assembly) SERIAL 00000000-02885849 |
|
|
10-22523 - Screw, NLA [ More info ]
|

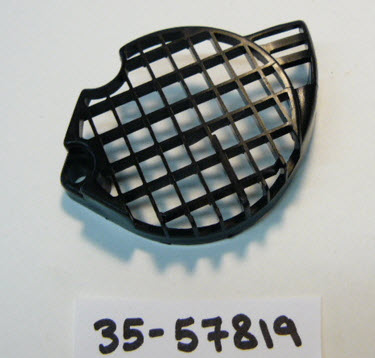

| #28 | 35-57819 | SCREEN, FILTER-CARBURETOR (2 required per assembly) SERIAL 02885850-09999999 |
  |
|
35-57819 - SCREEN NLA [ More info ] Unavailable |
| #29 | 10-23015 | SCREW, FILTER SCREEN TO CARBURETOR (2 required per assembly) SERIAL 02885850-09999999 |
  |
|
10-23015 - SCREW (.190-32 x NLA [ More info ] Unavailable |
