Parts for Mercury Marine 75 HP EFI (4-Stroke) Oil Pump

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B366823 & Up (USA) > Oil Pump

NEED PARTS OR KITS?

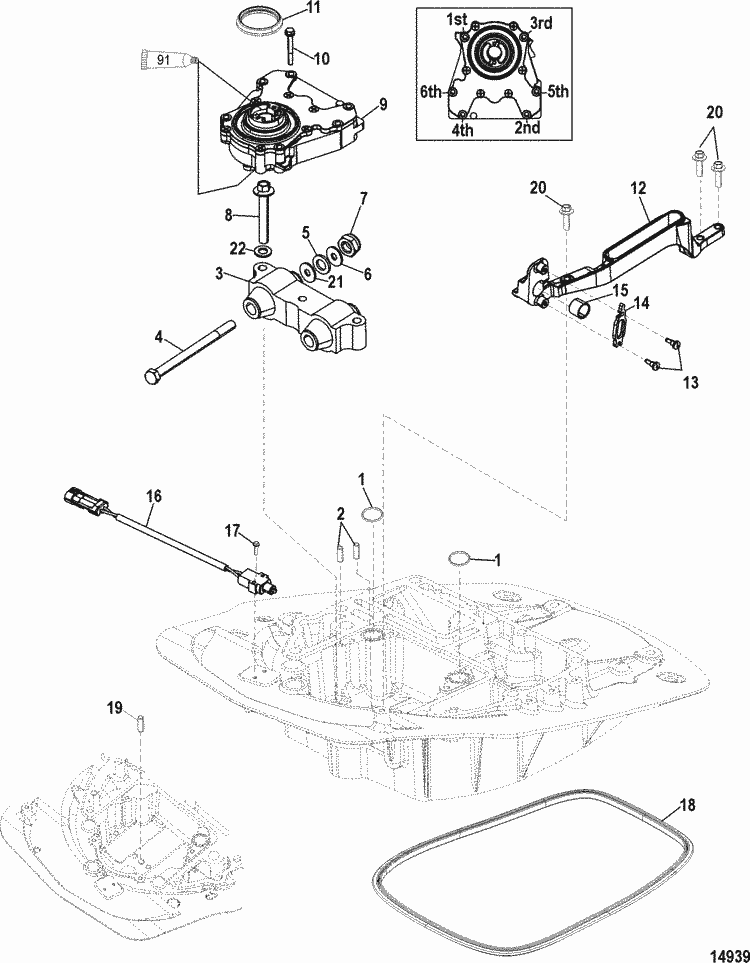

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	61-897148A09	LONG BLOCK ASSEMBLY, 75/80/90/100 (1 required per assembly)
		61-897148A09 - 61-897148A09 - LONG BLOCK ASSEMB [ More info ] Unavailable Replaced by -8M8033014
		8M8033014 - PH L4NA 4S [ More info ] Unavailable
#	61-897148A08	LONG BLOCK ASSEMBLY, 115 (1 required per assembly)
		61-897148A08 - LONG BLOCK ASSEMB [ More info ] Unavailable
#	27-897534A07	GASKET SET, Powerhead (1 required per assembly)
		27-897534A07 - Powerhead Gasket Set [ More info ] $316.58 Available to Order: Usually ships within 10 days.
#1	25-62705001	O-RING (2 required per assembly)
		25-62705001 - O-Ring [ More info ] $11.20 Available to Order: Usually ships within 10 days.
#2	17-858580001	PIN, Dowel (2 required per assembly)
		17-858580001 - Pin, Dowel [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#3	881900T01	MOUNT (1 required per assembly) SN# 1B467200 & Below
		881900T01 - 881900T01 - MOUNT [ More info ] Unavailable Replaced by -881900T02
		881900T02 - 881900T02 - MOUNT [ More info ] Unavailable Replaced by -881900T03

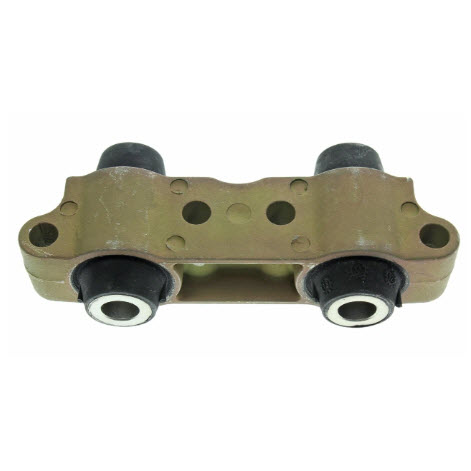

		881900T03 - Mount [ More info ] $146.08 Available to Order: Usually ships within 10 days.
#3	881900T02	MOUNT (1 required per assembly) SN# 1B467201 THRU 1B485180
#3	881900T03	MOUNT (1 required per assembly) SN# 1B485181 & Up
#4	10-898487	SCREW, (M12 x 175) (2 required per assembly)
		10-898487 - Screw [ More info ] $13.50 Available to Order: Usually ships within 10 days.
#5	12-32834	WASHER, (.9375 x 1.750 x .172) (2 required per assembly)

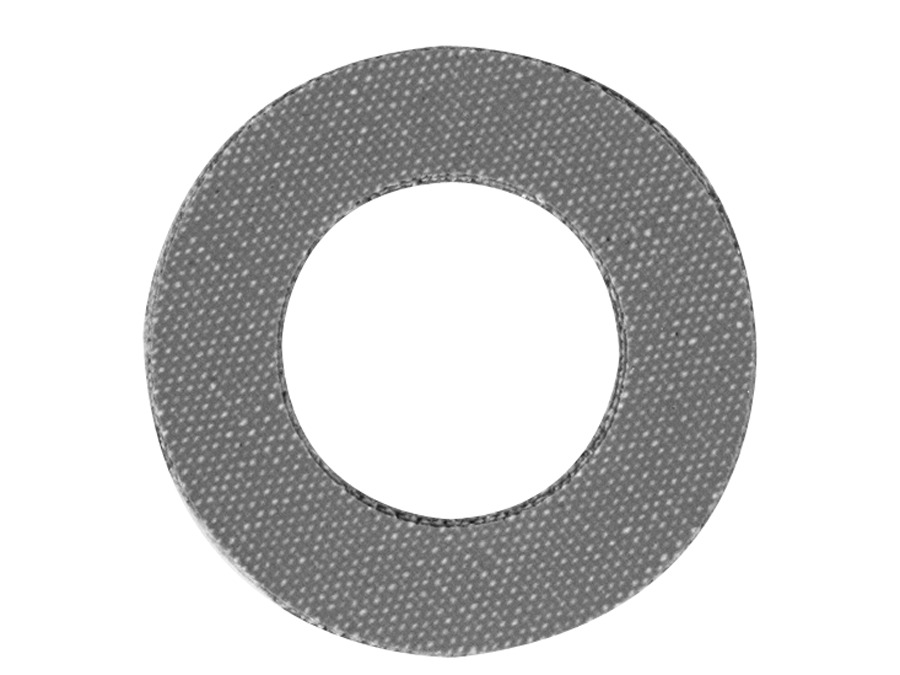

		12-32834 - Washer, (.9375 X 1.750 X .172) [ More info ] $5.50 10+ In Stock.
#6	12-28421	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (2 required per assembly)
		12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ] $2.99 10+ In Stock.
		12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable
#7	11-896963	NUT, (M12) (2 required per assembly)
		11-896963 - NUT (M12) [ More info ] Unavailable
#8	10-8M0008611	SCREW, (M8 x 50) (4 required per assembly)
		10-8M0008611 - 10-8M0008611 - SCREW (M8 x 50) [ More info ] Unavailable Replaced by 10-8M0036722
		10-8M0036722 - Screw - Priced Individually [ More info ] $14.70 Available to Order: Usually ships within 10 days.
#9	897206T02	PUMP ASSEMBLY, Oil (1 required per assembly) SN# 1B484634 & Below
		897206T02 - 897206T02 - PUMP ASSEMBLY Oil [ More info ] Unavailable Replaced by -897206T03
		897206T03 - PUMP ASSEMBLY Oil NLA [ More info ] Unavailable
		8M0091787 - OIL Pump [ More info ] $622.79 Available to Order: Usually ships within 10 days.
#9	897206T03	PUMP ASSEMBLY, Oil (1 required per assembly) SN# 1B484635 & Up
#10	10-824832 11	SCREW, (M6 x 50) (6 required per assembly)
		10-824832 11 - Screw - Priced Individually [ More info ] $5.00 2 In Stock.
#11	26-804349004	SEAL, Oil (1 required per assembly)
		26-804349004 - 26-804349004 - SEAL Oil [ More info ] Unavailable Replaced by 26-8M0028371
		26-8M0028371 - 26-8M0028371 - SEAL-OIL [ More info ] Unavailable Replaced by 26-8M0036343
		26-8M0036343 - Oil Seal [ More info ] $29.17 Available to Order: Usually ships within 10 days.
#12	897961T01	BRACKET ASSEMBLY, Shift Link (1 required per assembly)
		897961T01 - Bracket [ More info ] $53.00 Available to Order: Usually ships within 10 days.

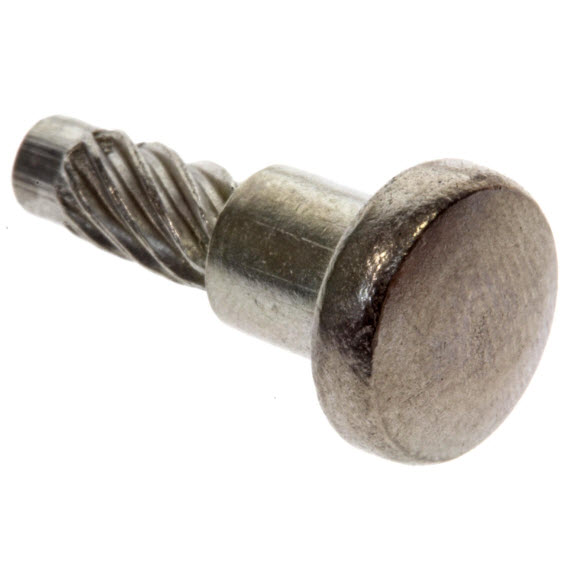

#13	10-42975	DRIVE SCREW (2 required per assembly)
		10-42975 - Screw - Drive [ More info ] $2.10 Available to Order: Usually ships within 10 days.

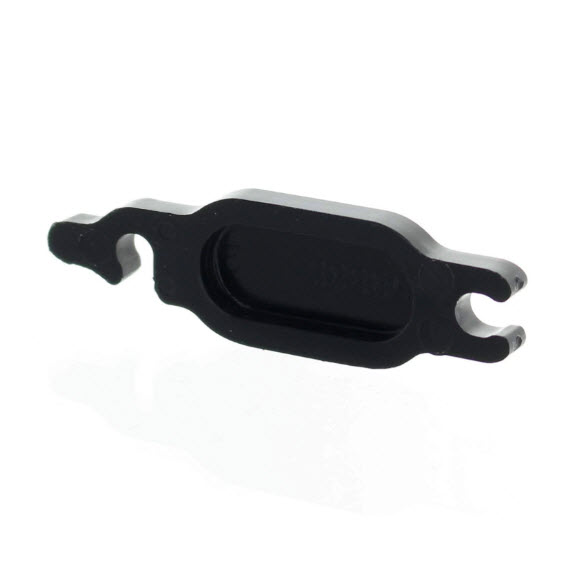

#14	98889	LATCH (1 required per assembly)
		98889 - Latch [ More info ] $3.70 3 In Stock.

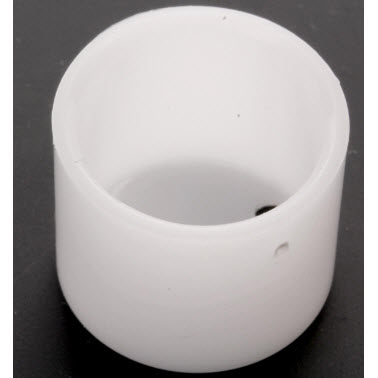

#15	824015	CUP, Barrel Retainer, Small (1 required per assembly)
		824015 - Barrel Retainer Cup [ More info ] $5.90 3 In Stock.
#16	87-889514A01	SWITCH (1 required per assembly)
		87-889514A01 - 87-889514A01 - SWITCH [ More info ] Unavailable Replaced by 87-8M0052939

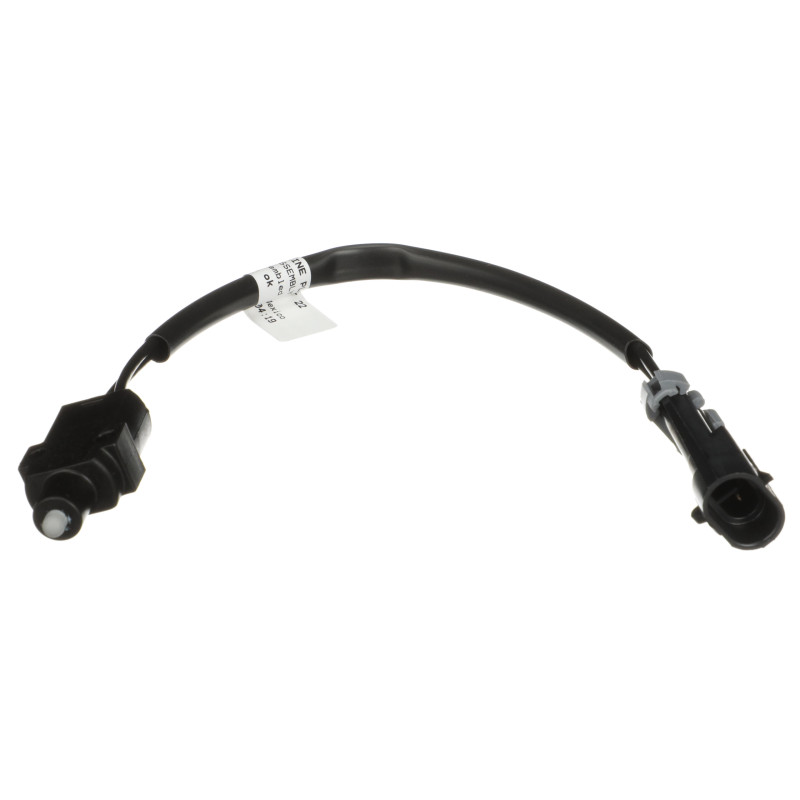

		87-8M0052939 - Switch [ More info ] $56.75 In Stock

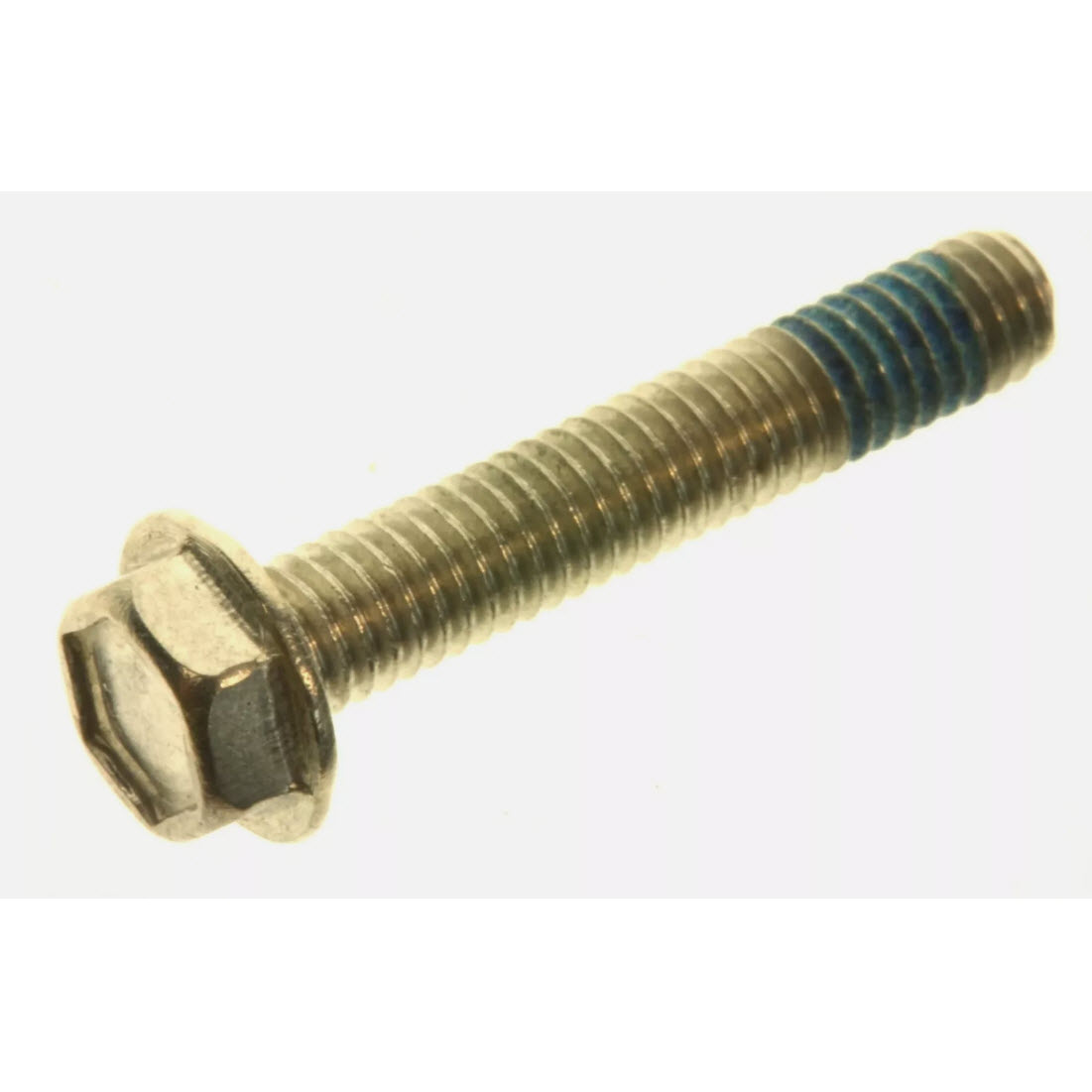

#17	10-880750 20	SCREW, (M3 x 20) (2 required per assembly)
		10-880750 20 - Screw [ More info ] $1.40 $0.78 10+ In Stock.
#18	884256 3	SEAL (1 required per assembly)
		884256 3 - Seal [ More info ] $25.00 1 In Stock.

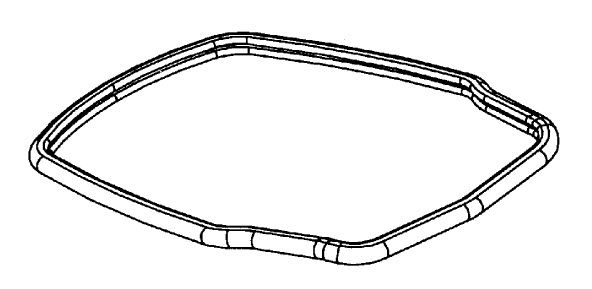

		8M0043168 - Seal [ More info ] $62.58 Available to Order: Usually ships within 10 days.
#19	17-23784	PIN, Dowel (1 required per assembly)
		17-23784 - Pin, Dowel [ More info ] $5.00 1 In Stock.

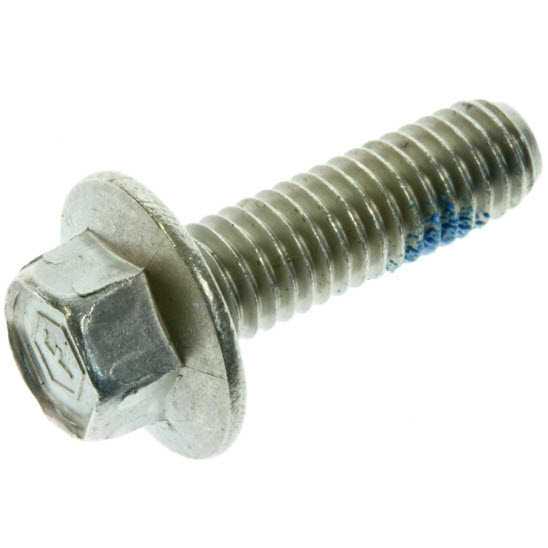

#20	10-821300 20	SCREW, (M6 x 20) (3 required per assembly)
		10-821300 20 - Screw - Priced Individually [ More info ] $2.60 Available to Order: Usually ships within 10 days.
#21	12-8M0001538	WASHER, (.940 x 1.50 x 0.65) Stainless Steel (2 required per assembly)
		12-8M0001538 - Washer, (.940 X 1.50 X 0.65) Stainless Steel [ More info ] $2.50 Available to Order: Usually ships within 10 days.
#22	12-40023 17	WASHER (4 required per assembly)
		12-40023 17 - Washer - Priced Individually [ More info ] $1.60 Available to Order: Usually ships within 10 days.
