Parts for Mercury Marine 75 HP EFI (4-Stroke) Gear Housing, Driveshaft

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B366823 & Up (USA) > Gear Housing, Driveshaft

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

LOOKING FOR A PROP?
• Try our prop finder.

COMPLETE GEARCASE?
• Aftermarket gearcase may be available for less than $900 USD. 70 HP+ only. Please call.

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	43-881260A 3	GEAR, Forward - 29 Teeth (1 required per assembly)
		43-881260A 3 - Forward Gear Kit [ More info ] $567.43 Available to Order: Usually ships within 10 days.
		18-1550 - Complete Gear Set -4 Cyl [ More info ] $653.17 1 In Stock.
#	46-43024A 7	REPAIR KIT, Water Pump (1 required per assembly)
		46-43024A 7 - REPAIR KIT Water NLA [ More info ] Unavailable
		18-3214 - Impeller Repair Kit, Without Housing [ More info ] $44.99 10+ In Stock.
		46-8M0113799 - Water Pump Repair Kit [ More info ] $192.17 3 In Stock.
#	1600-888845T08	GEAR HOUSING ASSEMBLY, Complete - Long - 2.33:1 (1 required per assembly)
		1600-888845T08 - GEAR HOUSING ASSE [ More info ] Unavailable
#	43-882813A 3	GEAR KIT, Forward And Pinion 28 Teeth (1 required per assembly)
		43-882813A 3 - Forward Gear Kit [ More info ] $706.57 Available to Order: Usually ships within 10 days.
#	1600-888845T06	GEAR HOUSING ASSEMBLY, Complete - Long - 2.07:1 (1 required per assembly)
		1600-888845T06 - GEAR HOUSING ASSE [ More info ] Unavailable
#	47-43026Q06	REPAIR KIT, Water Pump Impeller (1 required per assembly)
		47-43026Q06 - 47-43026Q06 - REPAIR KIT Water [ More info ] Unavailable Replaced by 47-8M0100526
		47-8M0100526 - Impeller Repair Kit [ More info ] $61.80 10+ In Stock.
		18-3265 - Water Pump Kit 47-43026Q06 [ More info ] $59.29 $50.88 In Stock
#	1600-888845T09	GEAR HOUSING ASSEMBLY, Complete - X-Long - 2.33:1 (1 required per assembly)
		1600-888845T09 - GEAR HOUSING ASSE [ More info ] Unavailable
#	26-43035A 4	SEAL KIT, Gear Housing (1 required per assembly)
		26-43035A 4 - SEAL KIT Gear Hou [ More info ] Unavailable
#	31-803496T 2	BEARING/SEAL KIT (1 required per assembly)
		31-803496T 2 - BEARING/SEAL KIT [ More info ] Unavailable
#	1600-888845T07	GEAR HOUSING ASSEMBLY, Complete - X-Long - 2.07:1 (1 required per assembly)
		1600-888845T07 - GEAR HOUSING ASSE [ More info ] Unavailable
#1	1600-888845T	GEAR HOUSING ASSEMBLY, Basic (1 required per assembly)
		1600-888845T - Basic Gear Housing Assembly [ More info ] $1,779.93 Available to Order: Usually ships within 10 days.
#2	17-43043	PIN, Dowel - With Hole (.375 x .625) , Front (1 required per assembly)
		17-43043 - Pin, Dowel [ More info ] $1.87 10+ In Stock.
		178M0084244 - Pin - Dowel [ More info ] $3.00 Available to Order: Usually ships within 10 days.
#3	43046	TUBE, Oiler (1 required per assembly)
		43046 - Oiler Tube [ More info ] $27.83 Available to Order: Usually ships within 10 days.
#4	10-79953Q 2	SCREW KIT, (.375-16 x .250) Drain (3 required per assembly)
		10-79953Q 2 - 10-79953Q 2 - SCREW KIT (.375-1 [ More info ] Unavailable Replaced by 10-79953Q04
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.20 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $4.99 $4.56 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $7.20 10 In Stock.
#5	12-19183 3	SEAL (3 required per assembly)
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] $1.40 1 In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.38 $1.99 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.40 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $6.40 4 In Stock.
#6	17-43044	PIN, Dowel - Without Hole (.375 x .625), Rear (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.40 Available to Order: Usually ships within 10 days.
#7	31640T 5	TRIM TAB (1 required per assembly)
		97-31640T 5 - 97-31640T 5 - TRIM TAB [ More info ] Unavailable Replaced by -31640T07
		31640T07 - Trim Tab [ More info ] $25.92 5 In Stock.
#8	10-825427	SCREW, (.437-14 x 1.250) Stainless Steel (1 required per assembly)
		10-825427 - Screw [ More info ] $6.70 Available to Order: Usually ships within 10 days.
#9	12-45176 1	WASHER, (.453 x .812 x .105) Black Oxide (1 required per assembly)
		12-45176 1 - Washer [ More info ] $2.50 Available to Order: Usually ships within 10 days.
#10	43040T 1	CARRIER ASSEMBLY (1 required per assembly)
		43040T 1 - Carrier Assembly [ More info ] $75.58 Available to Order: Usually ships within 10 days.
#11	NSS	NOT SOLD SEPARATE, Needle Bearing (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#12	826134Q	ANODE (2 required per assembly)
		97-826134Q - Anode, Aluminum, Outboard Side Pocket, Priced Individually [ More info ] $15.90 Available to Order: Usually ships within 10 days.
		97-826134T - Anode - Outboard Side Pocket - Priced Individually [ More info ] $15.90 4 In Stock.
#13	11-40138 6	NUT, (M6) Stainless Steel (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $4.90 10+ In Stock.
#14	10-40003 33	SCREW, (M6 x 40) (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $3.90 10+ In Stock.
#16	11-35921	NUT, (.625-18) (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.70 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.29 $4.83 3 In Stock.
		18-2359 - Nut Kit [ More info ] $5.09 $2.94 2 In Stock.
#17	31-883047A 1	BEARING ASSEMBLY, Tapered Roller (1 required per assembly)
		31-883047A 1 - Tapered Roller Bearing [ More info ] $81.58 Available to Order: Usually ships within 10 days.
#18	15-44492A 1	SHIM SET (1 required per assembly)
		15-44492A 1 - Shim Set [ More info ] $18.65 6 In Stock.

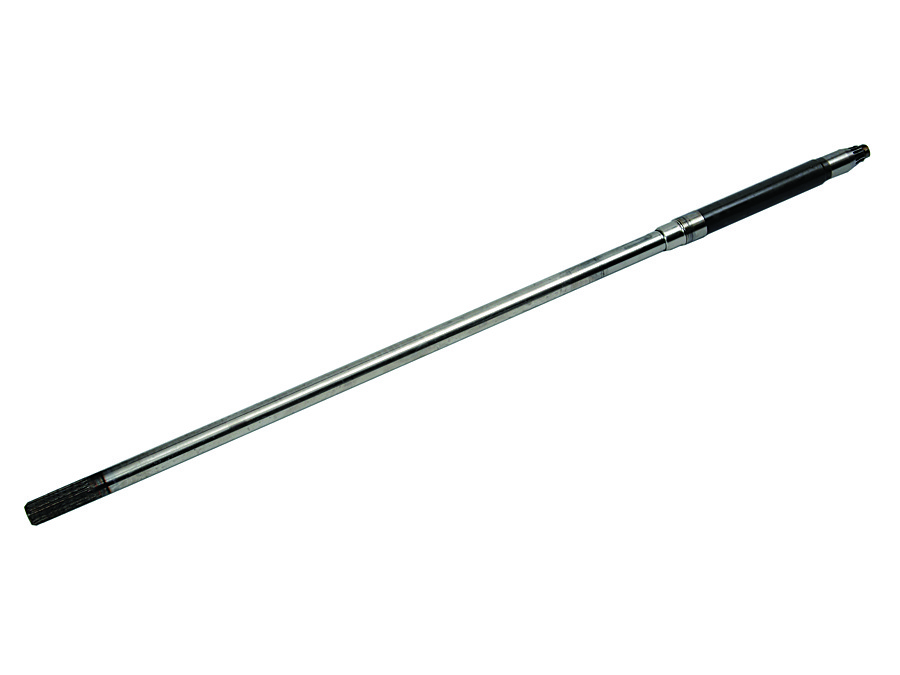

#19	45-897679T01	DRIVESHAFT ASSEMBLY, Long (1 required per assembly)
		45-897679T01 - Drive Shaft [ More info ] $759.64 Available to Order: Usually ships within 10 days.
#19	45-897680T01	DRIVESHAFT ASSEMBLY, X-Long (1 required per assembly)
		45-897680T01 - Drive Shaft [ More info ] $557.21 Available to Order: Usually ships within 10 days.
#20	42461A 1	SLEEVE/RING KIT (1 required per assembly)
		42461A 1 - Sleeve/Ring Kit [ More info ] $25.67 1 In Stock.
#22	43055A 4	COVER ASSEMBLY, Water Pump (1 required per assembly)
		43055A 4 - COVER ASSEMBLY Wa NLA [ More info ] Unavailable
#23	27-43033 1	GASKET (1 required per assembly)
		27-43033 1 - Face Plate To Cover Gasket [ More info ] $10.70 2 In Stock.
#24	27-43047 2	GASKET (1 required per assembly)
		27-43047 2 - GASKET [ More info ] Unavailable
		18-2565-9 - Gasket 27-430472 2-Pack [ More info ] $16.99 $15.61 10+ In Stock.
#25	26-43036	SEAL, Oil, Lower (1 required per assembly)
		26-43036 - Seal [ More info ] $19.10 In Stock
		18-0522 - Seal, 26-43036 [ More info ] $11.99 $9.10 7 In Stock.
#26	26-43035	SEAL, Oil, Upper (1 required per assembly)
		26-43035 - Seal [ More info ] $19.10 In Stock
		18-0583 - Seal, 26-43035 [ More info ] $11.87 10+ In Stock.
#27	27-817277 1	GASKET (1 required per assembly)
		27-817277 1 - GASKET [ More info ] Unavailable
		18-2566-9 - Gasket 27-817277 2-Pack [ More info ] $7.18 $6.51 10+ In Stock.
#28	817275A 2	HOUSING KIT, Upper Water Pump (1 required per assembly)
		817275A 2 - Water Pump Housing Upper [ More info ] $100.83 In Stock
		18-3572 - Water Pump Housing Kit 817275A2 [ More info ] $83.99 $76.10 1 In Stock.
		43050 - Face Plate [ More info ] $5.00 3 In Stock.
#29	817276 1	FACEPLATE (1 required per assembly)
		817276 1 - FACEPLATE [ More info ] Unavailable
		18-3122 - Plate, 817276 [ More info ] $8.99 $7.90 4 In Stock.
#30	10-826844 30	SCREW, (M6 x 30) (4 required per assembly)
		10-826844 30 - Screw - Priced Individually [ More info ] $2.60 5 In Stock.
#31	43023 2	SEAL (1 required per assembly)
		43023 2 - Seal [ More info ] $11.40 8 In Stock.
#32	28-43037	KEY (1 required per assembly)
		28-43037 - 28-43037 - KEY [ More info ] Unavailable Replaced by 28-8M0032833
		28-8M0032833 - 28-8M0032833 - KEY [ More info ] Unavailable Replaced by -8M0204723
		288M0204723 - KEY Note: Priced Individually [ More info ] $4.20 1 In Stock.
		18-3293 - Key, 28-43037 [ More info ] $5.99 $5.45 6 In Stock.
#33	47-43026T 2	IMPELLER (1 required per assembly)
		47-43026T 2 - Water Pump Impeller [ More info ] $37.08 10+ In Stock.
		18-3056 - Impeller 47-43026-2 [ More info ] $23.59 $21.64 10+ In Stock.
		47-43026Q02 - Water Pump Impeller [ More info ] $37.08 Available to Order: Usually ships within 10 days.
#34	10-826844 25	SCREW, (M6 x 25) (6 required per assembly)
		10-826844 25 - Screw [ More info ] $2.30 Available to Order: Usually ships within 10 days.
#35	26-861415	SEAL, Face (1 required per assembly)
		26-861415 - SEAL Face NLA [ More info ] Unavailable
#36	884563A00	SHIFT SHAFT ASSEMBLY (1 required per assembly) Long
		884563A00 - Shift Shaft, Long [ More info ] $90.42 Available to Order: Usually ships within 10 days.
#36	884565A00	SHIFT SHAFT ASSEMBLY (1 required per assembly) X-Long
		884565A00 - Shift Shaft -XLong [ More info ] $91.08 Available to Order: Usually ships within 10 days.
#37	53-29641	E RING (1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.70 6 In Stock.
#38	23-43052A 4	BUSHING ASSEMBLY (1 required per assembly)
		23-43052A 4 - Bushing Kit [ More info ] $44.17 2 In Stock.
#39	25-45710 1	O-RING, (1.424 x .103) (1 required per assembly)
		25-45710 1 - O-RING (1.424 x . [ More info ] Unavailable
		18-7198-9 - O-Ring (PK5) 25-45710, 308626 [ More info ] $9.18 1 In Stock.
#40	26-816464 1	SEAL, Oil (1 required per assembly)
		26-816464 1 - 26-816464 1 - SEAL Oil [ More info ] Unavailable Replaced by -8M0204708
		26-8M0204708 - SHIFT SHAFT OIL SEAL-O/B [ More info ] $16.30 10+ In Stock.
		18-2054 - Oil Seal Mercury [ More info ] $10.49 $9.69 Available to Order: Usually ships within 10 days.
#42	23-891637	BUSHING (1 required per assembly)
		23-891637 - Bushing [ More info ] $9.50 Available to Order: Usually ships within 10 days.
