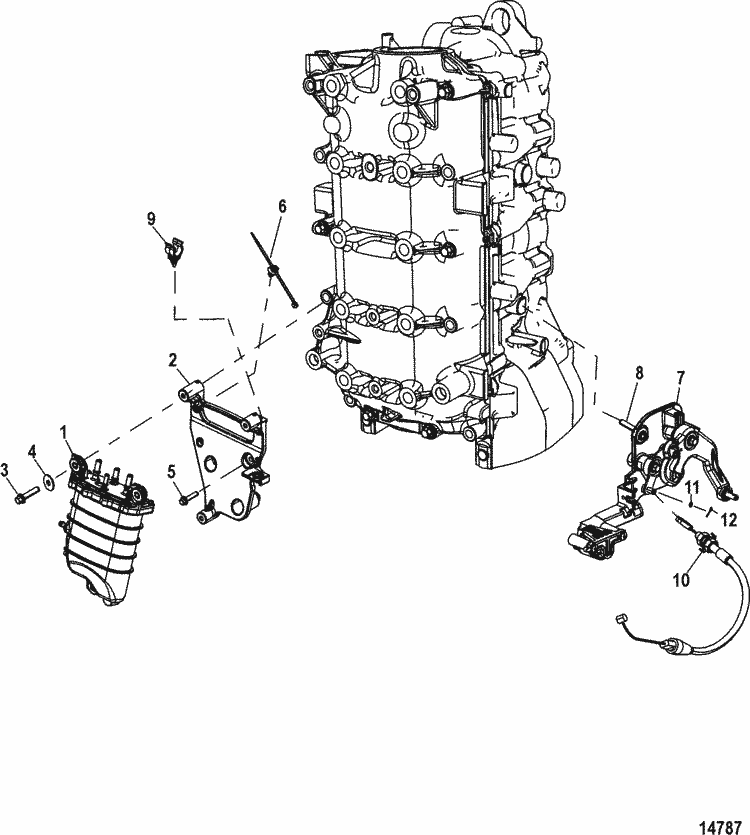

Parts for Mercury Marine 75 HP EFI (4-Stroke) Fuel Supply Module Mounting
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 880133T08 | MODULE, Fuel Supply (1 required per assembly) See Fuel Supply Module Page For Service Parts Breakdown |
 |
880133T08 - MODULE-FUEL SUPPL [ More info ] Unavailable |
|
|
880133T09 - Module - Fuel Suppl [ More info ] Unavailable |
|
  |
8M0078553 - Fuel Supply Module [ More info ] Unavailable |
|
|
|
8M0130897 - FUEL SUPPLY MOD [ More info ]
|
| #2 | 897567T | BRACKET, Fuel Supply Module (1 required per assembly) |
|
|
897567T - Bracket [ More info ]
|
| #3 | 10-885526 35 | SCREW, (M8 x 35) (3 required per assembly) |
  |
|
10-885526 35 - Screw - Priced Individually [ More info ] Unavailable |
| #4 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel (3 required per assembly) |
|
|
12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ]
|
| #6 | 54-899145 | CLIP, Tie Strap (2 required per assembly) |
|
|
54-899145 - Clip [ More info ]
|
| #7 | 897763T01 | BRACKET ASSEMBLY, Throttle (1 required per assembly) SN# 1B418905 & Below |
|
897763T01 - Bracket [ More info ] Unavailable |
|
|
|
897763T03 - Bracket Assembly [ More info ]
|
| #7 | 897763T03 | BRACKET ASSEMBLY, Throttle (1 required per assembly) SN# 1B418906 & Up |
| #8 | 10-885526 20 | SCREW, (M8 x 20) (3 required per assembly) |
|
|
10-885526 20 - Screw - Priced Individually [ More info ]
|
| #9 | 54-897559 | CLIP (1 required per assembly) |
|
|
54-897559 - Clip [ More info ]
|
| #10 | 8M0005986 | CABLE ASSEMBLY (1 required per assembly) |
|
|
8M0005986 - Throttle Cable [ More info ]
|
| #11 | 12-35459 | WASHER (1 required per assembly) |
  |
|
12-35459 - Washer (.265 X .620 X .06) [ More info ]
|
| #12 | 18-21071 1 | COTTER PIN (1 required per assembly) |
  |
|
18-21071 1 - Cotter Pin - Priced Individually [ More info ]
|
