Parts for Mercury Marine 75 HP EFI (4-Stroke) Fuel Supply Module Hoses

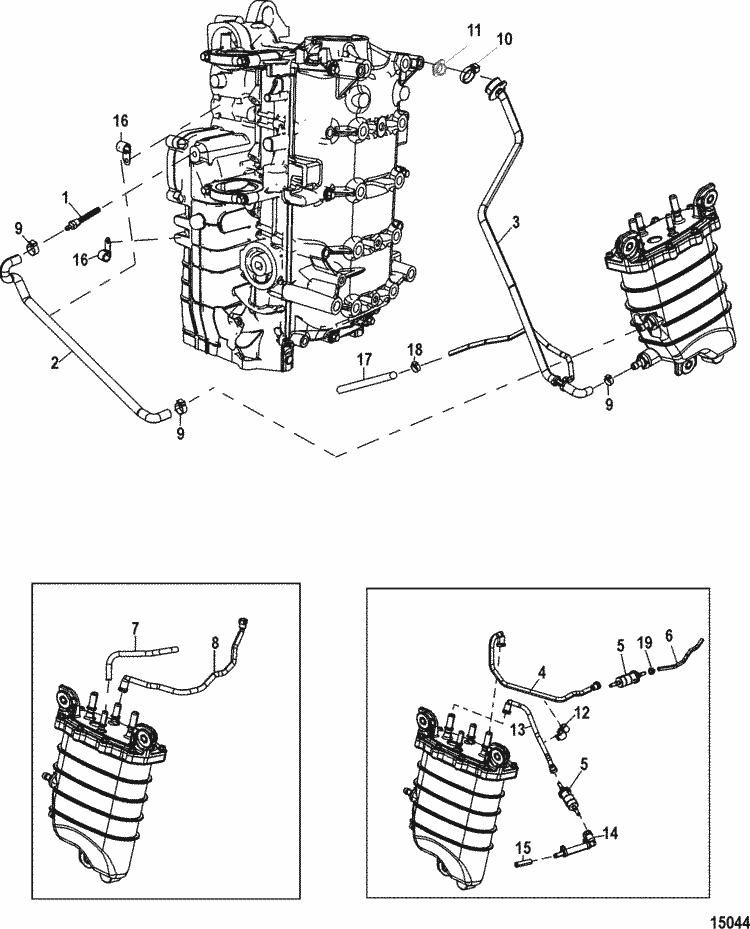

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 61-897148A08 | LONG BLOCK ASSEMBLY, 115 (1 required per assembly) |
 |
|
61-897148A08 - LONG BLOCK ASSEMB [ More info ] Unavailable |
| # | 61-897148A09 | LONG BLOCK ASSEMBLY, 75/80/90/100 (1 required per assembly) |
|
|
61-897148A09 - 61-897148A09 - LONG BLOCK ASSEMB [ More info ] Unavailable Replaced by -8M8033014 |
|
|
8M8033014 - PH L4NA 4S [ More info ] Unavailable |
| #1 | 35-834808 4 | STRAINER (1 required per assembly) |
  |
|
35-834808 4 - Strainer [ More info ]
|
| #2 | 32-897775 | HOSE, Block Strainer to Fuel Supply Module (1 required per assembly) SN# 1B759587 & Below |
|
|
32-897775 - 32-897775 - HOSE [ More info ] Unavailable Replaced by 32-8M0009120 |
|
|
32-8M0009120 - 32-8M0009120 - HOSE [ More info ] Unavailable Replaced by 32-8M0040122 |
|
|
32-8M0040122 - Hose - Strainer To Supply Module [ More info ]
|
| #2 | 32-8M0040122 | HOSE, Block Strainer to Fuel Supply Module (1 required per assembly) SN# 1B759588 & Up |
| #3 | 32-897795A01 | HOSE ASSEMBLY, Fuel Supply Module Outlet (1 required per assembly) |
|
|
32-897795A01 - Hose - Fuel Supply Module [ More info ]
|
| #4 | 32-897649001 | HOSE, Fuel Supply Module to High Pressure Fuel Filter (1 required per assembly) SN# 1B418732 & Below |
|
|
32-897649001 - 32-897649001 - HOSE [ More info ] Unavailable Replaced by 32-8M0012211 |
|
|
32-8M0012211 - 32-8M0012211 - HOSE [ More info ] Unavailable Replaced by 32-8M0043800 |
|
|
32-8M0043800 - 32-8M0043800 - HOSE [ More info ] Unavailable Replaced by 32-8M0072517 |
|
|
32-8M0072517 - HOSE [ More info ] Unavailable |
| #4 | 32-8M0012211 | HOSE, Fuel Supply Module to High Pressure Fuel Filter (1 required per assembly) SN# 1B418733 THRU 1B794598 |
| #4 | 32-8M0043800 | HOSE, Fuel Supply Module to High Pressure Fuel Filter (1 required per assembly) SN# 1B794599 & Up |
| #5 | 35-879885T | FILTER, Fuel (2 required per assembly) |
  |
|
35-879885T - 35-879885T - FILTER Fuel [ More info ] Unavailable Replaced by 35-879885Q |
  |
|

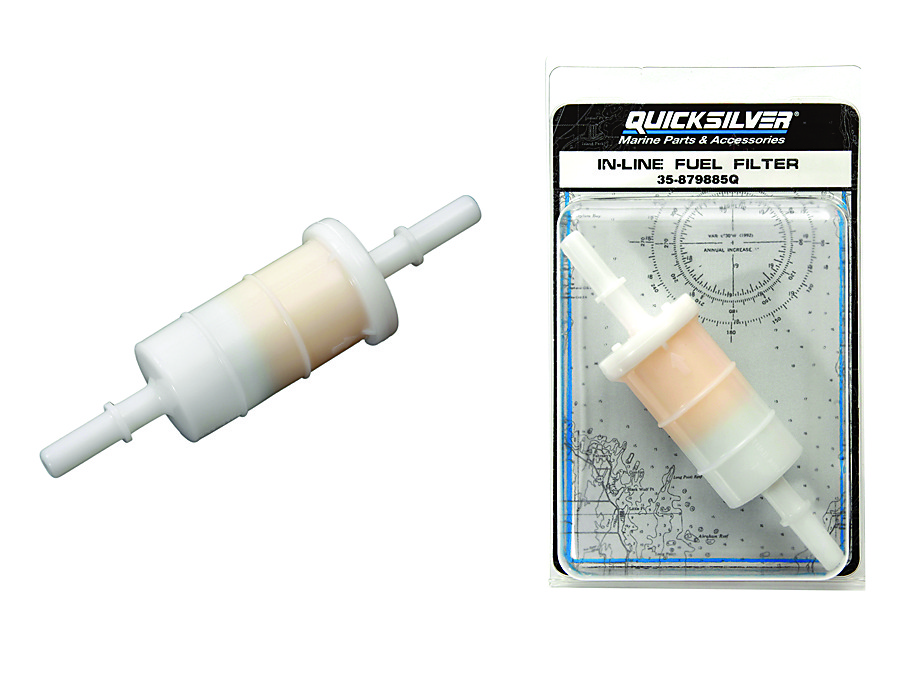

35-879885Q - Fuel Filter, 5/16 Inch, Priced Individually [ More info ]
|
  |
|

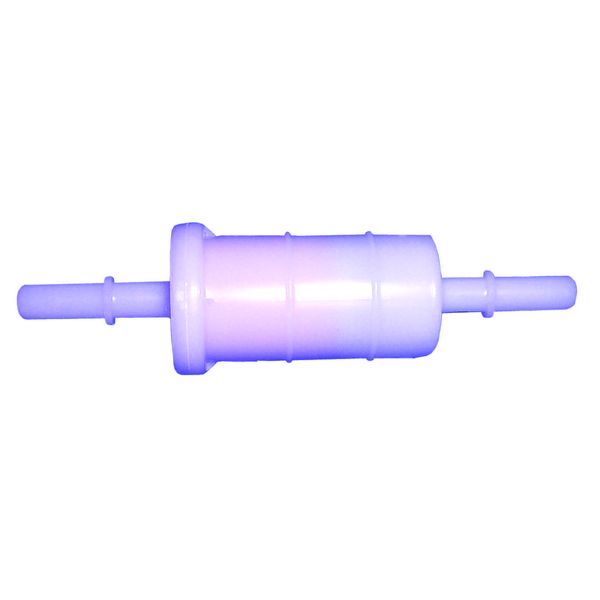

18-7718 - Fuel Filter, 5/16 Inch, 35-879885T [ More info ]
|
  |
|
35-879885K - Fuel Filter, 5/16 Inch, Priced Individually [ More info ]
|
| #6 | 32-8M0008617 | HOSE, Filter to Rail (1 required per assembly) SN# 1B794598 & Below |
|
|
32-8M0008617 - 32-8M0008617 - HOSE [ More info ] Unavailable Replaced by 32-8M0043801 |
|
|
32-8M0043801 - 32-8M0043801 - HOSE [ More info ] Unavailable Replaced by 32-8M0072519 |
|
|
328M0072519 - Hose [ More info ]
|
| #6 | 32-8M0043801 | HOSE, Filter to Rail (1 required per assembly) SN# 1B794599 & Up |
| #7 | 32-830756109 | HOSE, (57.00 Inches Bulk), Cut to 8.25 Inches (1 required per assembly) |
  |
|
32-830756109 - 32-830756109 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0047428 |
  |
|
32-8M0047428 - 32-8M0047428 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0108355 |
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #8 | 32-897654002 | HOSE, Fuel Supply Module to Vent Cannister (1 required per assembly) SN# 1B418767 & Below |
|
|
32-897654002 - 32-897654002 - HOSE [ More info ] Unavailable Replaced by 32-8M0012212 |
|
|
32-8M0012212 - 32-8M0012212 - HOSE [ More info ] Unavailable Replaced by 32-8M0072516 |
|
|
328M0072516 - Hose [ More info ]
|
| #8 | 32-8M0012212 | HOSE, Fuel Supply Module to Vent Cannister (1 required per assembly) SN# 1B418768 & Up |
| #9 | 54-888988015 | CLAMP, (15.7 mm) (3 required per assembly) |
|
|
54-888988015 - Clamp [ More info ]
|
  |
|
54-13791 - Clamp [ More info ]
|
| #10 | 54-816311T | TIE STRAP, (8.00 Inches) (1 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #11 | 859251 | GROMMET (1 required per assembly) |
  |
|
859251 - 859251 - GROMMET [ More info ] Unavailable Replaced by -8M0039078 |
  |
|
8M0039078 - Grommet [ More info ]
|
| #12 | 888523001 | CLIP (1 required per assembly) |
  |
|
888523001 - Clip [ More info ]
|
| #13 | 8M0000915 | HOSE, Filter to Fuel Supply Module (1 required per assembly) SN# 1B419126 & Below |
|
|
8M0000915 - 8M0000915 - HOSE [ More info ] Unavailable Replaced by 32-8M0012213 |
|
|
32-8M0012213 - 32-8M0012213 - HOSE [ More info ] Unavailable Replaced by 32-8M0043799 |
|
|
32-8M0043799 - 32-8M0043799 - HOSE [ More info ] Unavailable Replaced by 32-8M0072518 |
|
|
328M0072518 - Hose [ More info ]
|
| #13 | 32-8M0012213 | HOSE, Filter to Fuel Supply Module (1 required per assembly) SN# 1B419127 THRU 1B794598 |
| #13 | 32-8M0043799 | HOSE, Filter to Fuel Supply Module (1 required per assembly) SN# 1B794599 & Up |
| #14 | 8M0000914 | HOSE, Fuel Inlet (1 required per assembly) SN# 1B794598 & Below |
|
|
8M0000914 - 8M0000914 - HOSE [ More info ] Unavailable Replaced by 32-8M0043798 |
|
|
32-8M0043798 - Hose - Fuel Inlet [ More info ]
|
| #14 | 32-8M0043798 | HOSE, Fuel Inlet (1 required per assembly) SN# 1B794599 & Up |
| #15 | NSS | NOT SOLD SEPARATE, Cap (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #16 | 54-814634 | CLAMP (3 required per assembly) |
|
|
54-814634 - Clamp [ More info ]
|
| #17 | 8M0007865 | TUBE, Nylon (1 required per assembly) |
|
|
8M0007865 - Sleeve [ More info ]
|
| #19 | 888988028 | CLAMP, (16.2 mm) (1 required per assembly) |
|
|
54-888988028 - 54-888988028 - CLAMP (16.2 mm) [ More info ] Unavailable Replaced by 54-855697 |
  |
|

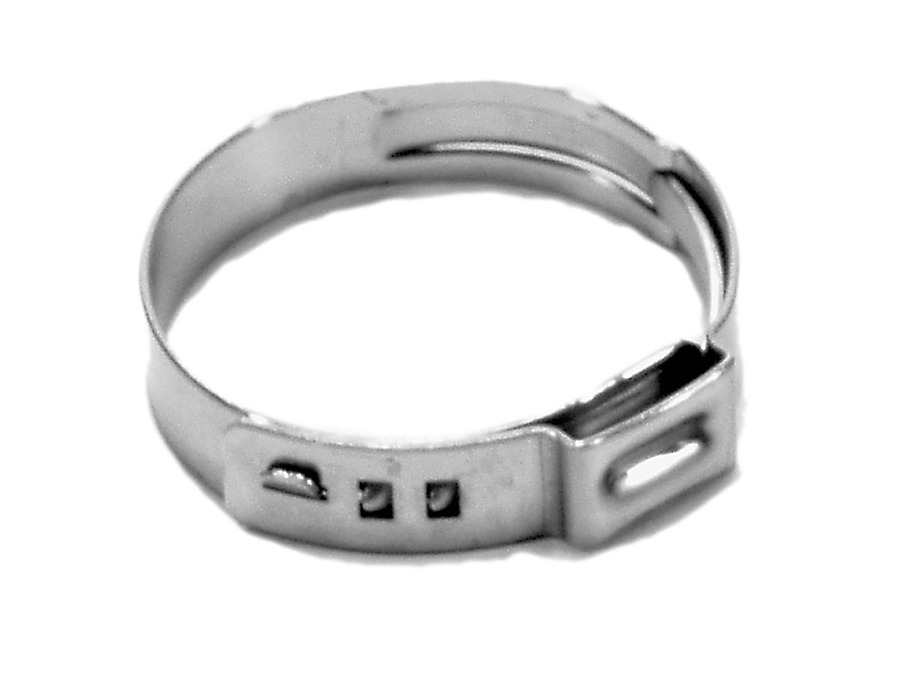

54-855697 - Clamp [ More info ]
|
|
|
54-8M0204696 - CLAMP Note: Priced Individually [ More info ]
|
