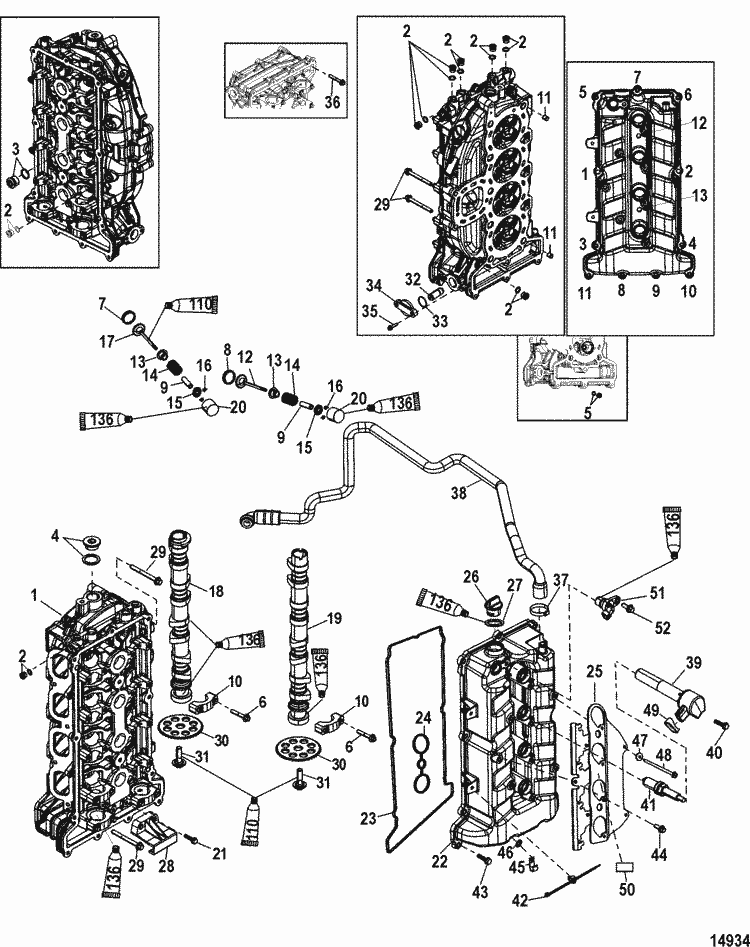

Parts for Mercury Marine 75 HP EFI (4-Stroke) Cylinder Head & Camshaft
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 61-897148A09 | LONG BLOCK ASSEMBLY, 75/80/90/100 (1 required per assembly) |
 |
|
61-897148A09 - 61-897148A09 - LONG BLOCK ASSEMB [ More info ] Unavailable Replaced by -8M8033014 |
|
|
8M8033014 - PH L4NA 4S [ More info ] Unavailable |
| # | 61-897148A08 | LONG BLOCK ASSEMBLY, 115 (1 required per assembly) |
|
|
61-897148A08 - LONG BLOCK ASSEMB [ More info ] Unavailable |
| # | 27-897534A07 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-897534A07 - Powerhead Gasket Set [ More info ]
|
| #1 | 900-897954A03 | CYLINDER HEAD ASSEMBLY (1 required per assembly) |
|
|
900-897954A03 - 900-897954A03 - CYLINDER HEAD ASS [ More info ] Unavailable Replaced by -8M0110154 |
|
|
900-8M0110154 - CYLINDER HEAD ASY [ More info ] Unavailable |
| #2 | 19-889767 | PLUG, (12 mm) (8 required per assembly) |
|
|
19-889767 - Plug - Priced Individually [ More info ]
|
| #3 | 19-891953 | PLUG, (18 mm) (1 required per assembly) |
|
|
19-891953 - Plug [ More info ]
|
| #4 | 19-896951 | PLUG, (24 mm) (1 required per assembly) |
|
|
19-896951 - Plug [ More info ]
|
| #5 | 19-896576 | PLUG, (10 mm) (1 required per assembly) |
|
|
19-896576 - 19-896576 - PLUG (10 mm) [ More info ] Unavailable Replaced by 19-8M0047992 |
|
|
19-8M0047992 - 19-8M0047992 - PLUG (10 MM) [ More info ] Unavailable Replaced by 19-8M0087446 |
|
|
198M0087446 - PLUG, 10 MM [ More info ]
|
| #6 | 10-892454035 | BOLT, (M6 x 36) (20 required per assembly) |
  |
|
10-892454035 - Screw - Priced Individually [ More info ]
|
|
|
10-8M0163131 - SCREW @2 [ More info ] Unavailable |
| #7 | 880533 | SEAT, Intake Valve (8 required per assembly) |
  |
|
880533 - Seat - Intake [ More info ]
|
| #8 | 880535 | SEAT, Exhaust Valve (8 required per assembly) |
  |
|
880535 - 880535 - SEAT [ More info ] Unavailable Replaced by -8M0089477 |
|
|
8M0089477 - SEAT - Exhaust [ More info ]
|
| #9 | 880537 | GUIDE, Intake and Exhaust Valves (16 required per assembly) |
  |
|
880537 - Valve Guide [ More info ]
|
| #10 | NSS | NOT SOLD SEPARATE, CAP (10 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #11 | 17-880524 | PIN, Dowel (14 mm) (2 required per assembly) |
|
|
17-880524 - Pin, Dowel (14 Mm) [ More info ]
|
| #12 | 20-897630 | VALVE, Exhaust (8 required per assembly) SN# 1B493701 & Below |
  |
|
20-897630 - 20-897630 - VALVE Exhaust [ More info ] Unavailable Replaced by 20-898908 |
  |
|
20-898908 - Exhaust Valve [ More info ]
|
| #12 | 20-898908 | VALVE, Exhaust (8 required per assembly) SN# 1B493702 & Up |
| #13 | 26-896880 | SEAL, Valve (16 required per assembly) |
  |
|
26-896880 - Seal [ More info ]
|
| #14 | 24-895815 | SPRING, Intake and Exhaust Valve (16 required per assembly) |
|
|
24-895815 - 24-895815 - SPRING [ More info ] Unavailable Replaced by 24-8M0011503 |
|
|
24-8M0011503 - SPRING NLA [ More info ] Unavailable |
| #15 | 880542A 1 | RETAINER ASSEMBLY, Valves (16 required per assembly) |
|
|
880542A 1 - 880542A 1 - RETAINER ASSEMBLY [ More info ] Unavailable Replaced by -8M0908500 |
|
|
8M0908500 - Retainer ASSY [ More info ]
|
| #16 | 28-880543 | KEY (32 required per assembly) |
|
|
28-880543 - Key - Priced Individually [ More info ]
|
| #17 | 20-897629 | VALVE, Intake (8 required per assembly) SN# 1B493701 & Below |
  |
|
20-897629 - 20-897629 - VALVE Intake [ More info ] Unavailable Replaced by 20-898907 |
  |
|
20-898907 - Intake Valve [ More info ]
|
| #17 | 20-898907 | VALVE, Intake (8 required per assembly) SN# 1B493702 & Up |
| #18 | 400-898397A03 | CAMSHAFT ASSEMBLY, Intake (1 required per assembly) |
|
|
400-898397A03 - 400-898397A03 - CAMSHAFT ASSEMBLY [ More info ] Unavailable Replaced by 400-898397A04 |
|
|
400-898397A04 - CamShaft Assembly [ More info ]
|

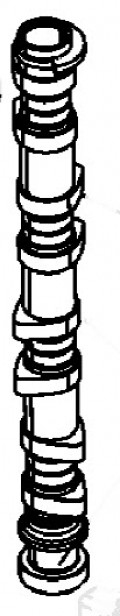

| #18 | 400-898397A02 | CAMSHAFT ASSEMBLY, Intake 75/80/90/100 (1 required per assembly) |
  |
|
400-898397A02 - CamShaft Assembly [ More info ]
|

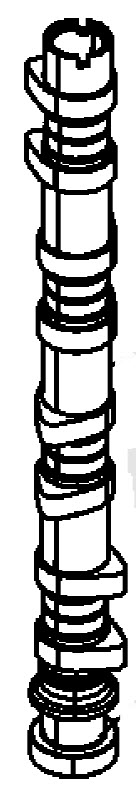

| #19 | 898077A02 | CAMSHAFT ASSEMBLY, Exhaust (1 required per assembly) |
  |
|
400-898077A02 - CamShaft [ More info ]
|
| #20 | 880548 1 | TAPPET (16/AR required per assembly) (2.996) |
|
|
880548 1 - 880548 1 - TAPPET [ More info ] Unavailable Replaced by -899912001 |
  |
|
899912001 - Tappet [ More info ]
|
| #20 | 880548 2 | TAPPET (16/AR required per assembly) (3.021) |
|
|
880548 2 - 880548 2 - TAPPET [ More info ] Unavailable Replaced by -899912002 |
  |
|
899912002 - Tappet [ More info ]
|
| #20 | 880548 3 | TAPPET (16/AR required per assembly) (3.046) |
|
|
880548 3 - 880548 3 - TAPPET [ More info ] Unavailable Replaced by -899912003 |
  |
|
899912003 - Tappet [ More info ]
|
| #20 | 880548 4 | TAPPET (16/AR required per assembly) (3.071) |
|
|
880548 4 - 880548 4 - TAPPET [ More info ] Unavailable Replaced by -899912004 |
  |
|
899912004 - Tappet [ More info ]
|
| #20 | 880548 5 | TAPPET (16/AR required per assembly) (3.096) |
|
|
880548 5 - 880548 5 - TAPPET [ More info ] Unavailable Replaced by -899912005 |
  |
|
899912005 - Tappet [ More info ]
|
| #20 | 880548 6 | TAPPET (16/AR required per assembly) (3.118) |
|
|
880548 6 - 880548 6 - TAPPET [ More info ] Unavailable Replaced by -899912006 |
  |
|
899912006 - Tappet [ More info ]
|
| #20 | 880548 7 | TAPPET (16/AR required per assembly) (3.138) |
|
|
880548 7 - 880548 7 - TAPPET [ More info ] Unavailable Replaced by -899912007 |
  |
|
899912007 - Tappet [ More info ]
|
| #20 | 880548 8 | TAPPET (16/AR required per assembly) (3.158) |
|
|
880548 8 - 880548 8 - TAPPET [ More info ] Unavailable Replaced by -899912008 |
  |
|
899912008 - Tappet [ More info ]
|
| #20 | 880548 9 | TAPPET (16/AR required per assembly) (3.178) |
|
|
880548 9 - 880548 9 - TAPPET [ More info ] Unavailable Replaced by -899912009 |
  |
|
899912009 - Tappet [ More info ]
|
| #20 | 880548 10 | TAPPET (16/AR required per assembly) (3.198) |
|
|
880548 10 - 880548 10 - TAPPET [ More info ] Unavailable Replaced by -899912010 |
  |
|
899912010 - Tappet [ More info ]
|
| #20 | 880548 11 | TAPPET (16/AR required per assembly) (3.218) |
|
|
880548 11 - 880548 11 - TAPPET [ More info ] Unavailable Replaced by -899912011 |
  |
|
899912011 - Tappet [ More info ]
|
| #20 | 880548 12 | TAPPET (16/AR required per assembly) (3.238) |
|
|
880548 12 - 880548 12 - TAPPET [ More info ] Unavailable Replaced by -899912012 |
  |
|
899912012 - Tappet [ More info ]
|
| #20 | 880548 13 | TAPPET (16/AR required per assembly) (3.258) |
|
|
880548 13 - 880548 13 - TAPPET [ More info ] Unavailable Replaced by -899912013 |
  |
|
899912013 - Tappet [ More info ]
|
| #20 | 880548 14 | TAPPET (16/AR required per assembly) (3.278) |
|
|
880548 14 - 880548 14 - TAPPET [ More info ] Unavailable Replaced by -899912014 |
  |
|
899912014 - Tappet [ More info ]
|
| #20 | 880548 15 | TAPPET (16/AR required per assembly) (3.298) |
|
|
880548 15 - 880548 15 - TAPPET [ More info ] Unavailable Replaced by -899912015 |
  |
|
899912015 - Tappet [ More info ]
|
| #20 | 880548 16 | TAPPET (16/AR required per assembly) (3.318) |
|
|
880548 16 - 880548 16 - TAPPET [ More info ] Unavailable Replaced by -899912016 |
  |
|
899912016 - Tappet [ More info ]
|
| #20 | 880548 17 | TAPPET (16/AR required per assembly) (3.338) |
|
|
880548 17 - 880548 17 - TAPPET [ More info ] Unavailable Replaced by -899912017 |
  |
|
899912017 - Tappet [ More info ]
|
| #20 | 880548 18 | TAPPET (16/AR required per assembly) (3.358) |
|
|
880548 18 - 880548 18 - TAPPET [ More info ] Unavailable Replaced by -899912018 |
  |
|
899912018 - Tappet [ More info ]
|
| #20 | 880548 19 | TAPPET (16/AR required per assembly) (3.378) |
|
|
880548 19 - 880548 19 - TAPPET [ More info ] Unavailable Replaced by -899912019 |
  |
|
899912019 - Tappet [ More info ]
|
| #20 | 880548 20 | TAPPET (16/AR required per assembly) (3.398) |
|
|
880548 20 - 880548 20 - TAPPET [ More info ] Unavailable Replaced by -899912020 |
  |
|
899912020 - Tappet [ More info ]
|
| #20 | 880548 21 | TAPPET (16/AR required per assembly) (3.418) |
|
|
880548 21 - 880548 21 - TAPPET [ More info ] Unavailable Replaced by -899912021 |
  |
|
899912021 - Tappet [ More info ]
|
| #20 | 880548 22 | TAPPET (16/AR required per assembly) (3.438) |
|
|
880548 22 - 880548 22 - TAPPET [ More info ] Unavailable Replaced by -899912022 |
  |
|
899912022 - Tappet [ More info ]
|
| #20 | 880548 23 | TAPPET (16/AR required per assembly) (3.458) |
|
|
880548 23 - TAPPET [ More info ] Unavailable |
| #20 | 880548 24 | TAPPET (16/AR required per assembly) (3.478) |
|
|
880548 24 - TAPPET [ More info ] Unavailable |
| #20 | 880548 25 | TAPPET (16/AR required per assembly) (3.498) |
|
|
880548 25 - Tappet [ More info ]
|
| #20 | 880548 26 | TAPPET (16/AR required per assembly) (3.518) |
|
|
880548 26 - Tappet [ More info ]
|
| #20 | 880548 27 | TAPPET (16/AR required per assembly) (3.538) |
|
|
880548 27 - TAPPET [ More info ] Unavailable |
| #20 | 880548 28 | TAPPET (16/AR required per assembly) (3.558) |
|
|
880548 28 - Tappet [ More info ]
|
| #20 | 880548 29 | TAPPET (16/AR required per assembly) (3.578) |
|
|
880548 29 - TAPPET [ More info ] Unavailable |
| #20 | 880548 30 | TAPPET (16/AR required per assembly) (3.598) |
|
|
880548 30 - Tappet [ More info ]
|
| #20 | 880548 31 | TAPPET (16/AR required per assembly) (3.621) |
|
|
880548 31 - TAPPET [ More info ] Unavailable |
| #20 | 880548 32 | TAPPET (16/AR required per assembly) (3.646) |
|
|
880548 32 - Tappet [ More info ]
|
| #20 | 880548 33 | TAPPET (16/AR required per assembly) (3.671) |
|
|
880548 33 - Tappet [ More info ]
|
| #20 | 880548 34 | TAPPET (16/AR required per assembly) (3.696) |
|
|
880548 34 - Tappet [ More info ]
|
| #20 | 880548 35 | TAPPET (16/AR required per assembly) (3.721) |
|
|
880548 35 - Tappet [ More info ]
|
| #21 | 10-892454030 | SCREW, (M6 x 30) (2 required per assembly) SN# 1B733388 & Below |
  |
|
10-892454030 - Screw - Priced Individually [ More info ]
|
| #22 | 880553T02 | COVER ASSEMBLY, Cam (1 required per assembly) SN# 1B461989 & Below |
|
|
880553T02 - COVER ASSEMBLY Ca NLA [ More info ] Unavailable |
|
|
880553A07 - Cover Assembly [ More info ]
|
| #22 | 880553T05 | COVER ASSEMBLY, Cam (1 required per assembly) SN# 1B461990 THRU 1B733388 |
|
|
880553T05 - 880553T05 - COVER ASSEMBLY Ca [ More info ] Unavailable Replaced by -880553T06 |
|
|
880553T06 - Cam Cover [ More info ]
|
| #22 | 880553A07 | COVER ASSEMBLY, Cam (1 required per assembly) SN# 1B733389 & Up |

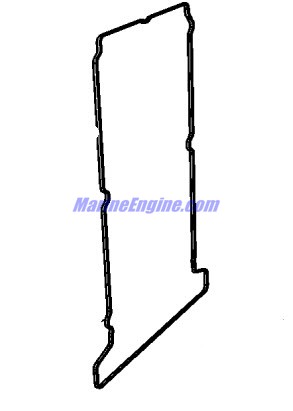

| #23 | 892893 | SEAL (1 required per assembly) |
  |
|
|
| #24 | 892584 | SEAL (1 required per assembly) |
  |
|
|
| #25 | 8M0008370 | PLATE ASSEMBLY, Coil (1 required per assembly) SN# 1B461989 & Below |
|
|
8M0008370 - Coil Plate [ More info ]
|
| #25 | 8M0010552 | PLATE ASSEMBLY, Coil (1 required per assembly) SN# 1B461990 & Up |
|
|
8M0010552 - Coil Plate [ More info ]
|
| #26 | 859578A 1 | PLUG ASSEMBLY, Oil (1 required per assembly) |
  |
|
859578A 1 - Oil Plug Assembly [ More info ]
|
| #27 | 25-90196 | O-RING, (.921 x .139) (1 required per assembly) |
|
|
25-90196 - 25-90196 - O-RING (.921 x .1 [ More info ] Unavailable Replaced by -8M0204673 |
|
|
258M0204673 - O RING [ More info ]
|
| #28 | 880558 | GUIDE, Short (1 required per assembly) SN# 1B733388 & Below |
  |
|
880558 - Guide - Short [ More info ]
|
| #29 | 10-885526 60 | SCREW, (M8 x 60) (4 required per assembly) |
  |
|
10-885526 60 - Screw - Priced Individually [ More info ]
|

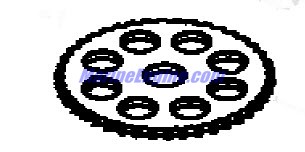

| #30 | 43-880550 | SPROCKET, Cam Drive (2 required per assembly) |
  |
|
43-880550 - Sprocket [ More info ]
|
| #31 | 10-884403 | SCREW, (M12 x 40) (2 required per assembly) |
|
|
10-884403 - 10-884403 - SCREW (M12 x 40) [ More info ] Unavailable Replaced by 10-8M0021532 |
  |
|
10-8M0021532 - Screw [ More info ]
|
| #32 | 897797A01 | TENSIONER ASSEMBLY (1 required per assembly) |
|
|
897797A01 - 897797A01 - TENSIONER ASSEMBL [ More info ] Unavailable Replaced by -898463A01 |
|
|
898463A01 - Tensioner Assembly [ More info ]
|
| #33 | 25-880631001 | O-RING, Orange (1 required per assembly) |
|
|
25-880631001 - 25-880631001 - O-RING Orange [ More info ] Unavailable Replaced by 25-898836 |
|
|
25-898836 - O-ring, Brown, Tensioner Cap [ More info ]
|
| #34 | 893338 | END CAP, Tensioner (1 required per assembly) |
  |
|
893338 - 893338 - END CAP [ More info ] Unavailable Replaced by 1100-8M0064752 |
|
|
11008M0064752 - End Cap, Cam TENS [ More info ]
|
| #36 | 10-885525 40 | SCREW, (M6 x 40) Stainless Steel (3 required per assembly) |
  |
|
10-885525 40 - SCREW (M6 x 40 MM [ More info ] Unavailable |

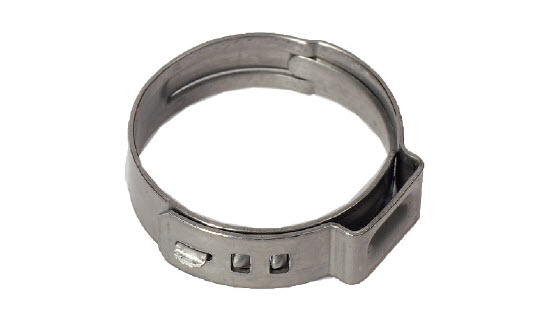

| #37 | 54-888988019 | CLAMP, (22.6 mm) (1 required per assembly) |
  |
|
54-888988019 - Clamp [ More info ]
|
| #38 | 32-897673A01 | HOSE ASSEMBLY, Breather (1 required per assembly) |
|
|
32-897673A01 - Breather Hose [ More info ]
|

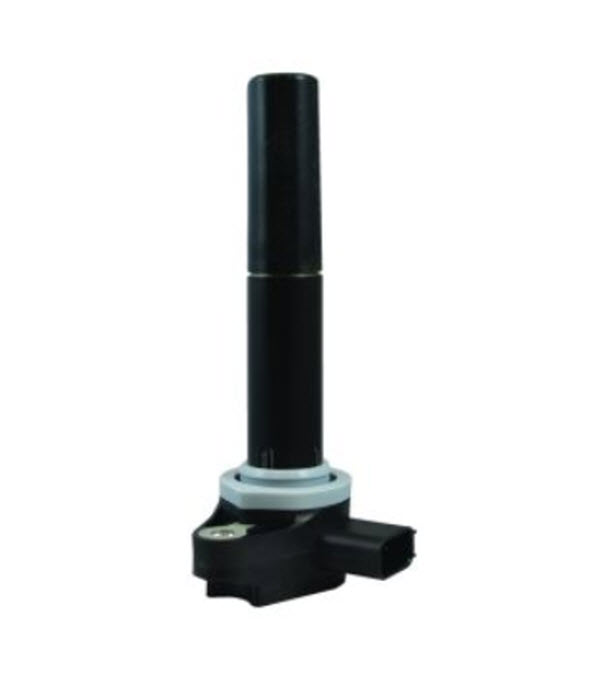

| #39 | 339-880615T01 | COIL ASSEMBLY (4 required per assembly) |
  |
|
339-880615T01 - Pencil Coil [ More info ]
|
  |
|
18-5154 - Ignition Coil, Pencil Style, 339-880315T01 [ More info ]
|
  |
|
184-0002 - Ignition Coil, Pencil Style, 339-880615T01 [ More info ]
|
| #40 | 10-885525 25 | SCREW, (M6 x 25) Stainless Steel (4 required per assembly) |
  |
|
10-885525 25 - 10-885525 25 - SCREW (M6 x 25 MM [ More info ] Unavailable Replaced by 10-8M0103807 |
|
|
108M0103807 - Screw (M6 x 25 MM) Stai [ More info ]
|

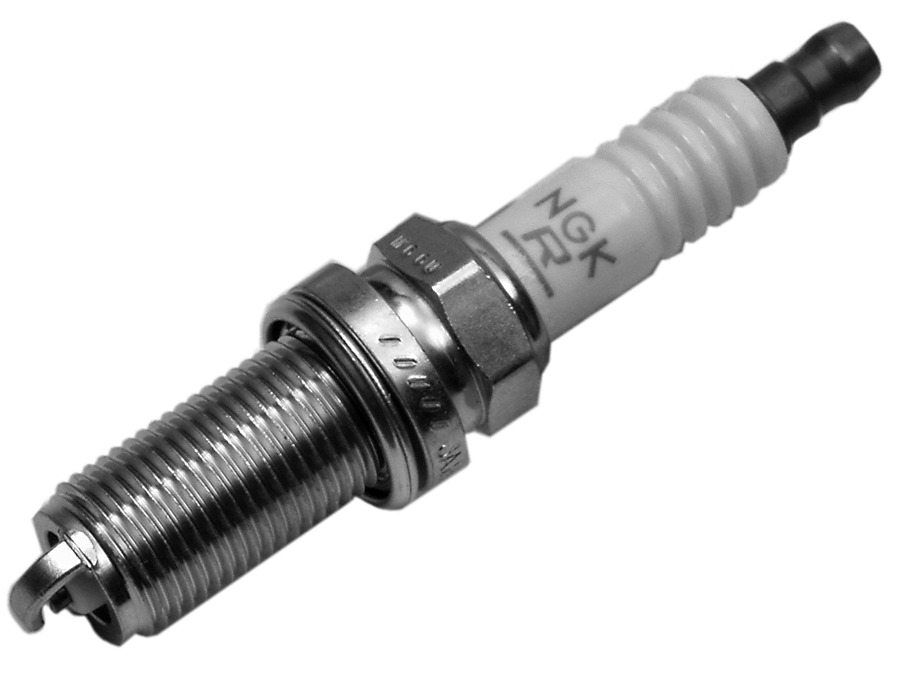

| #41 | 33-898829001 | SPARK PLUG, (NGK#LFR4A) (4 required per assembly) |
  |
|
33-898829001 - 33-898829001 - SPARK PLUG (NGK#L [ More info ] Unavailable Replaced by -8M0157328 |
|
|
338M0157328 - PLUG LFR4A-E Note: Priced Individually [ More info ]
|
  |
|

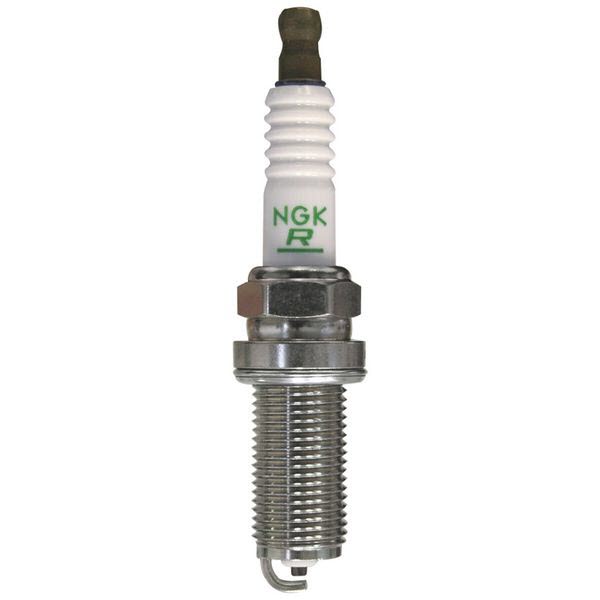

LFR4A-E - NGK Spark Plug, 6499 [ More info ]
|
| #42 | 54-899145 | CLIP, Tie Strap (2 required per assembly) |
|
|
54-899145 - Clip [ More info ]
|
| #44 | 10-885525 12 | SCREW, (M6 x 12) Stainless Steel (3 required per assembly) |
  |
|
10-885525 12 - 10-885525 12 - SCREW (M6 x 12 MM [ More info ] Unavailable Replaced by 10-8M0103804 |
|
|
108M0103804 - Screw (M6 x 12 MM) Stai [ More info ]
|
| #45 | 54-55098 | J CLIP (1 required per assembly) |
|
|
54-55098 - J Clip - Priced Individually [ More info ]
|
| #46 | 13-93702 | WASHER, (.250 External Star) (1 required per assembly) |
|
|
13-93702 - LockWasher - Priced Individually [ More info ]
|
| #47 | 8M0008232 | WASHER (2 required per assembly) |
|
|
12-8M0008232 - Washer - Priced Individually [ More info ]
|
| #48 | 8M0008535 | SCREW, (M6 x 90) (2 required per assembly) SN# 1B461989 & Below |
|
|
8M0008535 - Screw - Priced Individually [ More info ]
|
| #48 | 10-885525 85 | SCREW, (M6 x 85) Stainless Steel (2 required per assembly) SN# 1B461990 & Up |
  |
|
10-885525 85 - Screw - Priced Individually [ More info ]
|
| #49 | 25-8M0008642 | RING, Rubber, Anti-Rotation (4 required per assembly) |
|
|
25-8M0008642 - 25-8M0008642 - RING Rubber [ More info ] Unavailable Replaced by 25-8M0082406 |
|
|
25-8M0082406 - 25-8M0082406 - GROMMET Rubber [ More info ] Unavailable Replaced by -8M0119617 |
|
|
258M0119617 - RING-GROMMET - Priced Individually [ More info ]
|
| #50 | 8M0008936 | DECAL, Coil Screw Torque (1 required per assembly) |
|
|
37-8M0008936 - Decal [ More info ]
|

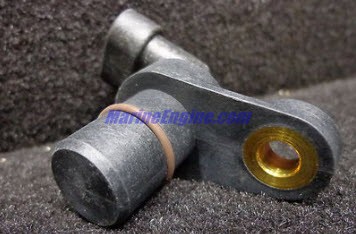

| #51 | 880609 | SENSOR ASSEMBLY (1 required per assembly) |
  |
|
880609 - 880609 - SENSOR ASSEMBLY [ More info ] Unavailable Replaced by -8M0011987 |
  |
|
8M0011987 - Sensor [ More info ]
|
| #52 | 10-885525 16 | SCREW, (M6 x 16) Stainless Steel (1 required per assembly) |
  |
|
10-885525 16 - 10-885525 16 - SCREW (M6 x 16 MM [ More info ] Unavailable Replaced by 10-8M0103805 |
|
|
108M0103805 - Screw (M6 x 16MM) Stain [ More info ]
|
