Parts for Mercury Marine 75 HP EFI (4-Stroke) Crankshaft, Pistons & Connecting Rods

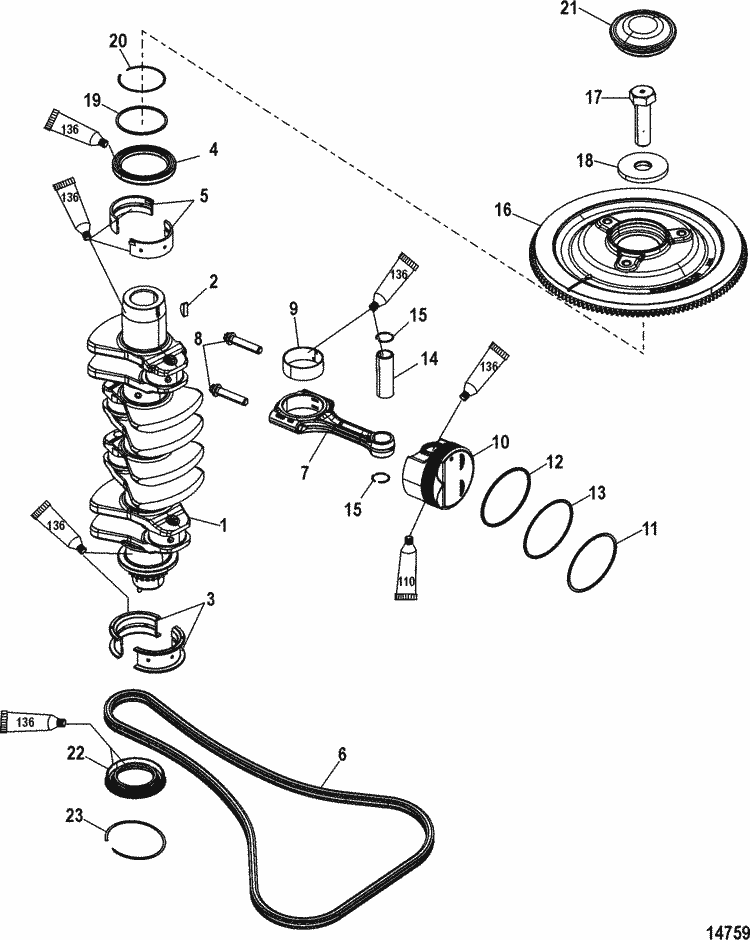

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 61-897148A08 | LONG BLOCK ASSEMBLY, 115 (1 required per assembly) |
 |
|
61-897148A08 - LONG BLOCK ASSEMB [ More info ] Unavailable |
| # | 27-897534A07 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-897534A07 - Powerhead Gasket Set [ More info ]
|
| # | 61-897148A09 | LONG BLOCK ASSEMBLY, 75/80/90/100 (1 required per assembly) |
|
|
61-897148A09 - 61-897148A09 - LONG BLOCK ASSEMB [ More info ] Unavailable Replaced by -8M8033014 |
|
|
8M8033014 - PH L4NA 4S [ More info ] Unavailable |

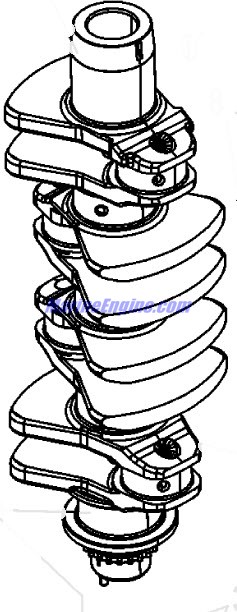

| #1 | 400-898051A04 | CRANKSHAFT ASSEMBLY (1 required per assembly) |
  |
|
400-898051A04 - Cranksahft Assembly [ More info ]
|
|
|
4008M0110022 - Crankshaft Assembly [ More info ]
|
| #2 | 28-91800 | KEY, Woodruff (1 required per assembly) |
  |
|
28-91800 - Key - Priced Individually [ More info ]
|
| #3 | 23-892309T01 | BEARING, Thrust - Green, Crankshaft-Lower (2/AR required per assembly) |
|
|
23-892309T01 - 23-892309T01 - BEARING Thrust - [ More info ] Unavailable Replaced by 23-8M0117003 |
|
|
238M0117003 - Bearing [ More info ]
|
| #3 | 23-892309T02 | BEARING, Thrust - Navy Blue, Crankshaft-Lower (2/AR required per assembly) |
|
|
23-892309T02 - BEARING Thrust - [ More info ] Unavailable |
| #3 | 23-892309T03 | BEARING, Thrust - White, Crankshaft-Lower (2/AR required per assembly) |
|
|
23-892309T03 - BEARING Thrust - [ More info ] Unavailable |
| #3 | 23-892309T04 | BEARING, Thrust - Orange, Crankshaft-Lower (2/AR required per assembly) |
|
|
23-892309T04 - 23-892309T04 - BEARING Thrust - [ More info ] Unavailable Replaced by 23-8M0117004 |
|
|
238M0117004 - Bearing [ More info ]
|
| #4 | 26-880525 1 | SEAL, Top Main Bearing (1 required per assembly) |
  |
|
26-880525 1 - 26-880525 1 - SEAL [ More info ] Unavailable Replaced by 26-8M0032912 |
  |
|
26-8M0032912 - Seal [ More info ]
|
| #5 | 23-897498T01 | BEARING, Main - Green, Crankshaft-Upper (8 required per assembly) |
  |
|
23-897498T01 - Bearing - Main - Green - Upper Crankshaft [ More info ]
|
| #5 | 23-897498T02 | BEARING, Main - Navy Blue, Crankshaft-Upper (8 required per assembly) |
  |
|
23-897498T02 - Bearing - Main - Navy Blue - Upper Crankshaft [ More info ]
|
| #5 | 23-897498T03 | BEARING, Main - White, Crankshaft-Upper (8 required per assembly) |
  |
|
23-897498T03 - Bearing - Main - White - Upper Crankshaft [ More info ]
|
| #5 | 23-897498T04 | BEARING, Main - Orange, Crankshaft-Upper (8 required per assembly) |
  |
|
23-897498T04 - Bearing - Main - Orange - Upper Crankshaft [ More info ]
|
| #6 | 897796 | CHAIN, Roller Cam Drive (1 required per assembly) |
  |
|
897796 - 897796 - CHAIN Roller Cam [ More info ] Unavailable Replaced by -8M0103398 |
|
|
8M0103398 - CHAIN - CAM DRIVE [ More info ]
|

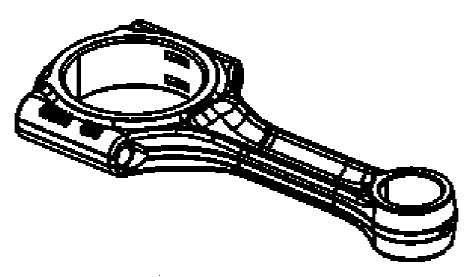

| #7 | 662-881210T02 | CONNECTING ROD ASSEMBLY (4 required per assembly) |
  |
|
662-881210T02 - 662-881210T02 - CONNECTING ROD AS [ More info ] Unavailable Replaced by 662-8M0103285 |
|
|
662-8M0103285 - Connecting Rod Assembly [ More info ]
|
| #8 | 10-884441 | BOLT (8 required per assembly) |
  |
|
10-884441 - Bolt [ More info ]
|
| #9 | 23-892005A01 | BEARING, Connecting Rod - Blue (8 required per assembly) |
  |
|
23-892005A01 - Bearing - Connecting Rod - Blue [ More info ]
|

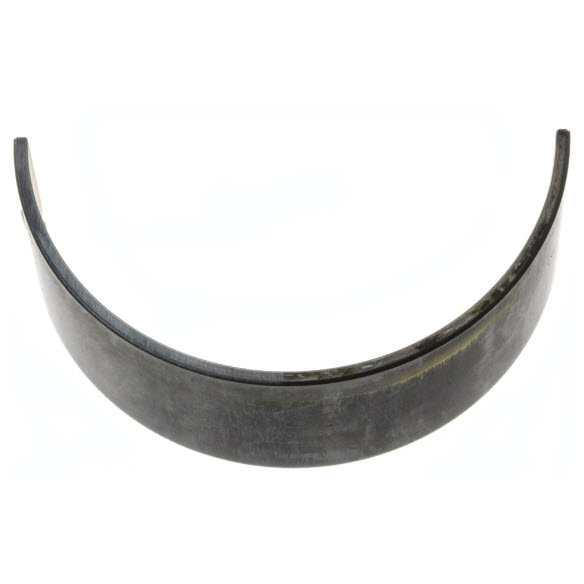

| #9 | 23-892005A02 | BEARING, Connecting Rod - White (8 required per assembly) |
  |
|
23-892005A02 - Bearing - Connecting Rod - White [ More info ]
|
| #9 | 23-892005A03 | BEARING, Connecting Rod - Orange (8 required per assembly) |
  |
|
23-892005A03 - Bearing - Connecting Rod - Orange [ More info ]
|
| #10 | 700-898472T01 | PISTON ASSEMBLY, (Standard) (4 required per assembly) |
|
|
700-898472T01 - Piston Assembly [ More info ]
|

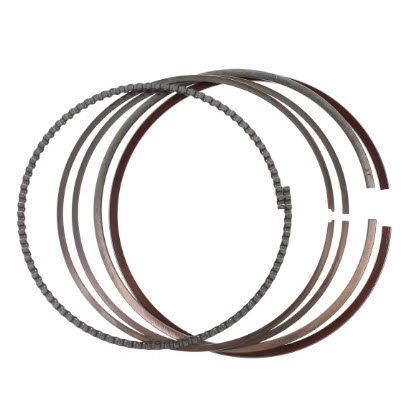

| #11 | 39-881180A03 | RING SET, Piston (Standard) (4 required per assembly) |
|
|
39-881180A03 - 39-881180A03 - RING SET Piston ( [ More info ] Unavailable Replaced by 39-881180A02 |
  |
|
39-881180A02 - Rings - Standard [ More info ]
|
| #12 | NSS | NOT SOLD SEPARATE, Oil Ring (4 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #15 | 40-881184 | CIRCLIP (8 required per assembly) |
  |
|
40-881184 - Circlip [ More info ]
|
| #16 | 200-897522T04 | FLYWHEEL ASSEMBLY (1 required per assembly) |
|
|
200-897522T04 - Flywheel [ More info ]
|
| #17 | 10-880515 | BOLT, (M20 x 68) (1 required per assembly) |
  |
|
10-880515 - 10-880515 - BOLT (M20 x 68) [ More info ] Unavailable Replaced by -8M0147042 |
|
|
108M0147042 - BOLT [ More info ]
|
| #18 | 12-880517 | WASHER (1 required per assembly) |
|
|
12-880517 - 12-880517 - WASHER [ More info ] Unavailable Replaced by -8M0071546 |
|
|
12-8M0071546 - 12-8M0071546 - WASHER [ More info ] Unavailable Replaced by 12-8M0090010 |
|
|
128M0090010 - Washer [ More info ]
|
| #19 | 23-896883 | SPACER (1 required per assembly) |
|
|
23-896883 - Spacer [ More info ]
|
| #20 | 53-896882 | RING, Retaining (1 required per assembly) |
|
|
53-896882 - Ring - Retaining [ More info ]
|
| #21 | 19-885348 | CAP (1 required per assembly) |
|
|
|
| #22 | 26-897540 | SEAL, Oil (1 required per assembly) |
|
|
26-897540 - Oil Seal [ More info ]
|
| #23 | 53-897785 | RING, Retaining (1 required per assembly) |
|
|
53-897785 - Ring - Retaining [ More info ]
|
