Parts for Mercury Marine 75 HP EFI (4-Stroke) Adaptor Plate

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B366823 & Up (USA) > Adaptor Plate

NEED PARTS OR KITS?

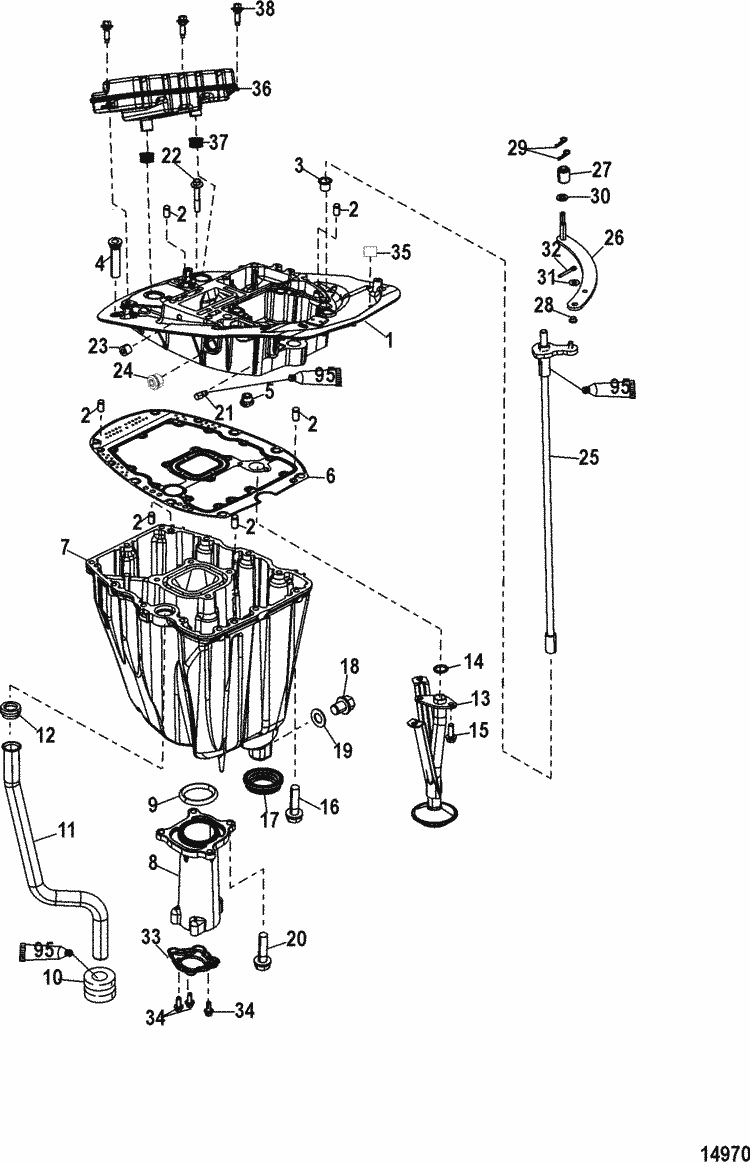

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	27-897534A07	GASKET SET, Powerhead (1 required per assembly)
		27-897534A07 - Powerhead Gasket Set [ More info ] $316.58 Available to Order: Usually ships within 10 days.
#	61-897148A09	LONG BLOCK ASSEMBLY, 75/80/90/100 (1 required per assembly)
		61-897148A09 - 61-897148A09 - LONG BLOCK ASSEMB [ More info ] Unavailable Replaced by -8M8033014
		8M8033014 - PH L4NA 4S [ More info ] Unavailable
#	61-897148A08	LONG BLOCK ASSEMBLY, 115 (1 required per assembly)
		61-897148A08 - LONG BLOCK ASSEMB [ More info ] Unavailable
#1	881912T02	ADAPTOR PLATE ASSEMBLY (1 required per assembly)
		881912T02 - Adaptor Plate [ More info ] $604.21 Available to Order: Usually ships within 10 days.
#2	17-23784	PIN, Dowel (6 required per assembly)
		17-23784 - Pin, Dowel [ More info ] $5.00 1 In Stock.
#3	23-27132	BUSHING (1 required per assembly)
		23-27132 - Bushing [ More info ] $4.33 9 In Stock.
#4	21-817519A 2	CHECK VALVE ASSEMBLY, Drain (2 required per assembly)
		21-817519A 2 - Check Valve Assembly [ More info ] $16.80 Available to Order: Usually ships within 10 days.
#5	25-19565002	GROMMET (1 required per assembly)
		25-19565002 - Grommet [ More info ] $29.75 Available to Order: Usually ships within 10 days.
#6	27-8M0005405	GASKET, Adaptor Plate (1 required per assembly)
		8M0005405 - Gasket [ More info ] $61.92 Available to Order: Usually ships within 10 days.
#7	858572T01	SUMP, Oil (1 required per assembly)
		858572T01 - Sump- Oil [ More info ] $385.92 Available to Order: Usually ships within 10 days.
#8	898468A01	TUBE KIT, Exhaust (1 required per assembly)
		898468A01 - Tube Kit - Exhaust [ More info ] $155.50 Available to Order: Usually ships within 10 days.
#9	25-881295	O-RING (1 required per assembly)
		25-881295 - O-Ring [ More info ] $6.30 Available to Order: Usually ships within 10 days.
#10	25-89417004	GROMMET (1 required per assembly)
		25-89417004 - Grommet [ More info ] $2.90 Available to Order: Usually ships within 10 days.
#11	32-858575006	TUBE, Water (1 required per assembly) Long SN# 1B501293 & Below
		32-858575006 - 32-858575006 - TUBE Water [ More info ] Unavailable Replaced by 32-8M0026130
		32-8M0026130 - Water Tube [ More info ] $77.42 Available to Order: Usually ships within 10 days.
#11	32-8M0026130	TUBE, Water (1 required per assembly) Long SN# 1B501294 & Up
#11	32-858575005	TUBE, Water (1 required per assembly) X-Long SN# 1B501293 & Below
		32-858575005 - 32-858575005 - TUBE Water [ More info ] Unavailable Replaced by 32-8M0026129
		32-8M0026129 - Water Tube [ More info ] $87.33 Available to Order: Usually ships within 10 days.
#11	32-8M0026129	TUBE, Water (1 required per assembly) X-Long SN# 1B501294 & Up
#12	814080001	SEAL, Upper (1 required per assembly)
		814080001 - Upper Seal [ More info ] $9.10 2 In Stock.
#13	858571T	TUBE, Oil Pick Up (1 required per assembly)
		858571T - Tube - Oil Pickup [ More info ] $62.50 Available to Order: Usually ships within 10 days.
#14	25-859082	O-RING (1 required per assembly)
		25-859082 - O-Ring [ More info ] $2.30 Available to Order: Usually ships within 10 days.
#15	10-40011128	SCREW, (M6 x 20) Stainless Steel (4 required per assembly)
		10-40011128 - 10-40011128 - SCREW (M6 x 20) S [ More info ] Unavailable Replaced by -8M4503518
		10-8M4503518 - 10-8M4503518 - SCREW (M6 X 1.0 [ More info ] Unavailable Replaced by -8M0204741
		108M0204741 - SCREW Note: Priced Individually [ More info ] $4.40 Available to Order: Usually ships within 10 days.
#16	10-824832 7	SCREW, (M6 x 30) (12 required per assembly)
		10-824832 7 - Screw [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#17	858573	SEAL (1 required per assembly)
		858573 - Seal [ More info ] $7.00 1 In Stock.
		8M0039073 - Seal [ More info ] $18.70 Available to Order: Usually ships within 10 days.
#18	828818 1	PLUG, Drain (1 required per assembly)
		828818 1 - Drain Plug [ More info ] $17.67 Available to Order: Usually ships within 10 days.
#19	27-828816	GASKET (1 required per assembly)
		27-828816 - 27-828816 - GASKET [ More info ] Unavailable Replaced by -8M0204692
		27-8M0204692 - GASKET Note: Priced Individually [ More info ] $5.10 8 In Stock.
#20	10-824832 13	SCREW, (M6 x 60) (4 required per assembly)
		10-824832 13 - Screw [ More info ] $19.33 Available to Order: Usually ships within 10 days.
#21	888823001	SHIFT DETENT ASSEMBLY (1 required per assembly)
		888823001 - Detent Assembly - Shift [ More info ] $24.92 Available to Order: Usually ships within 10 days.
#22	10-898442	SCREW, (M8 x 50) (4 required per assembly)
		10-898442 - Screw - Priced Individually [ More info ] $5.10 Available to Order: Usually ships within 10 days.
#23	22-47945 2	PLUG (1 required per assembly)
		22-47945 2 - Pipe Plug [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#24	19-898486	PLUG (1 required per assembly)
		19-898486 - Plug [ More info ] $60.58 Available to Order: Usually ships within 10 days.
#25	888835A 1	SHIFT SHAFT (1 required per assembly)
		888835A 1 - Shift Shaft Assembly [ More info ] $178.00 Available to Order: Usually ships within 10 days.
#26	888840	SHIFT LINK (1 required per assembly)
		888840 - Shift Link [ More info ] $49.50 Available to Order: Usually ships within 10 days.
#27	888917	ROLLER (1 required per assembly)
		888917 - Roller [ More info ] $2.70 Available to Order: Usually ships within 10 days.
#28	23-891658	BUSHING (1 required per assembly)
		23-891658 - Bushing - Priced Individually [ More info ] $3.10 1 In Stock.
#29	18-82053M	PIN, Hair (2 required per assembly)
		18-82053M - Cotter Pin - Priced Individually [ More info ] $2.50 Available to Order: Usually ships within 10 days.
#30	12-888832	WASHER (1 required per assembly)
		12-888832 - WASHER [ More info ] Unavailable
#31	12-69056	WASHER, (.255 x .620 x .030) Stainless Steel (1 required per assembly)
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.70 2 In Stock.
#32	18-26953	COTTER PIN (1 required per assembly)
		18-26953 - Cotter Pin - Priced Individually [ More info ] $4.00 10+ In Stock.
#33	898844	SEAL, Exhaust Tube, Included with Exhaust Tube (1 required per assembly)
		898844 - Seal [ More info ] $33.75 Available to Order: Usually ships within 10 days.
#34	10-885525 16	SCREW, (M6 x 16) Stainless Steel (3 required per assembly)
		10-885525 16 - 10-885525 16 - SCREW (M6 x 16 MM [ More info ] Unavailable Replaced by 10-8M0103805
		108M0103805 - Screw (M6 x 16MM) Stain [ More info ] $2.40 10+ In Stock.
#35	19-48323	PLUG (1 required per assembly)
		19-48323 - Plug [ More info ] $2.90 Available to Order: Usually ships within 10 days.
#36	898103T91	PLENUM, Exhaust (1 required per assembly)
		898103T91 - Plenum - Exhaust [ More info ] $51.50 Available to Order: Usually ships within 10 days.
#37	8M0001457	SEAL, Plenum (2 required per assembly)
		8M0001457 - Seal - Priced Individually [ More info ] $11.00 Available to Order: Usually ships within 10 days.
#38	10-892073002	SHOULDER SCREW, (M6) (3 required per assembly)
		10-892073002 - Screw [ More info ] $2.90 Available to Order: Usually ships within 10 days.
