Parts for Mercury Marine 75 HP EFI (4-Stroke) Vapor Separator Hose Routings

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B172291 - 1B366822 (USA) > Vapor Separator Hose Routings

NEED PARTS OR KITS?

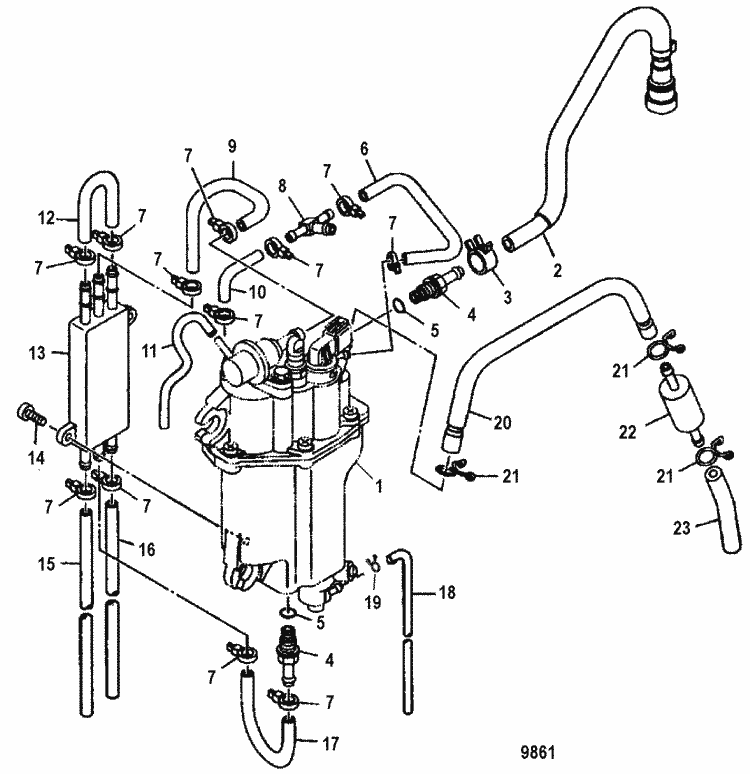

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	881315A03	VAPOR SEPARATOR ASSEMBLY, Complete (1 required per assembly)
		881315A03 - 881315A03 - VAPOR SEPARATOR A [ More info ] Unavailable Replaced by -8M0120285
		8M0120285 - VAPOR SEPERATOR [ More info ] $1,174.21 Available to Order: Usually ships within 10 days.
#2	32-804162015	TUBING (1 required per assembly)
		32-804162015 - Tubing [ More info ] $91.75 Available to Order: Usually ships within 10 days.
#3	54-881530009	CLAMP (1 required per assembly)
		54-881530009 - Clip [ More info ] $2.00 2 In Stock.
#4	22-881558002	FITTING, Straight (2 required per assembly)
		22-881558002 - Fitting [ More info ] $36.00 1 In Stock.
#5	25-885183001	O-RING (2 required per assembly)
		25-885183001 - O-Ring [ More info ] $5.40 Available to Order: Usually ships within 10 days.
#6	32-804162006	TUBING (1 required per assembly) SN# 1B226999 & Below
		32-804162006 - Hose [ More info ] $7.00 2 In Stock.
#6	32-804162020	TUBING (1 required per assembly) SN# 1B227000 & Up
		32-804162020 - Tubing [ More info ] $20.00 2 In Stock.
#7	56762	TIE STRAP, (4.00 Inches) (12 required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 10+ In Stock.
		0317893 - Tie Strap [ More info ] $0.36 10+ In Stock.
#8	22-881558003	FITTING, Tee (1 required per assembly)
		22-881558003 - Fitting -tee [ More info ] $2.50 7 In Stock.
#9	32-804162008	TUBING (1 required per assembly)
		32-804162008 - Tubing [ More info ] $8.00 1 In Stock.
#10	32-804162016	TUBING (1 required per assembly)
		32-804162016 - Hose [ More info ] $7.00 2 In Stock.
#11	32-804162007	TUBING (1 required per assembly) SN# 1B226999 & Below
		32-804162007 - Hose [ More info ] $7.00 2 In Stock.

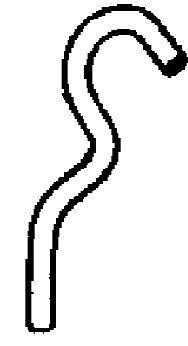

#11	32-804162021	TUBING (1 required per assembly) SN# 1B227000 & Up
		32-804162021 - Tubing [ More info ] $7.00 2 In Stock.
#12	32-804162010	TUBING (1 required per assembly)
		32-804162010 - Tubing [ More info ] $8.00 2 In Stock.

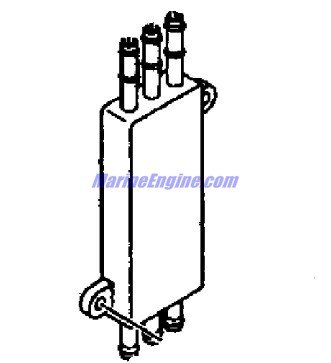

#13	888259001	COOLER (1 required per assembly)
		888259001 - Cooler [ More info ] $48.00 2 In Stock.
#14	10-881326007	SCREW (2 required per assembly)
		10-881326007 - Screw - Priced Individually [ More info ] $1.50 2 In Stock.

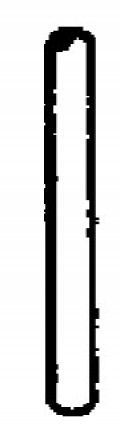

#15	32-804162011	TUBING (1 required per assembly) SN# 1B226999 & Below
		32-804162011 - Tubing [ More info ] $10.00 2 In Stock.
#15	32-804162022	TUBING (1 required per assembly) SN# 1B227000 & Up
		32-804162022 - TUBING NLA [ More info ] Unavailable
#16	32-804162012	TUBING (1 required per assembly)
		32-804162012 - Tubing [ More info ] $10.00 6 In Stock.
#17	32-804162009	TUBING (1 required per assembly)
		32-804162009 - Tubing [ More info ] $8.00 5 In Stock.

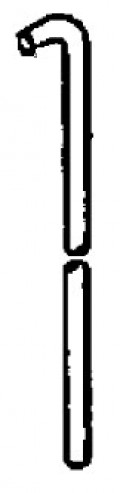

#18	32-804162013	TUBING (1 required per assembly)
		32-804162013 - Tubing [ More info ] $2.50 2 In Stock.
#19	54-881530010	CLAMP (1 required per assembly)
		54-881530010 - Clip [ More info ] $2.50 2 In Stock.
#20	32-804162014	TUBING (1 required per assembly)
		32-804162014 - Tubing [ More info ] $28.00 2 In Stock.
#21	54-881530011	CLAMP (3 required per assembly)
		54-881530011 - Clip [ More info ] $2.50 10+ In Stock.
#22	35-892758001	STRAINER (1 required per assembly)
		35-892758001 - Strainer [ More info ] $31.42 Available to Order: Usually ships within 10 days.
#23	32-804162017	TUBING (1 required per assembly)
		32-804162017 - Hose [ More info ] $2.00 10+ In Stock.
