Parts for Mercury Marine 75 HP EFI (4-Stroke) Vapor Separator

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B172291 - 1B366822 (USA) > Vapor Separator

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	881315A03	VAPOR SEPARATOR ASSEMBLY, Complete (1 required per assembly)
		881315A03 - 881315A03 - VAPOR SEPARATOR A [ More info ] Unavailable Replaced by -8M0120285
		8M0120285 - VAPOR SEPERATOR [ More info ] $1,174.21 Available to Order: Usually ships within 10 days.
#1	881316001	COVER (1 required per assembly)
		881316001 - Cover [ More info ] $135.00 2 In Stock.

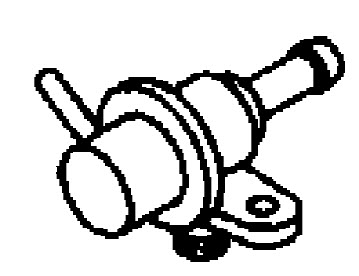

#2	880888T01	REGULATOR, Pressure (1 required per assembly)
		880888T01 - REGULATOR Fuel Pr [ More info ] Unavailable
#3	10-881326004	SCREW (2 required per assembly)
		10-881326004 - Bolt - Priced Individually [ More info ] $1.50 2 In Stock.
#4	19-823865001	PLUG, Cap (1 required per assembly)
		19-823865001 - Cap [ More info ] $8.00 2 In Stock.
#5	10-881326005	SCREW (6 required per assembly)
		10-881326005 - Screw - Priced Individually [ More info ] $2.00 10+ In Stock.
#6	881327002	PLATE, Baffle (1 required per assembly)
		881327002 - Baffle Plate [ More info ] $2.00 2 In Stock.
#7	10-881326003	SCREW (3 required per assembly)
		10-881326003 - Screw - Priced Individually [ More info ] $1.50 2 In Stock.
#8	881327001	PLATE, Baffle (1 required per assembly)
		881327001 - Baffle Plate [ More info ] $135.00 2 In Stock.
#9	84-888237001	HARNESS ASSEMBLY, Wire (1 required per assembly)
		84-888237001 - Harness - Wire [ More info ] $25.33 Available to Order: Usually ships within 10 days.
#10	54-881530008	CLAMP (1 required per assembly)
		54-881530008 - Clamp [ More info ] $2.50 2 In Stock.
#11	881329001	VALVE, Needle (1 required per assembly)
		881329001 - 881329001 - VALVE Needle [ More info ] Unavailable Replaced by -8M0095242
		8M0095242 - VALVE-NEEDLE NLA [ More info ] Unavailable

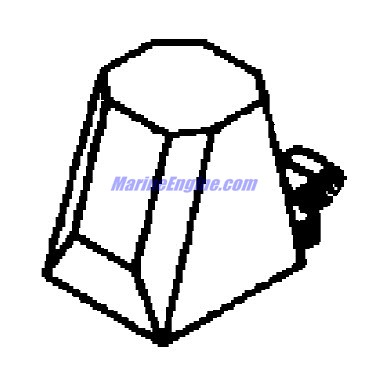

#12	881320001	FLOAT (1 required per assembly)
		881320001 - Float [ More info ] $137.42 Available to Order: Usually ships within 10 days.
#13	17-881321001	PIN, Float (1 required per assembly)
		17-881321001 - Float Pin [ More info ] $2.50 1 In Stock.
#14	25-881322004	DAMPER (1 required per assembly)
		25-881322004 - DAMPER [ More info ] Unavailable
#15	23-881332004	COLLAR (1 required per assembly)
		23-881332004 - Collar [ More info ] $1.40 Available to Order: Usually ships within 10 days.

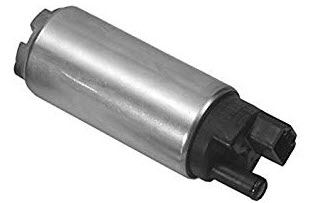

#16	880889T02	PUMP ASSEMBLY, Fuel (1 required per assembly)
		880889T02 - 880889T02 - PUMP ASSEMBLY Fue [ More info ] Unavailable Replaced by -8M0065218
		8M0065218 - FUEL PUMP [ More info ] Unavailable

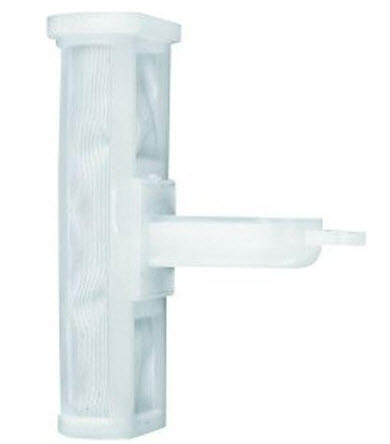

#17	35-881323001	FILTER (1 required per assembly)
		35-881323001 - FILTER [ More info ] Unavailable
#18	54-881530006	CLAMP (1 required per assembly)
		54-881530006 - Clip [ More info ] $0.60 Available to Order: Usually ships within 10 days.
#19	25-881322003	DAMPER (1 required per assembly)
		25-881322003 - Damper [ More info ] $9.80 Available to Order: Usually ships within 10 days.
#20	27-881325001	GASKET (1 required per assembly)
		27-881325001 - Gasket [ More info ] $22.47 Available to Order: Usually ships within 10 days.

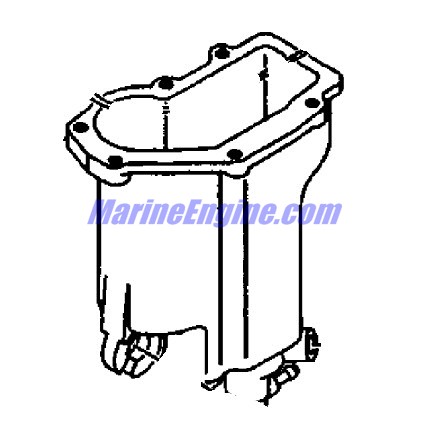

#21	881319001	BODY ASSEMBLY (1 required per assembly)
		881319001 - Body Assembly [ More info ] $128.17 Available to Order: Usually ships within 10 days.
#22	10-881326006	SCREW, Drain (1 required per assembly)
		10-881326006 - Drain Screw [ More info ] $4.00 2 In Stock.
#23	25-881318001	O-RING (1 required per assembly)
		25-881318001 - O-Ring [ More info ] $2.80 Available to Order: Usually ships within 10 days.
#24	25-93101M	GROMMET (3 required per assembly)
		25-93101M - Grommet, NLA [ More info ] $1.50 10+ In Stock.
#25	23-881332005	COLLAR (3 required per assembly)
		23-881332005 - Collar [ More info ] $2.50 2 In Stock.
