Parts for Mercury Marine 75 HP EFI (4-Stroke) Starter Motor

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B172291 - 1B366822 (USA) > Starter Motor

NEED PARTS OR KITS?

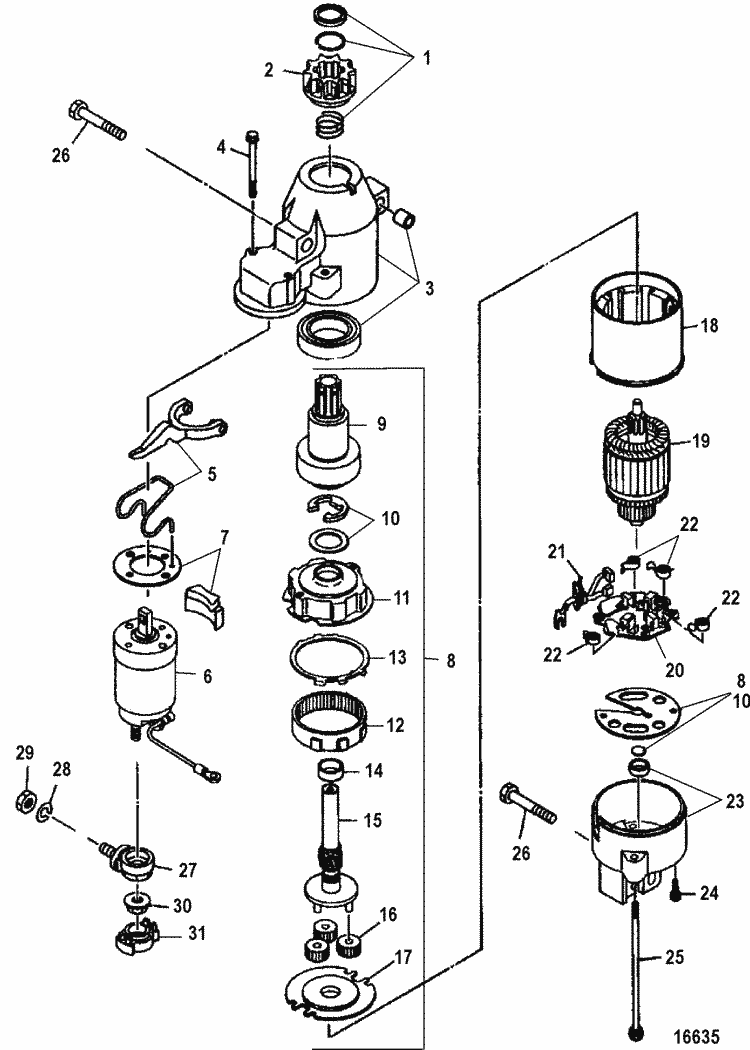

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	50-881368T 2	STARTER MOTOR ASSEMBLY (1 required per assembly)
		50-881368T 2 - Starter Motor [ More info ] $896.92 Available to Order: Usually ships within 10 days.
		3432 - Outboard Starter [ More info ] $562.65 $532.24 3 In Stock.
#1	804320	STOP SET, Pinion (1 required per assembly)
		804320 - Stop Set [ More info ] $54.75 1 In Stock.
#2	804319	PINION (1 required per assembly)
		804319 - Pinion [ More info ] $171.00 Available to Order: Usually ships within 10 days.
#3	804331T	COVER (1 required per assembly)
		804331T - Cover [ More info ] $32.00 10+ In Stock.
#4	10-804336	BOLT, (M6 x 52) (2 required per assembly)
		10-804336 - Bolt, NLA [ More info ] $2.00 10+ In Stock.
#5	804332	LEVER KIT (1 required per assembly)
		804332 - Lever [ More info ] $14.00 8 In Stock.

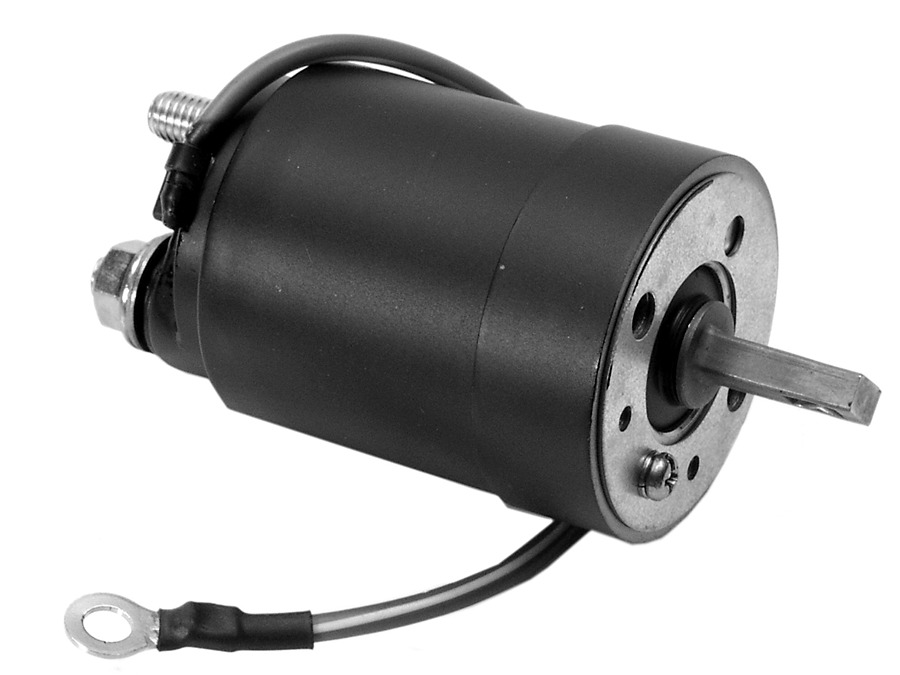

#6	881371T 1	RELAY, Starter (1 required per assembly)
		881371T 1 - Starter Relay [ More info ] $538.29 Available to Order: Usually ships within 10 days.
#7	804334	COVER (1 required per assembly)
		804334 - Needle Bearing [ More info ] $7.00 10+ In Stock.
#8	804321T 1	GEAR KIT (1 required per assembly)
		804321T 1 - Gear Kit [ More info ] $165.00 6 In Stock.
#9	804322	CLUTCH (1 required per assembly)
		804322 - Clutch [ More info ] $416.50 Available to Order: Usually ships within 10 days.
#10	12-804330	WASHER KIT (1 required per assembly)
		12-804330 - Washer Kit, NLA [ More info ] $10.00 10+ In Stock.
#11	804324	BRACKET (1 required per assembly)
		804324 - Bracket, NLA [ More info ] $20.00 10+ In Stock.
#12	804326	RING GEAR (1 required per assembly)
		804326 - Nut, Ring Gear,NLA [ More info ] $15.00 7 In Stock.
#13	27-804327	GASKET (1 required per assembly)
		27-804327 - Bracket Gasket [ More info ] $2.50 10+ In Stock.
#14	31-804325	BEARING (1 required per assembly)
		31-804325 - Bearing, NLA [ More info ] $16.00 4 In Stock.
#15	804323	SHAFT, Pinion (1 required per assembly)
		804323 - Shaft, NLA [ More info ] $32.00 4 In Stock.
#16	43-804329001	GEAR, Idler (3 required per assembly)
		43-804329001 - Idler Gear [ More info ] $27.75 2 In Stock.
#17	804328	BRACKET (1 required per assembly)
		804328 - Bracket, NLA [ More info ] $7.00 10+ In Stock.
#18	804314T	STATOR (1 required per assembly)
		804314T - Stator, NLA [ More info ] $135.00 8 In Stock.
#19	804313T	ARMATURE (1 required per assembly)
		804313T - Armature [ More info ] $65.00 8 In Stock.
#20	881369T 1	HOLDER ASSEMBLY, Brush (1 required per assembly)
		881369T 1 - Brush Holder [ More info ] $118.99 $117.80 3 In Stock.
#21	804316	BRUSH SET (1 required per assembly)
		804316 - Brush Set [ More info ] $129.67 Available to Order: Usually ships within 10 days.
#22	24-804317	SPRING (4 required per assembly)
		24-804317 - Spring,NLA [ More info ] $5.00 10+ In Stock.

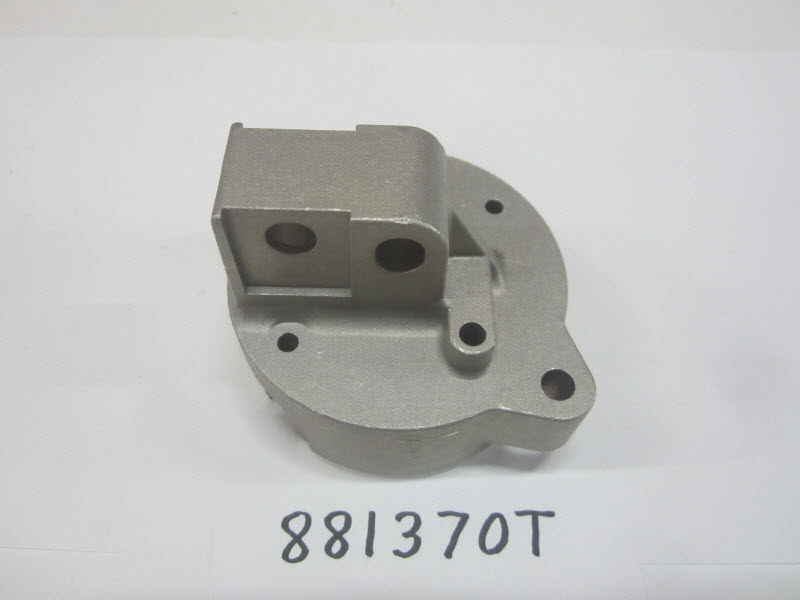

#23	881370T	BRACKET (1 required per assembly)
		881370T - Bracket [ More info ] $32.00 10+ In Stock.
#24	10-804337	SCREW, (M4 x 16) (2 required per assembly)
		10-804337 - Screw, NLA [ More info ] $1.50 10+ In Stock.
#25	10-804335	THRU BOLT, (M6 x 120) (2 required per assembly)
		10-804335 - Bolt, NLA [ More info ] $7.00 10+ In Stock.
#26	10-804605	BOLT, (M8 x 45) (3 required per assembly)
		10-804605 - BOLT (M8 x 45) NLA [ More info ] Unavailable
#27	881373001	TERMINAL (1 required per assembly)
		881373001 - Terminal [ More info ] $7.00 9 In Stock.
#28	13-881377	LOCKWASHER (1 required per assembly)
		13-881377 - LockWasher [ More info ] $1.00 2 In Stock.
#29	11-82382M	NUT (1 required per assembly)
		11-82382M - Nut - Priced Individually [ More info ] $7.20 10+ In Stock.
#30	11-881372	NUT (1 required per assembly)
		11-881372 - Nut,NLA [ More info ] $1.50 2 In Stock.
#31	881374	COVER (1 required per assembly)
		881374 - Cover [ More info ] $1.50 2 In Stock.
