Parts for Mercury Marine 75 HP EFI (4-Stroke) Intake

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B172291 - 1B366822 (USA) > Intake

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

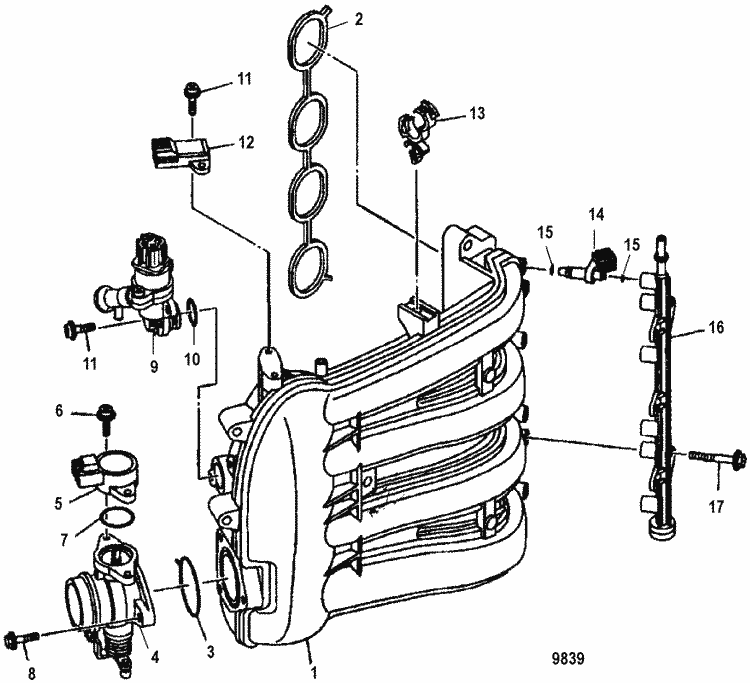

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	881440T03	INTAKE ASSEMBLY, Complete (1 required per assembly)
		881440T03 - INTAKE ASSEMBLY C NLA [ More info ] Unavailable

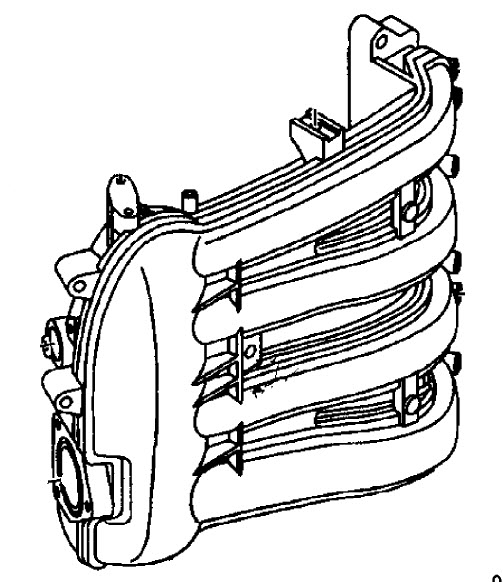

#1	880886T01	MANIFOLD ASSEMBLY (1 required per assembly)
		880886T01 - Manifold Assembly [ More info ] $506.79 Available to Order: Usually ships within 10 days.

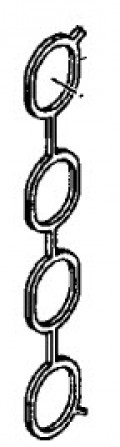

#2	27-881433001	GASKET (1 required per assembly)
		27-881433001 - Gasket [ More info ] $32.58 Available to Order: Usually ships within 10 days.
#3	27-881433002	GASKET (1 required per assembly)
		27-881433002 - Gasket [ More info ] $16.30 Available to Order: Usually ships within 10 days.

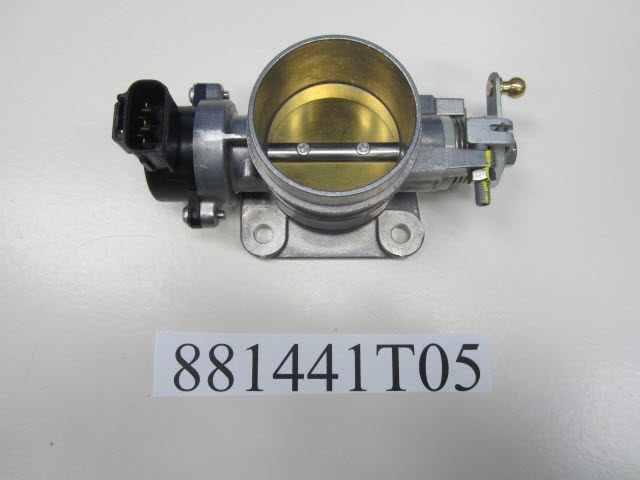

#4	881441T05	THROTTLE BODY ASSEMBLY (1 required per assembly)
		881441T05 - Throttle Body Assembly [ More info ] $145.00 4 In Stock.

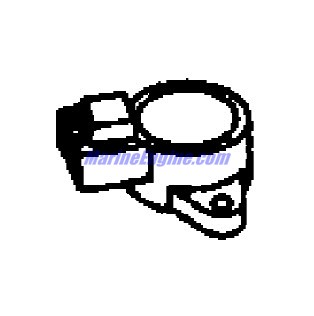

#5	880884001	SENSOR ASSEMBLY, Throttle (2 required per assembly)
		880884001 - Sensor [ More info ] $123.67 Available to Order: Usually ships within 10 days.
#6	10-881502001	SCREW (2 required per assembly)
		10-881502001 - Screw - Priced Individually [ More info ] $1.25 2 In Stock.
#7	25-881504001	O-RING (2 required per assembly)
		25-881504001 - O-ring,NLA [ More info ] $2.50 1 In Stock.
#8	10-881510001	BOLT (3 required per assembly)
		10-881510001 - Bolt - Priced Individually [ More info ] $1.50 7 In Stock.
#9	880883T02	CONTROL VALVE ASSEMBLY (1 required per assembly)
		880883T02 - CONTROL VALVE ASS [ More info ] Unavailable
#10	25-881448001	O-RING (2 required per assembly)
		25-881448001 - O-ring,NLA [ More info ] $2.50 1 In Stock.
#11	10-881449001	SCREW (4 required per assembly)
		10-881449001 - Screw - Priced Individually [ More info ] $2.00 2 In Stock.
#12	880885001	SENSOR ASSEMBLY (1 required per assembly)
		880885001 - Sensor [ More info ] $155.00 1 In Stock.
#13	54-881530001	CLAMP (1 required per assembly)
		54-881530001 - Clamp [ More info ] $1.00 2 In Stock.

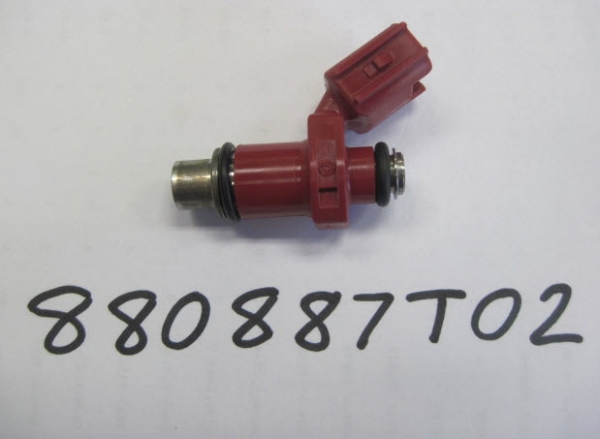

#14	880887T02	INJECTOR ASSEMBLY (4 required per assembly)
		880887T02 - INJECTOR ASSEMBLY [ More info ] Unavailable
#15	25-885183A02	O-RING KIT (1 required per assembly)
		25-885183A02 - O-RING KIT [ More info ] Unavailable
#16	881518T01	FUEL RAIL (1 required per assembly)
		881518T01 - FUEL RAIL NLA [ More info ] Unavailable
#17	10-881532001	BOLT (2 required per assembly)
		10-881532001 - Bolt - Priced Individually [ More info ] $1.80 4 In Stock.
