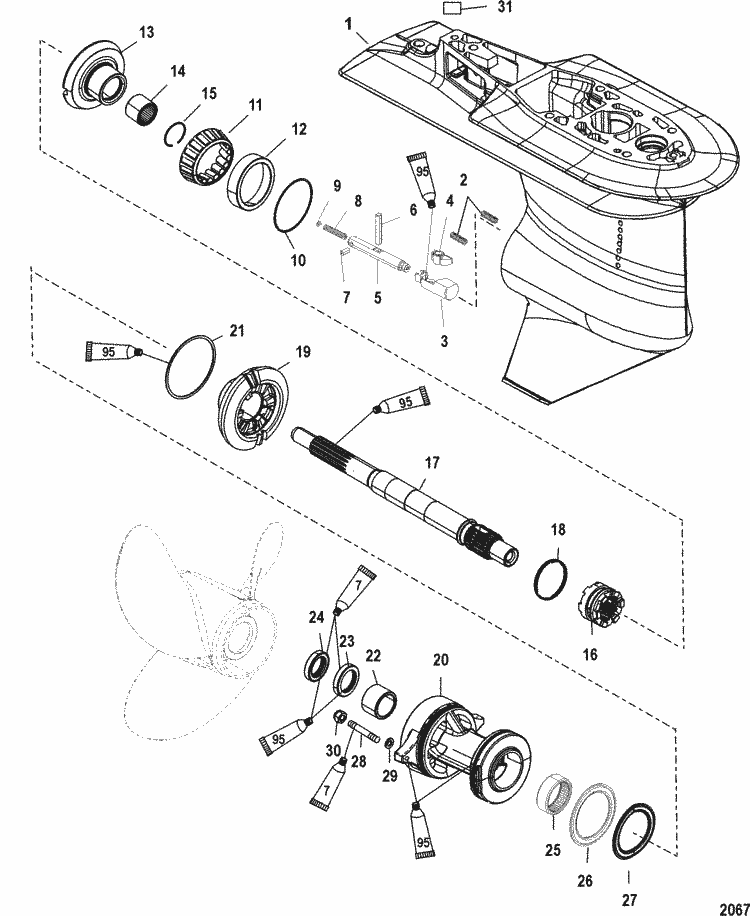

Parts for Mercury Marine 75 HP EFI (4-Stroke) Gear Housing (Prop Shaft) (2.33:1 Gear Ratio)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 31-803496T 2 | BEARING/SEAL KIT (1 required per assembly) (Without Forward Bearing) |
 |
|
31-803496T 2 - BEARING/SEAL KIT [ More info ] Unavailable |
| # | 52-888805A00 | REPAIR KIT, Clutch And Cam Follower (1 required per assembly) |
|
|
52-888805A00 - Clutch/Camfollow [ More info ]
|
| # | 26-43035A 4 | SEAL KIT, Gear Housing (1 required per assembly) |
  |
|
26-43035A 4 - SEAL KIT Gear Hou [ More info ] Unavailable |
| # | NS | NOT SHOWN, See Accessory Guide-Propellers-For Appropriate hardware (Thrust Washers/Nuts) (1 required per assembly) |
|
|
NS - NOT SHOWN [ More info ] Unavailable |
| #0 | 1600-888845T03 | GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) (1 required per assembly) (Long) |
|
|
1600-888845T03 - GEAR HOUSING ASSE [ More info ] Unavailable |
| #0 | 1600-888845T04 | GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) (1 required per assembly) (X-Long) |
|
|
1600-888845T04 - GEAR HOUSING ASSE [ More info ] Unavailable |
| #1 | 1600-888845T | GEAR HOUSING ASSEMBLY, Basic (1 required per assembly) |
  |
|
1600-888845T - Basic Gear Housing Assembly [ More info ]
|
| #2 | 822773 1 | INSERT, Threaded (2 required per assembly) |
|
|
822773 1 - Insert [ More info ]
|
| #3 | 888807 | FOLLOWER ASSEMBLY, Cam (1 required per assembly) |
  |
|
888807 - Cam Follower [ More info ]
|
| #4 | 19917 | CAM, Shift (1 required per assembly) |
  |
|
19917 - 19917 - CAM Shift [ More info ] Unavailable Replaced by -8M4504018 |
|
|
8M4504018 - CAM-SHIFT [ More info ]
|

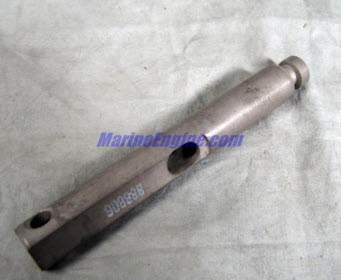

| #5 | 888806 | ROD, Clutch Actuator (1 required per assembly) |
  |
|
888806 - Clutch Actuator Rod [ More info ]
|

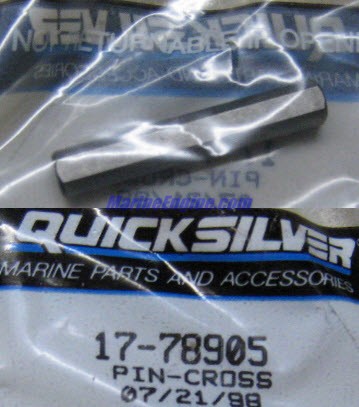

| #6 | 17-78905 | PIN, Cross (1 required per assembly) |
  |
|
17-78905 - Pin, Cross [ More info ]
|
|
|
178M0084243 - Pin - CROSS [ More info ]
|

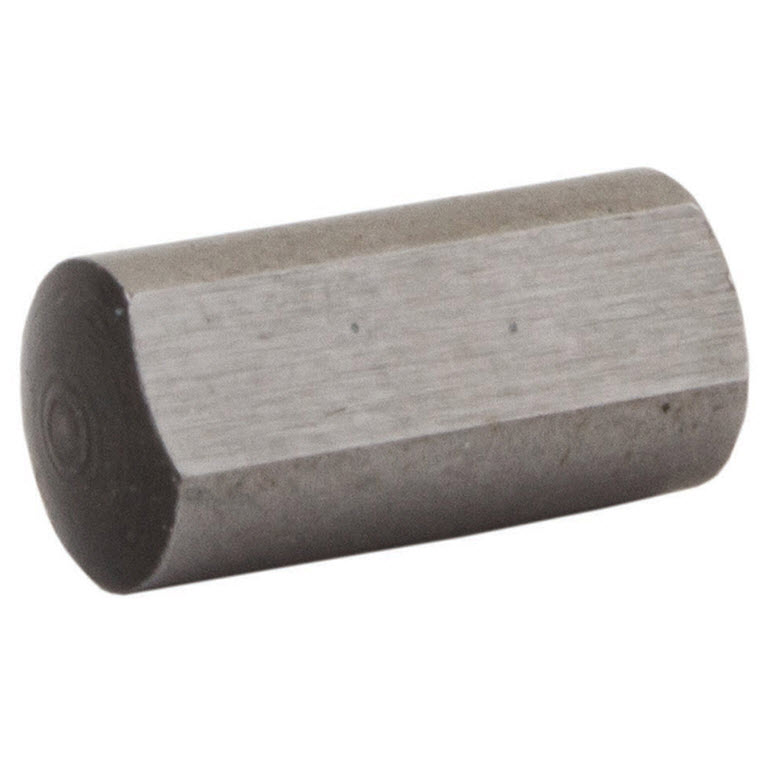

| #7 | 17-78906 | PIN, Spring Locator (1 required per assembly) |
  |
|
17-78906 - Pin, Spring Locator [ More info ]
|
|
|
178M0084245 - Locator Pin [ More info ]
|
| #8 | 24-79910 | SPRING (1 required per assembly) |
|
|
24-79910 - Spring, Compression [ More info ]
|
| #9 | 12-78910 | WASHER (1 required per assembly) |
|
|
12-78910 - Washer, Compression Spring [ More info ]
|
| #10 | 15-44491A 1 | SHIM SET (1 required per assembly) |
  |
|
15-44491A 1 - Shim Set [ More info ]
|
| #11 | 31-30894A 1 | BEARING SET, Cup And Cone (1 required per assembly) |
  |
|
31-30894A 1 - BEARING SET Cup A [ More info ] Unavailable |
  |
|
18-1156 - Bearing 31-30894A1 [ More info ]
|
| #12 | NSS | NOT SOLD SEPARATE, Cup (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #13 | 43-882813A 3 | GEAR KIT, Forward And Pinion 28 Teeth (1 required per assembly) |
  |
|
43-882813A 3 - Forward Gear Kit [ More info ]
|
| #14 | 31-30895T | BEARING, Needle (1 required per assembly) |
  |
|
31-30895T - Bearing - Roller [ More info ]
|
  |
|
18-1157 - Bearing 31-30895 [ More info ]
|
| #15 | 53-856823 | RING, Retaining (1 required per assembly) |
|
|
53-856823 - Ring - Retaining [ More info ]
|

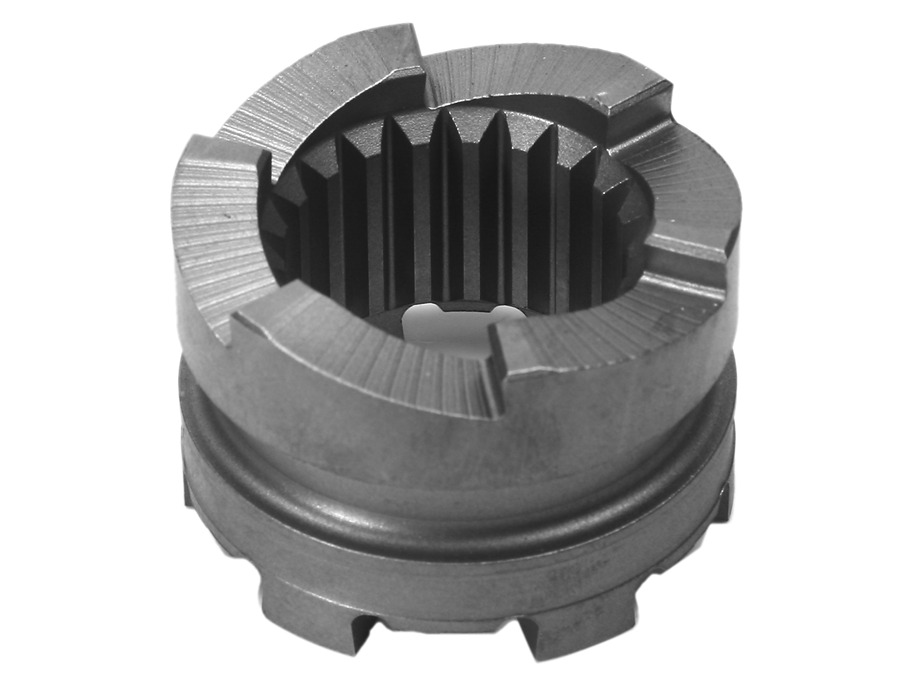

| #16 | 52-888805T | CLUTCH (1 required per assembly) |
  |
|
52-888805T - Clutch [ More info ]
|

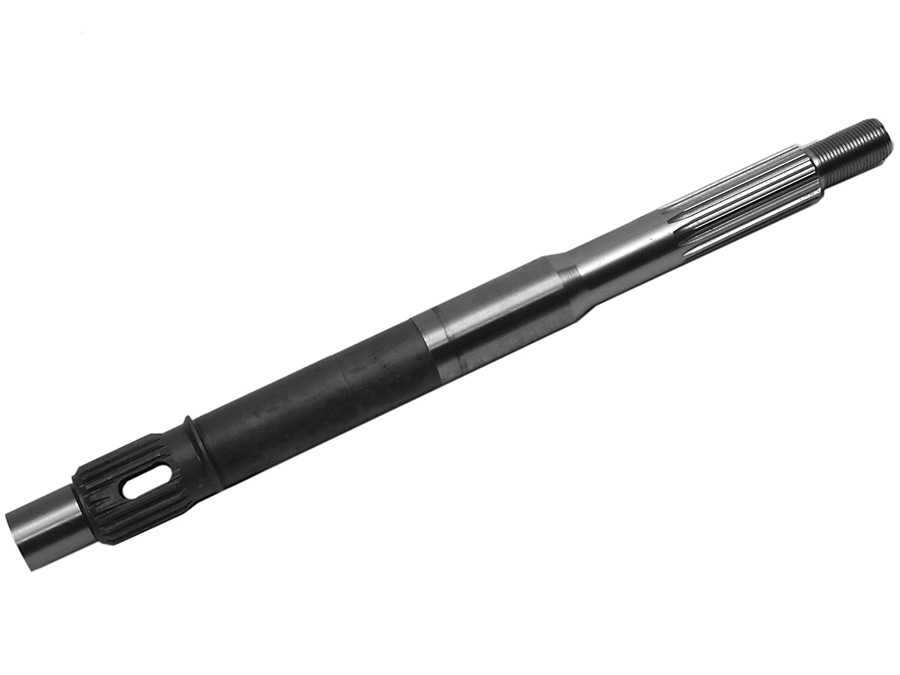

| #17 | 44-888804 | PROPELLER SHAFT (1 required per assembly) |
  |
|
44-888804 - 44-888804 - PROPELLER SHAFT [ More info ] Unavailable Replaced by -8M0140444 |
|
|
448M0140444 - Prop Shaft [ More info ]
|
| #18 | 24-30893 | SPRING (1 required per assembly) |
  |
|
24-30893 - Spring, Reatiner - Cross Pin [ More info ]
|
  |
|
18-2348 - Spring, 24-30893 [ More info ]
|
| #19 | 43-889990T | GEAR, Reverse (28 Teeth) (1 required per assembly) |
  |
|
43-889990T - Reverse Gear [ More info ]
|
| #20 | 12596T 2 | CARRIER ASSEMBLY, Bearing (1 required per assembly) |
  |
|
12596T 2 - CARRIER ASSEMBLY [ More info ] Unavailable |
  |
|
8M0168901 - Carrier Bearing [ More info ]
|
| #21 | 25-97386 | O-RING, (3.609 x .139) (1 required per assembly) |
|
|
785-97386 - 785-97386 - O-RING (3.609 x . [ More info ] Unavailable Replaced by 25-861844 |
  |
|
25-861844 - 25-861844 - O-RING [ More info ] Unavailable Replaced by -8M0214974 |
|
|
258M0214974 - O RING [ More info ]
|
  |
|
18-7961 - O-Ring 25-97386 [ More info ]
|
| #22 | 31-30956T | BEARING, Needle (1 required per assembly) |
  |
|
31-30956T - Roller Bearing [ More info ]
|
  |
|
18-1158 - Bearing 31-30956, 387247 [ More info ]
|
| #23 | 26-70080 | SEAL, Oil (INNER) (1 required per assembly) |
  |
|
26-70080 - SEAL Oil [ More info ] Unavailable |
| #24 | 26-70081 | SEAL, Oil (OUTER) (1 required per assembly) |
  |
|
26-70081 - 26-70081 - SEAL Oil [ More info ] Unavailable Replaced by -8M0205729 |
|
|
26-8M0205729 - GEAR HSG OUTER OIL SEAL O/B [ More info ]
|
  |
|
18-2053 - Seal 26-70081 [ More info ]
|
| #25 | 31-12578T | BEARING, Roller (1 required per assembly) |
  |
|
31-12578T - Roller Bearing [ More info ]
|
  |
|
18-1113 - Bearing 31-12578 [ More info ]
|
| #26 | 12-12577 | THRUST WASHER (1 required per assembly) |
  |
|
12-12577 - Washer, Thrust [ More info ]
|
| #27 | 31-12576 | BEARING, Thrust (1 required per assembly) |
  |
|
31-12576 - Thrust Bearing [ More info ]
|
  |
|
18-1112 - Bearing 31-12576 [ More info ]
|
| #28 | 16-42917 2 | STUD, (M8 x 48) (2 required per assembly) |
|
|
16-42917 2 - 16-42917 2 - STUD (M8 x 48) [ More info ] Unavailable Replaced by 16-8M0034456 |
|
|
16-8M0034456 - Stud [ More info ]
|
| #29 | 12-855941 | WASHER (2 required per assembly) |
|
|
12-855941 - Washer, (.323 X .590 X .112) Stainless Steel [ More info ]
|
| #30 | 11-40137 8 | NUT, (M8) (2 required per assembly) |
|
|
11-40137 8 - Nut [ More info ]
|
