Parts for Mercury Marine 75 HP EFI (4-Stroke) Fuel Hose Routings

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B172291 - 1B366822 (USA) > Fuel Hose Routings

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	10-852776018	BOLT AND WASHER (3 required per assembly)
		10-852776018 - Bolt - Priced Individually [ More info ] $1.50 2 In Stock.
#3	54-881530005	CLAMP (2 required per assembly)
		54-881530005 - Clamp [ More info ] $2.00 2 In Stock.
#4	32-804162005	TUBING (1 required per assembly)
		32-804162005 - Tubing [ More info ] $9.00 6 In Stock.
#5	54-879650	CLAMP (2 required per assembly)
		54-879650 - 54-879650 - CLAMP [ More info ] Unavailable Replaced by -56762
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 10+ In Stock.
		0317893 - Tie Strap [ More info ] $0.36 10+ In Stock.
#6	32-804162002	TUBING (1 required per assembly) SN# 1B226999 & Below
		32-804162002 - Tubing [ More info ] $28.00 2 In Stock.
#6	32-804162018	TUBING (1 required per assembly) SN# 1B227000 & Up
		32-804162018 - TUBING NLA [ More info ] Unavailable

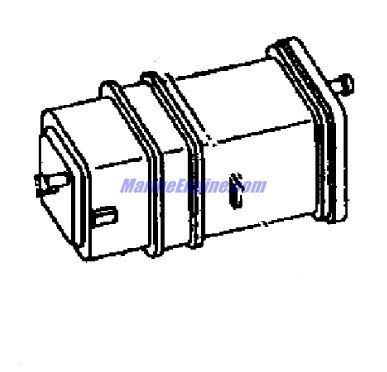

#7	896354	CANNISTER ASSEMBLY (1 required per assembly)
		896354 - Canister [ More info ] $82.92 Available to Order: Usually ships within 10 days.
#8	881542004	HOLDER (1 required per assembly)
		881542004 - Holder [ More info ] $6.00 2 In Stock.
#9	10-826957M	BOLT (1 required per assembly)
		10-826957M - Bolt, NLA [ More info ] $3.99 10+ In Stock.
#11	881542005	BRACKET (1 required per assembly)
		881542005 - Bracket [ More info ] $8.00 2 In Stock.
#12	25-804304	GROMMET (2 required per assembly)
		25-804304 - Grommet, NLA [ More info ] $1.25 7 In Stock.
#13	23-811078M	COLLAR (2 required per assembly)
		23-811078M - Collar, NLA [ More info ] $2.00 3 In Stock.
#14	10-804270	BOLT, (M6 x 28) (2 required per assembly)
		10-804270 - Bolt [ More info ] $1.90 Available to Order: Usually ships within 10 days.
#15	56762	TIE STRAP, (4.00 Inches) (2 required per assembly)
#16	32-804162003	TUBING (1 required per assembly)
		32-804162003 - TUBING NLA [ More info ] Unavailable
#17	54-881530007	CLAMP (1 required per assembly)
		54-881530007 - Clamp [ More info ] $4.00 1 In Stock.
		54-8M0059039 - CLAMP NLA [ More info ] Unavailable
#18	10-84088M	SCREW, (M6 x 10) (1 required per assembly)
		10-84088M - Bolt [ More info ] $3.30 Available to Order: Usually ships within 10 days.
#19	12-82214M	WASHER (1 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $4.90 10+ In Stock.
#20	35-888279001	FILTER, Fuel (1 required per assembly)
		35-888279001 - Fuel Filter [ More info ] $87.92 Available to Order: Usually ships within 10 days.

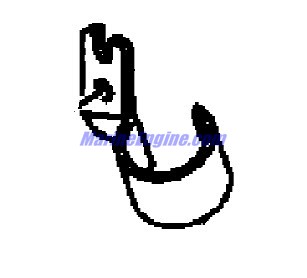

#21	881542003	BRACKET (1 required per assembly)
		881542003 - 881542003 - BRACKET [ More info ] Unavailable Replaced by -8M0059043
		8M0059043 - Bracket [ More info ] $5.00 3 In Stock.
#22	10-91772M	BOLT (1 required per assembly)
		10-91772M - Bolt [ More info ] $4.99 10+ In Stock.
