Parts for Mercury Marine 75 HP EFI (4-Stroke) Electrical Components, Relay Mounting

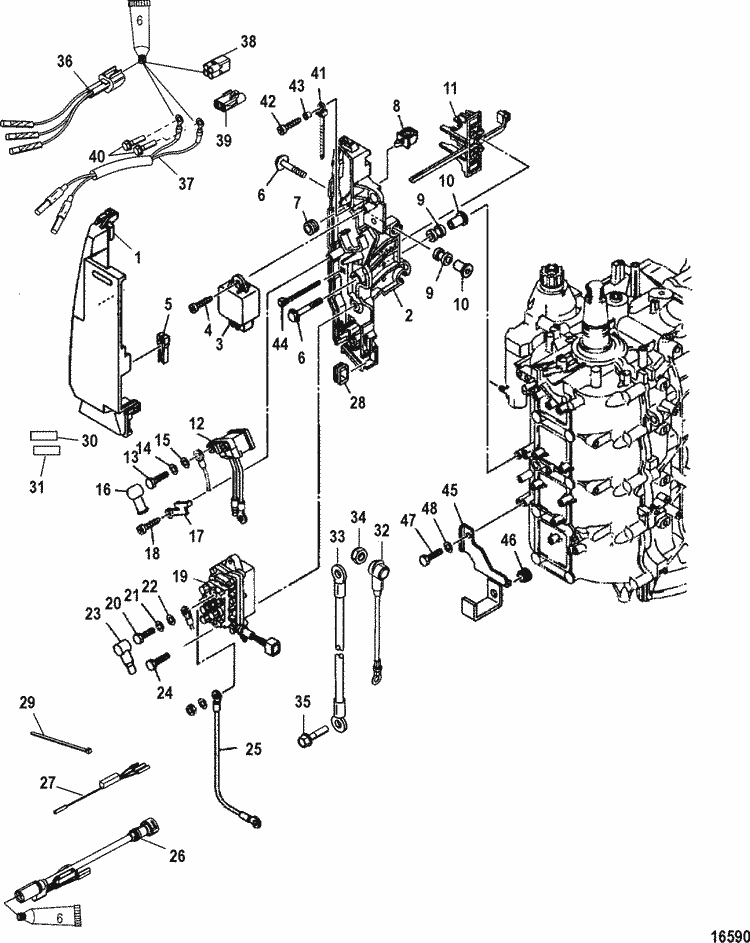

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 881363A01 | COVER/BRACKET KIT (1 required per assembly) SN# 1B226999 & Below |
 |
|
881363A01 - 881363A01 - COVER/BRACKET KIT [ More info ] Unavailable Replaced by -881363A02 |
|
|
881363A02 - Cover [ More info ]
|
| #1 | 881363A02 | COVER/BRACKET KIT (1 required per assembly) SN# 1B227000 & Up |
| #2 | NSS | NOT SOLD SEPARATE, Bracket (1 required per assembly) SN# 1B226999 & Below |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |

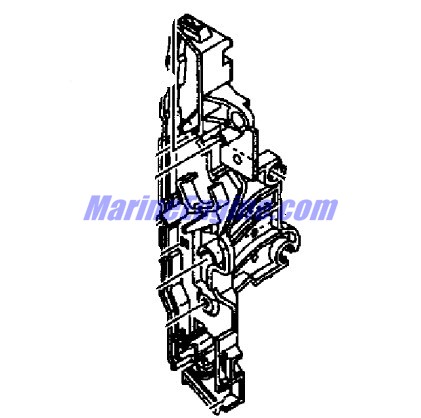

| #2 | 881359002 | BRACKET (1 required per assembly) SN# 1B227000 & Up |
  |
|
881359002 - Bracket [ More info ]
|
| #3 | 881350T01 | RELAY ASSEMBLY (1 required per assembly) |
|
|
881350T01 - Relay Assembly [ More info ]
|

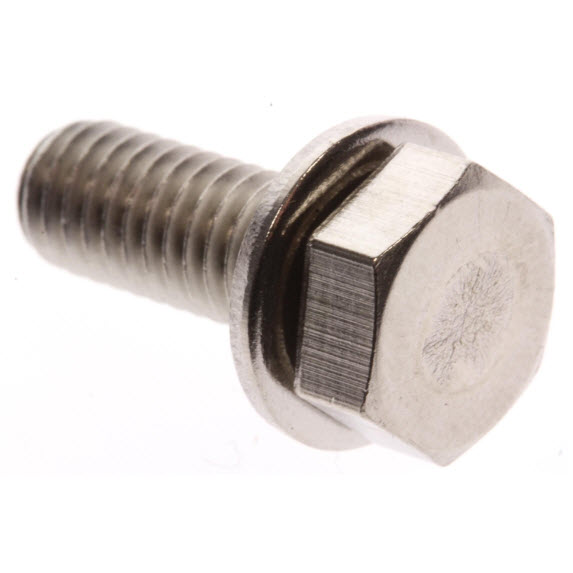

| #4 | 10-881351 | SCREW (1 required per assembly) |
  |
|
10-881351 - Screw [ More info ]
|
| #5 | 804289 | PULLER, Fuse (1 required per assembly) |
  |
|
|
| #6 | 10-804270 | BOLT, (M6 x 28) (5 required per assembly) |
  |
|
10-804270 - Bolt [ More info ]
|
| #7 | 25-881304 | GROMMET (1 required per assembly) |
|
|
25-881304 - Damper [ More info ]
|
| #8 | 54-881361 | CLAMP (1 required per assembly) |
|
|
54-881361 - Clamp [ More info ]
|
| #10 | 23-82851M | BUSHING (5 required per assembly) SN# 1B226999 & Below |
|
|
23-82851M - Bushing [ More info ]
|
|
|
23-804344003 - Collar [ More info ]
|
| #10 | 23-804344003 | COLLAR (5 required per assembly) SN# 1B227000 & Up |
| #11 | 54-881360 | CLAMP (1 required per assembly) |
|
|
54-881360 - Clamp [ More info ]
|

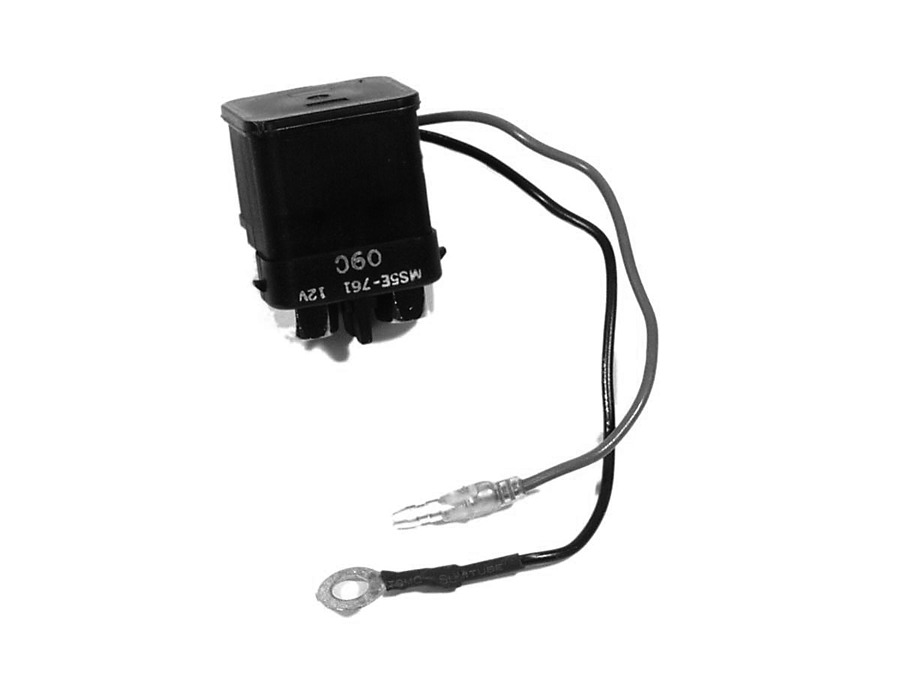

| #12 | 881352T | RELAY (1 required per assembly) |
  |
|
881352T - RELAY [ More info ] Unavailable |
| #13 | 10-84088M | SCREW, (M6 x 10) (2 required per assembly) |
  |
|
10-84088M - Bolt [ More info ]
|
| #14 | 13-82212M | LOCKWASHER (2 required per assembly) |
|
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #15 | 12-82214M | WASHER (2 required per assembly) |
|
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #16 | 85-804284 | BOOT (2 required per assembly) |
|
|
85-804284 - 85-804284 - BOOT [ More info ] Unavailable Replaced by 85-804284001 |
|
|
85-804284001 - Boot [ More info ]
|
| #17 | 54-881353 | CLAMP (1 required per assembly) |
|
|
54-881353 - Clamp [ More info ]
|
| #18 | 10-881351 1 | SCREW (1 required per assembly) |
  |
|
10-881351 1 - Screw [ More info ]
|

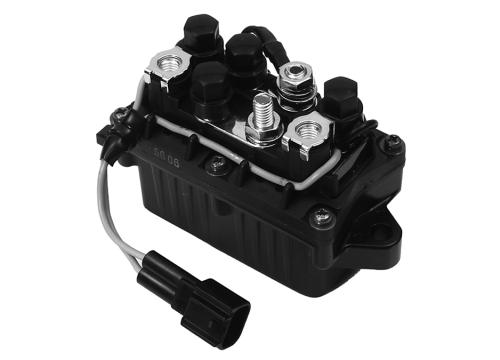

| #19 | 881356001 | RELAY ASSEMBLY (1 required per assembly) |
  |
|
881356001 - RELAY ASSEMBLY [ More info ] Unavailable |
| #23 | 85-826574 | BOOT (2 required per assembly) |
|
|
85-826574 - BOOT-COVER Note: Priced Individually [ More info ]
|
| #24 | 10-825702 1 | BOLT, (M6 x 20) (2 required per assembly) |
  |
|
10-825702 1 - Bolt [ More info ]
|
| #25 | 84-881357001 | WIRE, Lead (1 required per assembly) |
|
|
84-881357001 - Wire - Lead [ More info ]
|
| #26 | 84-858740T 4 | HARNESS ASSEMBLY (1 required per assembly) SN# 1B226999 & Below |
|
|
84-858740T 4 - Harness [ More info ]
|

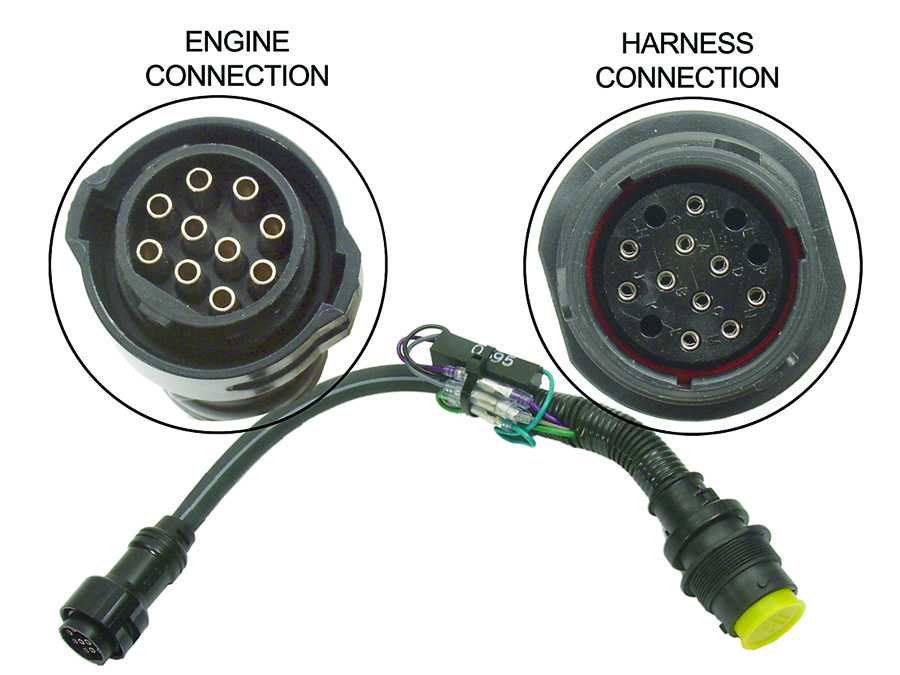

| #26 | 84-858740T06 | HARNESS ASSEMBLY, Remote Adaptor (16.00 Inches) 10 Pin Female to 14 Pin Female (1 required per assembly) SN# 1B227000 & Up |
  |
|
84-858740T06 - Harness Assembly [ More info ]
|
| #27 | 17461A10 | TACH MODULE (1 required per assembly) |
|
|
17461A10 - 17461A10 - TACH MODULE [ More info ] Unavailable Replaced by -8M0026570 |
|
|
8M0026570 - Module - Tachometer [ More info ]
|
| #28 | 25-881304001 | GROMMET (1 required per assembly) |
|
|
25-881304001 - GROMMET NLA [ More info ] Unavailable |
| #29 | 54-816311T | TIE STRAP, (8.00 Inches) (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #30 | 37-827282 2 | DECAL, Warning, High Voltage (1 required per assembly) |
|
|
37-827282 2 - Decal - Warning [ More info ]
|
| #31 | 37-881865 | DECAL, Caution-Start in Gear (1 required per assembly) (Start In Gear) |
|
|
37-881865 - Decal -Caution [ More info ]
|
| #32 | 84-88439A33 | BATTERY CABLE, Positive (1 required per assembly) |
|
|
84-88439A33 - Battery Cable Assembly [ More info ]
|
| #33 | 84-88439A10 | BATTERY CABLE, (Negative) (1 required per assembly) |
|
|
84-88439A10 - Cable [ More info ]
|
| #34 | 11-40138 8 | NUT, (M8) Stainless Steel (1 required per assembly) |
|
|
11-40138 8 - Nut - Priced Individually [ More info ]
|
| #35 | 10-40011128 | SCREW, (M6 x 20) Stainless Steel (1 required per assembly) |
  |
|
10-40011128 - 10-40011128 - SCREW (M6 x 20) S [ More info ] Unavailable Replaced by -8M4503518 |
|
|
10-8M4503518 - 10-8M4503518 - SCREW (M6 X 1.0 [ More info ] Unavailable Replaced by -8M0204741 |
|
|
108M0204741 - SCREW Note: Priced Individually [ More info ]
|
| #36 | 84-858723T 1 | HARNESS ASSEMBLY (1 required per assembly) |
  |
|
84-858723T 1 - Harness [ More info ]
|
| #37 | 84-858914T 1 | HARNESS ASSEMBLY (1 required per assembly) |
  |
|
84-858914T 1 - Harness [ More info ]
|
| #38 | 859249T 1 | CONNECTOR (1 required per assembly) |
|
|
859249T 1 - Connector [ More info ]
|
| #39 | 897543A01 | CAP ASSEMBLY, Connector - 2 Way (1 required per assembly) |
|
|
897543A01 - CAP ASSEMBLY Conn NLA [ More info ] Unavailable |
| #40 | 10-824832 4 | SCREW, (M6 x 16) (2 required per assembly) |
  |
|
10-824832 4 - Screw [ More info ]
|
| #41 | 54-881530013 | CLAMP (1 required per assembly) |
|
|
54-881530013 - Clamp [ More info ]
|
| #42 | 23-852473 | COLLAR (1 required per assembly) |
|
|
23-852473 - Collar [ More info ]
|
| #44 | 54-881530014 | CLAMP (2 required per assembly) |
|
|
54-881530014 - Clamp [ More info ]
|

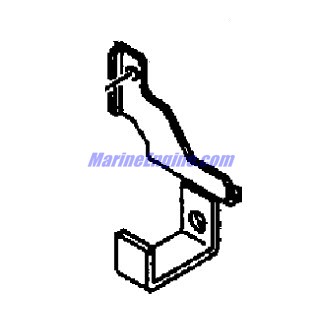

| #45 | 804260001 | BRACKET (1 required per assembly) |
  |
|
804260001 - Bracket [ More info ]
|
| #46 | 25-97687M | GROMMET (1 required per assembly) |
|
|
25-97687M - Grommet [ More info ]
|
| #47 | 10-84368M | BOLT (1 required per assembly) |
|
|
10-84368M - Screw, NLA [ More info ]
|
