Parts for Mercury Marine 75 HP EFI (4-Stroke) Crankshaft, Pistons & Connecting Rods

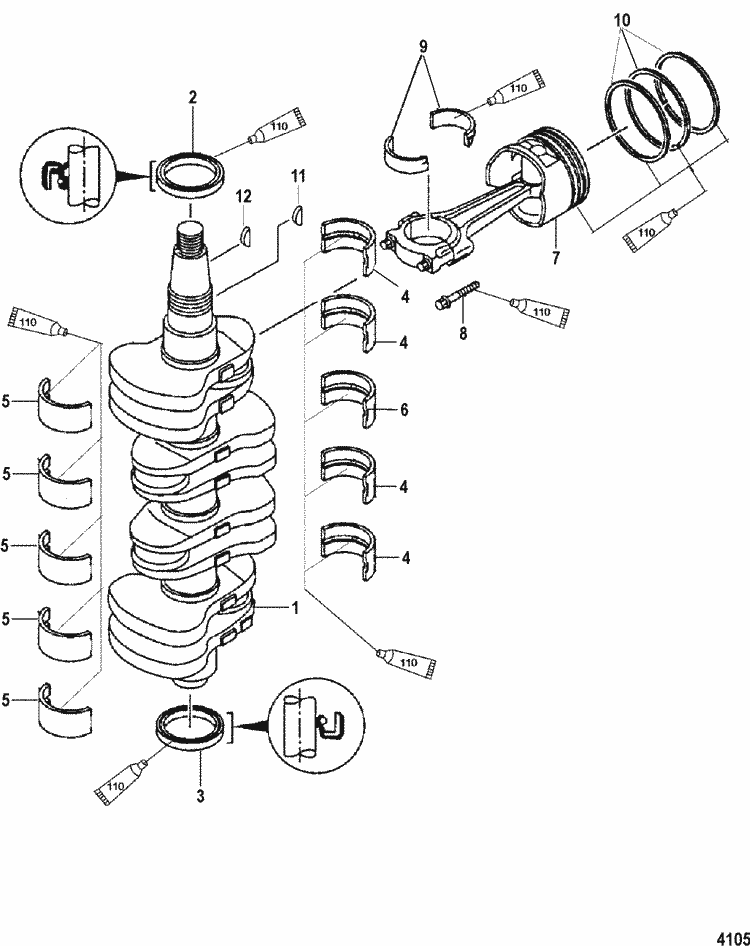

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 881421T05 | POWERHEAD ASSEMBLY (1 required per assembly) |
 |
|
881421T05 - 881421T05 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -881421T06 |
|
|
881421T06 - 881421T06 - P/H 75-90 4S [ More info ] Unavailable Replaced by -8M0094898 |
  |
|
8M0094898 - P/H 75-90 4S NLA [ More info ] Unavailable |
| # | 27-858732A03 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-858732A03 - GASKET SET Powerh [ More info ] Unavailable |

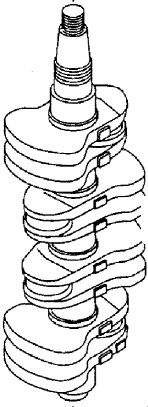

| #1 | 2406-880894T01 | CRANKSHAFT (1 required per assembly) |
  |
|
2406-880894T01 - 2406-880894T01 - CRANKSHAFT [ More info ] Unavailable Replaced by 2406-8M0103181 |
|
|
24068M0103181 - CrankShaft [ More info ]
|
| #2 | 26-804099003 | SEAL, Oil (1 required per assembly) |
  |
|
26-804099003 - SEAL Oil [ More info ] Unavailable |
| #3 | 26-804100003 | SEAL, Oil (1 required per assembly) |
  |
|
26-804100003 - Oil Seal [ More info ]
|
| #4 | 31-804101T | BEARING (4 required per assembly) (Green) |
  |
|
31-804101T - BEARING [ More info ] Unavailable |
| #4 | 31-804101T10 | BEARING (4 required per assembly) (Blue) |
  |
|
31-804101T10 - Bearing -Blue [ More info ]
|
| #4 | 31-804101T20 | BEARING (4 required per assembly) (Red) |
  |
|
31-804101T20 - Bearing -red [ More info ]
|
| #5 | 31-804102T | BEARING (5 required per assembly) (Yellow) |
  |
|
31-804102T - Bearing -Yellow [ More info ]
|
| #5 | 31-804102T10 | BEARING (5 required per assembly) (Green) |
  |
|
31-804102T10 - Bearing -Green [ More info ]
|
| #5 | 31-804102T20 | BEARING (5 required per assembly) (Blue) |
  |
|
31-804102T20 - Bearing -Blue [ More info ]
|
| #5 | 31-804102T30 | BEARING (5 required per assembly) (Red) |
  |
|
31-804102T30 - Bearing -red [ More info ]
|
| #6 | 31-804103T | BEARING (1 required per assembly) (Green) |
  |
|
31-804103T - BEARING [ More info ] Unavailable |
| #6 | 31-804103T10 | BEARING (1 required per assembly) (Blue) |
  |
|
31-804103T10 - BEARING [ More info ] Unavailable |
| #6 | 31-804103T20 | BEARING (1 required per assembly) (Red) |
  |
|
31-804103T20 - Bearing -red [ More info ]
|

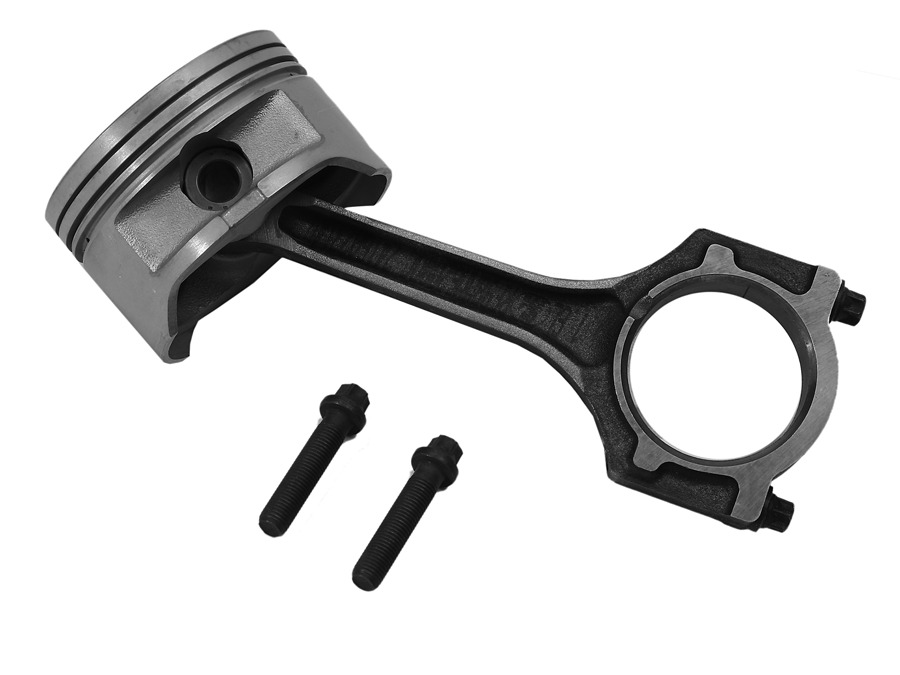

| #7 | 2715-880895T02 | PISTON ASSEMBLY (4 required per assembly) (Standard) |
  |
|
2715-880895T02 - PISTON ASSEMBLY [ More info ] Unavailable |
| #7 | 2715-880895T03 | PISTON ASSEMBLY (AR required per assembly) (.25mm O/S) |
  |
|
2715-880895T03 - Piston/Connecting Rod [ More info ]
|
| #8 | 10-804105 | BOLT (2 required per assembly) |
  |
|
10-804105 - Bolt [ More info ]
|
| #9 | 31-804106T01 | BEARING (8 required per assembly) (Yellow) |
  |
|
31-804106T01 - BEARING [ More info ] Unavailable |
| #9 | 31-804106T11 | BEARING (8 required per assembly) (Green) |
  |
|
31-804106T11 - Bearing [ More info ]
|
| #9 | 31-804106T21 | BEARING (8 required per assembly) (Blue) |
  |
|
31-804106T21 - Bearing [ More info ]
|
| #9 | 31-804106T31 | BEARING (8 required per assembly) (Red) |
  |
|
31-804106T31 - Bearing [ More info ]
|
| #10 | 39-880897T02 | RING SET, Piston (1 required per assembly) (Standard) |
  |
|
39-880897T02 - RING SET Piston [ More info ] Unavailable |
| #10 | 39-880898T02 | RING SET, Piston (AR required per assembly) (.25mm Oversize) |
  |
|
39-880898T02 - Rings .25 Oversize [ More info ]
|
| #11 | 28-804153 | KEY (1 required per assembly) |
  |
|
28-804153 - KEY [ More info ] Unavailable |
| #12 | 28-826100 1 | KEY (1 required per assembly) |
|
|
28-826100 1 - KEY [ More info ] Unavailable |
