Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Electrical Components, Pcm Mounting

Revise Search: All Models > 75 HP DFI (3 Cylinder) (1.5L) > 1B736885 & Up (USA) > Electrical Components, Pcm Mounting

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

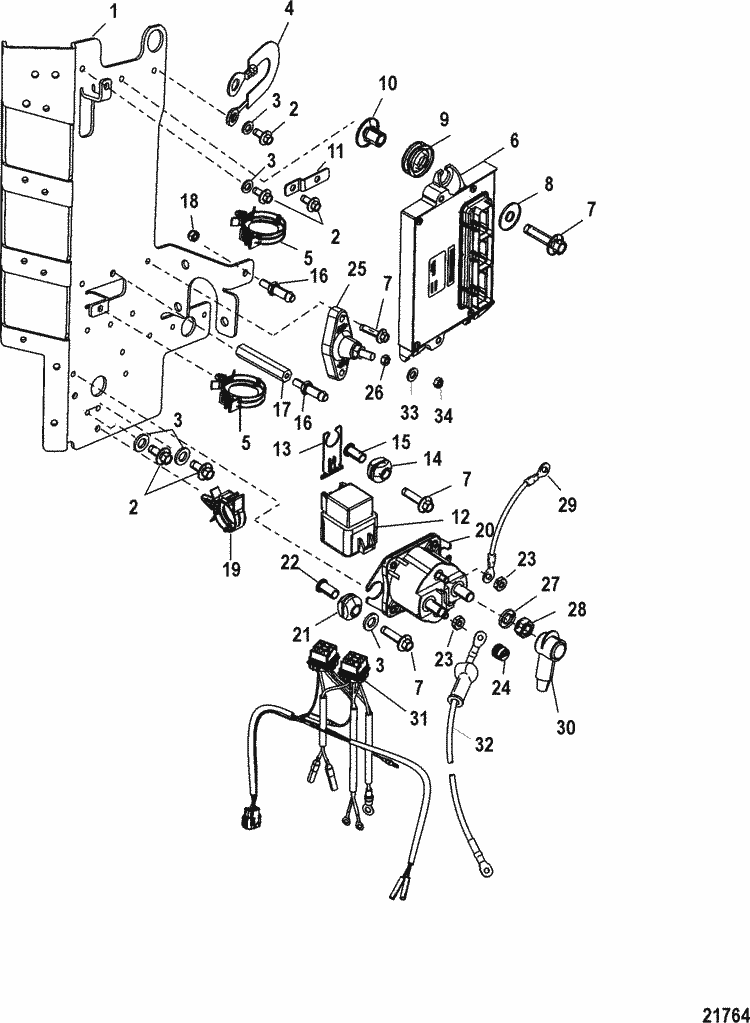

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	NSS	NOT SOLD SEPARATE, Electrical Plate Assembly-Complete (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#1	880190T05	PLATE ASSEMBLY, Electrical (1 required per assembly)
		880190T05 - Plate [ More info ] $78.58 Available to Order: Usually ships within 10 days.

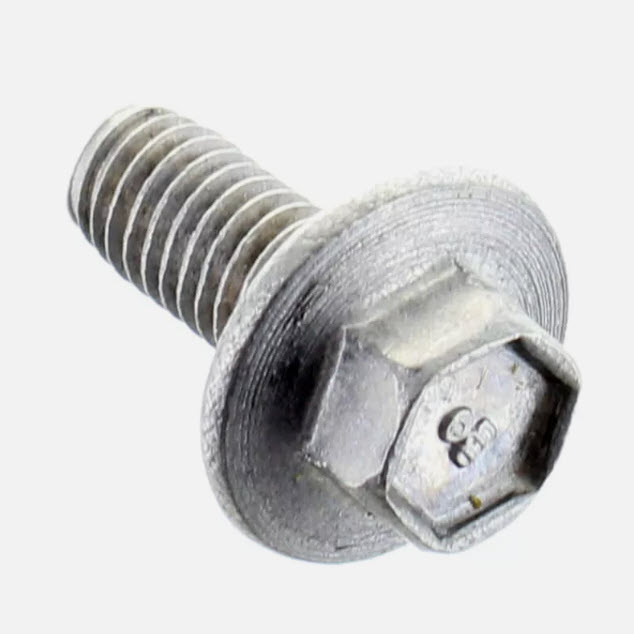

#2	10-821291 14	SCREW, (M6 x 14) (5 required per assembly)

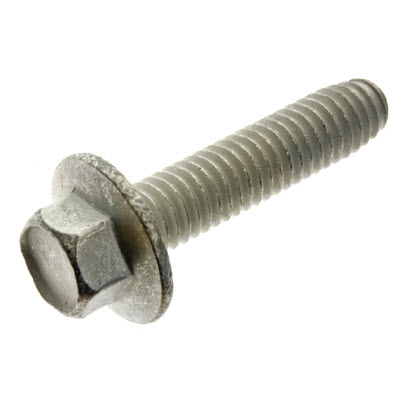

		10-821291 14 - Screw [ More info ] $2.40 5 In Stock.
#3	12-29245	WASHER, (.281 x .500 x .060) Stainless Steel (5 required per assembly)
		12-29245 - Washer [ More info ] $0.80 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 Available to Order: Usually ships within 10 days.
		18-4275 - SS Washer [ More info ] $0.79 $0.76 1 In Stock.
#4	84-858414A 1	CABLE ASSEMBLY, Braided (1 required per assembly)
		84-858414A 1 - Cable ASSY [ More info ] $18.67 Available to Order: Usually ships within 10 days.
#5	54-858755	CLIP, (1.00) (2 required per assembly)
		54-858755 - Clip [ More info ] $2.20 Available to Order: Usually ships within 10 days.
#6	89790623T	PCM, Propulsion Control Module (1 required per assembly) 75 Horsepower
		89790623T - PCM Propulsion Co NLA [ More info ] Unavailable

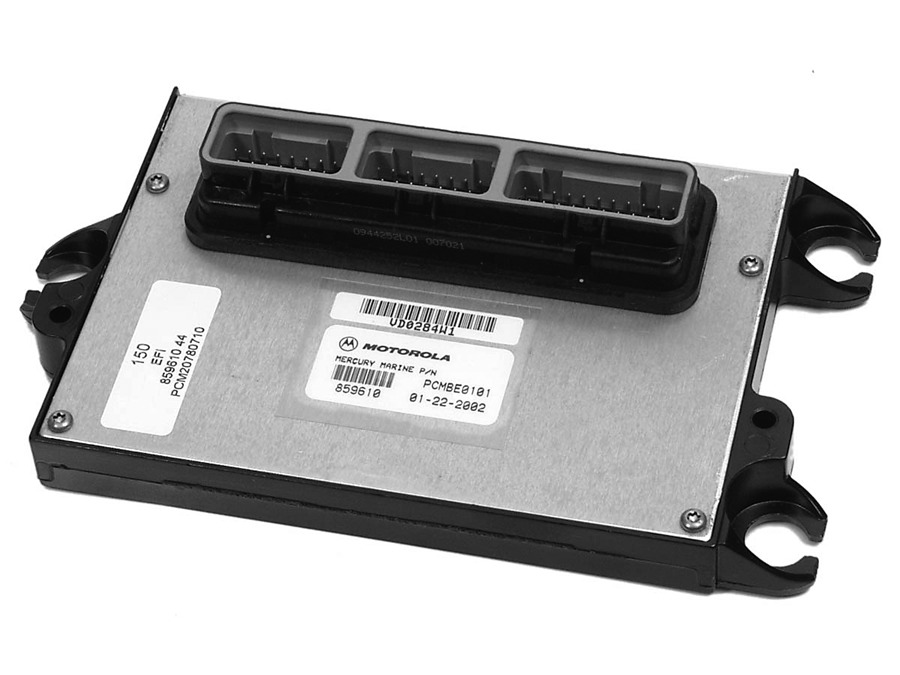

#6	89790624T	PCM, Propulsion Control Module (1 required per assembly) 90 Horsepower
		89790624T - PCM Propulsion Co NLA [ More info ] Unavailable
#6	89790625T	PCM, Propulsion Control Module (1 required per assembly) 115/Jet 80
		89790625T - PCM Propulsion Co NLA [ More info ] Unavailable
#6	89790652T	PCM, Propulsion Control Module (1 required per assembly) 125
		89790652T - PCM Propulsion Co NLA [ More info ] Unavailable
#7	10-821291 25	SCREW, (M6 x 25) (10 required per assembly)
		10-821291 25 - Screw [ More info ] $3.30 $1.86 8 In Stock.
#8	12-65567	WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.80 1 In Stock.
#9	25-834985	GROMMET (3 required per assembly)
		25-834985 - Grommet [ More info ] $3.00 2 In Stock.
#10	23-856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $6.70 Available to Order: Usually ships within 10 days.
#11	858953	BRACKET (1 required per assembly)
		858953 - Bracket [ More info ] $12.90 Available to Order: Usually ships within 10 days.
#12	882751A 1	RELAY ASSEMBLY (3 required per assembly)

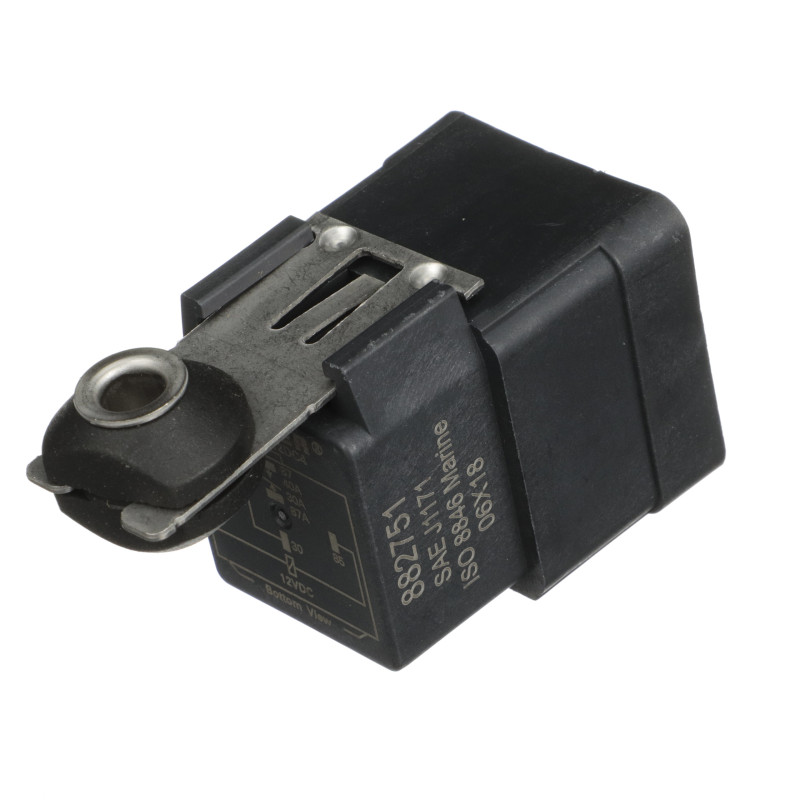

		882751A 1 - Trim Relay Assembly [ More info ] $21.83 2 In Stock.
		18-5849 - Relay, 882751A1 [ More info ] $15.62 10+ In Stock.

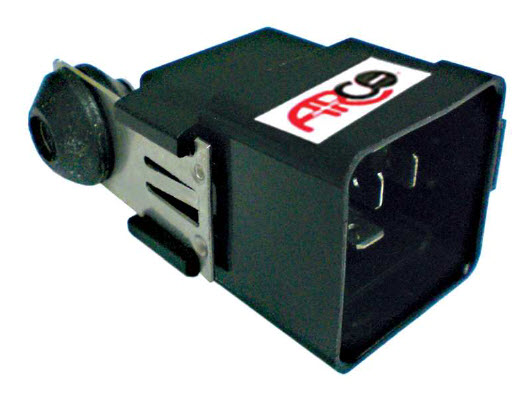

		R151 - Relay [ More info ] $18.40 $17.93 In Stock
#13	828102	BRACKET (3 required per assembly)

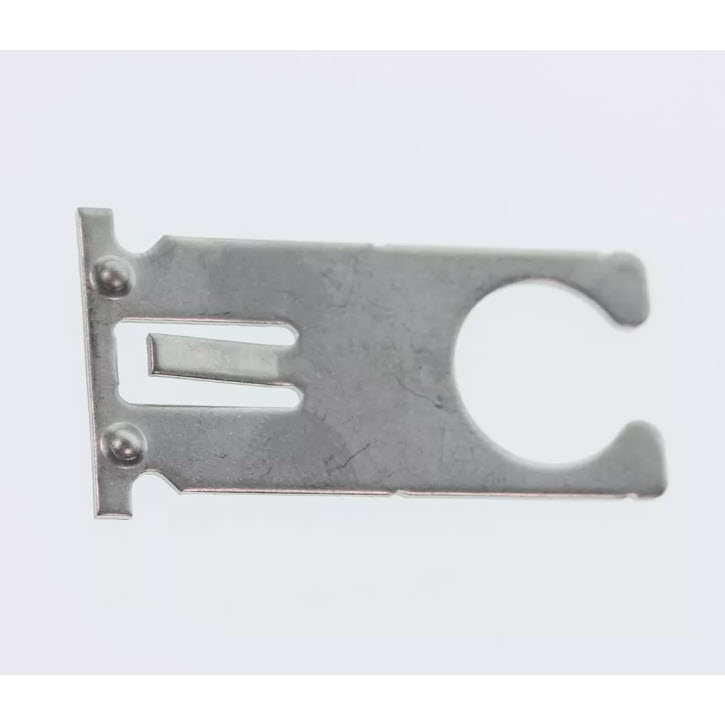

		828102 - Relay Mounting Bracket [ More info ] $4.80 Available to Order: Usually ships within 10 days.
		8M0207771 - BRACKET [ More info ] Unavailable
#14	25-818967	GROMMET (3 required per assembly)
		25-818967 - 25-818967 - GROMMET [ More info ] Unavailable Replaced by -8M0207785
		25-8M0207785 - GROMMET [ More info ] Unavailable
#15	23-818968	BUSHING (3 required per assembly)
		23-818968 - BUSHING [ More info ] Unavailable
#16	821583 2	PIN, Special (2 required per assembly)
		821583 2 - Pin (Special) [ More info ] $19.70 Available to Order: Usually ships within 10 days.
#17	889600	SPACER (1 required per assembly)
		889600 - Spacer [ More info ] $8.00 Available to Order: Usually ships within 10 days.
#18	11-40137 6	NUT, (M6) (1 required per assembly)
		11-40137 6 - Nut [ More info ] $3.20 Available to Order: Usually ships within 10 days.
#19	54-858954	CLIP, (.625) (1 required per assembly)
		54-858954 - Clip [ More info ] $3.80 Available to Order: Usually ships within 10 days.

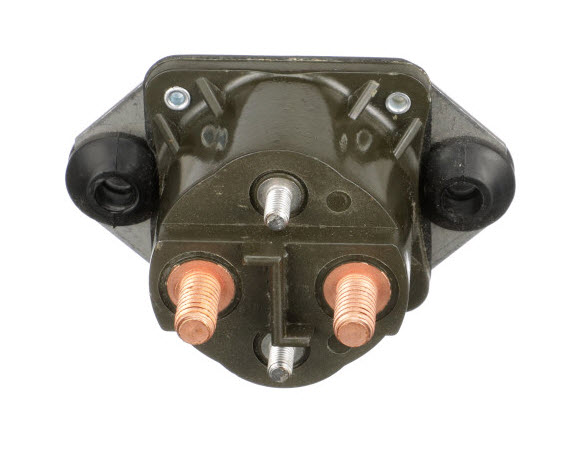

#20	89-817109A 2	SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) (1 required per assembly)
		89-817109A 2 - SOLENOID ASSEMBLY [ More info ] Unavailable

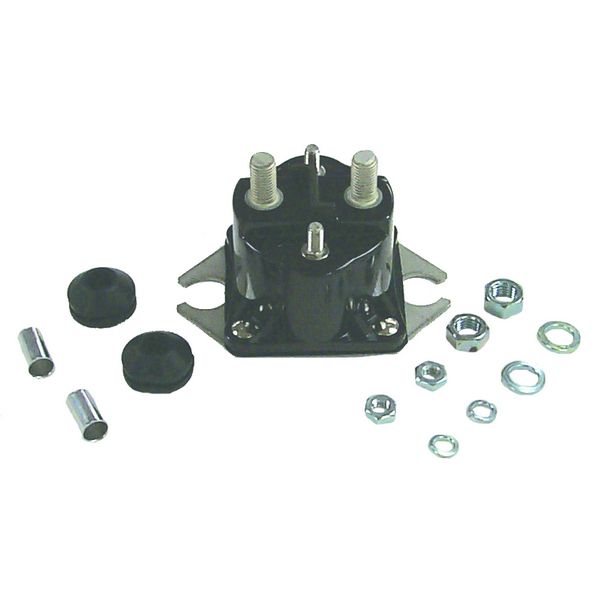

		18-5834 - Solenoid, 89-817109A2 [ More info ] $42.24 10+ In Stock.
		SW109 - Solenoid [ More info ] $41.40 8 In Stock.
#21	25-822179	GROMMET (2 required per assembly)
		25-822179 - Grommet [ More info ] $4.30 1 In Stock.

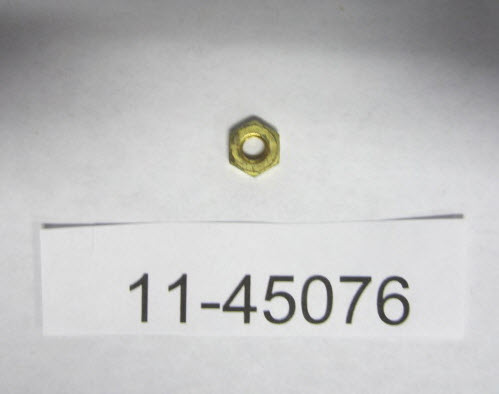

#23	11-45076	NUT, (#10-32) Brass (2 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.70 7 In Stock.
#24	11-813938	CAP NUT, (#10-32) (2 required per assembly)
		11-813938 - Capnut [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#25	85-875302A 1	HOT STUD ASSEMBLY (1 required per assembly)
		85-875302A 1 - Hot Stud Assembly [ More info ] $26.67 Available to Order: Usually ships within 10 days.

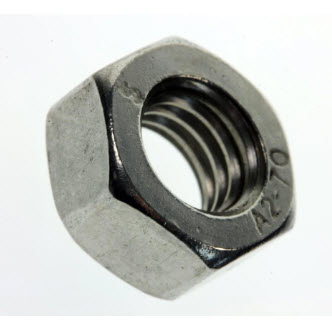

#26	11-40021 3	NUT, (M8) Stainless Steel (1 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.80 Available to Order: Usually ships within 10 days.
#27	13-53166	LOCKWASHER, (.312) (2 required per assembly)
		13-53166 - LockWasher - Priced Individually [ More info ] $1.70 10+ In Stock.
#28	11-68292	NUT, (.312-18) (2 required per assembly)
		11-68292 - Nut (5/16 Inch) [ More info ] $3.70 $1.49 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#29	84-88807A16	CABLE ASSEMBLY, (4.00 Inches) Black (1 required per assembly)
		84-88807A16 - Cable Assembly [ More info ] $4.90 Available to Order: Usually ships within 10 days.
#30	85-850067 3	BOOT, Insulator - Yellow (1 required per assembly)
		85-850067 3 - Boot (Yellow) [ More info ] $5.90 Available to Order: Usually ships within 10 days.
#31	84-819514T21	HARNESS ASSEMBLY, Trim (1 required per assembly)
		84-819514T21 - Trim Harness Assembly [ More info ] $109.25 Available to Order: Usually ships within 10 days.
#32	84-93388T21	CABLE ASSEMBLY, Black (1 required per assembly)
		84-93388T21 - Cable Assembly [ More info ] $23.33 Available to Order: Usually ships within 10 days.
#33	12-85172	WASHER (1 required per assembly)
		12-85172 - Washer,rubber-upper Mount Screw [ More info ] $3.30 2 In Stock.
