Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Cylinder Block & Crankcase

Revise Search: All Models > 75 HP DFI (3 Cylinder) (1.5L) > 1B736885 & Up (USA) > Cylinder Block & Crankcase

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

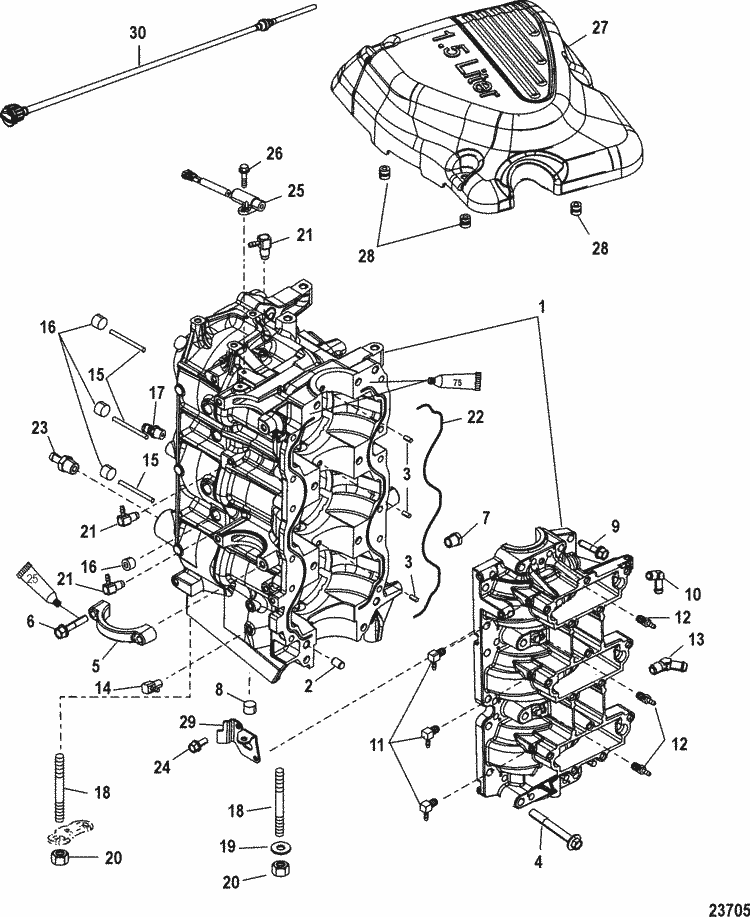

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	895233A07	POWERHEAD ASSEMBLY (1 required per assembly) 75 Horsepower
		895233A07 - POWERHEAD ASSEMBL [ More info ] Unavailable
#	27-879855A04	GASKET SET, Powerhead (1 required per assembly)
		27-879855A04 - Powerhead Gasket Set [ More info ] $113.92 Available to Order: Usually ships within 10 days.
#	891767A07	POWERHEAD ASSEMBLY (1 required per assembly) 90/115/125/Jet 80
		891767A07 - POWERHEAD ASSEMBL [ More info ] Unavailable
#1	800-878581A32	CYLINDER BLOCK ASSEMBLY (1 required per assembly) 75 Horsepower
		800-878581A32 - CYLINDER BLOCK AS [ More info ] Unavailable
#1	800-878581A34	CYLINDER BLOCK ASSEMBLY (1 required per assembly) 90/115/125/Jet 80
		800-878581A34 - Cylinder Block [ More info ] $1,851.36 Available to Order: Usually ships within 10 days.
#2	17-43044	PIN, Dowel - Without Hole (.375 x .625) (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.40 Available to Order: Usually ships within 10 days.
#3	17-8M0036405	PIN (3 required per assembly)
		17-8M0036405 - Pin - Center Main [ More info ] $4.20 1 In Stock.
#4	10-40096 80	SCREW, (M10 x 80) (8 required per assembly)
		10-40096 80 - Screw [ More info ] $3.50 Available to Order: Usually ships within 10 days.
#5	856966 2	BRACKET (2 required per assembly)
		856966 2 - 856966 2 - BRACKET [ More info ] Unavailable Replaced by -8M0041759
		8M0041759 - 8M0041759 - BRACKET [ More info ] Unavailable Replaced by -8M0111325
		8M0111325 - Cover [ More info ] $44.00 Available to Order: Usually ships within 10 days.
#6	10-817427 40	SCREW, (M8 x 40) (4 required per assembly)
		10-817427 40 - Screw [ More info ] $2.70 2 In Stock.
#7	22-36382	FITTING, (.250-18 x .62) Brass (1 required per assembly)
		22-36382 - Plug [ More info ] $5.30 Available to Order: Usually ships within 10 days.
		18-8111-9 - Pipe Plug, 1/4 Inch, (Pack of 3) [ More info ] $10.49 $9.38 3 In Stock.

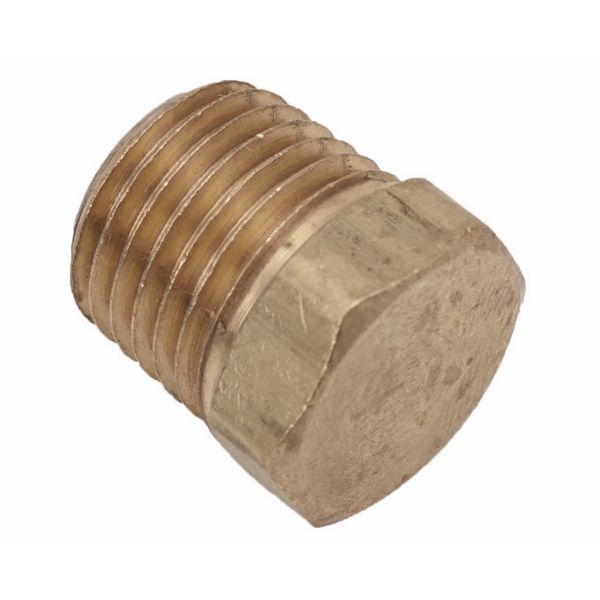

		18-4256 - Plug, 1/4 Inch Brass, Sold Individually [ More info ] $2.39 $2.19 10+ In Stock.
#9	10-821273 35	SCREW, (M8 x 35) (12 required per assembly)
		10-821273 35 - Screw [ More info ] $5.00 10 In Stock.
#10	22-99664 2	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (1 required per assembly)
		22-99664 2 - Elbow [ More info ] $2.60 10+ In Stock.
#11	21-883139001	CHECK VALVE (3 required per assembly)
		21-883139001 - Check Valve [ More info ] $35.00 Available to Order: Usually ships within 10 days.
#12	21-889830	CHECK VALVE (3 required per assembly)
		21-889830 - Check Valve [ More info ] $55.58 Available to Order: Usually ships within 10 days.
#13	22-78279 2	FITTING, Elbow 45 Degree (1.25) (1 required per assembly)
		22-78279 2 - Elbow [ More info ] $6.80 Available to Order: Usually ships within 10 days.
#14	21-828218 2	CHECK VALVE (1 required per assembly)
		21-828218 2 - Check Valve [ More info ] $43.25 Available to Order: Usually ships within 10 days.
#15	824857 6	DEFLECTOR, Water (3 required per assembly)
		824857 6 - Deflector - Priced Individually [ More info ] $2.60 Available to Order: Usually ships within 10 days.
#16	22-18598 1	PLUG, Pipe (.375-18) (7 required per assembly)
		22-18598 1 - Pipe Plug [ More info ] $2.70 Available to Order: Usually ships within 10 days.
#17	22-881866	FITTING (1 required per assembly)
		22-881866 - Fitting [ More info ] $7.30 Available to Order: Usually ships within 10 days.
#18	16-889607	STUD, (M10 x 136) (8 required per assembly)
		16-889607 - 16-889607 - STUD (M10 x 136) [ More info ] Unavailable Replaced by 16-892561001
		16-892561001 - Stud [ More info ] $5.40 3 In Stock.
#19	12-856774	WASHER, (.406 x .750 x .105) Stainless Steel (4 required per assembly)
		12-856774 - WASHER (.406 x .7 [ More info ] Unavailable
#20	11-40140	NUT, (M10) (8 required per assembly)
		11-40140 - Nut, (M10) [ More info ] $3.30 10+ In Stock.
#21	21-859235 2	CHECK VALVE, 90 Degree (.0625-27) (3 required per assembly)
		21-859235 2 - Check Valve [ More info ] $25.42 Available to Order: Usually ships within 10 days.
#22	891956	SEAL (2 required per assembly)
		891956 - Seal - Priced Individually [ More info ] $15.10 Available to Order: Usually ships within 10 days.
#23	22-835454001	FITTING (1 required per assembly)
		22-835454001 - Fitting [ More info ] $7.70 1 In Stock.
#24	10-817427 20	SCREW, (M8 x 20) (2 required per assembly)
		10-817427 20 - Screw [ More info ] $8.70 Available to Order: Usually ships within 10 days.
#25	828358 2	SENSOR, Crank Position (1 required per assembly)
		828358 2 - 828358 2 - SENSOR [ More info ] Unavailable Replaced by -8M0030022
		8M0030022 - 8M0030022 - SENSOR [ More info ] Unavailable Replaced by -8M0082988

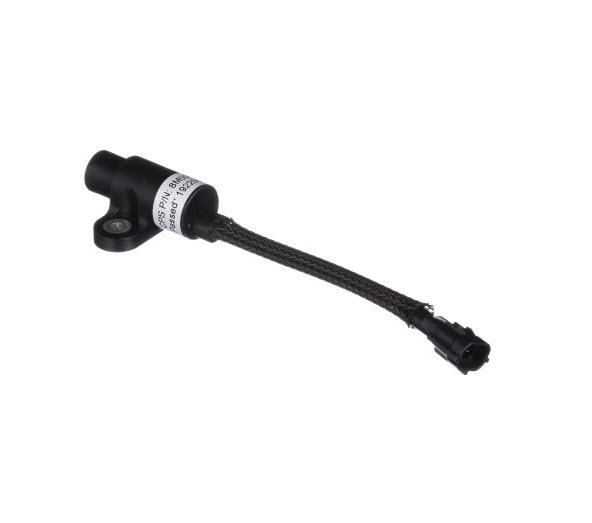

		8M0082988 - Sensor Assembly [ More info ] $115.83 Available to Order: Usually ships within 10 days.

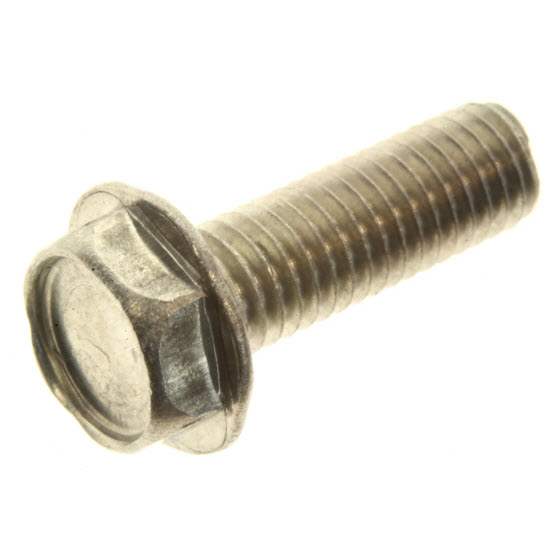

#26	10-40011107	SCREW, (M5 x 16) Stainless Steel (2 required per assembly)
		10-40011107 - SCREW [ More info ] $1.70 10+ In Stock.
#27	880198T	COVER, Flywheel (1 required per assembly)
		880198T - Cover [ More info ] $112.25 Available to Order: Usually ships within 10 days.
#28	25-821555001	GROMMET (3 required per assembly)
		25-821555001 - 25-821555001 - GROMMET [ More info ] Unavailable Replaced by -8M0153609
		25-8M0153609 - Grommet - Priced Individually [ More info ] $5.40 2 In Stock.
#29	880731002	BRACKET, Oil Reservoir (1 required per assembly)
		880731002 - Bracket [ More info ] $13.90 Available to Order: Usually ships within 10 days.
#30	8M0001037	HOSE ASSEMBLY, Flushing (1 required per assembly)
		8M0001037 - 8M0001037 - HOSE ASSEMBLY Flu [ More info ] Unavailable Replaced by 32-8M0102826
		328M0102826 - Flushing Hose [ More info ] $94.25 Available to Order: Usually ships within 10 days.
