Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Crankshaft, Pistons & Connecting Rods

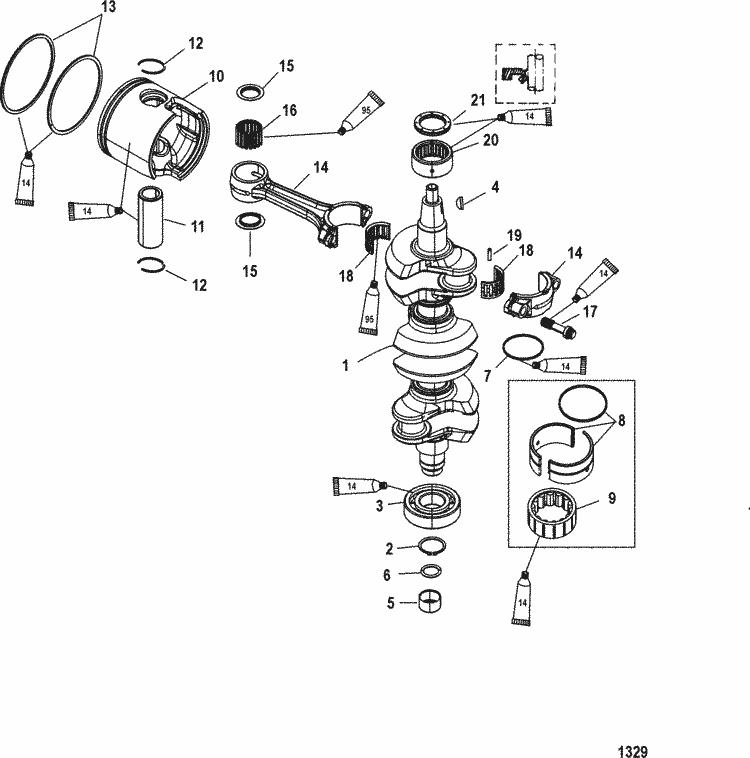

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 895233A07 | POWERHEAD ASSEMBLY (1 required per assembly) 75 Horsepower |
 |
|
895233A07 - Powerhead 75DFI 3 Cylinder [ More info ] Unavailable |
| # | 891767A07 | POWERHEAD ASSEMBLY (1 required per assembly) 90/115/125/Jet 80 |
|
|
891767A07 - Powerhead 90/115DFI 3 Cylinder [ More info ] Unavailable |

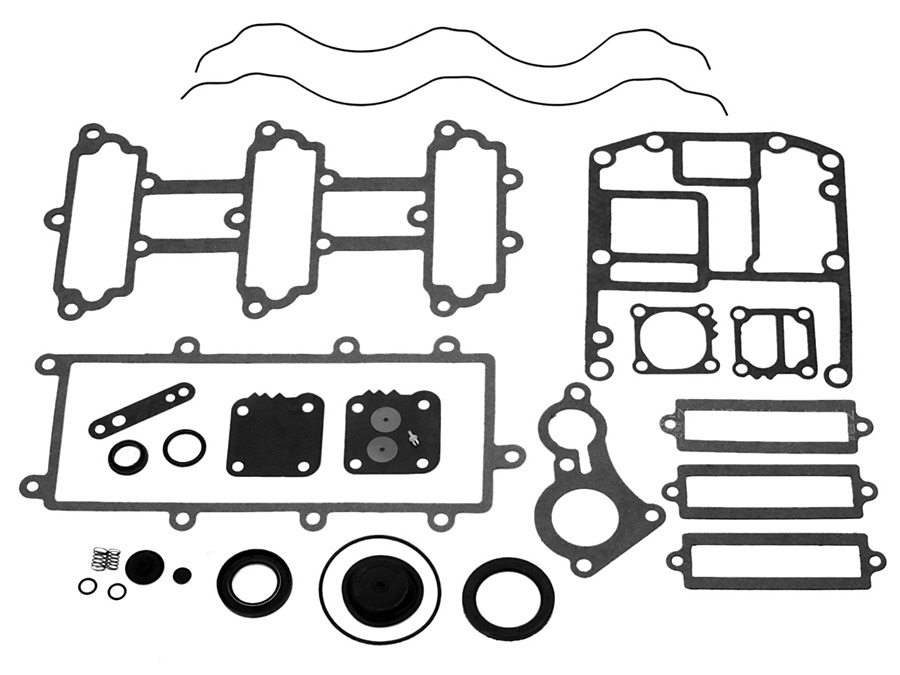

| # | 27-879855A04 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-879855A04 - Powerhead Gasket Set [ More info ] Unavailable |

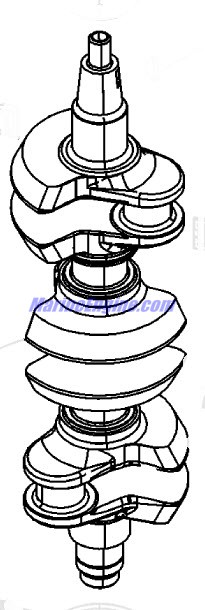

| #1 | 400-879633T01 | CRANKSHAFT ASSEMBLY (1 required per assembly) |
  |
|
400-879633T01 - CrankShaft Assembly [ More info ] Unavailable |
| #2 | 53-880119 | RING, Retaining (1 required per assembly) |
|
|
53-880119 - Ring - Retainer [ More info ]
|

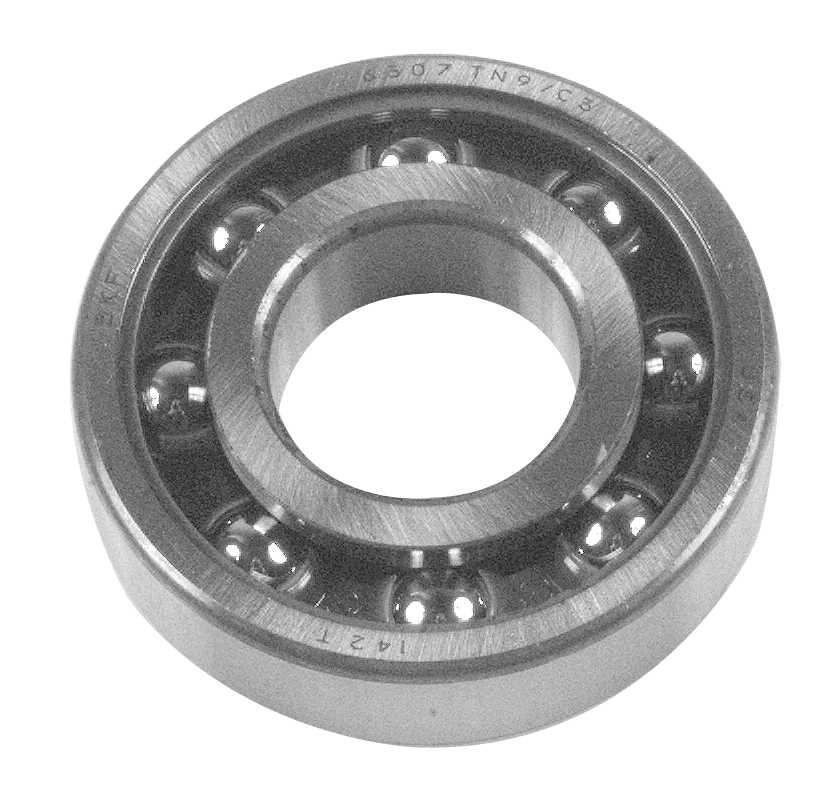

| #3 | 30-43011T | BEARING, Ball, Lower (1 required per assembly) |
  |
|
30-43011T - Ball Bearing [ More info ]
|
| #4 | 28-91800 | KEY, Woodruff (1 required per assembly) |
  |
|
28-91800 - Key - Priced Individually [ More info ]
|
| #5 | 78661 1 | WEAR SLEEVE (1 required per assembly) |
  |
|
78661 1 - Sleeve [ More info ]
|
| #6 | 25-35126 | O-RING, (.859 x .139) (1 required per assembly) |
  |
|
25-35126 - O-ring, (.859 X .139) [ More info ]
|
| #7 | 39-879850 | RING, Seal (2 required per assembly) |
  |
39-879850 - Seal Ring - Priced Individually [ More info ] Unavailable |
|
|
|
398M0071643 - Ring-Seal , Priced Individually [ More info ]
|
| #8 | 31-879848A02 | BEARING ASSEMBLY (2 required per assembly) |
|
|
31-879848A02 - Bearing [ More info ]
|

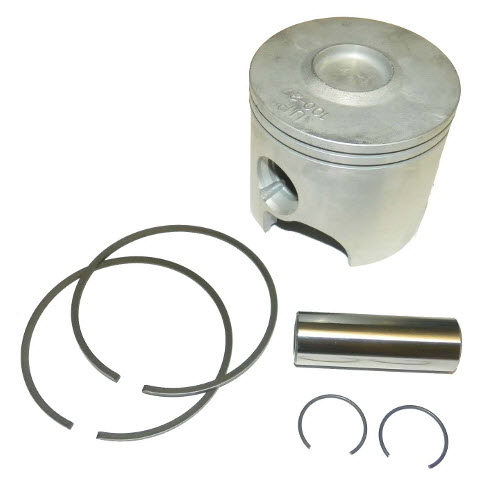

| #10 | 700-879858T08 | PISTON ASSEMBLY (3 required per assembly) Standard |
  |
|
700-879858T08 - Piston Assembly [ More info ] Unavailable |
| #10 | 700-896961A02 | PISTON ASSEMBLY (AR required per assembly) .015 Oversize |
|
|
700-896961A02 - Piston Assembly .015 [ More info ]
|

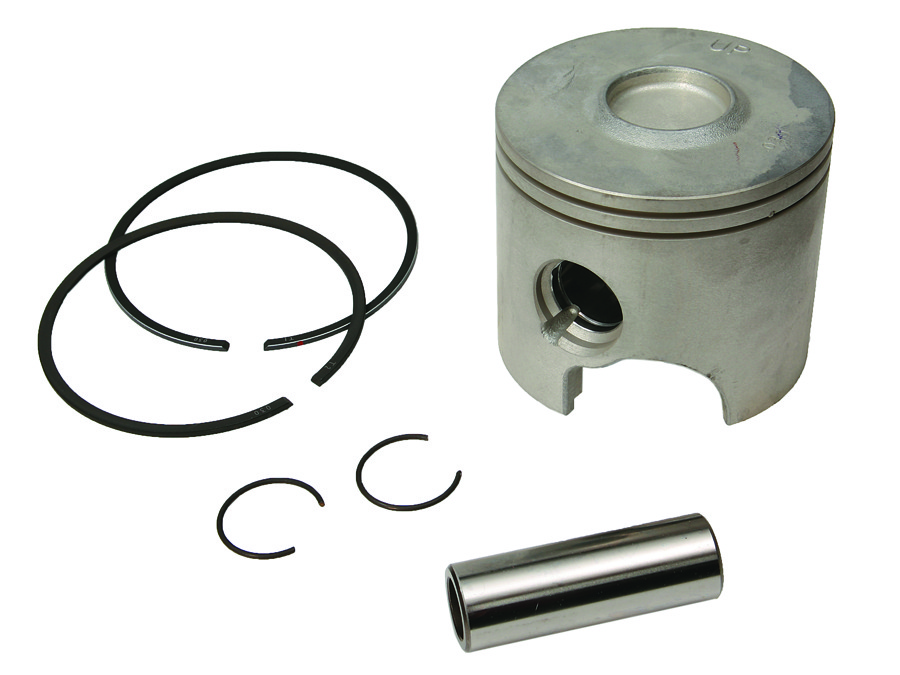

| #10 | 700-896962A02 | PISTON ASSEMBLY (AR required per assembly) .030 Oversize |
  |
|
700-896962A02 - Piston Assembly .030 [ More info ]
|
| #11 | NSS | NOT SOLD SEPARATE, Piston Pin (3 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #12 | 40-841202 | RING (6 required per assembly) |
  |
|
40-841202 - Lock Ring [ More info ]
|

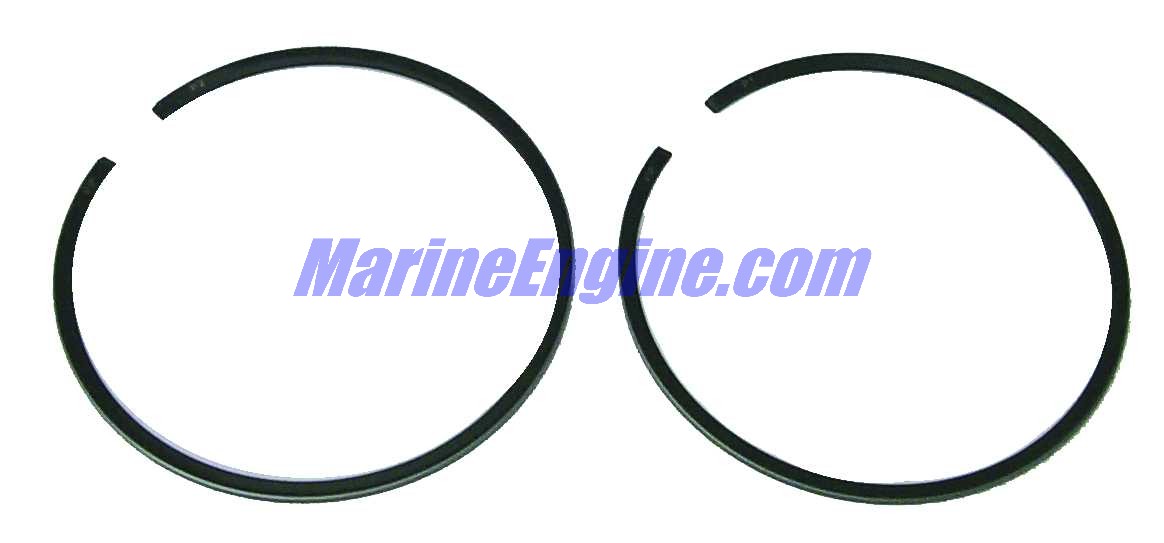

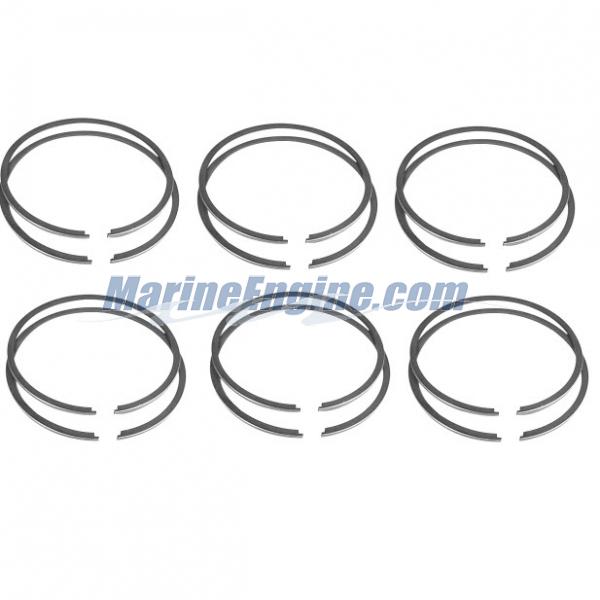

| #13 | 39-827179A12 | RING SET, Piston (1 required per assembly) Standard |
  |
|
39-827179A12 - Rings - Standard [ More info ]
|
| #13 | 39-875252A12 | RING SET, Piston (1 required per assembly) .015 Oversize |
  |
|
39-875252A12 - Piston Rings [ More info ]
|

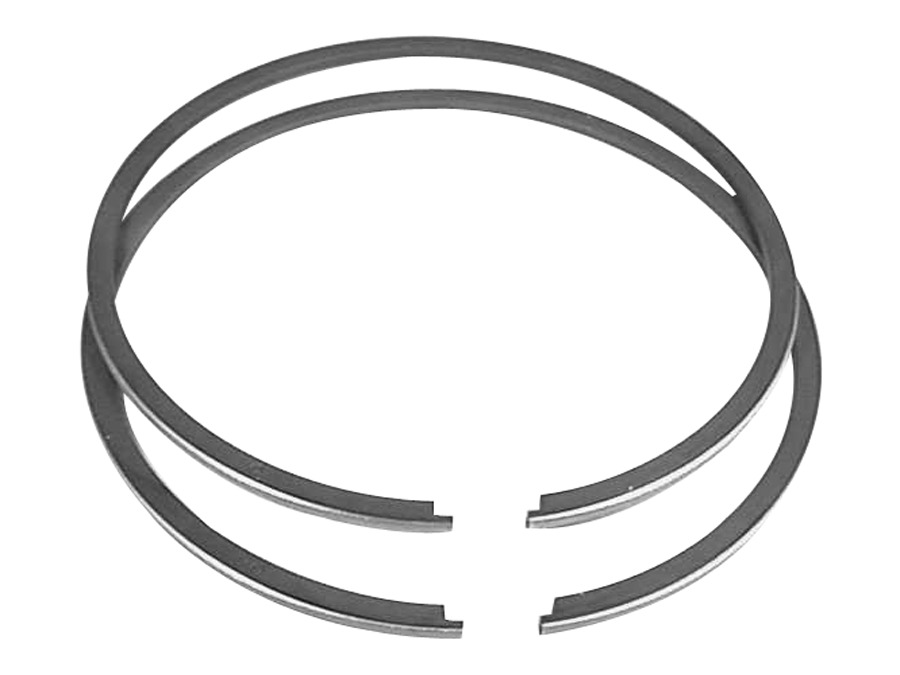

| #13 | 39-875257A12 | RING SET, Piston (1 required per assembly) .030 Oversize |
  |
|
39-875257A12 - Piston Rings [ More info ]
|
| #14 | 600-888470T08 | CONNECTING ROD ASSEMBLY (3 required per assembly) |
|
|
600-888470T08 - Connecting Rod [ More info ]
|
| #15 | 12-88263 | THRUST WASHER (6 required per assembly) |
  |
|
12-88263 - Washer, Needle Locating [ More info ]
|

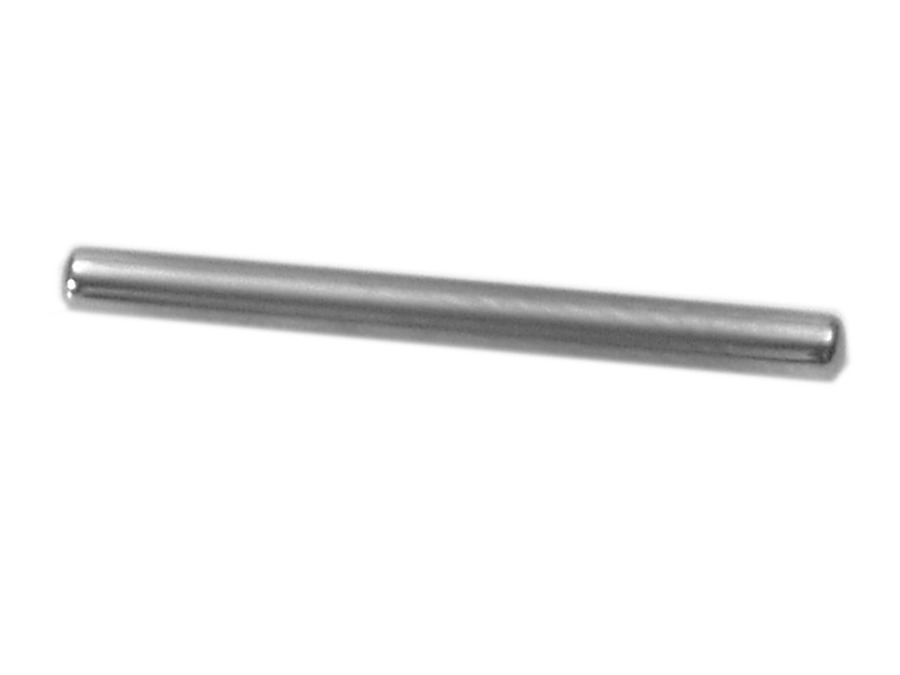

| #16 | 29-88258001 | BEARING, Needle (102 required per assembly) |
  |
|
29-88258001 - Bearing Needles - Priced Individually [ More info ]
|
|
|
29-8M0204715 - NEEDLES-BRG @102 [ More info ] Unavailable |
| #17 | 10-94320 | SCREW, (.375-24 x 1.250) (6 required per assembly) |
  |
|
10-94320 - Screw [ More info ]
|
| #18 | 31-844338A01 | BEARING ASSEMBLY (6 required per assembly) |
  |
|
31-844338A01 - Bearing Kit [ More info ]
|
| #20 | 31-879853A01 | BEARING ASSEMBLY, Roller, Upper (1 required per assembly) |
|
|
31-879853A01 - Bearing - Roller - Upper [ More info ]
|

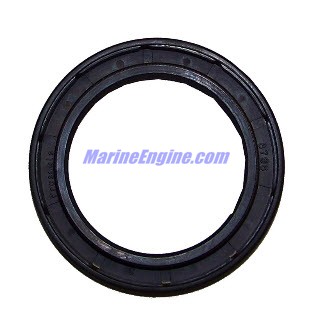

| #21 | 26-879635 | SEAL, Oil (1 required per assembly) |
  |
|
26-879635 - Oil Seal [ More info ]
|
