Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Electrical Components

Revise Search: All Models > 75 HP DFI (3 Cylinder) (1.5L) > 1B417702 - 1B736884 (USA) > Electrical Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	13540	CAP, Female (2 required per assembly)

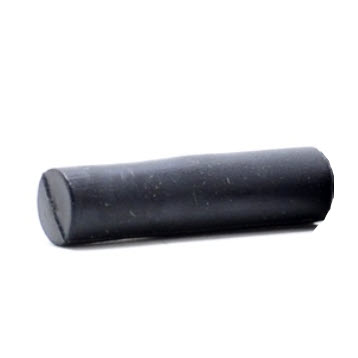

		13540 - Plug - Priced Individually [ More info ] $3.10 $1.74 10+ In Stock.
#	84-854839T02	HARNESS ASSEMBLY, 5 Pin (1 required per assembly)
		84-854839T02 - 84-854839T02 - HARNESS ASSEMBLY [ More info ] Unavailable Replaced by -879346A51

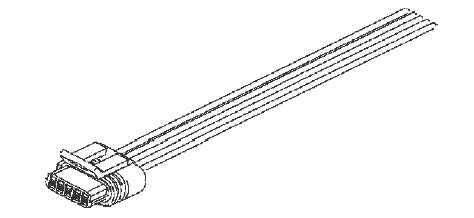

		879346A51 - KT-5 Pin Delphi [ More info ] $23.58 Available to Order: Usually ships within 10 days.

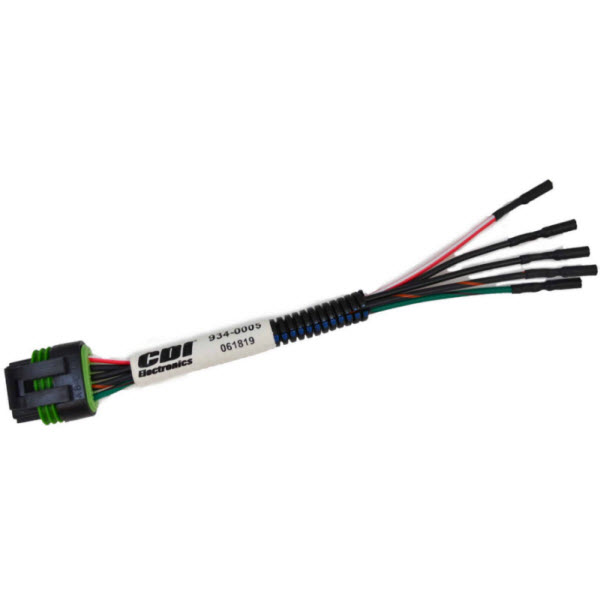

		934-0005 - Pigtail Harness, Mercury, [ More info ] $28.34 $27.60 Available to Order: Usually ships within 10 days.
#	13541	PLUG, Male (1 required per assembly)
		13541 - Plug [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#	NSS	NOT SOLD SEPARATE, Electrical Plate Assembly-Complete (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#1	880190T05	PLATE ASSEMBLY, Electrical (1 required per assembly)
		880190T05 - Plate [ More info ] $78.58 Available to Order: Usually ships within 10 days.
#2	339-879984T00	COIL, Ignition (3 required per assembly)
		339-879984T00 - 339-879984T00 - COIL Ignition [ More info ] Unavailable Replaced by 300-879984T01
		300-879984T01 - 300-879984T01 - COIL Ignition [ More info ] Unavailable Replaced by 300-8M0077471
		300-8M0077471 - Ignition Coil [ More info ] $188.92 In Stock
		184-0003 - Mercury Driver Coil [ More info ] $154.01 $144.36 10+ In Stock.
#3	84-884442 3	LEAD, Hi Tension (3 required per assembly)
		84-884442 3 - 84-884442 3 - LEAD Hi Tension [ More info ] Unavailable Replaced by 84-884442T03
		84-884442T03 - High-Tension Lead - Priced Individually [ More info ] $26.25 Available to Order: Usually ships within 10 days.
#4	10-821291 30	SCREW, (M6 x 30) (6 required per assembly)
		10-821291 30 - Screw [ More info ] $4.50 2 In Stock.
#5	10-821300 12	SCREW, (M6 x 12) (2 required per assembly)
		10-821300 12 - Screw - Priced Individually [ More info ] $1.70 8 In Stock.
#6	881879A 7	SENSOR KIT, (0-50 PSI) (1 required per assembly)
		881879A 7 - Sensor Kit [ More info ] $252.25 Available to Order: Usually ships within 10 days.
#7	54-883066	CLIP, (.865) (1 required per assembly)
		54-883066 - Clip [ More info ] $2.20 Available to Order: Usually ships within 10 days.
#8	22-892403	FITTING (1 required per assembly)
		22-892403 - 22-892403 - FITTING [ More info ] Unavailable Replaced by -8M0207782
		22-8M0207782 - SPACER [ More info ] Unavailable
#9	32-859785 71	TUBING, (52.00 Inches Bulk), Cut to 6 Inches (1 required per assembly)
		32-859785 71 - Hose - 52 Inch [ More info ] $48.17 Available to Order: Usually ships within 10 days.
#12	22-859747	COUPLER (1 required per assembly)
		22-859747 - Fitting [ More info ] $11.20 10+ In Stock.
#13	22-859732	PLUG (1 required per assembly)
		22-859732 - Fitting [ More info ] $1.60 4 In Stock.
#14	821583 2	PIN, Special (1 required per assembly)
		821583 2 - Pin (Special) [ More info ] $19.70 Available to Order: Usually ships within 10 days.
#15	889992	SPACER (1 required per assembly)
		889992 - Spacer [ More info ] $2.80 Available to Order: Usually ships within 10 days.
#16	23-850234 1	BUSHING (3 required per assembly)
		23-850234 1 - Bushing [ More info ] $3.00 Available to Order: Usually ships within 10 days.
#17	22-875207	TEE, Fitting (1 required per assembly)
		22-875207 - Fitting [ More info ] $14.60 1 In Stock.
#18	25-833155	GROMMET (3 required per assembly)
		25-833155 - Grommet [ More info ] $4.30 3 In Stock.
#19	84-896264T03	HARNESS ASSEMBLY, Engine (1 required per assembly)
		84-896264T03 - Harness Assembly [ More info ] $1,100.50 Available to Order: Usually ships within 10 days.
#20	88-832969 5	FUSE, Mini - Tan - 5 Ampere (1 required per assembly)
		88-832969 5 - Fuse, Tan-5 AMP [ More info ] $1.79 3 In Stock.
		88-832969T05 - Fuse -TAN-5 AMP [ More info ] $6.40 1 In Stock.
#20	88-832969 2	FUSE, Mini - Gray - 2 Ampere (1 required per assembly)
		88-832969 2 - FUSE Mini - Gray [ More info ] Unavailable
#20	88-832969 15	FUSE, Mini - Blue - 15 Ampere (1 required per assembly)
		88-832969 15 - 88-832969 15 - FUSE Mini - Blue [ More info ] Unavailable Replaced by 88-832969T15
		88-832969T15 - Fuse -Blue-15AMP [ More info ] $3.90 Available to Order: Usually ships within 10 days.
#21	88-832969 20	FUSE, Mini - Yellow - 20 Ampere (3 required per assembly)
		88-832969 20 - Fuse-Yellow-20AMP [ More info ] $3.49 4 In Stock.
		88-832969T20 - Fuse - Yellow - 20 Amp [ More info ] $4.40 Available to Order: Usually ships within 10 days.
#22	858754	COVER, Fuse (2 required per assembly)
		858754 - COVER Fuse [ More info ] Unavailable
#23	84-878231A03	HARNESS ASSEMBLY, Fuse - 100 Ampere (1 required per assembly)
		84-878231A03 - Fuse Harness [ More info ] $100.50 Available to Order: Usually ships within 10 days.
#24	84-882829A03	HARNESS ASSEMBLY, Starter (1 required per assembly)
		84-882829A03 - Starter Cable [ More info ] $54.92 Available to Order: Usually ships within 10 days.
#25	85-830233	BOOT, Insulator - Red (1 required per assembly)
		85-830233 - Boot (red) [ More info ] $4.50 Available to Order: Usually ships within 10 days.
#26	84-88439A46	CABLE ASSEMBLY, Battery - Positive (1 required per assembly)
		84-88439A46 - Battery Cable Pos [ More info ] $76.58 Available to Order: Usually ships within 10 days.
#27	85-850067 1	BOOT, Insulator - Red (2 required per assembly)
		85-850067 1 - Boot-RED, NLA [ More info ] $3.60 $2.00 Available to Order: Usually ships within 10 days.
#28	84-856583A07	CABLE ASSEMBLY, (12.00 Inches) Black (1 required per assembly)
		84-856583A07 - Cable [ More info ] $4.90 2 In Stock.
#29	54-816311T	TIE STRAP, (8.00 Inches) (5 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#30	69355	TIE STRAP, (5.50 Inches) (2 required per assembly)
		69355 - Tie Strap - Priced Individually [ More info ] $0.40 10+ In Stock.
#31	33-892567001	SPARK PLUG, NGK#IZFR5J (3 required per assembly)
		33-892567001 - 33-892567001 - SPARK PLUG NGK#IZ [ More info ] Unavailable Replaced by 33-892567Q
		33-892567Q - SPARK PLUG [ More info ] Unavailable
		IZFR5J - NGK Spark Plug, 5899 [ More info ] $24.49 10+ In Stock.
#32	828791	CLIP (2 required per assembly)
		828791 - Clip [ More info ] $2.70 Available to Order: Usually ships within 10 days.
#33	12-40023 18	WASHER (3 required per assembly)
		12-40023 18 - Washer - Priced Individually [ More info ] $2.90 4 In Stock.
#34	10-824460 35	SCREW, (M8 x 35) (3 required per assembly)
		10-824460 35 - Screw [ More info ] $4.80 Available to Order: Usually ships within 10 days.
#35	880192T01	COVER (1 required per assembly)
		880192T01 - Cover [ More info ] $57.75 Available to Order: Usually ships within 10 days.
#36	25-821555001	GROMMET (3 required per assembly)
		25-821555001 - 25-821555001 - GROMMET [ More info ] Unavailable Replaced by -8M0153609
		25-8M0153609 - Grommet - Priced Individually [ More info ] $5.40 3 In Stock.
#37	877613A02	CONNECTOR ASSEMBLY, Weather Cap 6 Pin (1 required per assembly)
		877613A02 - Connector [ More info ] $7.90 1 In Stock.
#38	830796A04	CONNECTOR ASSEMBLY, Weather Cap - Male (1 required per assembly)
		830796A04 - Connector Kit [ More info ] $7.70 Available to Order: Usually ships within 10 days.
#39	822447T01	CAP ASSEMBLY, Connector - 3 Pin Male (1 required per assembly)
		822447T01 - Connector Cap [ More info ] $7.10 Available to Order: Usually ships within 10 days.
