Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Fuel Rail

Revise Search: All Models > 75 HP DFI (3 Cylinder) (1.5L) > 1B227000 - 1B417701 (USA) > Fuel Rail

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

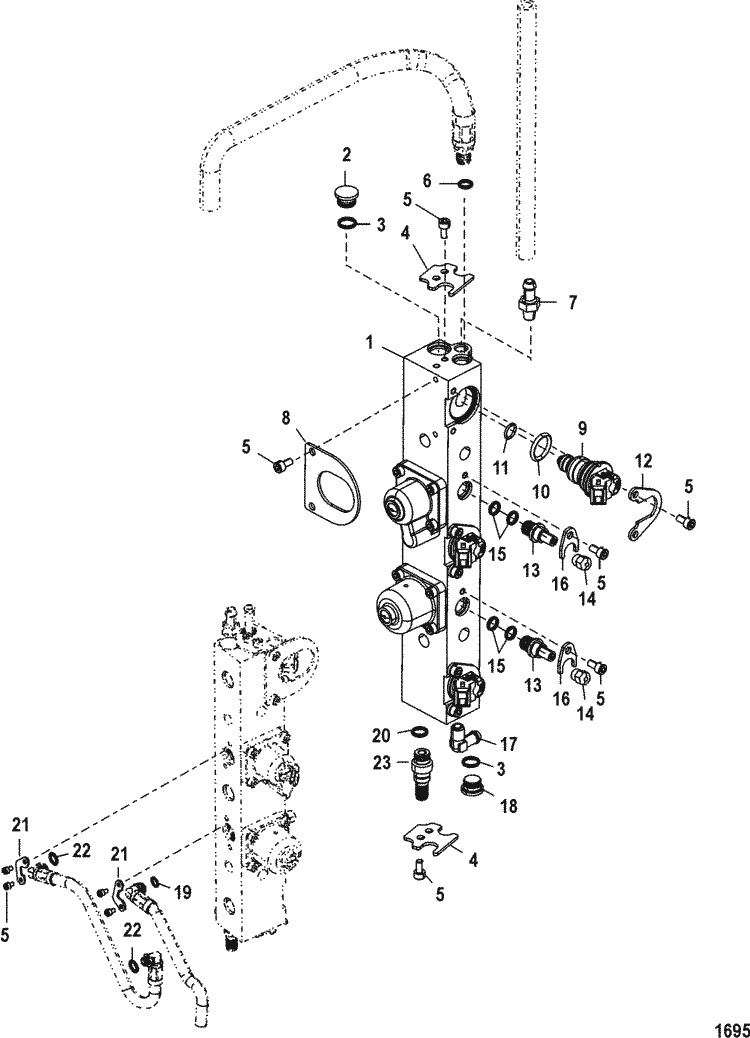

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	895750T01	FUEL RAIL ASSEMBLY (1 required per assembly)
		895750T01 - 895750T01 - FUEL RAIL ASSEMBL [ More info ] Unavailable Replaced by -895750T02
		895750T02 - 895750T02 - FUEL RAIL ASSEMBL [ More info ] Unavailable Replaced by -895750T03
		895750T03 - 895750T03 - FUEL RAIL ASSY [ More info ] Unavailable Replaced by -8M0055702

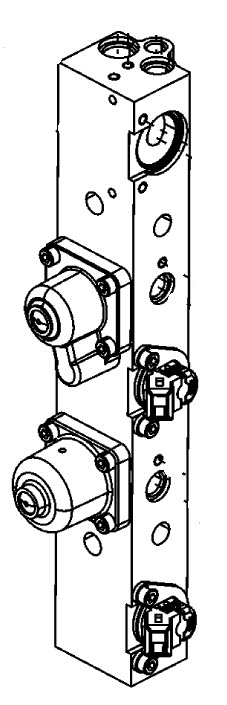

		8M0055702 - 8M0055702 - FUEL RAIL ASSY [ More info ] Unavailable Replaced by -8M0135400
		8M0135400 - 8M0135400 - FUEL RAIL ASSY [ More info ] Unavailable Replaced by -8M0185151
		8M0185151 - FUEL RAIL ASSY [ More info ] $962.64 1 In Stock.
#2	19-804834	PLUG (1 required per assembly)
		19-804834 - Plug [ More info ] $22.83 Available to Order: Usually ships within 10 days.
#4	54-804830	CLAMP (2 required per assembly)
		54-804830 - Clamp [ More info ] $19.10 Available to Order: Usually ships within 10 days.
#5	10-804525001	SCREW PACKAGE, (2 Per)(M5 x 10) (M5 x 10) (9 required per assembly)
		10-804525001 - SCREW PACKAGE (2 NLA [ More info ] Unavailable
#7	22-29111 2	FITTING (1 required per assembly)
		22-29111 2 - Fitting [ More info ] $9.20 Available to Order: Usually ships within 10 days.
#8	891820	BRACKET (1 required per assembly)
		891820 - Bracket [ More info ] $42.58 Available to Order: Usually ships within 10 days.

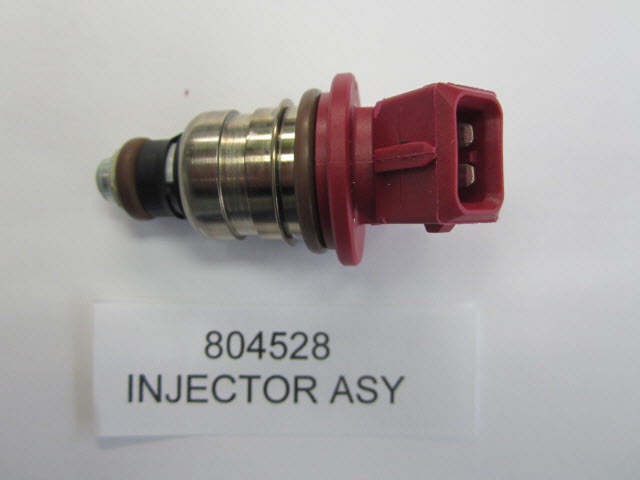

#9	804528	INJECTOR (3 required per assembly)
		804528 - Fuel Injector, See Detail Page for Information [ More info ] $301.17 $139.99 10+ In Stock.
#10	25-804530	O-RING KIT (1 required per assembly)
		25-804530 - O-ring Kit (large) 6 Per Kit [ More info ] $54.83 10+ In Stock.
#11	25-804529	O-RING KIT (1 required per assembly)
		25-804529 - O-ring Kit (small) 6 Per Kit [ More info ] $37.50 10 In Stock.
#12	804522	CLAMP (3 required per assembly)
		804522 - Retainer [ More info ] $15.60 6 In Stock.
#13	883542	VALVE ASSEMBLY, (.375 Inch Diameter), SCHRADER (2 required per assembly)
		883542 - 883542 - VALVE ASSEMBLY (. [ More info ] Unavailable Replaced by -8M0047053
		8M0047053 - Valve Kit [ More info ] $130.08 Available to Order: Usually ships within 10 days.
#14	22-805515	CAP, Shrader Valve - Brass (2 required per assembly)
		22-805515 - Cap [ More info ] $8.48 9 In Stock.
#16	54-880816	CLAMP (2 required per assembly)
		54-880816 - 54-880816 - CLAMP [ More info ] Unavailable Replaced by -8M0041097
		8M0041097 - Bracket [ More info ] $18.00 Available to Order: Usually ships within 10 days.
#17	22-99664 2	FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (1 required per assembly)
		22-99664 2 - Elbow [ More info ] $2.60 10+ In Stock.
#18	19-804835	PLUG (1 required per assembly)
		19-804835 - PLUG [ More info ] Unavailable

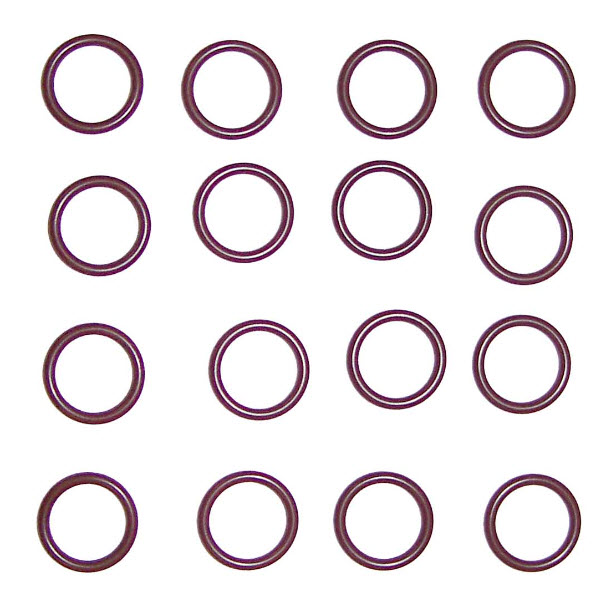

#19	804532	O-RING KIT (16 per kit) (1 required per assembly)
		804532 - O-ring Kit (16 Per Kit) [ More info ] $29.33 9 In Stock.
#20	25-804536	O-RING (1 required per assembly)
		25-804536 - O-RING [ More info ] Unavailable
#21	54-804832	CLAMP (2 required per assembly)
		54-804832 - Clamp [ More info ] $18.17 Available to Order: Usually ships within 10 days.

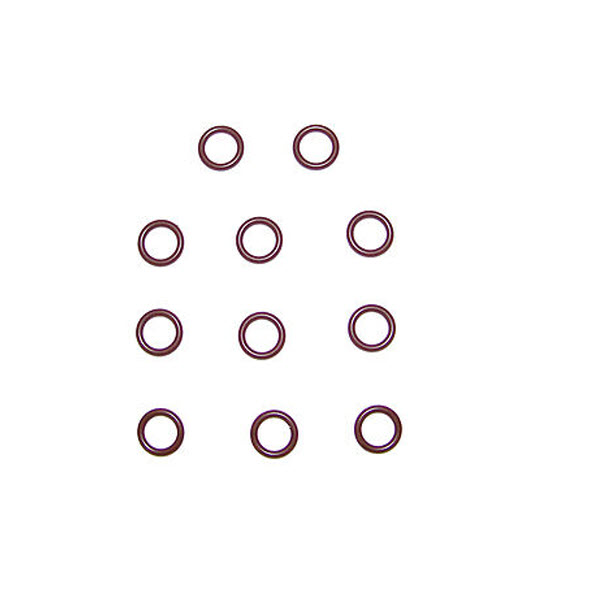

#22	25-804840	O-RING KIT (1 required per assembly)
		25-804840 - O-Ring Kit [ More info ] $42.42 Available to Order: Usually ships within 10 days.
#23	22-804836002	FITTING (1 required per assembly)
		22-804836002 - Fitting [ More info ] $49.08 Available to Order: Usually ships within 10 days.
