Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Cylinder Block & Crankcase

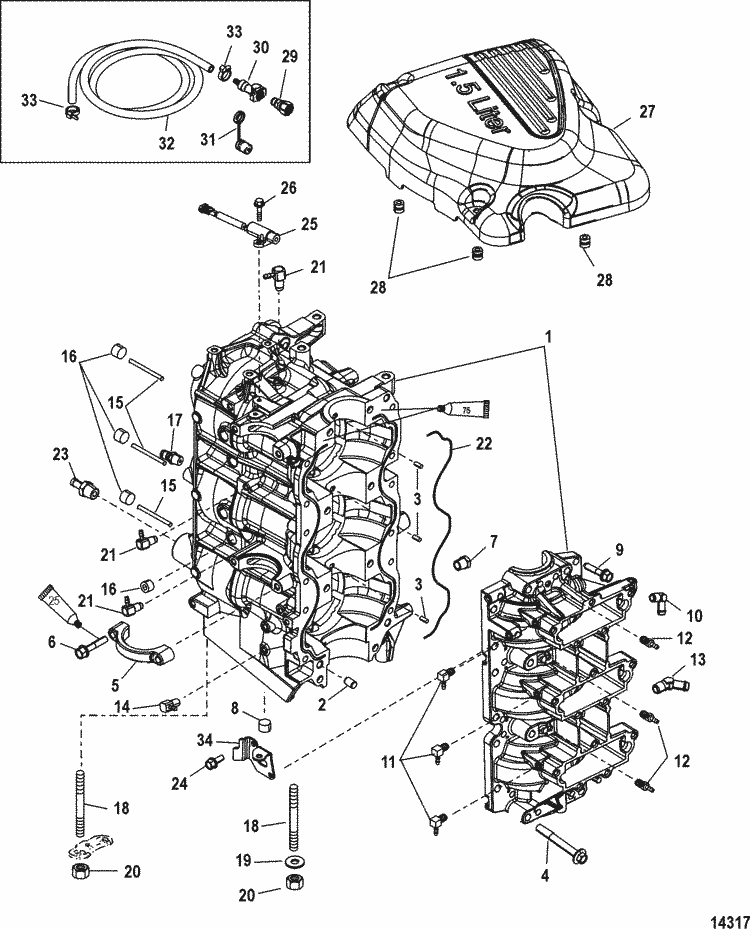

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 800-878581A20 | CYLINDER BLOCK (1 required per assembly) (75) |
 |
|
800-878581A20 - CYLINDER BLOCK [ More info ] Unavailable |
| #1 | 800-878581A09 | CYLINDER BLOCK (1 required per assembly) (90) |
|
|
800-878581A09 - CYLINDER BLOCK [ More info ] Unavailable |
| #2 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) (1 required per assembly) |
|
|
17-43044 - Pin -Dowel-solid [ More info ]
|
| #3 | 17-67296 | PIN, Center Main (3 required per assembly) |
|
|
17-67296 - 17-67296 - PIN [ More info ] Unavailable Replaced by 17-8M0036405 |
|
|
17-8M0036405 - Pin - Center Main [ More info ]
|
| #4 | 10-40096 80 | SCREW, (M10 x 80) (8 required per assembly) |
  |
|
10-40096 80 - Screw [ More info ]
|
| #5 | 856966 2 | BRACKET (2 required per assembly) |
  |
|
856966 2 - 856966 2 - BRACKET [ More info ] Unavailable Replaced by -8M0041759 |
  |
|
8M0041759 - 8M0041759 - BRACKET [ More info ] Unavailable Replaced by -8M0111325 |
|
|
8M0111325 - Cover [ More info ]
|
| #6 | 10-817427 40 | SCREW, (M8 x 40) (4 required per assembly) |
  |
|
10-817427 40 - Screw [ More info ]
|
| #7 | 22-36382 | FITTING, (.250-18 x .62) Brass (1 required per assembly) |
  |
|
|
  |
|
18-8111-9 - Pipe Plug, 1/4 Inch, (Pack of 3) [ More info ]
|
  |
|
18-4256 - Plug, 1/4 Inch Brass, Sold Individually [ More info ]
|
| #9 | 10-821273 35 | SCREW, (M8 x 35) (12 required per assembly) |
  |
|
10-821273 35 - Screw [ More info ]
|
| #10 | 22-99664 2 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (1 required per assembly) |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #11 | 21-883139001 | CHECK VALVE (3 required per assembly) |
|
|
21-883139001 - Check Valve [ More info ]
|
| #12 | 21-889830 | CHECK VALVE (3 required per assembly) |
|
|
21-889830 - Check Valve [ More info ]
|
| #13 | 22-78279 2 | FITTING, Elbow 45 Degree (1.25) (1 required per assembly) |
  |
|
22-78279 2 - Elbow [ More info ]
|
| #14 | 21-828218 2 | CHECK VALVE (1 required per assembly) |
  |
|
21-828218 2 - Check Valve [ More info ]
|
| #15 | 824857 6 | DEFLECTOR, Water (3 required per assembly) |
|
|
824857 6 - Deflector - Priced Individually [ More info ]
|
| #16 | 22-18598 1 | PLUG, Pipe (.375-18) (7 required per assembly) |
|
|
22-18598 1 - Pipe Plug [ More info ]
|
| #17 | 22-881866 | FITTING (1 required per assembly) |
|
|
22-881866 - Fitting [ More info ]
|
| #18 | 16-889607 | STUD, (M10 x 136) (8 required per assembly) |
|
|
16-889607 - 16-889607 - STUD (M10 x 136) [ More info ] Unavailable Replaced by 16-892561001 |
|
|
16-892561001 - Stud [ More info ]
|
| #19 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel (4 required per assembly) |
  |
|
12-856774 - WASHER (.406 x .7 [ More info ] Unavailable |
| #20 | 11-40140 | NUT, (M10) (8 required per assembly) |
  |
|
11-40140 - Nut, (M10) [ More info ]
|
| #21 | 21-859235 2 | CHECK VALVE, 90 Degree (.0625-27) (3 required per assembly) |
|
|
21-859235 2 - Check Valve [ More info ]
|
| #22 | 891956 | SEAL (2 required per assembly) |
  |
|
891956 - Seal - Priced Individually [ More info ]
|
| #23 | 22-835454001 | FITTING (1 required per assembly) |
|
|
22-835454001 - Fitting [ More info ]
|
| #24 | 10-817427 20 | SCREW, (M8 x 20) (2 required per assembly) |
  |
|
10-817427 20 - Screw [ More info ]
|
| #25 | 828358 2 | SENSOR, Crank Position (1 required per assembly) |
  |
|
828358 2 - 828358 2 - SENSOR [ More info ] Unavailable Replaced by -8M0030022 |
  |
|
8M0030022 - 8M0030022 - SENSOR [ More info ] Unavailable Replaced by -8M0082988 |
  |
|
8M0082988 - Sensor Assembly [ More info ]
|
| #26 | 10-40011107 | SCREW, (M5 x 16) Stainless Steel (2 required per assembly) |
  |
|
10-40011107 - SCREW [ More info ]
|
| #27 | 880198T | COVER, Flywheel (1 required per assembly) |
|
|
|
| #28 | 25-821555001 | GROMMET (3 required per assembly) |
  |
|
25-821555001 - 25-821555001 - GROMMET [ More info ] Unavailable Replaced by -8M0153609 |
|
|
25-8M0153609 - Grommet - Priced Individually [ More info ]
|
| #29 | 22-857175 | COUPLING INSERT (1 required per assembly) |
  |
|
22-857175 - COUPLING INSERT [ More info ] Unavailable |
| #30 | 22-857176 | COUPLING BODY (1 required per assembly) |
|
|
22-857176 - Coupling [ More info ]
|
| #31 | 19-858240 | CAP (1 required per assembly) |
|
|
|
| #32 | 32-830757130 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 43 Inches) (1 required per assembly) |
  |
|
32-830757130 - 32-830757130 - TUBING (.312) (70 [ More info ] Unavailable Replaced by 32-8M0047448 |
|
|
32-8M0047448 - 32-8M0047448 - TUBING (.312) (70 [ More info ] Unavailable Replaced by 32-8M0108349 |
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #33 | 54-816311T | TIE STRAP, (8.00 Inches) (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #34 | 880731002 | BRACKET, Oil Reservoir (1 required per assembly) |
  |
|
880731002 - Bracket [ More info ]
|
| #0 | 27-879855A04 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-879855A04 - Powerhead Gasket Set [ More info ]
|
| #0 | 895233A05 | POWERHEAD ASSEMBLY (1 required per assembly) (75) |
|
|
895233A05 - 895233A05 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -895233A07 |
|
|
895233A07 - POWERHEAD ASSEMBL [ More info ] Unavailable |
| #0 | 891767A04 | POWERHEAD ASSEMBLY (1 required per assembly) (90) |
|
|
891767A04 - 891767A04 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -891767A07 |
|
|
891767A07 - POWERHEAD ASSEMBL [ More info ] Unavailable |
