Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Poppet / Thermostat Mounting

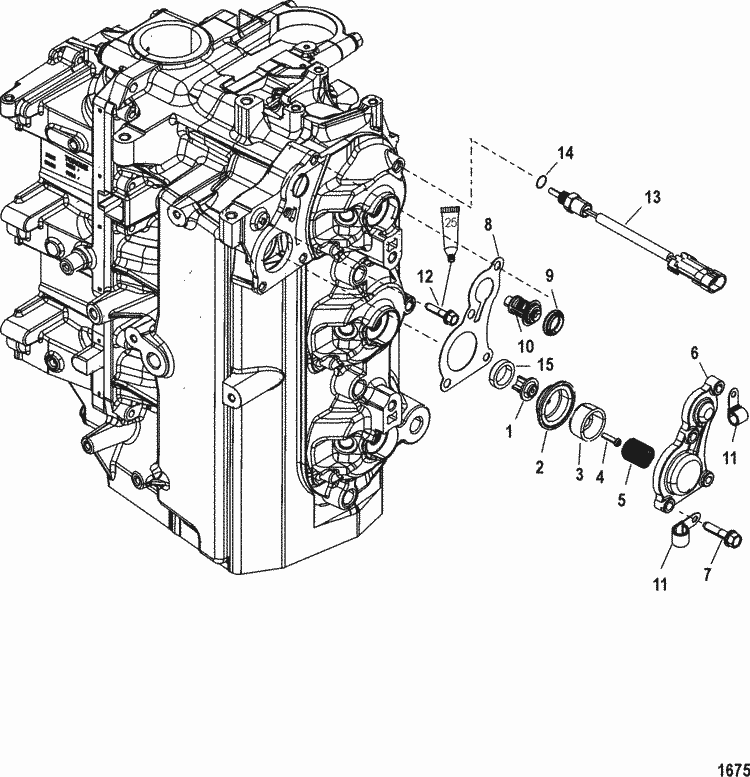

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 884389 | POPPET (1 required per assembly) |
  |
|
|
| #2 | 812887 1 | DIAPHRAGM (1 required per assembly) SN# 0T932790 & Below |
 |
|
812887 1 - 812887 1 - DIAPHRAGM [ More info ] Unavailable Replaced by -812887002 |
  |
|
812887002 - Poppet Diaphragm [ More info ]
|
| #2 | 812887002 | DIAPHRAGM (1 required per assembly) SN# 0T932791 & Up |
| #3 | 12-94182 | WASHER (1 required per assembly) |
  |
|
12-94182 - Washer [ More info ]
|
| #4 | 10-69570 | SCREW, (#10-16 x .750) (10-16 x 3/4) (1 required per assembly) |
  |
|
10-69570 - Screw [ More info ]
|
| #5 | 24-892321 | SPRING (1 required per assembly) |
|
|
24-892321 - Spring [ More info ]
|
| #6 | 879854 | COVER (1 required per assembly) |
|
|
879854 - 879854 - COVER [ More info ] Unavailable Replaced by -8M0036780 |
|
|
8M0036780 - Cover [ More info ]
|
| #7 | 10-821273 35 | SCREW, (M8 x 35) (4 required per assembly) |
  |
|
10-821273 35 - Screw [ More info ]
|
| #8 | 27-879855 | GASKET (1 required per assembly) SN# 0T832040 & Below |
|
|
27-879855 - 27-879855 - GASKET [ More info ] Unavailable Replaced by 27-879855001 |
|
|
27-879855001 - Thermostat And Poppet Cover Gasket [ More info ]
|
| #8 | 27-879855001 | GASKET (1 required per assembly) SN# 0T832041 & Up |
| #9 | 27-62386 | GASKET (1 required per assembly) SN# 0T961336 & Below |
  |
|
27-62386 - 27-62386 - GASKET [ More info ] Unavailable Replaced by 27-62386001 |
  |
|
27-62386001 - Thermostat Gasket [ More info ]
|
  |
|
27-8M0204714 - Thermostat Gasket, Priced Individually [ More info ]
|
  |
|
18-0182-9 - Gasket 27-62386 2-Pack [ More info ]
|
| #9 | 27-62386001 | GASKET (1 required per assembly) SN# 0T961337 & Up |
| #10 | 833072002 | THERMOSTAT, 62°C (143°F) (1 required per assembly) SN# 0T979999 & Below |
|
|
833072002 - 833072002 - THERMOSTAT 62C (1 [ More info ] Unavailable Replaced by -833072004 |
  |
|
833072004 - Thermostat, 143 Degrees [ More info ]
|
| #10 | 833072004 | THERMOSTAT, 62°C (143°F) (1 required per assembly) SN# 0T980000 & Up |
| #11 | 54-814634 | CLAMP (2 required per assembly) |
|
|
54-814634 - Clamp [ More info ]
|
| #12 | 10-821300 12 | SCREW, (M6 x 12) (1 required per assembly) |
  |
|
10-821300 12 - Screw - Priced Individually [ More info ]
|
| #13 | 885342001 | SENSOR ASSEMBLY (1 required per assembly) |
  |
|
885342001 - 885342001 - SENSOR ASSEMBLY [ More info ] Unavailable Replaced by -885342002 |
  |
|
885342002 - 885342002 - SENSOR ASSEMBLY [ More info ] Unavailable Replaced by -8M0148668 |
  |
|
8M0148668 - Temperature Sensor [ More info ]
|
| #14 | 25-888814 | O-RING, (.351 x .072) (1 required per assembly) |
|
|
25-888814 - 25-888814 - O-RING (.351 x .0 [ More info ] Unavailable Replaced by 25-896699 |
|
|
25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ]
|
| #15 | 23-892265 | SPACER (1 required per assembly) |
|
|
23-892265 - Spacer [ More info ]
|
| #0 | 27-879855A04 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-879855A04 - Powerhead Gasket Set [ More info ]
|
| #0 | 895233A05 | POWERHEAD ASSEMBLY (1 required per assembly) (75) |
|
|
895233A05 - 895233A05 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -895233A07 |
|
|
895233A07 - POWERHEAD ASSEMBL [ More info ] Unavailable |
| #0 | 891767A04 | POWERHEAD ASSEMBLY (1 required per assembly) 90/115 |
|
|
891767A04 - 891767A04 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -891767A07 |
|
|
891767A07 - POWERHEAD ASSEMBL [ More info ] Unavailable |
