Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Bottom Cowl

Revise Search: All Models > 75 HP DFI (3 Cylinder) (1.5L) > 0T980000 - 1B226999 (USA) > Bottom Cowl

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

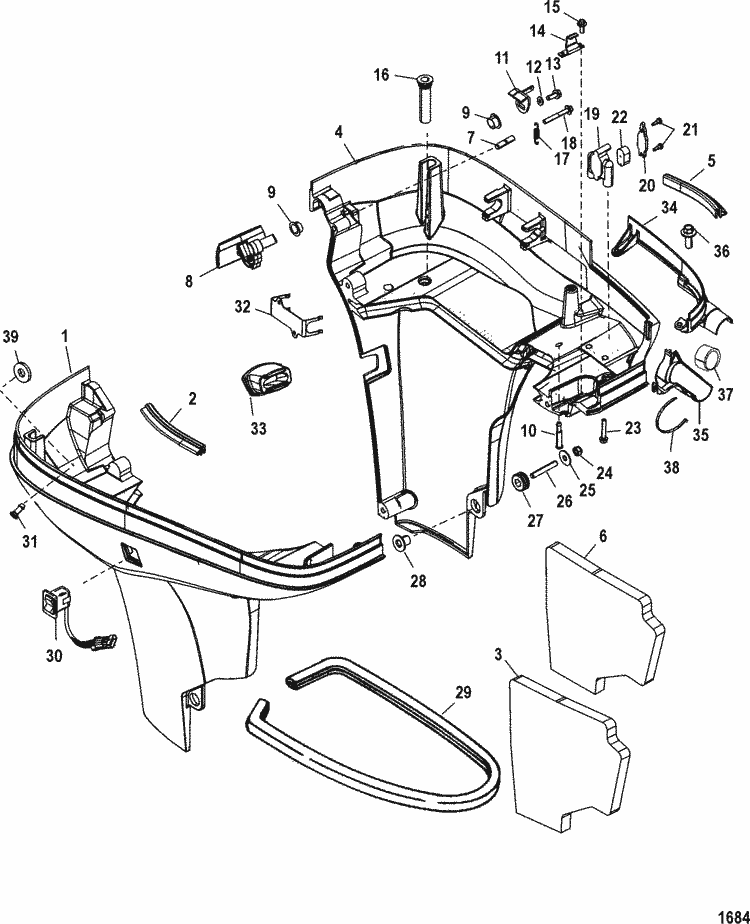

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	100-880775A00	BOTTOM COWL, Starboard (1 required per assembly) SN# 0T979999 & Below
		100-880775A00 - 100-880775A00 - BOTTOM COWL Starb [ More info ] Unavailable Replaced by 100-880775A03
		100-880775A03 - Cowl -bottom Stbd [ More info ] $934.79 Available to Order: Usually ships within 10 days.
#1	100-880775A03	BOTTOM COWL, Starboard (1 required per assembly) SN# 0T980000 & Up
#2	825318 1	SEAL, Cowl (41.00 Inches) (1 required per assembly)
		825318 1 - 825318 1 - SEAL Cowl (41.00 [ More info ] Unavailable Replaced by -8M0043272
		8M0043272 - 8M0043272 - SEAL-COWL [ More info ] Unavailable Replaced by -8M0109217
		8M0109217 - Cowl Seal [ More info ] $50.83 3 In Stock.
#3	NSS	NOT SOLD SEPARATE, Sound Blanket (Part of 889720A00) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	100-880774A02	BOTTOM COWL, Port (1 required per assembly) SN# 0T979999 & Below
		100-880774A02 - 100-880774A02 - BOTTOM COWL Port [ More info ] Unavailable Replaced by 100-880774A03
		100-880774A03 - Cowl -bottom Port [ More info ] $934.79 Available to Order: Usually ships within 10 days.
#4	100-880774A03	BOTTOM COWL, Port (1 required per assembly) SN# 0T980000 & Up
#6	889720A00	SOUND BLANKET KIT (1 required per assembly) (PORT)
		889720A00 - Sound Blanket Kit [ More info ] $195.83 Available to Order: Usually ships within 10 days.
#7	17-885116	PIN (1 required per assembly)
		17-885116 - Pin [ More info ] $1.20 Available to Order: Usually ships within 10 days.
#8	880783T	LEVER, Cowl Latch (1 required per assembly)
		880783T - Lever [ More info ] $58.00 Available to Order: Usually ships within 10 days.
#9	23-33589 1	BUSHING (2 required per assembly)
		23-33589 1 - Bushing [ More info ] $13.00 2 In Stock.
#10	22-889684001	FITTING, Vent (1 required per assembly) SN# 0T979999 & Below
		22-889684001 - 22-889684001 - FITTING Vent [ More info ] Unavailable Replaced by 22-889684002
		22-889684002 - Fitting [ More info ] $5.20 Available to Order: Usually ships within 10 days.
#10	22-889684002	FITTING, Vent (1 required per assembly) SN# 0T980000 & Up
#11	884468	CAM, Latch (1 required per assembly)
		884468 - Cam [ More info ] $18.25 Available to Order: Usually ships within 10 days.
#12	12-65567	WASHER, (.265 x .750 x .048) Stainless Steel (1 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.80 1 In Stock.
#13	10-19937 16	SCREW, (M6 x 16) (1 required per assembly)
		10-19937 16 - Screw [ More info ] $2.90 2 In Stock.
#14	822363T 1	RETAINER (1 required per assembly)
		822363T 1 - Retainer [ More info ] $23.25 Available to Order: Usually ships within 10 days.
#16	21-817519A 2	CHECK VALVE ASSEMBLY, Drain (2 required per assembly)
		21-817519A 2 - Check Valve Assembly [ More info ] $16.80 Available to Order: Usually ships within 10 days.
#17	24-892166	SPRING (1 required per assembly) SN# 0T979999 & Below
		24-892166 - 24-892166 - SPRING [ More info ] Unavailable Replaced by 24-892166001
		24-892166001 - Spring [ More info ] $6.60 Available to Order: Usually ships within 10 days.
#17	24-892166001	SPRING (1 required per assembly) SN# 0T980000 & Up
#18	10-888822 40	SCREW, (M6 x 40) (4 required per assembly)
		10-888822 40 - Screw - Priced Individually [ More info ] $2.00 10+ In Stock.
		10-821300 40 - Screw [ More info ] $7.60 $4.26 10+ In Stock.
#19	19812A 1	BRACKET, Cable Retainer (1 required per assembly)
		19812A 1 - 19812A 1 - BRACKET Cable Ret [ More info ] Unavailable Replaced by -19812T03
		19812T03 - Bracket Assembly [ More info ] $51.42 Available to Order: Usually ships within 10 days.
#20	98889	LATCH (1 required per assembly)
		98889 - Latch [ More info ] $3.70 7 In Stock.
#21	10-42975	DRIVE SCREW (2 required per assembly)
		10-42975 - Screw - Drive [ More info ] $2.10 2 In Stock.
#22	39519	CUP (1 required per assembly)
		39519 - Cup [ More info ] $5.20 Available to Order: Usually ships within 10 days.
#23	10-40011154	SCREW, (M8 x 50) Stainless Steel (2 required per assembly)
		10-40011154 - Screw [ More info ] $17.00 Available to Order: Usually ships within 10 days.
#24	11-888820 8	NUT, (M8) (2 required per assembly)
		11-888820 8 - NUT Note: Priced Individually [ More info ] $1.72 3 In Stock.
		11-40138 8 - Nut - Priced Individually [ More info ] $2.78 Available to Order: Usually ships within 10 days.
#25	12-817274 1	WASHER (2 required per assembly)
		12-817274 1 - 12-817274 1 - WASHER [ More info ] Unavailable Replaced by 12-817274
		12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ] $1.30 2 In Stock.
#26	16-42917 5	STUD (2 required per assembly)
		16-42917 5 - 16-42917 5 - STUD [ More info ] Unavailable Replaced by 16-42917 2
		16-42917 2 - 16-42917 2 - STUD (M8 x 48) [ More info ] Unavailable Replaced by 16-8M0034456
		16-8M0034456 - Stud [ More info ] $6.20 Available to Order: Usually ships within 10 days.
#27	25-855362	GROMMET (2 required per assembly) SN# 0T979999 & Below
		25-855362 - 25-855362 - GROMMET [ More info ] Unavailable Replaced by 25-855362001
		25-855362001 - Grommet, Coolant Reservoir [ More info ] $3.10 10+ In Stock.
#27	25-855362001	GROMMET (2 required per assembly) SN# 0T980000 & Up
#28	23-855364	BUSHING (2 required per assembly)
		23-855364 - Bushing [ More info ] $5.80 10+ In Stock.
#29	884256 4	SEAL, Lower Cowl (44.75 Inches) (1 required per assembly)
		884256 4 - 884256 4 - SEAL Lower Cowl ( [ More info ] Unavailable Replaced by -8M0036668
		8M0036668 - 8M0036668 - SEAL [ More info ] Unavailable Replaced by -8M0043167
		8M0043167 - Seal [ More info ] $59.58 Available to Order: Usually ships within 10 days.
#30	87-856990 1	SWITCH, Trim (1 required per assembly)
		87-856990 1 - 87-856990 1 - SWITCH Trim [ More info ] Unavailable Replaced by 87-896620001
		87-896620001 - 87-896620001 - SWITCH Trim [ More info ] Unavailable Replaced by 87-8M0042300
		87-8M0042300 - Trim Switch [ More info ] $125.92 Available to Order: Usually ships within 10 days.
#31	22-94848	FITTING (1 required per assembly)
		22-94848 - Fitting [ More info ] $4.60 7 In Stock.
#32	888508	RETAINER, Cable (1 required per assembly)
		888508 - Retainer [ More info ] $3.50 Available to Order: Usually ships within 10 days.
#33	884464	BOOT, Idle Relief (1 required per assembly)
		884464 - Boot [ More info ] $17.17 Available to Order: Usually ships within 10 days.
#34	884465001	CLAMP, Upper (1 required per assembly)
		884465001 - 884465001 - CLAMP Upper [ More info ] Unavailable Replaced by -8M0000504
		8M0000504 - Bracket [ More info ] $16.40 Available to Order: Usually ships within 10 days.
#35	884466	CLAMP, Lower (1 required per assembly)
		884466 - 884466 - CLAMP Lower [ More info ] Unavailable Replaced by -8M0000484
		8M0000484 - Lower Clamp [ More info ] $11.30 Available to Order: Usually ships within 10 days.
#36	10-821300 16	SCREW, (M6 x 16) (2 required per assembly)
		10-821300 16 - Screw - Priced Individually [ More info ] $5.70 1 In Stock.

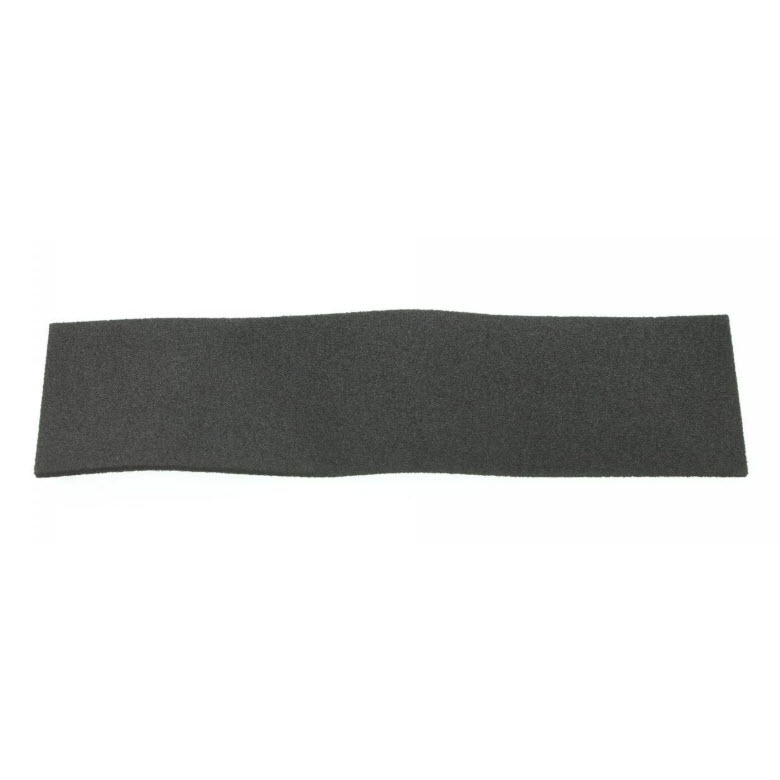

#37	859343	FOAM (1 required per assembly)
		859343 - Foam [ More info ] $5.80 2 In Stock.
#38	54-850181	TIE STRAP, (11.750 Inches) (2 required per assembly)
		54-850181 - Cable Tie [ More info ] $0.60 10+ In Stock.
#39	23-892427	SPACER (1 required per assembly)
		23-892427 - Spacer [ More info ] $7.10 Available to Order: Usually ships within 10 days.
