Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Air Compressor
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 854333T07 | COMPRESSOR ASSEMBLY, Air (1 required per assembly) |
 |
|
854333T07 - 854333T07 - COMPRESSOR ASSEMB [ More info ] Unavailable Replaced by -854333T11 |
|
|
854333T11 - 854333T11 - COMPRESSOR ASSEMB [ More info ] Unavailable Replaced by -8M0048123 |
|
|
8M0048123 - 8M0048123 - COMPRESSOR-AIR [ More info ] Unavailable Replaced by -8M0050654 |
|
|
8M0050654 - COMPRESSOR-1.5L [ More info ]
|
| #2 | 1178-853874A02 | END CAP (1 required per assembly) |
|
|
1178-853874A02 - 1178-853874A02 - END CAP [ More info ] Unavailable Replaced by 1100-8M0048560 |
|
|
1100-8M0048560 - 1100-8M0048560 - END CAP ASSY [ More info ] Unavailable Replaced by -8M0086896 |
|
|
8M0086896 - 8M0086896 - END CAP ASSY [ More info ] Unavailable Replaced by -8M0114192 |
|
|
8M0114192 - End Cap Assembly [ More info ]
|
| #3 | 25-86391 | O-RING (1 required per assembly) |
  |
|
25-86391 - O-ring,Transfer Port Cover [ More info ]
|
| #4 | 657-853658T02 | CONNECTING ROD ASSEMBLY (1 required per assembly) |
|
|
657-853658T02 - Connecting Rod [ More info ]
|
| #5 | NSS | NOT SOLD SEPARATE, Piston Assy. (With Rings) (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #6 | 53-854638 | LOCK RING (2 required per assembly) |
|
|
53-854638 - Lock Ring - Priced Individually [ More info ]
|
| #7 | 853584A10 | REED PLATE ASSEMBLY (1 required per assembly) |
|
|
853584A10 - Reed Plate Assembly [ More info ]
|
| #8 | 27-854442 | GASKET (1 required per assembly) |
  |
|
27-854442 - Gasket [ More info ]
|
| #9 | 27-854443 | GASKET (1 required per assembly) |
  |
|
27-854443 - Gasket [ More info ]
|
| #10 | 854334T02 | HEAD, Compressor (1 required per assembly) |
|
|
854334T02 - Compressor Head [ More info ]
|
| #11 | 22-38565 | FITTING, (.375-18) (1 required per assembly) |
|
|
22-38565 - Fitting [ More info ]
|
| #12 | 10-824460 35 | SCREW, (M8 x 35) (4 required per assembly) |
  |
|
10-824460 35 - Screw [ More info ]
|
| #13 | 22-99664 2 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (2 required per assembly) |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #14 | 22-856744 | FITTING (1 required per assembly) |
  |
|
22-856744 - Fitting [ More info ]
|
| #15 | 25-831985 | O-RING, (.468 x .078) (1 required per assembly) |
|
|
25-831985 - O-ring, (.468 X .078) [ More info ]
|

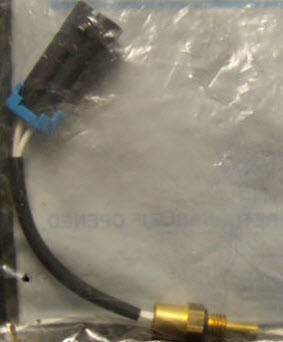

| #16 | 885342001 | SENSOR ASSEMBLY (1 required per assembly) |
  |
|
885342001 - 885342001 - SENSOR ASSEMBLY [ More info ] Unavailable Replaced by -885342002 |
  |
|
885342002 - 885342002 - SENSOR ASSEMBLY [ More info ] Unavailable Replaced by -8M0148668 |
  |
|
8M0148668 - Temperature Sensor [ More info ]
|
| #17 | 25-888814 | O-RING, (.351 x .072) (1 required per assembly) |
|
|
25-888814 - 25-888814 - O-RING (.351 x .0 [ More info ] Unavailable Replaced by 25-896699 |
|
|
25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ]
|
| #18 | 21-888421 | CHECK VALVE (3 required per assembly) |
|
|
21-888421 - Check Valve [ More info ]
|
| #19 | 821583 2 | PIN, Special (1 required per assembly) |
|
|
821583 2 - Pin (Special) [ More info ]
|
| #20 | 22-15133 | FITTING (1 required per assembly) |
  |
|
22-15133 - Fitting [ More info ]
|
| #21 | 69355 | TIE STRAP, (5.50 Inches) (5 required per assembly) |
  |
|
69355 - Tie Strap - Priced Individually [ More info ]
|
| #22 | 32-883069 55 | HOSE, (.125 x 25.00 Inches) (1 required per assembly) |
|
|
32-883069 55 - Oil Line [ More info ]
|
| #23 | 21-889851 | CONNECTOR (1 required per assembly) |
|
|
21-889851 - Check Valve [ More info ]
|
| #24 | 10-821300 25 | SCREW, (M6 x 25) (1 required per assembly) |
  |
|
10-821300 25 - Screw [ More info ]
|
| #25 | 853944T01 | PULLEY (1 required per assembly) |
|
|
853944T01 - 853944T01 - PULLEY [ More info ] Unavailable Replaced by -853944T03 |
|
|
853944T03 - Pulley [ More info ]
|
| #26 | 10-855939 12 | SCREW, (M6 x 12) (6 required per assembly) |
  |
|
10-855939 12 - Screw [ More info ]
|
| #27 | 854799001 | TENSIONER ARM (1 required per assembly) |
  |
|
854799001 - 854799001 - TENSIONER ARM [ More info ] Unavailable Replaced by -8M0047394 |
|
|
8M0047394 - Tensioner Arm [ More info ]
|
| #28 | 854797 1 | PULLEY (1 required per assembly) |
|
|
854797 1 - Pulley [ More info ]
|
| #29 | 10-40108 25 | SCREW, (M10 x 25) Hex Flange - Stainless Steel (1 required per assembly) |
  |
|
10-40108 25 - Screw [ More info ]
|
| #30 | 30-857011 1 | BEARING, Flanged (2 required per assembly) |
|
|
30-857011 1 - Bearing - Priced Individually [ More info ]
|
| #31 | 23-856549001 | BUSHING (2 required per assembly) |
|
|
23-856549001 - Bushing - Priced Individually [ More info ]
|
| #32 | 32-881044 41 | TUBING, (18.00 Inches Bulk), Cut to 8 Inches (2 required per assembly) |
|
|
32-881044 41 - Hose - 18 Inch [ More info ]
|
| #33 | 24-854795 3 | SPRING (1 required per assembly) |
|
|
24-854795 3 - Spring [ More info ]
|
| #34 | 10-40003 82 | SCREW, (M10 x 60) (1 required per assembly) |
|
|
10-40003 82 - Screw [ More info ]
|
| #36 | 54-816311T | TIE STRAP, (8.00 Inches) (4 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #37 | 10-824460 90 | SCREW, (M8 x 90) (3 required per assembly) |
  |
|
10-824460 90 - Screw [ More info ]
|
