Parts for Mercury Marine 75 HP (4-Stroke) (Bodensee) Tools 1

Revise Search: All Models > 75 HP (4-Stroke) (Bodensee) > 0T801000 - 1B226999 (USA) > Tools 1

NEED PARTS OR KITS?

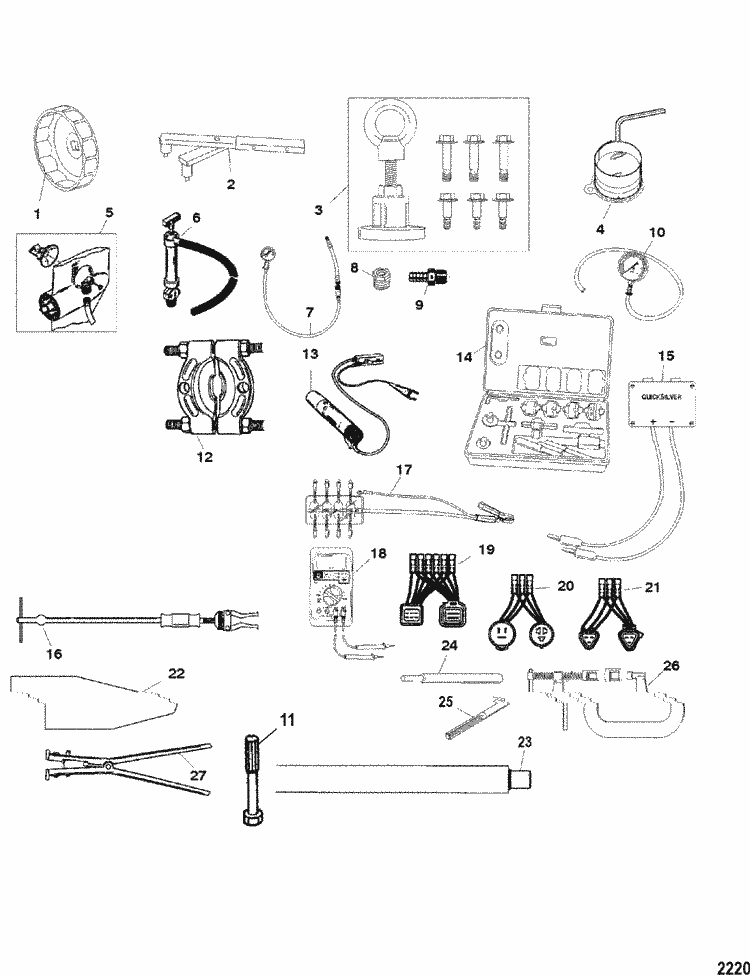

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	91-802653Q 1	WRENCH, Oil Filter (1 required per assembly)
		91-802653Q 1 - 91-802653Q 1 - WRENCH Oil Filter [ More info ] Unavailable Replaced by 91-802653Q02
		91-802653Q02 - Filter Wrench - Priced Individually [ More info ] $18.00 Available to Order: Usually ships within 10 days.
		91-802653K02 - Filter Wrench - Priced Individually [ More info ] $18.00 Available to Order: Usually ships within 10 days.
#2	91-83163M	HOLDER TOOL, Flywheel (1 required per assembly)
		91-83163M - Holder [ More info ] $508.85 Available to Order: Usually ships within 10 days.
#3	91-83164M	FLYWHEEL PULLER (1 required per assembly)
		91-83164M - Puller and Lifting Eye [ More info ] $489.29 Available to Order: Usually ships within 10 days.
#4	FT2997	COMPRESSOR TOOL, Piston Ring (1 required per assembly)
		FT2997 - Compressor-Ring [ More info ] $55.46 Available to Order: Usually ships within 10 days.
#5	44357Q 2	FLUSHING ATTACHMENT (1 required per assembly)
		44357Q 2 - Flushing Kit, Priced Individually [ More info ] $44.75 In Stock
		18-9010 - Motor Flusher [ More info ] $23.89 $21.68 10+ In Stock.
		44357T 2 - Flushing Kit, Priced Individually [ More info ] $44.75 Available to Order: Usually ships within 10 days.
#6	90265A 5	PUMP ASSEMBLY, Crankcase Oil (1 required per assembly)
		90265A 5 - PUMP ASSEMBLY Cra NLA [ More info ] Unavailable
#8	22-86306A01	ADAPTOR (1 required per assembly)
		22-86306A01 - Fitting Kit [ More info ] $14.90 10+ In Stock.
#9	22-89772	CONNECTOR, (.125-27) (1 required per assembly)
		22-89772 - Connector - Priced Individually [ More info ] $14.10 10+ In Stock.
#10	91-79250A 2	GAUGE KIT (1 required per assembly)
		91-79250A 2 - Gauge Kit [ More info ] $129.92 Available to Order: Usually ships within 10 days.
#11	91-804770A 1	HOLDER TOOL, Crankshaft (1 required per assembly)
		91-804770A 1 - Crankshaft Holder [ More info ] $190.46 Available to Order: Usually ships within 10 days.
#12	91-37241	PULLER PLATE (1 required per assembly)
		91-37241 - Plate [ More info ] $187.38 Available to Order: Usually ships within 10 days.
#13	91-99379	TIMING LIGHT (1 required per assembly)
		91-99379 - Timing Light [ More info ] $249.92 Available to Order: Usually ships within 10 days.
		18-9802 - Timing Light [ More info ] $225.59 $204.41 1 In Stock.
#14	NSS	NOT SOLD SEPARATE, Valve Seat Cutter Kit (Obtain Locally) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#15	91-89045 1	ADAPTOR TOOL, Direct Voltage (1 required per assembly)
		91-89045 1 - Adaptor -test [ More info ] $110.38 Available to Order: Usually ships within 10 days.
#16	91-34569A 1	PULLER ASSEMBLY, Slide Hammer (1 required per assembly)
		91-34569A 1 - Puller Assembly [ More info ] $256.36 Available to Order: Usually ships within 10 days.
#17	91-850439T 1	TESTER, Eight Chamber (1 required per assembly)
		91-850439T 1 - Tester- Spark [ More info ] $128.00 Available to Order: Usually ships within 10 days.
		511-9766 - Spark Tester - Push In Tips [ More info ] $103.06 10 In Stock.
#18	91-854009A 3	TACH MULTI METER, DMT 2000 Digital (1 required per assembly)
		91-854009A 3 - TACH MULTI METER NLA [ More info ] Unavailable
#19	91-804771	HARNESS ASSEMBLY, Pick Up Test (1 required per assembly)
		91-804771 - Harness -test Tool [ More info ] $98.00 Available to Order: Usually ships within 10 days.
#20	91-804772	HARNESS ASSEMBLY, Charge Coil Test (1 required per assembly)
		91-804772 - Harness -test Tool [ More info ] $58.46 Available to Order: Usually ships within 10 days.
#21	91-804773	HARNESS ASSEMBLY, Throttle Position Test (1 required per assembly)
		91-804773 - Harness -test Tps [ More info ] $68.85 Available to Order: Usually ships within 10 days.
#22	91-875216	HOLDER TOOL, Brush (1 required per assembly)
		91-875216 - Holder Tool - Brush [ More info ] $25.92 Available to Order: Usually ships within 10 days.
#23	91-875215A 1	INSTALLER TOOL, Driveshaft Bushing (1 required per assembly)
		91-875215A 1 - Tool -Installer [ More info ] $61.62 Available to Order: Usually ships within 10 days.
#24	91-804774	REMOVER/INSTALLER TOOL, Valve Guide (1 required per assembly)
		91-804774 - 91-804774 - REMOVER/INSTALLER [ More info ] Unavailable Replaced by 91-804774001
		91-804774001 - Tool - Valve Guide [ More info ] $42.77 Available to Order: Usually ships within 10 days.
#25	91-804775	REAMER TOOL, Valve Guide (1 required per assembly)
		91-804775 - Valve Guide Reamer [ More info ] $188.00 Available to Order: Usually ships within 10 days.
#26	91-809494A 1	COMPRESSOR TOOL, Valve Spring (1 required per assembly)
		91-809494A 1 - Compressor Tool [ More info ] $569.15 Available to Order: Usually ships within 10 days.
#27	91-24697	EXPANDER TOOL, Piston Ring (1 required per assembly)
		91-24697 - Expander Tool [ More info ] $56.67 Available to Order: Usually ships within 10 days.
