Parts for Mercury Marine 75 HP (4-Stroke) (Bodensee) Oil Pump

Revise Search: All Models > 75 HP (4-Stroke) (Bodensee) > 0T801000 - 1B226999 (USA) > Oil Pump

NEED PARTS OR KITS?

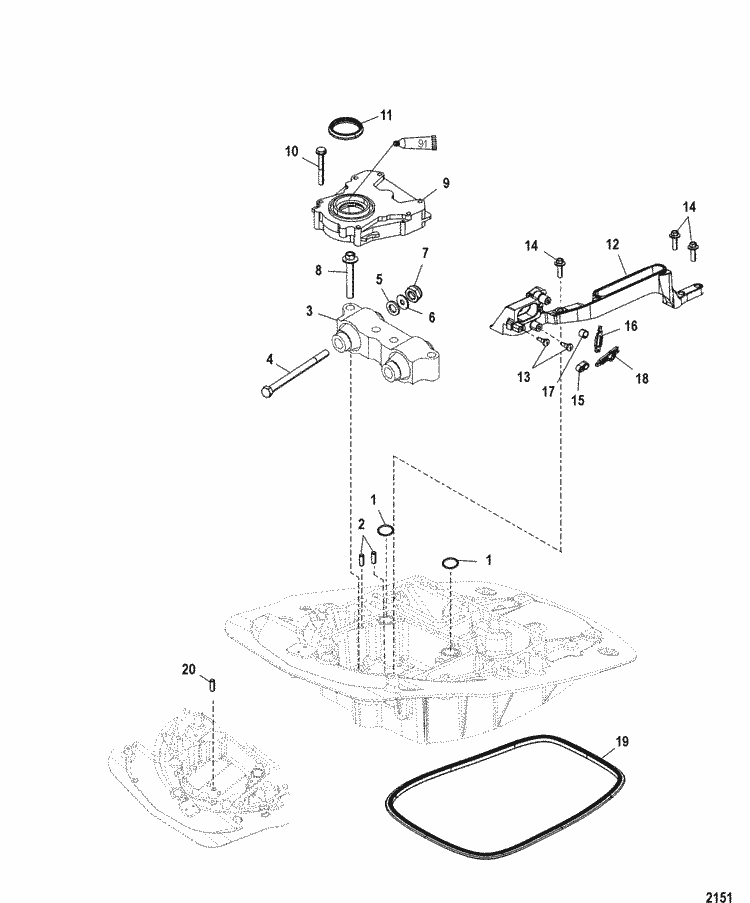

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	25-62705001	O-RING (2 required per assembly)
		25-62705001 - O-Ring [ More info ] $11.20 Available to Order: Usually ships within 10 days.
#2	17-41275M	PIN, Dowel (2 required per assembly)
		17-41275M - Pin, Dowel [ More info ] $3.00 3 In Stock.
#3	881900T	MOUNT (1 required per assembly)
		881900T - 881900T - MOUNT [ More info ] Unavailable Replaced by -881900T01
		881900T01 - 881900T01 - MOUNT [ More info ] Unavailable Replaced by -881900T02
		881900T02 - 881900T02 - MOUNT [ More info ] Unavailable Replaced by -881900T03
		881900T03 - Mount [ More info ] $146.08 Available to Order: Usually ships within 10 days.
#4	10-42974	BOLT, (M12 x 175) (2 required per assembly)
		10-42974 - 10-42974 - BOLT (M12 x 175) [ More info ] Unavailable Replaced by 10-898487
		10-898487 - Screw [ More info ] $13.50 Available to Order: Usually ships within 10 days.
#5	12-93416 1	WASHER, Neoprene (2 required per assembly)
		12-93416 1 - 12-93416 1 - WASHER Neoprene [ More info ] Unavailable Replaced by 12-32834
		12-32834 - Washer, (.9375 X 1.750 X .172) [ More info ] $5.50 10+ In Stock.
#6	12-28421	WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (2 required per assembly)
		12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ] $2.99 10+ In Stock.
		12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable
#7	11-859129	NUT, (M12) (2 required per assembly)
		11-859129 - 11-859129 - NUT (M12) [ More info ] Unavailable Replaced by 11-896963
		11-896963 - NUT (M12) [ More info ] Unavailable
#8	10-40107 50	SCREW, (M8 x 50) (4 required per assembly)
		10-40107 50 - Screw [ More info ] $5.10 Available to Order: Usually ships within 10 days.

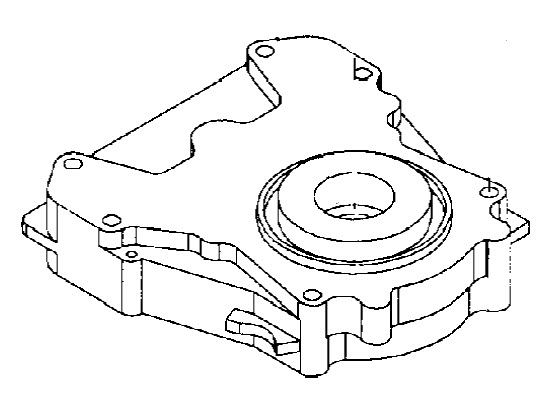

#9	858579T 3	PUMP, Oil (1 required per assembly)
		858579T 3 - PUMP Oil [ More info ] Unavailable
#10	10-858719	BOLT, (M6 x 45) (6 required per assembly)
		10-858719 - 10-858719 - BOLT (M6 x 45) [ More info ] Unavailable Replaced by 10-8M0052670
		10-8M0052670 - Screw [ More info ] $3.90 Available to Order: Usually ships within 10 days.
#11	26-804349	SEAL (1 required per assembly)
		26-804349 - SEAL [ More info ] Unavailable
#12	888834T01	BRACKET ASSEMBLY, Shift Linkage (1 required per assembly)
		888834T01 - Bracket [ More info ] $109.75 Available to Order: Usually ships within 10 days.
#13	10-42975	DRIVE SCREW (4 required per assembly)
		10-42975 - Screw - Drive [ More info ] $2.10 Available to Order: Usually ships within 10 days.
#14	10-821300 20	SCREW, (M6 x 20) (3 required per assembly)
		10-821300 20 - Screw - Priced Individually [ More info ] $2.60 Available to Order: Usually ships within 10 days.

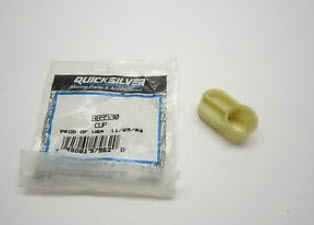

#15	889530	CUP, Barrel Retainer (LARGE) (1 required per assembly)
		889530 - Cup [ More info ] $15.80 4 In Stock.
#16	98889	LATCH (1 required per assembly)
		98889 - Latch [ More info ] $3.70 3 In Stock.
#17	824015	CUP, Barrel Retainer, Barrel Retainer (SMALL) (1 required per assembly)
		824015 - Barrel Retainer Cup [ More info ] $5.90 3 In Stock.
#18	889529	LATCH (1 required per assembly)
		889529 - Latch [ More info ] $13.40 Available to Order: Usually ships within 10 days.
#19	884256 3	SEAL (1 required per assembly)
		884256 3 - Seal [ More info ] $25.00 1 In Stock.
		8M0043168 - Seal [ More info ] $62.58 Available to Order: Usually ships within 10 days.
#20	17-23784	PIN, Dowel (1 required per assembly)
		17-23784 - Pin, Dowel [ More info ] $5.00 1 In Stock.
