Parts for Mercury Marine 75 HP (4-Stroke) (Bodensee) Steering Handle Kit Components

Revise Search: All Models > 75 HP (4-Stroke) (Bodensee) > 0G960500 - 0T800999 (USA) > Steering Handle Kit Components

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

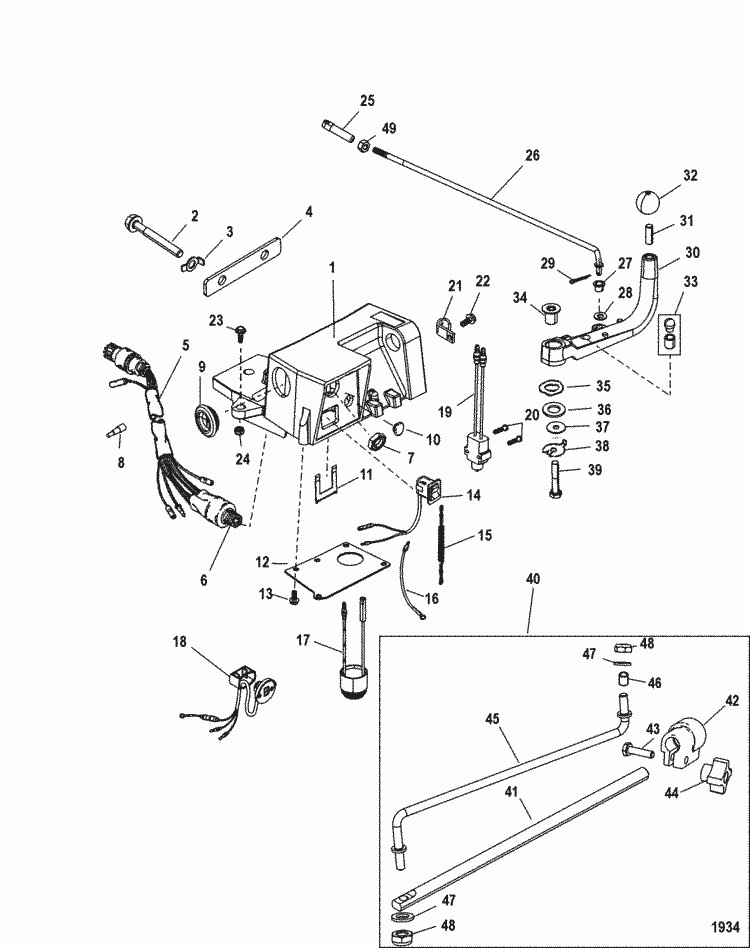

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	816366T10	HANDLE (1 required per assembly) (2004 Model Year and Up)
		816366T10 - HANDLE [ More info ] Unavailable
#	816366A30	STEERING HANDLE KIT (1 required per assembly) (Use W/ Stainless Steel Mesh Covered Conduit)
		816366A30 - 816366A30 - STEERING HANDLE K [ More info ] Unavailable Replaced by -816366A31
		816366A31 - 816366A31 - STEERING HANDLE K [ More info ] Unavailable Replaced by -816366A42

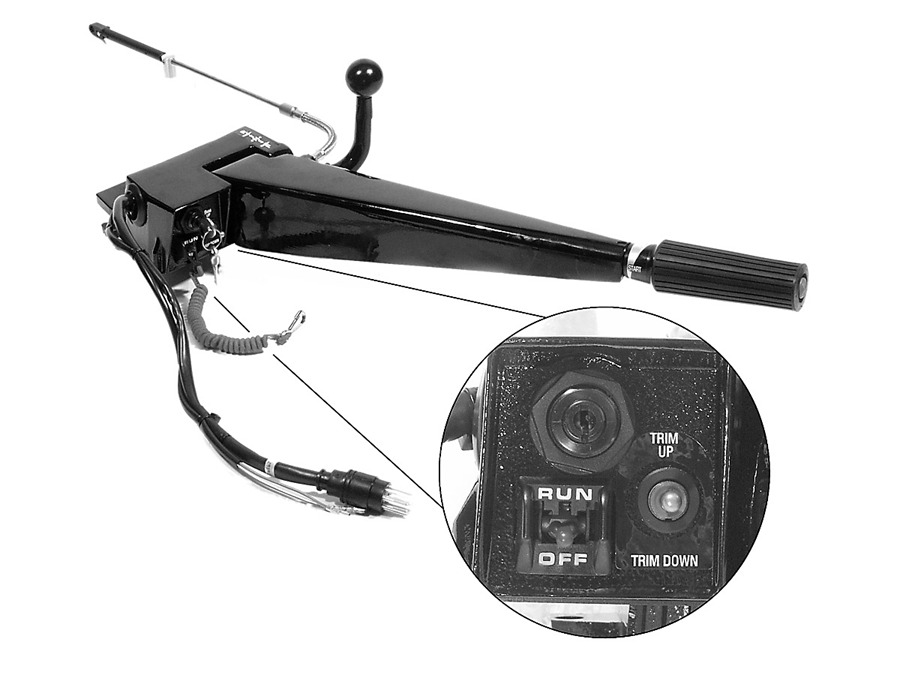

		816366A42 - STEERING HANDLE K [ More info ] Unavailable
#	816366A31	STEERING HANDLE KIT (1 required per assembly) (Use W/ Black Vinyl Coverd Conduit)
#1	816366T 5	HANDLE, Bracket (1 required per assembly) (Use W/ Stainless Steel Mesh Covered Conduit)
		816366T 5 - Bracket [ More info ] $267.75 Available to Order: Usually ships within 10 days.

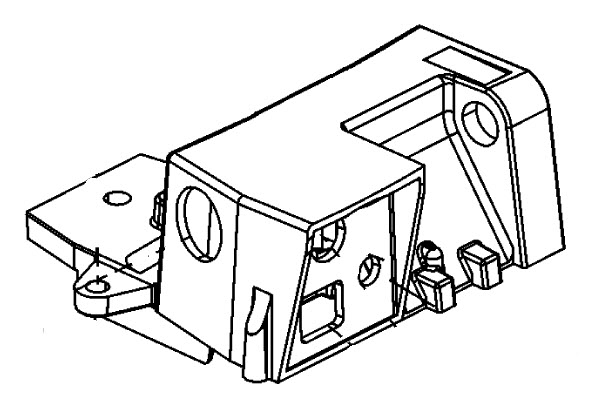

#1	816366T08	HANDLE, Bracket (1 required per assembly) (Use W/ Black Vinyl Coverd Conduit)
		816366T08 - Bracket [ More info ] $362.17 Available to Order: Usually ships within 10 days.
#2	10-881261	SCREW, (.313-24 x 3.50) (2 required per assembly)
		10-881261 - Screw [ More info ] $5.50 Available to Order: Usually ships within 10 days.
#3	14-42981	TAB WASHER (2 required per assembly)
		14-42981 - Tab Washer [ More info ] $7.10 Available to Order: Usually ships within 10 days.
#4	822263	SPACER (1 required per assembly)
		822263 - Spacer - Steering Arm [ More info ] $9.40 Available to Order: Usually ships within 10 days.
#5	84-12649A 4	HARNESS ASSEMBLY (1 required per assembly)
		84-12649A 4 - Harness Assembly [ More info ] $322.17 Available to Order: Usually ships within 10 days.
#6	87-88107A 5	SWITCH KIT, Key (1 required per assembly) (For Replacement Key - Order 89491--1 Thru 89491-12)(See Key Chart - Ignition Switch Section)

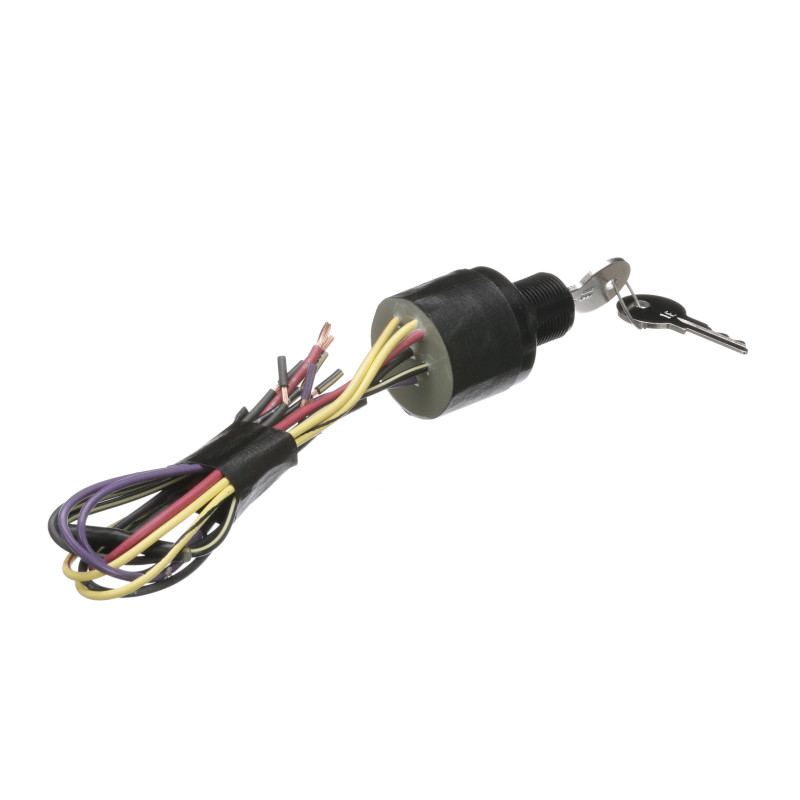

		87-88107A 5 - Ignition Switch Kit [ More info ] $72.72 1 In Stock.

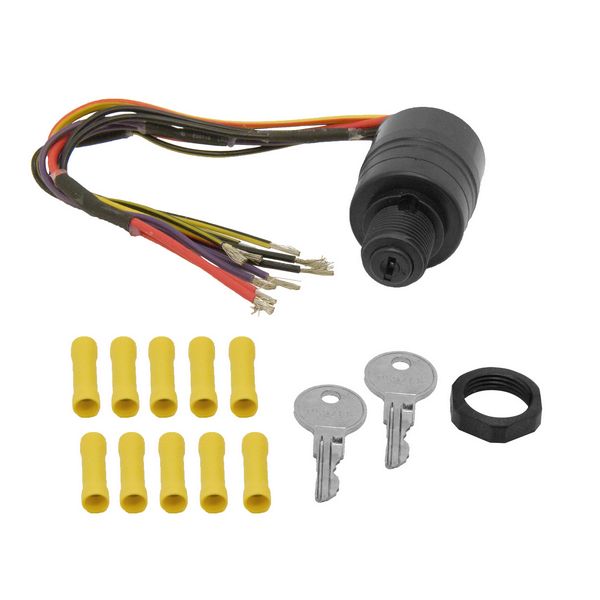

		MP52000 - Ignition Switch, 87-88107A5 [ More info ] $57.72 $55.49 In Stock

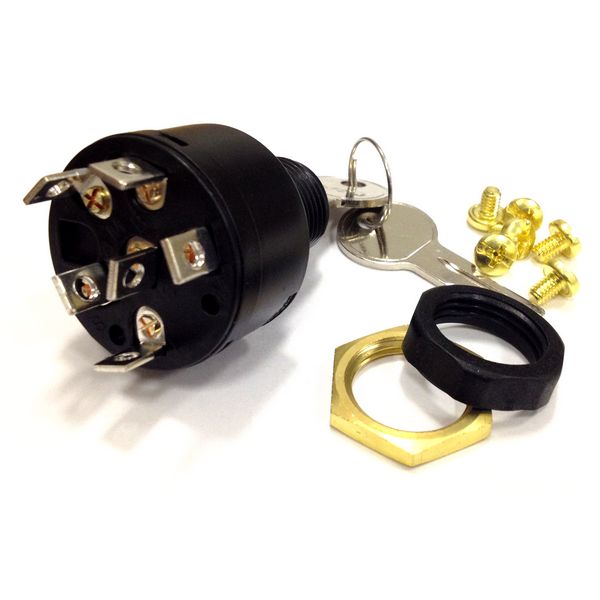

		MP41000 - Ignition Switch, 3 Position, Push to Choke, 87-88107 [ More info ] $24.01 10+ In Stock.
#7	11-879755	NUT, Special - Black Nylon (1 required per assembly) (Black Nylon)
		11-879755 - Nut, (black Nylon) [ More info ] $5.90 1 In Stock.
#8	13541	PLUG, Male (1 required per assembly)
		13541 - Plug [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#9	12105 1	GROMMET (1 required per assembly)
		12105 1 - Grommet [ More info ] $19.00 1 In Stock.
#10	19-12014	PLUG (1 required per assembly)
		19-12014 - 19-12014 - PLUG [ More info ] Unavailable Replaced by 19-889730
		19-889730 - Plug [ More info ] $7.80 Available to Order: Usually ships within 10 days.
#11	12044 1	RETAINER, Brass (1 required per assembly)
		12044 1 - 12044 1 - RETAINER Brass [ More info ] Unavailable Replaced by -8M0032846
		8M0032846 - Brass Retainer [ More info ] $4.24 Available to Order: Usually ships within 10 days.
#12	815804 1	COVER (1 required per assembly)
		815804 1 - Cover -5 Hole [ More info ] $18.33 Available to Order: Usually ships within 10 days.
#13	10-878608	SCREW, (#10-16 x .500) (5 required per assembly)
		10-878608 - Screw [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#14	87-11083A 4	SWITCH ASSEMBLY, Stop (1 required per assembly)
		87-11083A 4 - Switch Assembly [ More info ] $56.75 Available to Order: Usually ships within 10 days.
#15	15920Q54	LANYARD ASSEMBLY (1 required per assembly)

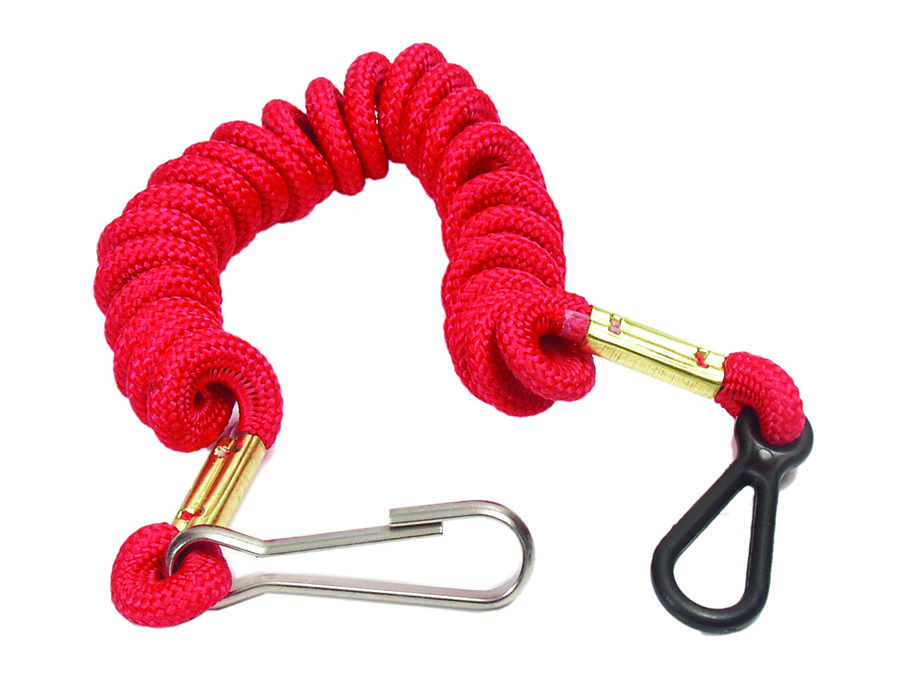

		15920Q54 - LANYARD ASSEMBLY NLA [ More info ] Unavailable
#16	84-11149A 3	CABLE ASSEMBLY (1 required per assembly)
		84-11149A 3 - Cable Assembly [ More info ] $4.50 1 In Stock.
#17	816051A 2	HORN ASSEMBLY (1 required per assembly) (Use W/ Stainless Steel Mesh Covered Conduit)
		816051A 2 - Horn Assembly [ More info ] $141.58 Available to Order: Usually ships within 10 days.
#17	889528T01	HORN ASSEMBLY (1 required per assembly) (Use W/ Black Vinyl Coverd Conduit)
		889528T01 - Horn Assembly [ More info ] $84.08 Available to Order: Usually ships within 10 days.
#18	87-18286A19	SWITCH KIT, Trim (25.00 Feet) (1 required per assembly) (Use W/ Black Vinyl Coverd Conduit)

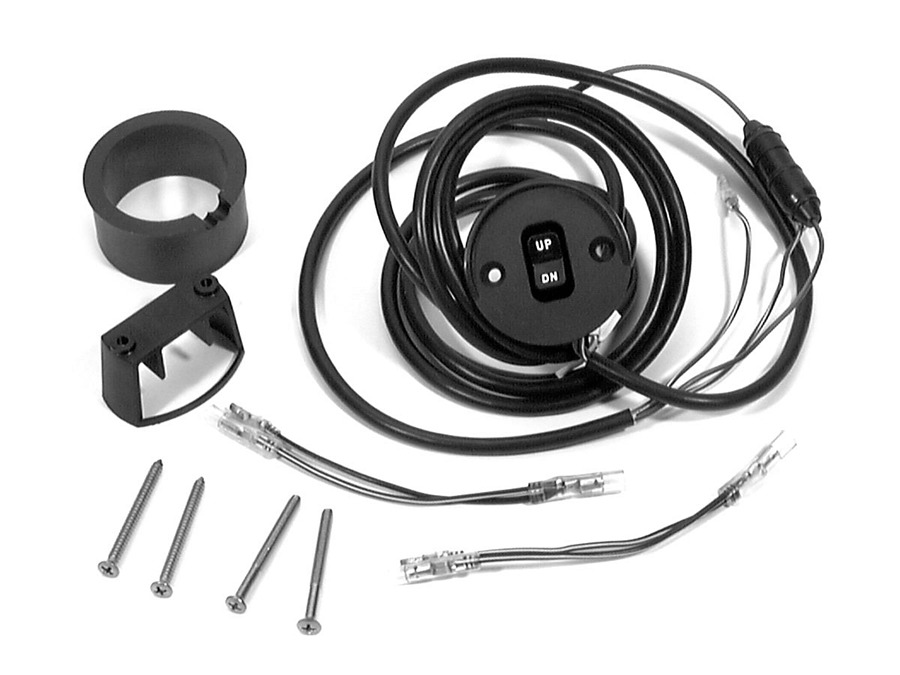

		87-18286A19 - Switch Kit -25 Ft [ More info ] $210.06 1 In Stock.
#19	87-813960A 3	SWITCH (1 required per assembly)
		87-813960A 3 - 87-813960A 3 - SWITCH [ More info ] Unavailable Replaced by 87-8M0052927
		878M0052927 - Switch Assembly [ More info ] $105.42 Available to Order: Usually ships within 10 days.
#20	10-12110	SCREW, (#6-32 x .750) (2 required per assembly)
		10-12110 - Screw [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#21	54-64855 1	CLAMP (1 required per assembly)
		54-64855 1 - Clamp - Priced Individually [ More info ] $0.80 Available to Order: Usually ships within 10 days.
#23	10-849838	SCREW, (.375-24 x 1.250) (1 required per assembly)
		10-849838 - Screw [ More info ] $21.25 Available to Order: Usually ships within 10 days.
#24	11-826709113	NUT, (.375-24) Stainless Steel (1 required per assembly)
		11-826709113 - 11-826709113 - NUT (.375-24) Sta [ More info ] Unavailable Replaced by -8M0042636
		11-8M0042636 - 11-8M0042636 - NUT (.375-24) Bra [ More info ] Unavailable Replaced by -8M0204726
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#25	48419	ROD END (1 required per assembly) (2003 Model Year and Below )
		48419 - 48419 - ROD END [ More info ] Unavailable Replaced by -48419T

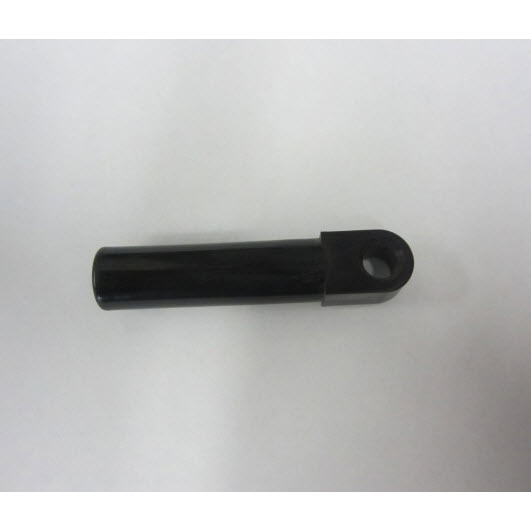

		48419T - ROD END-2.16 IN [ More info ] $13.10 Available to Order: Usually ships within 10 days.
#25	48419001	ROD END (1 required per assembly) (2004 Model Year and Up)
		48419001 - 48419001 - ROD END [ More info ] Unavailable Replaced by -48419T01
		48419T01 - Rod End [ More info ] $10.80 Available to Order: Usually ships within 10 days.
#26	49563 7	ROD, Shift (1 required per assembly)
		49563 7 - Shift Rod [ More info ] $115.75 Available to Order: Usually ships within 10 days.

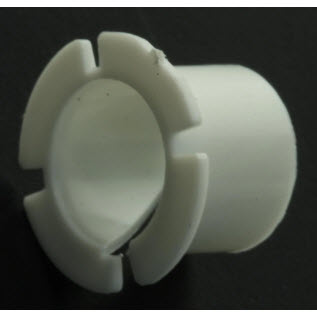

#27	23-26856	BUSHING (1 required per assembly)
		23-26856 - Bushing [ More info ] $4.00 Available to Order: Usually ships within 10 days.
#28	12-35950	WASHER, (.273 x .437 x .031) Stainless Steel (1 required per assembly)
		12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#29	18-25191	COTTER PIN, Cotter (1 required per assembly)
		18-25191 - Cotter Pin - Priced Individually [ More info ] $4.60 10 In Stock.
#30	816367 7	LEVER, Shift, Shift (1 required per assembly)
		816367 7 - LEVER Shift NLA [ More info ] Unavailable
#31	16-58152	STUD, (.375-24 x 1.125) (1 required per assembly)
		16-58152 - 16-58152 - STUD (.375-24 x 1 [ More info ] Unavailable Replaced by 16-8M0034452
		16-8M0034452 - Stud [ More info ] $11.80 Available to Order: Usually ships within 10 days.
#32	98530	KNOB (1 required per assembly)
		98530 - KNOB [ More info ] Unavailable
#33	12016A 2	DETENT/SPRING KIT (1 required per assembly)
		12016A 2 - DETENT/SPRING KIT NLA [ More info ] Unavailable
#34	23-815983 1	BUSHING (1 required per assembly)
		23-815983 1 - Bushing [ More info ] $23.83 Available to Order: Usually ships within 10 days.
#35	12-823970	WASHER (1 required per assembly)
		12-823970 - Washer [ More info ] $10.90 Available to Order: Usually ships within 10 days.
#36	12-824610	WASHER, Plastic (1 required per assembly)
		12-824610 - Washer, Plastic [ More info ] $3.70 Available to Order: Usually ships within 10 days.
#37	12-814803	WASHER (1 required per assembly)
		12-814803 - Washer [ More info ] $5.00 Available to Order: Usually ships within 10 days.
#38	14-815805 1	TAB WASHER (1 required per assembly)
		14-815805 1 - Tab Washer [ More info ] $12.10 Available to Order: Usually ships within 10 days.
#39	10-40003 57	SCREW, (M8 x 45) (1 required per assembly)
		10-40003 57 - Screw [ More info ] $4.80 Available to Order: Usually ships within 10 days.
#40	56-52148A 7	CO-PILOT ASSEMBLY (1 required per assembly) (Use W/ Stainless Steel Mesh Covered Conduit)

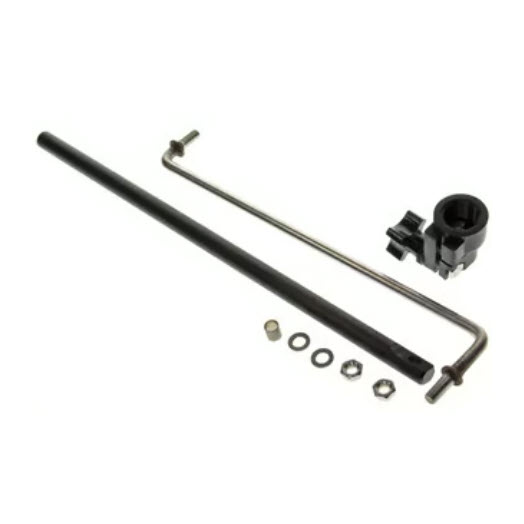

		56-52148A 7 - Co Pilot Assembly [ More info ] $184.92 Available to Order: Usually ships within 10 days.
#40	56-52148A08	CO PILOT ASSEMBLY (1 required per assembly) (Use W/ Black Vinyl Coverd Conduit)
		56-52148A08 - Co Pilot Assembly [ More info ] $214.92 Available to Order: Usually ships within 10 days.
#41	52148 1	PILOT ROD (1 required per assembly) (Use W/ Stainless Steel Mesh Covered Conduit)(13 IN.)

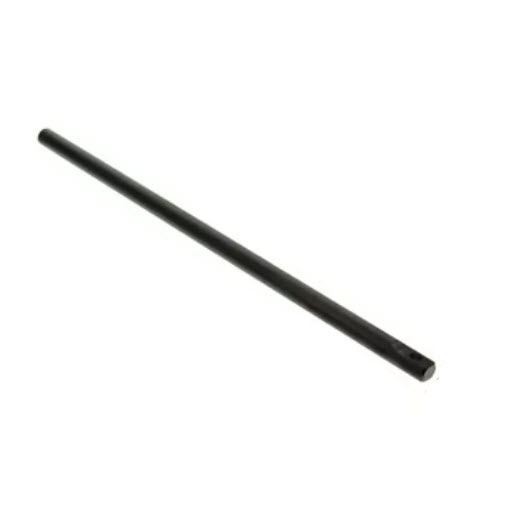

		52148 1 - Rod -Pilot [ More info ] $62.58 Available to Order: Usually ships within 10 days.

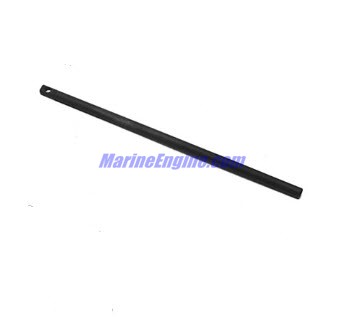

#41	52148002	PILOT ROD, (15.00 Inches) (1 required per assembly) (Use W/ Black Vinyl Coverd Conduit)(15 IN.)
		52148002 - Pilot Rod [ More info ] $88.17 Available to Order: Usually ships within 10 days.

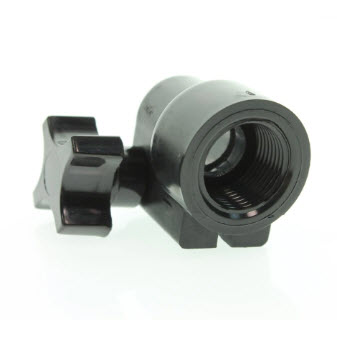

#42	11-52155A 1	NUT ASSEMBLY (1 required per assembly)
		11-52155A 1 - NUT ASSEMBLY NLA [ More info ] Unavailable

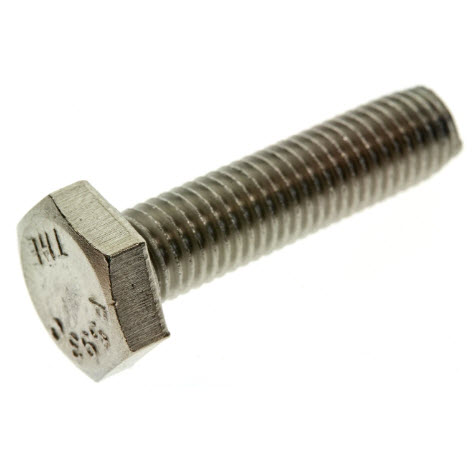

#43	10-36137	SCREW, (.250-28 x 1.00) (1 required per assembly)
		10-36137 - Screw - Priced Individually [ More info ] $2.80 10+ In Stock.
#44	821621	KNOB, Prong (1 required per assembly)

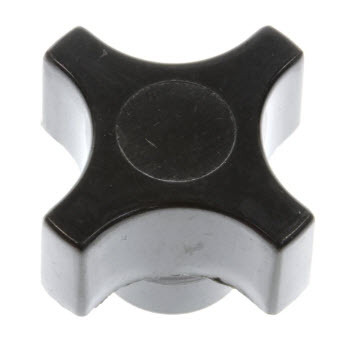

		821621 - Knob [ More info ] $9.40 Available to Order: Usually ships within 10 days.
#45	87349 1	ROD, Link (1 required per assembly)

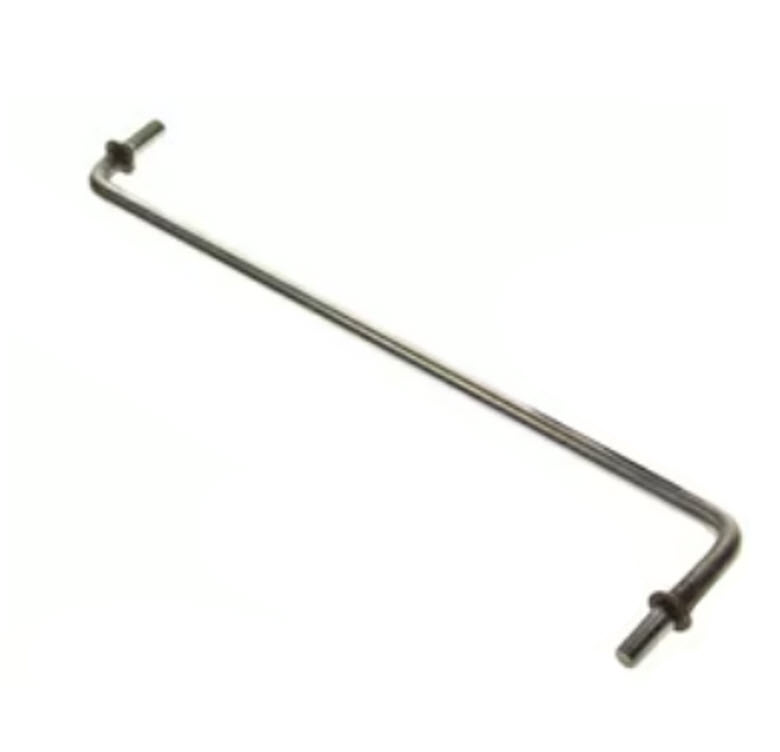

		87349 1 - Link Rod [ More info ] $113.42 Available to Order: Usually ships within 10 days.
#46	23-52151 2	BUSHING (1 required per assembly) (Use W/ Stainless Steel Mesh Covered Conduit)(Non-Flanged)
		23-52151 2 - Bushing [ More info ] $4.33 Available to Order: Usually ships within 10 days.
#46	23-26841	BUSHING (1 required per assembly) (Use W/ Black Vinyl Coverd Conduit)(Flanged)
		23-26841 - Bushing - Priced Individually [ More info ] $7.30 Available to Order: Usually ships within 10 days.
#47	12-70132	WASHER, (.323 x .563 x .063) Stainless Steel (2 required per assembly)
		12-70132 - 12-70132 - WASHER (.323 x .5 [ More info ] Unavailable Replaced by 12-8M0042642

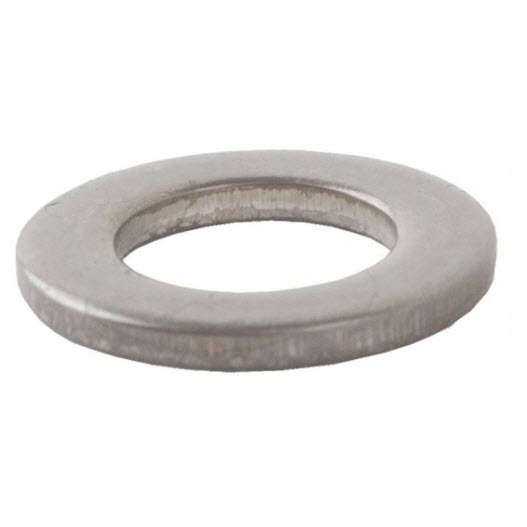

		12-8M0042642 - Washer - Priced Individually [ More info ] $1.70 10+ In Stock.

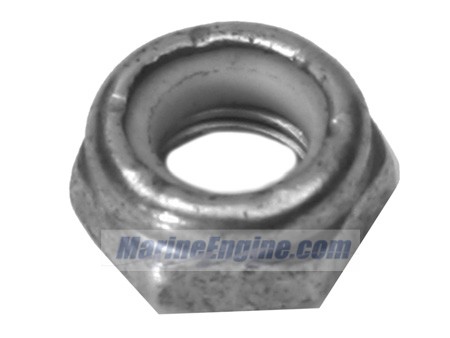

#48	11-826709111	NUT, (.312-24) Stainless Steel (2 required per assembly)
		11-826709111 - Nut, (.312-24) Stainless Steel [ More info ] $4.30 2 In Stock.
		18-3723-9 - Lock Nut, 11-45592, 5PK [ More info ] $14.89 $13.50 2 In Stock.
#49	11-64015	NUT, (.250-20) (1 required per assembly)
		11-64015 - Nut (1 /4-20) [ More info ] $2.70 2 In Stock.
