Parts for Mercury Marine 75 HP (4-Stroke) (Bodensee) Steering Handle Kit

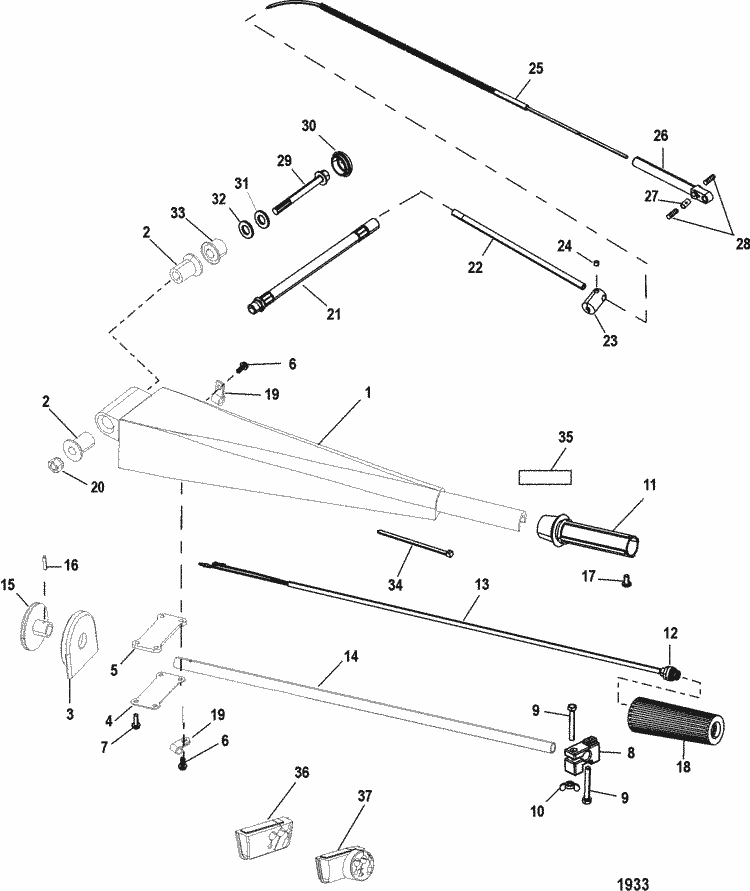

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 816366A32 | STEERING HANDLE KIT (1 required per assembly) (2004 Model Year and Up) |
  |
|
816366A32 - STEERING HANDLE K NLA [ More info ] Unavailable |
| # | 816366A30 | STEERING HANDLE KIT (1 required per assembly) (Use W/ Stainless Steel Mesh Covered Conduit - Ref. #21) |
 |
|
816366A30 - 816366A30 - STEERING HANDLE K [ More info ] Unavailable Replaced by -816366A31 |
|
|
816366A31 - 816366A31 - STEERING HANDLE K [ More info ] Unavailable Replaced by -816366A42 |
  |
|
816366A42 - STEERING HANDLE K [ More info ] Unavailable |
| # | 816366A31 | STEERING HANDLE KIT (1 required per assembly) (Use W/ Black Vinyl Coverd Conduit - Ref. #21) |
| #1 | 12020A 3 | HANDLE ASSEMBLY, Steering Arm (1 required per assembly) |
|
|
12020A 3 - Steering Handle -blac A [ More info ]
|
| #NS | 22-74036 | FITTING, Grease (1 required per assembly) |
  |
|
22-74036 - Fitting - Priced Individually [ More info ]
|
|
|
228M0169589 - FITTING Note: Priced Individually [ More info ]
|
| #2 | 23-42992 2 | BUSHING (2 required per assembly) |
|
|
23-42992 2 - 23-42992 2 - BUSHING [ More info ] Unavailable Replaced by 23-42992T02 |
|
|
23-42992T02 - Bushing [ More info ]
|
| #3 | 48414 | HOUSING (1 required per assembly) |
  |
|
|
| #4 | 48519 | PLATE (1 required per assembly) |
  |
|
|
| #5 | 27-48518 | GASKET (1 required per assembly) |
|
|
27-48518 - Cover Plate Gasket [ More info ]
|
| #6 | 10-878609 | SCREW, (#10-16 x .600) (1 or 2 required per assembly) |
  |
|
10-878609 - Screw [ More info ]
|
| #7 | 10-878608 | SCREW, (#10-16 x .500) (3 or 4 required per assembly) |
  |
|
10-878608 - Screw [ More info ]
|
| #8 | 54-12013 | CLAMP (1 required per assembly) |
|
|
54-12013 - 54-12013 - CLAMP [ More info ] Unavailable Replaced by 54-889729 |
|
|
54-889729 - Clamp - Throttle [ More info ]
|
| #9 | 10-40007112 | SCREW, (M5 x 40) (2 required per assembly) |
  |
|
10-40007112 - Screw [ More info ]
|
| #10 | 11-816874 | WING NUT, (#10-32) (1 required per assembly) |
|
|
11-816874 - Wing Nut [ More info ]
|
| #11 | 87-823609A15 | SWITCH KIT, Stop - Throttle Handle (1 required per assembly) |
|
|
87-823609A15 - Switch Kit [ More info ]
|
| #12 | 87-823609A 5 | SWITCH ASSEMBLY, Stop (1 required per assembly) |
|
|
87-823609A 5 - 87-823609A 5 - SWITCH ASSEMBLY S [ More info ] Unavailable Replaced by 87-8M0104612 |
|
|
878M0104612 - Switch [ More info ]
|
| #13 | NSS | NOT SOLD SEPARATE, Insulator (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #14 | 12018A 4 | TUBE ASSEMBLY, Throttle (1 required per assembly) |
|
|
12018A 4 - Tube Assembly - Throttle [ More info ]
|
| #17 | 10-62568 | SCREW, (#10-16 x .375) (1 required per assembly) |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #18 | 99589 | GRIP (1 required per assembly) |
  |
|
99589 - 99589 - GRIP [ More info ] Unavailable Replaced by -99589003 |
  |
|
|
| #19 | 54-64855 2 | CLIP (2 required per assembly) |
|
|
54-64855 2 - Clamp [ More info ]
|
| #20 | 11-40140 | NUT, (M10) (1 required per assembly) |
  |
|
11-40140 - Nut, (M10) [ More info ]
|
| #21 | 888524 2 | CONDUIT (7.63) (1 required per assembly) (Stainless Steel Mesh Covered) |
|
|
888524 2 - Conduit [ More info ]
|
| #21 | 888524 1 | CONDUIT, (9.03 Inches) (1 required per assembly) (Black Vinyl Coverd) |
|
|
888524 1 - Conduit [ More info ]
|
| #22 | 89566 5 | GUIDE TUBE (1 required per assembly) |
|
|
89566 5 - Tube - Guide [ More info ]
|
| #23 | 89578 | BARREL, Throttle Actuator (1 required per assembly) |
  |
|
|
| #24 | 10-824081 | SET SCREW, (#10-32) (1 required per assembly) |
  |
|
10-824081 - Screw -set [ More info ]
|
| #25 | 12019003 | CABLE ASSEMBLY (1 required per assembly) |
|
|
12019003 - Cable Assembly [ More info ]
|
| #26 | 43433 | GUIDE, Cable (1 required per assembly) |
  |
|
43433 - Guide - Priced Individually [ More info ]
|
|
|
8M0204660 - GUIDE @5 [ More info ] Unavailable |
  |
|
18-2149 - Guide, 43433 [ More info ]
|
  |
|
18-2146 - Yoke, 59830A7 [ More info ]
|
| #27 | 20007 | ANCHOR, Cable End (1 required per assembly) |
  |
|
20007 - End- Cable - Priced Individually [ More info ]
|
| #28 | 10-20518 | SET SCREW, (#8-32) (2 required per assembly) |
  |
|
10-20518 - Screw -set - Priced Individually [ More info ]
|
|
|
10-8M0204644 - SCREW-SET @25 [ More info ] Unavailable |
  |
|
18-2303 - Cable Anchor Set Screw [ More info ]
|
| #29 | 10-823567105 | SCREW, (M10 x 105) Hex Flange - Stainless Steel (1 required per assembly) |
  |
|
10-823567105 - Screw [ More info ]
|
| #30 | 48416 | CAP (1 required per assembly) |
  |
|
48416 - Cap [ More info ]
|
| #31 | 12-40023 19 | WASHER (1 required per assembly) |
|
|
12-40023 19 - Washer (M10) [ More info ]
|
| #32 | 12-12024 | WASHER, (.402 x .787 x .039 Bellevi) (1 required per assembly) |
|
|
12-12024 - Washer, (.402 X .787 X .039 ) [ More info ]
|
| #33 | 23-14601 1 | SPACER (1 required per assembly) |
|
|
23-14601 1 - Spacer [ More info ]
|
| #34 | 54-816311T | TIE STRAP, (8.00 Inches) (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #36 | 881240 | GROMMET, Hose Cable (1 required per assembly) (Use W/ Stainless Steel Mesh Covered Conduit - Ref. #21) |
  |
|
881240 - GROMMET NLA [ More info ] Unavailable |
| #37 | 25-889724 | GROMMET, Hose Cable (1 required per assembly) (Use W/ Black Vinyl Coverd Conduit - Ref. #21) |
  |
|
25-889724 - Grommet, Hose Cable [ More info ]
|
