Parts for Mercury Marine 75 HP (4-Stroke) (Bodensee) Intake / Exhsust Valves
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-804345A02 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-804345A02 - GASKET SET Powerh [ More info ] Unavailable |
| # | 804109T 1 | CYLINDER HEAD ASSEMBLY (1 required per assembly) SN# 0T178499 & Below |
 |
|
804109T 1 - 804109T 1 - CYLINDER HEAD ASS [ More info ] Unavailable Replaced by -804109T 3 |
|
|
804109T 3 - 804109T 3 - CYLINDER HEAD ASS [ More info ] Unavailable Replaced by -804109T07 |
|
|
804109T07 - 804109T07 - CYLINDER HEAD [ More info ] Unavailable Replaced by -804109T08 |
|
|
804109T08 - HEAD ASY-CYLINDER [ More info ] Unavailable |
| # | 804070T 2 | POWERHEAD ASSEMBLY (1 required per assembly) SN# 0T178500 & Up |
|
|
804070T 2 - 804070T 2 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -804070T02 |
|
|
804070T02 - 804070T02 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -804070T03 |
|
|
804070T03 - 804070T03 - PH 75/90 4S [ More info ] Unavailable Replaced by -804070T04 |
|
|
804070T04 - 804070T04 - PH 75/90 4S [ More info ] Unavailable Replaced by -804070T05 |
|
|
804070T05 - PH 75/90 4S NLA [ More info ] Unavailable |
| # | 804109T 3 | CYLINDER HEAD ASSEMBLY (1 required per assembly) SN# 0T178500 & Up |
| # | 883548T02 | POWERHEAD ASSEMBLY (1 required per assembly) SN# 0T178499 & Below |
  |
|
883548T02 - POWERHEAD ASSEMBL NLA [ More info ] Unavailable |
| #1 | 804128T | VALVE, Intake (8 required per assembly) |
  |
|
804128T - VALVE Intake [ More info ] Unavailable |
| #2 | 804129T | VALVE, Exhaust (8 required per assembly) |
  |
|
804129T - VALVE Exhaust [ More info ] Unavailable |
| #3 | 804130 | SEAT (16 required per assembly) |
  |
|
|
| #4 | 26-804136 | SEAL (8 required per assembly) |
|
|
26-804136 - SEAL [ More info ] Unavailable |
| #5 | 26-804137 | SEAL (8 required per assembly) |
|
|
26-804137 - SEAL [ More info ] Unavailable |
| #6 | 24-804131 | SPRING, Valve (16 required per assembly) |
|
|
24-804131 - Spring, Valve [ More info ]
|
| #7 | 804132 | RETAINER (16 required per assembly) |
  |
|
804132 - Retainer [ More info ]
|
| #8 | 28-804135 | COTTER VALVE (32 required per assembly) |
|
|
28-804135 - Cotter Valve [ More info ]
|
| #9 | 804138T | LIFTER, Valve (16 required per assembly) |
  |
|
804138T - LIFTER Valve NLA [ More info ] Unavailable |
| #10 | 15-804607 1 | SHIM (AR required per assembly) (2.350) |
|
|
15-804607 1 - Shim 2.350 [ More info ]
|
| #10 | 15-804607 2 | SHIM (AR required per assembly) (2.375) |
|
|
15-804607 2 - Shim 2.375 [ More info ]
|
| #10 | 15-804607 3 | SHIM (AR required per assembly) (2.400) |
|
|
15-804607 3 - Shim 2.400 [ More info ]
|
| #10 | 15-804607 4 | SHIM (AR required per assembly) (2.425) |
|
|
15-804607 4 - Shim 2.425 [ More info ]
|
| #10 | 15-804607 5 | SHIM (AR required per assembly) (2.450) |
|
|
15-804607 5 - Shim 2.450 [ More info ]
|
| #10 | 15-804607 6 | SHIM (AR required per assembly) (2.475) |
|
|
15-804607 6 - Shim 2.475 [ More info ]
|
| #10 | 15-804607 7 | SHIM (AR required per assembly) (2.500) |
|
|
15-804607 7 - Shim 2.500 [ More info ]
|
| #10 | 15-804607 8 | SHIM (AR required per assembly) (2.525) |
|
|
15-804607 8 - Shim 2.525 [ More info ]
|
| #10 | 15-804607 9 | SHIM (AR required per assembly) (2.550) |
|
|
15-804607 9 - Shim 2.550 [ More info ]
|
| #10 | 15-804607 10 | SHIM (AR required per assembly) (2.575) |
|
|
15-804607 10 - Shim 2.575 [ More info ]
|
| #10 | 15-804607 11 | SHIM (AR required per assembly) (2.600) |
|
|
15-804607 11 - Shim 2.600 [ More info ]
|
| #10 | 15-804607 12 | SHIM (AR required per assembly) (2.625) |
|
|
15-804607 12 - Shim 2.625 [ More info ]
|
| #10 | 15-804607 13 | SHIM (AR required per assembly) (2.650) |
|
|
15-804607 13 - Shim 2.650 [ More info ]
|
| #10 | 15-804607 14 | SHIM (AR required per assembly) (2.675) |
|
|
15-804607 14 - Shim 2.675 [ More info ]
|
| #10 | 15-804607 15 | SHIM (AR required per assembly) (2.700) |
|
|
15-804607 15 - SHIM NLA [ More info ] Unavailable |
| #10 | 15-804607 16 | SHIM (AR required per assembly) (2.725) |
|
|
15-804607 16 - SHIM [ More info ] Unavailable |
| #10 | 15-804607 17 | SHIM (AR required per assembly) (2.750) |
|
|
15-804607 17 - Shim 2.750 [ More info ]
|
| #10 | 15-804608 | SHIM (AR required per assembly) (2.775) |
|
|
15-804608 - Shim 2.775 [ More info ]
|
| #10 | 15-804608 10 | SHIM (AR required per assembly) (2.800) |
|
|
15-804608 10 - SHIM NLA [ More info ] Unavailable |
| #10 | 15-804608 20 | SHIM (AR required per assembly) (2.825) |
|
|
15-804608 20 - Shim 2.825 [ More info ]
|
| #10 | 15-804608 30 | SHIM (AR required per assembly) (2.850) |
|
|
15-804608 30 - Shim 2.850 [ More info ]
|
| #10 | 15-804608 40 | PAD, Adjusting (AR required per assembly) (2.875) |
|
|
15-804608 40 - Shim 2.875 [ More info ]
|
| #10 | 15-804608 50 | SHIM (AR required per assembly) (2.900) |
|
|
15-804608 50 - Shim 2.900 [ More info ]
|
| #10 | 15-804608 60 | SHIM (AR required per assembly) (2.925) |
|
|
15-804608 60 - SHIM NLA [ More info ] Unavailable |
| #10 | 15-804608 70 | SHIM (AR required per assembly) (2.950) |
|
|
15-804608 70 - Shim 2.950 [ More info ]
|
| #10 | 15-804608 80 | SHIM (AR required per assembly) (2.975) |
|
|
15-804608 80 - SHIM NLA [ More info ] Unavailable |

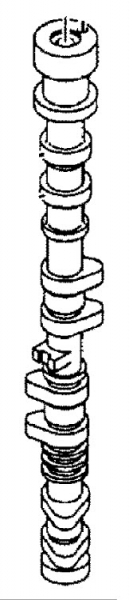

| #11 | 2407-804139T | CAMSHAFT (1 required per assembly) |
  |
|
2407-804139T - CamShaft, NLA [ More info ]
|
| #12 | 17-804141 | PIN, Dowel (2 required per assembly) |
|
|
17-804141 - Pin -Dowel [ More info ]
|
| #13 | 2407-804140T | CAMSHAFT (1 required per assembly) |
  |
|
2407-804140T - 2407-804140T - CAMSHAFT [ More info ] Unavailable Replaced by 2407-8M0057172 |
  |
|
24078M0057172 - CamShaft [ More info ]
|
| #14 | 26-804144 | SEAL, Oil (2 required per assembly) |
  |
|
26-804144 - 26-804144 - SEAL Oil [ More info ] Unavailable Replaced by 26-804144001 |
  |
|
26-804144001 - Oil Seal [ More info ]
|
| #15 | 43-804142T | GEAR, Driven (2 required per assembly) |
  |
|
43-804142T - Driven Gear [ More info ]
|
| #16 | 10-804143 | BOLT, (M10 x 35) (2 required per assembly) |
|
|
10-804143 - 10-804143 - BOLT (M10 x 35) [ More info ] Unavailable Replaced by 10-804143001 |
  |
|
10-804143001 - Bolt [ More info ]
|
| #17 | 57-804145 | V BELT (1 required per assembly) |
  |
|
57-804145 - Timing Belt [ More info ]
|
| #18 | 804146 | TENSIONER (1 required per assembly) |
  |
|
804146 - Tensioner [ More info ]
|
| #19 | 24-804147 | SPRING (1 required per assembly) |
|
|
24-804147 - SPRING [ More info ] Unavailable |
| #20 | 32-804148 | HOSE (1 required per assembly) |
  |
|
32-804148 - Hose [ More info ]
|
| #21 | 10-804150 | BOLT, (M10 x 45) (1 required per assembly) |
  |
|
10-804150 - Bolt [ More info ]
|
| #22 | 11-881314 | NUT, (M40) (1 required per assembly) |
|
|
11-881314 - 11-881314 - NUT (M40) [ More info ] Unavailable Replaced by 11-881314003 |
|
|
11-881314003 - Nut [ More info ]
|
| #23 | 43-804151T | GEAR, Drive (1 required per assembly) |
  |
|
43-804151T - GEAR Drive [ More info ] Unavailable |
