Parts for Mercury Marine 75 HP (4-Stroke) Driveshaft Housing

Revise Search: All Models > 75 HP (4-Stroke) > 0T801000 - 1B226999 (USA) > Driveshaft Housing

NEED PARTS OR KITS?

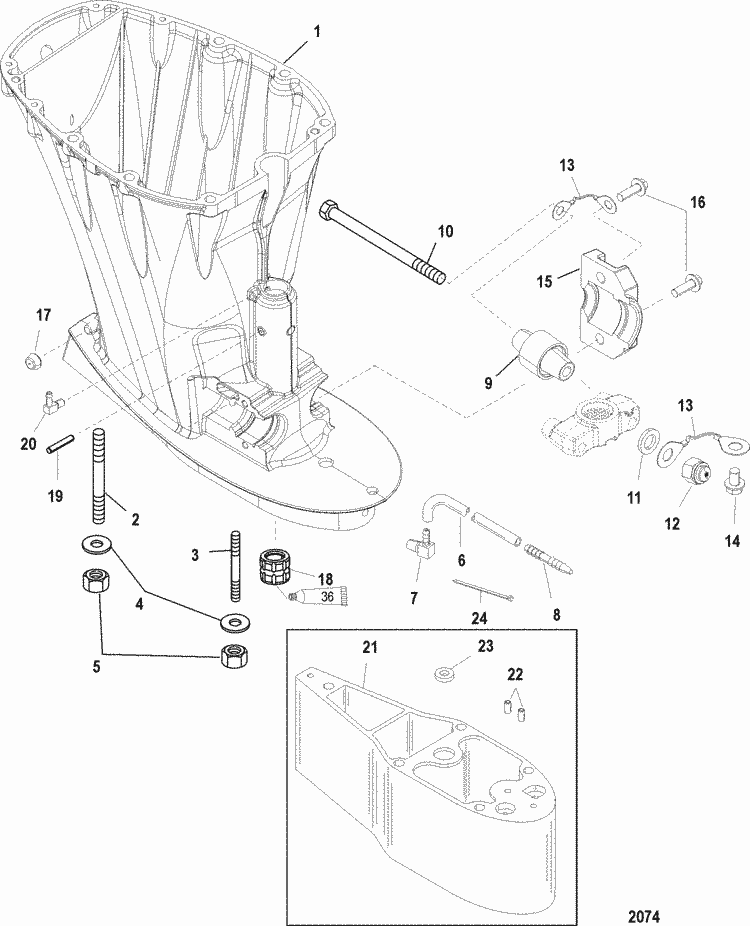

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	1507-858576T03	HOUSING ASSEMBLY, Driveshaft (1 required per assembly)
		1507-858576T03 - 1507-858576T03 - HOUSING ASSEMBLY [ More info ] Unavailable Replaced by 1507-858576T04
		1507-858576T04 - 1507-858576T04 - HOUSING Driveshaf [ More info ] Unavailable Replaced by 1507-858576T2
		1507-858576T 2 - Housing Drive Shaft [ More info ] $983.57 Available to Order: Usually ships within 10 days.
#2	16-90350 1	STUD, (M10 x 100) (1 required per assembly) (LONG)
		16-90350 1 - Stud [ More info ] $13.70 Available to Order: Usually ships within 10 days.
#2	16-90350 15	STUD, (M10 x 227) (1 required per assembly) (X-LONG)
		16-90350 15 - Stud [ More info ] $25.67 1 In Stock.
#3	16-90350 12	STUD, (M10 x 63) (4 required per assembly) (LONG)
		16-90350 12 - Stud [ More info ] $13.40 Available to Order: Usually ships within 10 days.
#3	16-90350 16	STUD, (M10 x 190) (4 required per assembly) (X-LONG)
		16-90350 16 - 16-90350 16 - STUD (M10 x 190) [ More info ] Unavailable Replaced by 16-8M0034462
		16-8M0034462 - Stud [ More info ] $19.00 10+ In Stock.
#4	12-856774	WASHER, (.406 x .750 x .105) Stainless Steel (5 required per assembly)
		12-856774 - WASHER (.406 x .7 [ More info ] Unavailable
#5	11-40140	NUT, (M10) (5 required per assembly)
		11-40140 - Nut, (M10) [ More info ] $3.30 10+ In Stock.
#6	22-85822A15	PICKUP ASSEMBLY, Speedometer (1 required per assembly)
		22-85822A15 - Speedometer Tube Assembly [ More info ] $19.10 Available to Order: Usually ships within 10 days.
#7	22-43335	CONNECTOR, 90 Degree (.125-27) Nylon (1 required per assembly)
		22-43335 - 22-43335 - CONNECTOR 90 Degr [ More info ] Unavailable Replaced by 22-433351
		22-43335 1 - Connector [ More info ] $5.70 8 In Stock.
#8	22-85822	CONNECTOR, Straight (1 required per assembly)
		22-85822 - 22-85822 - CONNECTOR Straigh [ More info ] Unavailable Replaced by 22-85822T
		22-85822T - Speedometer Tube Connector [ More info ] $2.50 3 In Stock.
#9	44343T 1	MOUNT (2 required per assembly)
		44343T 1 - Lower Mount [ More info ] $85.67 6 In Stock.
#10	10-42973	BOLT, (M12 x 154) (2 required per assembly)
		10-42973 - 10-42973 - BOLT (M12 x 154) [ More info ] Unavailable Replaced by 10-898835001
		10-898835001 - Screw [ More info ] $20.50 4 In Stock.
#11	12-30119	WASHER, (.875 Inch Outside Diameter) (2 required per assembly)
		12-30119 - Washer (7/8 X .1196) [ More info ] $2.60 Available to Order: Usually ships within 10 days.
#12	11-43528	NUT, (M12) (2 required per assembly)
		11-43528 - Nut (M12) [ More info ] $8.99 10+ In Stock.
		118M0204662 - NUT [ More info ] $14.00 Available to Order: Usually ships within 10 days.
#13	88238A10	CABLE ASSEMBLY, Ground, To Swivel Bracket (2 required per assembly)
		88238A10 - Cable Assembly [ More info ] $8.00 3 In Stock.
#14	10-41508	SCREW, (.250-20 x .500) Stainless Steel (1 required per assembly)
		10-41508 - Screw [ More info ] $3.70 Available to Order: Usually ships within 10 days.
#15	858916T	CLAMP (2 required per assembly)
		858916T - Clamp [ More info ] $22.58 Available to Order: Usually ships within 10 days.
#16	10-40107 25	SCREW, (M8 x 25) (4 required per assembly)
		10-40107 25 - Screw [ More info ] $5.60 Available to Order: Usually ships within 10 days.
#17	858745	CAP (4 required per assembly)
		858745 - 858745 - CAP [ More info ] Unavailable Replaced by -8M0039082
		8M0039082 - 8M0039082 - CAP Chap Support [ More info ] Unavailable Replaced by -8M0142713
		8M0142713 - CAP Support [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#18	23-859550	BUSHING (1 required per assembly)
		23-859550 - Bushing [ More info ] $122.83 Available to Order: Usually ships within 10 days.
#19	17-24873	PIN, Alignment (1 required per assembly)
		17-24873 - Pin, Roll - Flange [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#20	22-855622	FITTING (1 required per assembly)
		22-855622 - Elbow [ More info ] $19.40 3 In Stock.
#21	12092A 3	SPACER KIT (1 required per assembly) (X-LONG)
		12092A 3 - Spacer - Drive Shaft Housing - XL - Black [ More info ] $367.83 $247.18 2 In Stock.
#22	17-43043	PIN, Dowel - With Hole (.375 x .625) (1 required per assembly) (W/HOLE)(X-LONG)
		17-43043 - Pin, Dowel [ More info ] $1.87 10+ In Stock.
		178M0084244 - Pin - Dowel [ More info ] $3.00 Available to Order: Usually ships within 10 days.
#22	17-43044	PIN, Dowel - Without Hole (.375 x .625) (1 required per assembly) (X-LONG)
		17-43044 - Pin -Dowel-solid [ More info ] $2.40 Available to Order: Usually ships within 10 days.
#23	23-813745	SPACER (1 required per assembly) (X-LONG)
		23-813745 - Spacer [ More info ] $7.10 Available to Order: Usually ships within 10 days.
#24	54-816311T	TIE STRAP, (8.00 Inches) (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
