Parts for Mercury Marine 75 HP (4-Stroke) Cylinder Head

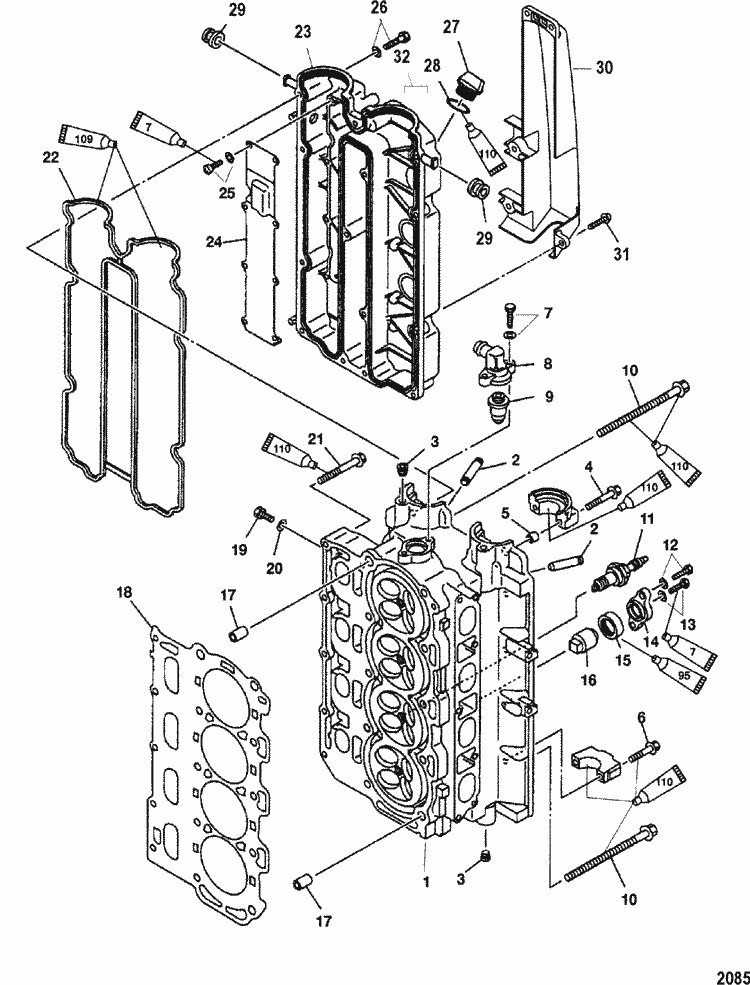

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 804109T 3 | CYLINDER HEAD ASSEMBLY (1 required per assembly) |
 |
804109T 3 - HEAD ASY-CYLINDER [ More info ] Unavailable |
|
|
804109T07 - Cylinder Head [ More info ] Unavailable |
|
|
|
804109T08 - Cylinder Head [ More info ] Unavailable |
| # | 27-804345A02 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-804345A02 - Powerhead Gasket Set [ More info ] Unavailable |
| #1 | 804109T 4 | CYLINDER HEAD (1 required per assembly) |
|
804109T 4 - 8M0057170 [ More info ] Unavailable |
|
|
|
8M0057170 - Cylinder Head, Empty [ More info ] Unavailable |
| #2 | 17-804110 | PIN, Guide (16 required per assembly) |
|
|
17-804110 - Guide, NLA [ More info ]
|
| #3 | 19-804111 | PLUG (4 required per assembly) |
|
|
19-804111 - Plug, NLA [ More info ]
|
| #4 | 10-804112 | BOLT, (M7 x 48) (4 required per assembly) |
  |
|
10-804112 - Bolt [ More info ]
|
| #5 | 17-804113 | PIN, Dowel (4 required per assembly) |
|
|
17-804113 - Pin -Dowel [ More info ] Unavailable |
| #6 | 10-804114 | BOLT, (M7 x 37) (16 required per assembly) |
  |
|
10-804114 - Bolt [ More info ]
|
| #7 | 10-824832 6 | SCREW, (M6 x 25) (2 required per assembly) |
  |
|
10-824832 6 - Screw [ More info ]
|
| #8 | 804127 1 | THERMOSTAT COVER (1 required per assembly) |
  |
|
804127 1 - Thermostat Cover [ More info ] Unavailable |
| #9 | 855676 1 | THERMOSTAT, 60°C (140°F) (1 required per assembly) |
  |
|
855676 1 - Thermostat 140 Degree F [ More info ]
|
| #10 | 10-881311 | BOLT, (M10 x 145) (10 required per assembly) |
  |
|
10-881311 - Bolt [ More info ]
|
| #11 | 33-859495 | SPARK PLUG, (NGK-LFR5A-11) (4 required per assembly) |
  |
33-859495 - PG LFR5A-11 Note: Priced Individually [ More info ] Unavailable |
|
  |
|
33-859495Q - Spark Plug LFR5A-11 - Priced Individually [ More info ] Unavailable |
  |
|
LFR5A-11 - NGK Spark Plug, 6376 [ More info ]
|
| #12 | 10-827207 | BOLT, (M8 x 25) (4 required per assembly) |
  |
|
10-827207 - Bolt [ More info ]
|
| #13 | 10-852474 1 | BOLT, (M6 x 20) (2 required per assembly) |
  |
|
10-852474 1 - Bolt [ More info ]
|
| #14 | 804085 | COVER (2 required per assembly) |
|
|
804085 - Anode Cover Kit [ More info ] Unavailable |
| #15 | 25-804086 | GROMMET (2 required per assembly) |
|
|
25-804086 - Grommet [ More info ] Unavailable |
| #16 | 804079 | ANODE (2 required per assembly) |
|
|
|
  |
|
804079001 - Ord 887847A01, NLA [ More info ]
|
| #17 | 23-804116 | COLLAR (2 required per assembly) |
|
23-804116 - Collar [ More info ] Unavailable |
|
|
|
23-8M0070515 - Dowel Pin [ More info ]
|
| #18 | 27-804115 1 | GASKET (1 required per assembly) |
  |
|
27-804115 1 - Head Gasket [ More info ] Unavailable |
| #19 | 10-831247 14 | BOLT (4 required per assembly) |
  |
|
10-831247 14 - Screw [ More info ]
|
| #20 | 12-831246 | WASHER, Sealing (4 required per assembly) |
|
|
12-831246 - Washer, Sealing [ More info ]
|
| #21 | 10-881312 | BOLT, (M8 x 55) (5 required per assembly) |
  |
|
10-881312 - Bolt [ More info ]
|
| #22 | 27-804123 | GASKET (1 required per assembly) |
  |
|
27-804123 - Cylinder Head Cover Gasket [ More info ]
|
| #23 | 881313T 1 | COVER KIT (1 required per assembly) |
  |
|
881313T 1 - Cover [ More info ]
|
| #24 | 804119 | COVER, Breather (1 required per assembly) |
  |
|
|
| #25 | 10-804120 | SCREW, (M4 x 8) (8 required per assembly) |
  |
|
10-804120 - Screw [ More info ]
|
| #26 | 10-858530 | BOLT, (M6 x 30) (14 required per assembly) |
  |
|
10-858530 - Bolt [ More info ]
|
| #27 | 859578A 1 | PLUG ASSEMBLY, Oil (1 required per assembly) |
  |
|
859578A 1 - Oil Plug Assembly [ More info ]
|
| #28 | NSS | NOT SOLD SEPARATE, O Ring (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #29 | 25-855690 | GROMMET (2 required per assembly) |
|
|
25-855690 - Grommet [ More info ]
|
| #30 | 858752 | COVER (1 required per assembly) SN# 1B147077 & Below |
|
858752 - Cover [ More info ] Unavailable |
|
  |
|
858752001 - Cover [ More info ]
|
| #30 | 858752001 | COVER (1 required per assembly) SN# 1B147078 & Up |
| #31 | 10-19937 16 | SCREW, (M6 x 16) (5 required per assembly) |
  |
|
10-19937 16 - Screw [ More info ]
|
