Parts for Mercury Marine 75 HP (4-Stroke) Oil Pump

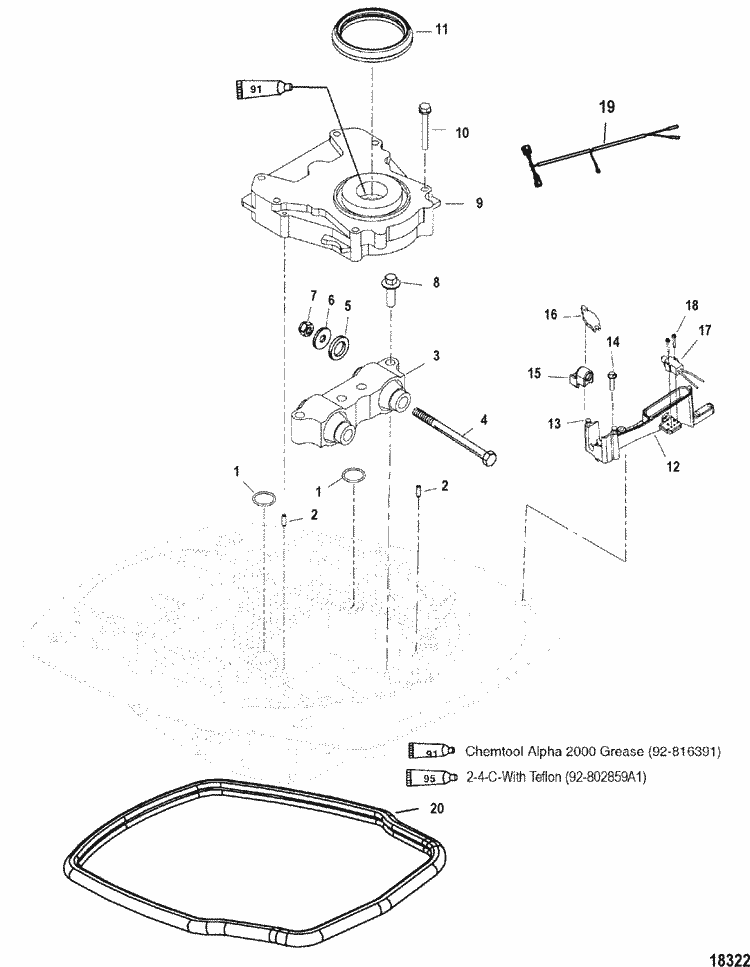

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 25-858581 | O-RING (2 required per assembly) |
 |
|
25-858581 - 25-858581 - O-RING [ More info ] Unavailable Replaced by 25-62705001 |
|
|
25-62705001 - O-Ring [ More info ]
|
| #2 | 17-858580 | PIN, Dowel (2 required per assembly) |
|
|
17-858580 - 17-858580 - PIN Dowel [ More info ] Unavailable Replaced by 17-41275M |
|
|
17-41275M - Pin, Dowel [ More info ]
|
| #3 | 881900T | MOUNT (1 required per assembly) |
  |
|
881900T - 881900T - MOUNT [ More info ] Unavailable Replaced by -881900T01 |
  |
|
881900T01 - 881900T01 - MOUNT [ More info ] Unavailable Replaced by -881900T02 |
  |
|
881900T02 - 881900T02 - MOUNT [ More info ] Unavailable Replaced by -881900T03 |
  |
|
881900T03 - Mount [ More info ]
|
| #4 | 10-42974 | BOLT, (M12 x 175) (2 required per assembly) |
|
|
10-42974 - 10-42974 - BOLT (M12 x 175) [ More info ] Unavailable Replaced by 10-898487 |
  |
|
10-898487 - Screw [ More info ]
|
| #5 | 12-93416 1 | WASHER, Neoprene (2 required per assembly) |
  |
|
12-93416 1 - 12-93416 1 - WASHER Neoprene [ More info ] Unavailable Replaced by 12-32834 |
  |
|
12-32834 - Washer, (.9375 X 1.750 X .172) [ More info ]
|
| #6 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (2 required per assembly) |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
|
|
12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable |
| #7 | 11-859129 | NUT, (M12) (2 required per assembly) |
|
|
11-859129 - 11-859129 - NUT (M12) [ More info ] Unavailable Replaced by 11-896963 |
  |
|
11-896963 - NUT (M12) [ More info ] Unavailable |
| #8 | 10-40107 50 | SCREW, (M8 x 50) (4 required per assembly) |
  |
|
10-40107 50 - Screw [ More info ]
|
| #9 | 858579T 3 | PUMP, Oil (1 required per assembly) |
  |
|
858579T 3 - PUMP Oil [ More info ] Unavailable |
| #10 | 10-858719 | BOLT, (M6 x 45) (6 required per assembly) |
|
|
10-858719 - 10-858719 - BOLT (M6 x 45) [ More info ] Unavailable Replaced by 10-8M0052670 |
|
|
10-8M0052670 - Screw [ More info ]
|
| #11 | 26-804349 | SEAL (1 required per assembly) |
  |
|
26-804349 - SEAL [ More info ] Unavailable |
| #12 | 858793T10 | BRACKET, Shift Linkage (1 required per assembly) |
|
|
858793T10 - BRACKET Shift Lin NLA [ More info ] Unavailable |
| #13 | 10-42975 | DRIVE SCREW (2 required per assembly) |
  |
|
10-42975 - Screw - Drive [ More info ]
|
| #14 | 10-821300 20 | SCREW, (M6 x 20) (3 required per assembly) |
  |
|
10-821300 20 - Screw - Priced Individually [ More info ]
|
| #15 | 859176 1 | RETAINER (1 required per assembly) |
|
|
859176 1 - Cup Barrel [ More info ]
|
| #16 | 98889 | LATCH (1 required per assembly) |
  |
|
|
| #17 | 87-813960A 3 | SWITCH (1 required per assembly) |
  |
|
87-813960A 3 - 87-813960A 3 - SWITCH [ More info ] Unavailable Replaced by 87-8M0052927 |
|
|
878M0052927 - Switch Assembly [ More info ]
|
| #18 | 10-880750 20 | SCREW, (M3 x 20) (2 required per assembly) |
  |
|
10-880750 20 - Screw [ More info ]
|
| #19 | 84-878178A 1 | HARNESS ASSEMBLY, Shift Interrupt (1 required per assembly) |
|
|
84-878178A 1 - HARNESS ASSEMBLY [ More info ] Unavailable |

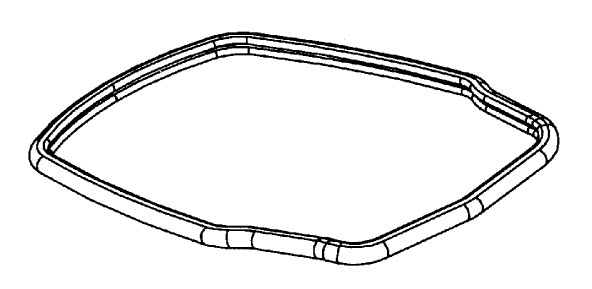

| #20 | 823805 3 | SEAL (1 required per assembly) |
  |
|
823805 3 - 823805 3 - SEAL [ More info ] Unavailable Replaced by -884256 3 |
  |
|
|
  |
|
8M0043168 - Seal [ More info ]
|
