Parts for Mercury Marine 75 HP (4-Stroke) Electrical Components

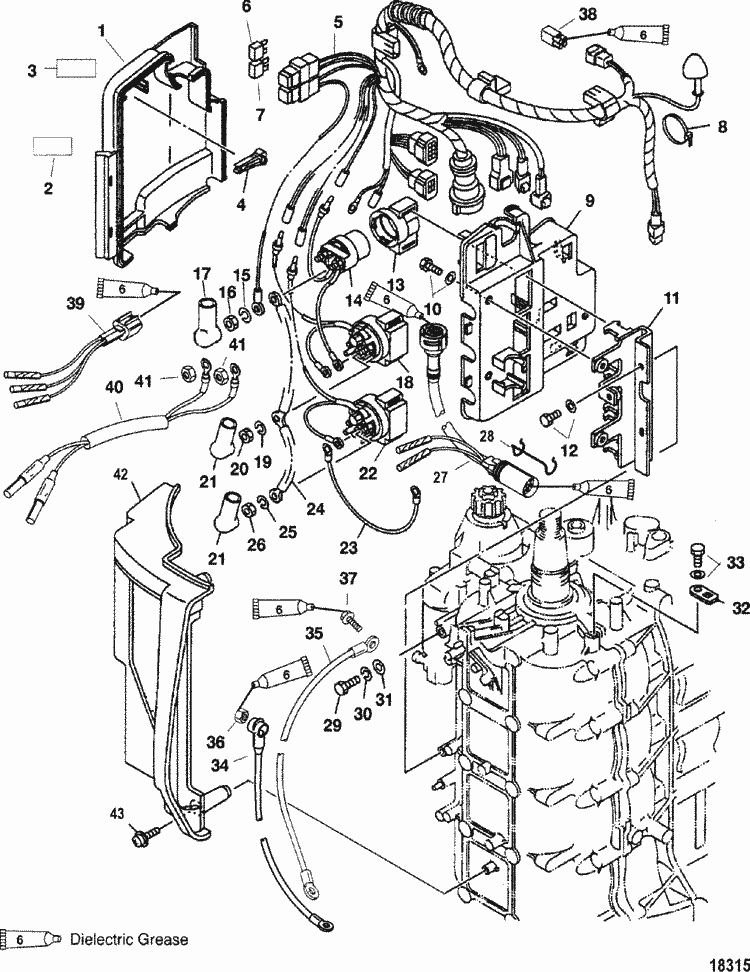

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 804288T | COVER (1 required per assembly) |
  |
|
804288T - COVER [ More info ] Unavailable |
| #2 | 37-881865 | DECAL, Caution-Start in Gear (1 required per assembly) |
 |
|
37-881865 - Decal -Caution [ More info ]
|
| #3 | 37-827282 2 | DECAL, Warning, High Voltage (1 required per assembly) |
|
|
37-827282 2 - Decal - Warning [ More info ]
|
| #4 | 804289 | PULLER, Fuse (1 required per assembly) |
  |
|
|
| #5 | 84-804290 1 | HARNESS ASSEMBLY (1 required per assembly) SN# 0T598999 & Below |
|
|
84-804290 1 - 84-804290 1 - HARNESS ASSEMBLY [ More info ] Unavailable Replaced by 84-804290 2 |
|
|
84-804290 2 - 84-804290 2 - HARNESS [ More info ] Unavailable Replaced by 84-804290 3 |
|
|
84-804290 3 - Harness [ More info ]
|
| #5 | 84-804290 3 | HARNESS ASSEMBLY (1 required per assembly) SN# 0T599000 & Up |
| #6 | 88-804291 | FUSE, 20 Ampere (2 required per assembly) |
|
|
88-804291 - Fuse-20 AMP [ More info ]
|
  |
|
88-832969 20 - Fuse-Yellow-20AMP [ More info ]
|
  |
|
88-832969T20 - Fuse - Yellow - 20 Amp [ More info ]
|
| #7 | 88-804291 10 | FUSE, 30 Ampere (2 required per assembly) |
|
|
88-804291 10 - Fuse-30A [ More info ]
|
|
|
888M0057159 - Fuse -30A [ More info ]
|
| #0 | 891824 | COVER, Fuse - Black (4 required per assembly) |
|
|
891824 - Cap - Black [ More info ]
|
| #8 | 54-816311T | TIE STRAP, (8.00 Inches) (1 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #9 | 804287T | BRACKET (1 required per assembly) |
|
|
804287T - BRACKET [ More info ] Unavailable |
| #10 | 10-852776 8 | BOLT, (M6 x 16) (3 required per assembly) |
|
|
10-852776 8 - 10-852776 8 - BOLT (M6 x 16) [ More info ] Unavailable Replaced by 10-811188M |
|
|
10-811188M - 10-811188M - BOLT (M6 x 16) [ More info ] Unavailable Replaced by 10-811188T |
  |
|
10-811188T - Bolt [ More info ]
|
| #11 | 804286T | BRACKET, Relay (1 required per assembly) |
|
|
804286T - Bracket [ More info ]
|
| #13 | 95643M | BRACKET (1 required per assembly) |
|
|
95643M - 95643M - BRACKET [ More info ] Unavailable Replaced by -8M0010250 |
|
|
8M0010250 - Bracket [ More info ]
|
| #14 | 89-825096T | RELAY (1 required per assembly) |
  |
|
89-825096T - 89-825096T - RELAY [ More info ] Unavailable Replaced by -825096T01 |
  |
|
825096T01 - SOLENOID Starter NLA [ More info ] Unavailable |
  |
|
18-5821 - Starter Solenoid [ More info ]
|
  |
|
89-8M0098898 - Relay Assembly [ More info ]
|
  |
|
SW945 - Solenoid [ More info ]
|
| #15 | 12-827205 | WASHER (2 required per assembly) |
|
|
12-827205 - Washer, Spring [ More info ]
|
| #16 | 11-827204 | NUT, (M6) (2 required per assembly) |
|
|
11-827204 - Nut (M6) [ More info ]
|
| #17 | 85-826574 | BOOT (2 required per assembly) |
|
|
85-826574 - BOOT-COVER Note: Priced Individually [ More info ]
|
| #18 | 804281T | RELAY (1 required per assembly) |
  |
|
804281T - RELAY [ More info ] Unavailable |
  |
|
|
| #21 | 85-804284 | BOOT (2 required per assembly) |
|
|
85-804284 - 85-804284 - BOOT [ More info ] Unavailable Replaced by 85-804284001 |
|
|
85-804284001 - Boot [ More info ]
|
| #22 | 804282T | RELAY (1 required per assembly) |
  |
|
|
  |
|
|
| #23 | 84-804285 | CABLE (1 required per assembly) |
|
|
84-804285 - Wire [ More info ]
|
| #24 | 84-804283 | CABLE (1 required per assembly) |
|
|
84-804283 - Cable Assembly [ More info ]
|
| #27 | 84-858740T 4 | HARNESS ASSEMBLY (1 required per assembly) |
|
|
84-858740T 4 - Harness [ More info ]
|
| #28 | 92753 | RETAINER (1 required per assembly) |
  |
|
92753 - Harness Retainer [ More info ]
|
| #29 | 10-84058M | BOLT, (M6 x 20) (1 required per assembly) |
  |
|
10-84058M - Bolt [ More info ]
|
| #30 | 13-82212M | LOCKWASHER (1 required per assembly) |
|
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #31 | 12-82214M | WASHER (1 required per assembly) |
|
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #32 | 804292 | PLATE (1 required per assembly) |
|
|
|
| #33 | 10-804602 | BOLT, (M6 x 12) (3 required per assembly) |
  |
|
10-804602 - Bolt [ More info ]
|
| #34 | 84-88439A33 | CABLE ASSEMBLY, Positive - Battery (1 required per assembly) |
|
|
84-88439A33 - Battery Cable Assembly [ More info ]
|
| #35 | 84-88439A 4 | CABLE ASSEMBLY, Battery - Negative (1 required per assembly) |
  |
|
84-88439A 4 - Cable Assembly -neg [ More info ]
|
| #36 | 11-40138 8 | NUT, (M8) Stainless Steel (1 required per assembly) |
|
|
11-40138 8 - Nut - Priced Individually [ More info ]
|
| #37 | 10-818934 12 | SCREW, (M8 x 12) (1 required per assembly) |
  |
|
10-818934 12 - Screw [ More info ]
|
| #38 | 859249T 1 | CONNECTOR (1 required per assembly) |
|
|
859249T 1 - Connector [ More info ]
|
| #39 | 84-858723T 1 | HARNESS ASSEMBLY, Adaptor/Trim (1 required per assembly) |
  |
|
84-858723T 1 - Harness [ More info ]
|
| #40 | 84-858914T 1 | HARNESS ASSEMBLY, Trim Motor Adaptor (1 required per assembly) |
  |
|
84-858914T 1 - Harness [ More info ]
|
| #41 | 11-40138 6 | NUT, (M6) Stainless Steel (2 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #42 | 804293T | COVER (1 required per assembly) (Use where Applicable) |
|
|
804293T - COVER NLA [ More info ] Unavailable |
| #43 | 10-804126 | SCREW (3 required per assembly) (Use where Applicable) |
  |
|
10-804126 - SCREW NLA [ More info ] Unavailable |
