Parts for Mercury Marine 75 HP (4 Cylinder) Carburetor Assembly

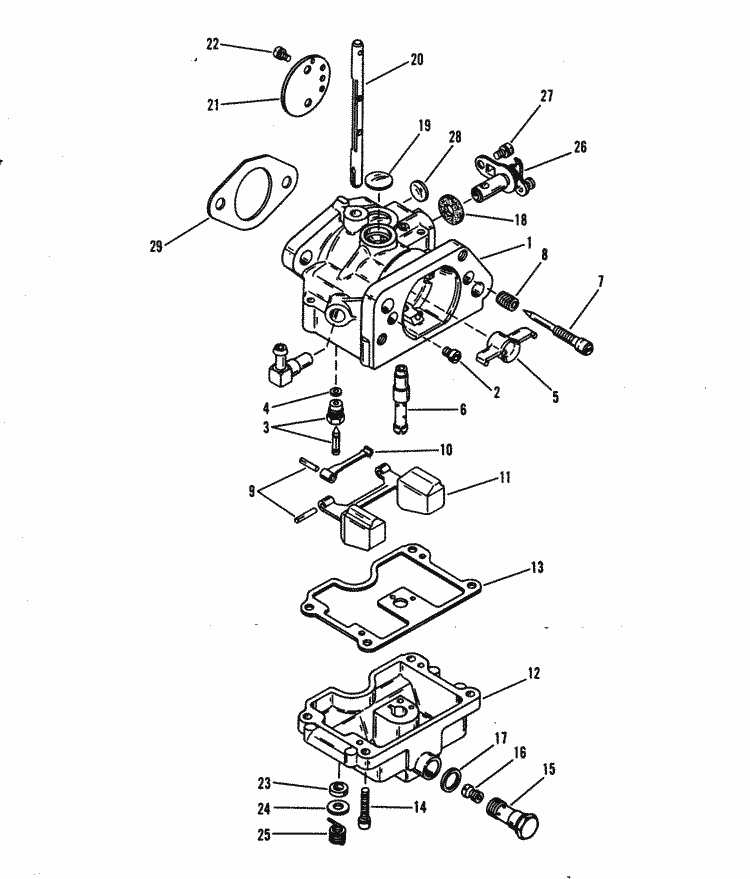

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 19272 | REPAIR KIT (WM-17) (2 required per assembly) |
 |
|
19272 - 19272 - REPAIR KIT [ More info ] Unavailable Replaced by -812953 |
  |
|
812953 - Carburetor Repair Kit [ More info ]
|
| # | 1395-6200 | GASKET KIT (2 required per assembly) |
  |
|
1395-6200 - Carburetor Gasket Kit [ More info ]
|
  |
|
18-7004 - Carburetor Kit 1395-6200 [ More info ]
|
| # | 19274 | REPAIR KIT (WM-14) (2 required per assembly) |
  |
|
19274 - 19274 - REPAIR KIT [ More info ] Unavailable Replaced by -812953 |
| #1 | 1379-6071A41 | CARBURETOR (TOP),WM-14 (1 required per assembly) |
  |
|
1379-6071A41 - 1379-6071A41 - CARBURETOR ASSEMB [ More info ] Unavailable Replaced by 1379-6071A57 |
|
|
1379-6071A57 - CARBURETOR NLA [ More info ] Unavailable |
| #1 | 1379-6071A42 | CARBURETOR (BOTTOM) ,WM-14 (1 required per assembly) |
  |
|
1379-6071A42 - 1379-6071A42 - CARBURETOR ASSEMB [ More info ] Unavailable Replaced by 1379-6071A58 |
|
|
1379-6071A58 - CARBURETOR NLA [ More info ] Unavailable |
| #1 | 1379-6071A57 | CARBURETOR (TOP),WM-17 (1 required per assembly) |
| #1 | 1379-6071A58 | CARBURETOR (BOTTOM) WM-17 (1 required per assembly) |
| #2 | 1395-5733 | JET, VENT BOWL (.092) (2 required per assembly) |
  |
|
1395-5733 - Jet -.092 [ More info ]
|
| #3 | 19271 1 | INLET NEEDLE AND SEAT (2 required per assembly) |
  |
|
19271 1 - Valve Seat Kit [ More info ]
|
| #4 | GASKET, INLET NEEDLE AND SEAT (2 required per assembly) | |
| #5 | 52106A 1 | VENTURI (2 required per assembly) |
  |
|
52106A 1 - Venturi Assembly [ More info ]
|
| #11 | 19273 | FLOAT (2 required per assembly) |
  |
|
19273 - Float Kit [ More info ]
|
  |
|
18-7249 - Float, 19273 [ More info ]
|

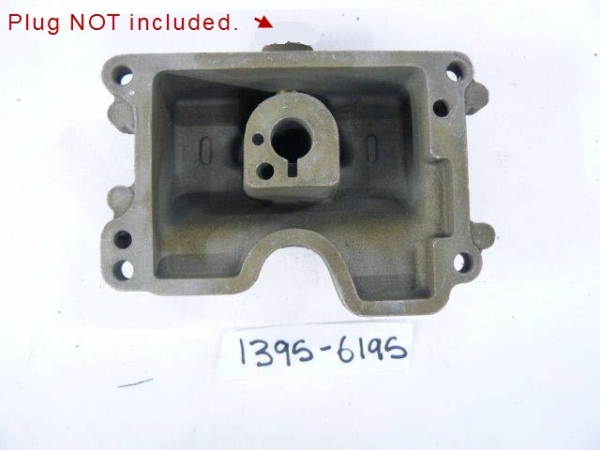

| #12 | 1395-6195 | FUEL BOWL (WM-14) (2 required per assembly) |
  |
|
1395-6195 - Fuel Bowl, NLA [ More info ]
|
| #12 | 1395-9483 | FUEL BOWL (WM-17) (2 required per assembly) |
|
|
1395-9483 - BOWL Fuel NLA [ More info ] Unavailable |
| #15 | 1395-6199 | PLUG, MAIN JET (2 required per assembly) |
  |
|
1395-6199 - PLUG NLA [ More info ] Unavailable |
| #16 | 1399-3518 | JET,MAIN (.082) (2 required per assembly) |
  |
|
1399-3518 - Jet -.082 [ More info ]
|
| #20 | 1395-4807 | SHAFT, THROTTLE (TOP) (1 required per assembly) |
|
|
1395-4807 - SHAFT Throttle NLA [ More info ] Unavailable |
| #20 | 1395-7942 | SHAFT, THROTTLE (BOTTOM) (1 required per assembly) |
  |
|
1395-7942 - SHAFT NLA [ More info ] Unavailable |
| #21 | 1395-7639 | VALVE,THROTTLE (2 required per assembly) |
|
|
1395-7639 - Shutter, NLA [ More info ]
|
| #23 | 1395-6204 | SEAL, THROTTLE SHAFT (2 required per assembly) |
|
|
1395-6204 - SEAL [ More info ] Unavailable |
| #24 | 1395-6203 | WASHER, THROTTLE SHAFT (2 required per assembly) |
|
|
1395-6203 - Washer, Throttle Shaft, NLA [ More info ]
|
| #26 | 1395-6198 | VALVE ASSEMBLY, ENRICHMENT (2 required per assembly) |
  |
|
1395-6198 - VALVE ASSEMBLY NLA [ More info ] Unavailable |
| #29 | 27-73377 | GASKET,CARBURETOR (2 required per assembly) |
|
|
27-73377 - 27-73377 - GASKET [ More info ] Unavailable Replaced by 27-733771 |
  |
|
27-73377 1 - Gasket [ More info ]
|
