Parts for Mercury Marine 75 HP (4 Cylinder) Auto-Blend (Without Warning Horn)

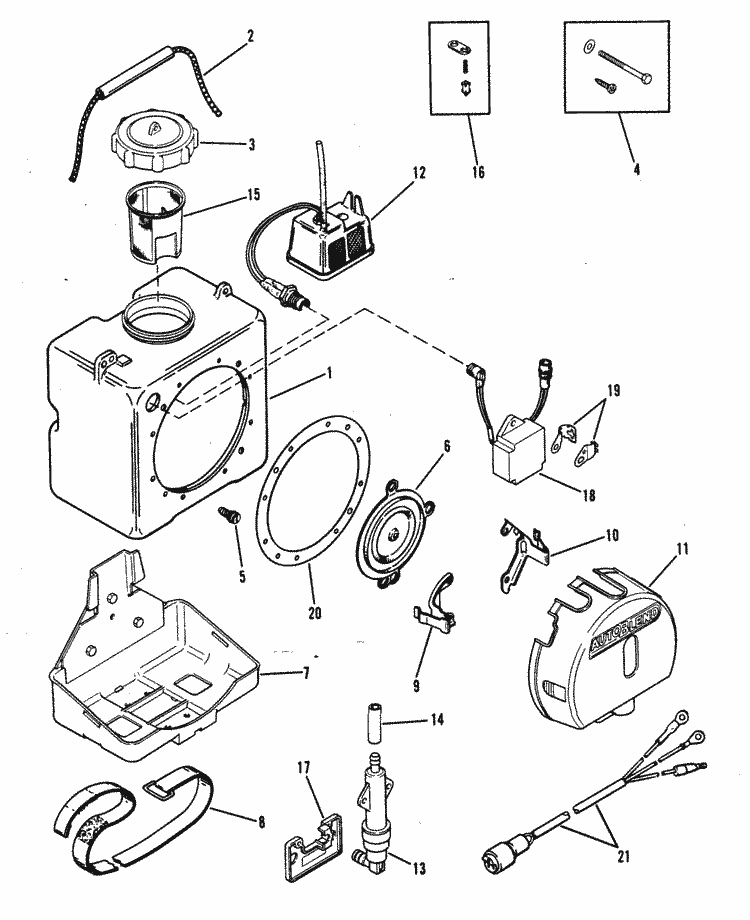

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 13019 4 | AUTO-BLEND (1 required per assembly) |
 |
|
13019 4 - AUTO BLEND ASSEMB NLA [ More info ] Unavailable |
| #1 | 16612 | OIL TANK KIT (1 required per assembly) |
|
|
16612 - Oil Tank Kit, NLA [ More info ]
|
| #2 | 13996 | HANDLE KIT (1 required per assembly) |
|
|
13996 - Handle Kit, NLA [ More info ]
|

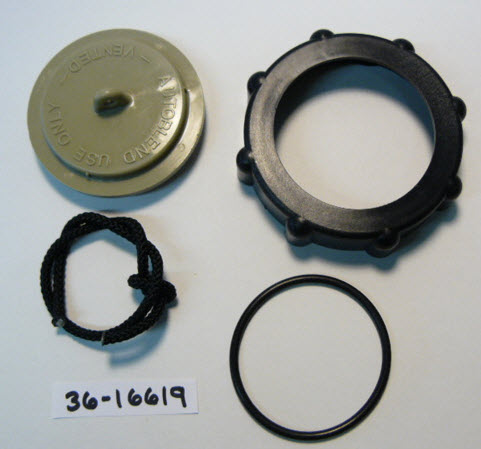

| #3 | 36-16619 | CAP, OIL TANK (1 required per assembly) |
  |
|
36-16619 - Cap Kit, NLA [ More info ]
|
| #4 | 16614 | HARDWARE KIT (1 required per assembly) |
|
|
16614 - HARDWARE KIT NLA [ More info ] Unavailable |
| #5 | 19-13979 | DRAIN PLUG KIT (1 required per assembly) |
|
|
19-13979 - PLUG KIT Drain NLA [ More info ] Unavailable |
| #6 | 16611 | DIAPHRAGM KIT (1 required per assembly) |
  |
|
16611 - Diaphragm Kit, NLA [ More info ]
|
| #7 | 16620 | MOUNTING BRACKET KIT (1 required per assembly) |
|
|
16620 - BRACKET KIT Mount NLA [ More info ] Unavailable |
| #8 | 13993 | BAND (1 required per assembly) |
|
|
13993 - BAND NLA [ More info ] Unavailable |
| #9 | 13983 | BRACKET (LEFT) (1 required per assembly) |
|
|
13983 - BRACKET NLA [ More info ] Unavailable |
| #10 | 13984 | BRACKET (RIGHT) (1 required per assembly) |
|
|
13984 - Bracket - Right, NLA [ More info ]
|
| #11 | 16613 | COVER (1 required per assembly) |
|
|
16613 - COVER NLA [ More info ] Unavailable |
| #12 | 35-13985 | OIL FILTER AND LEVEL SENSOR KIT (1 required per assembly) |
  |
|
35-13985 - Filter Kit, NLA [ More info ]
|
| #13 | 35-16617 | FUEL FILTER KIT (1 required per assembly) |
|
|
35-16617 - 35-16617 - FILTER KIT Fuel [ More info ] Unavailable Replaced by 35-18090 |
|
|
35-18090 - 35-18090 - FILTER KIT-FUEL [ More info ] Unavailable Replaced by 35-18576 |
  |
|

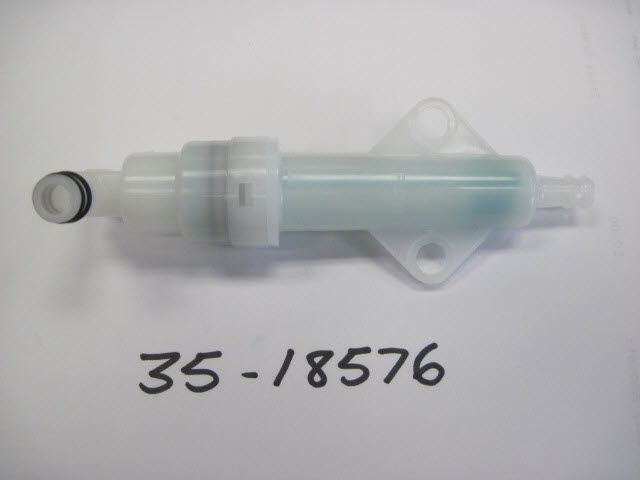

35-18576 - Fuel Filter Assembly [ More info ]
|
| #14 | 32-13992 | VINYL TUBE (1 required per assembly) |
|
|
32-13992 - VINYL TUBE NLA [ More info ] Unavailable |

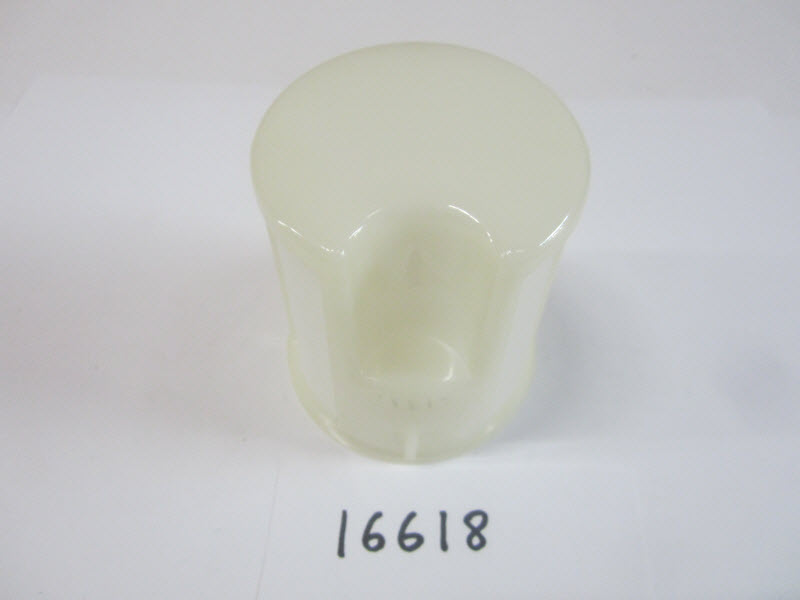

| #15 | 16618 | OIL STRAINER (1 required per assembly) |
  |
|
16618 - Oil Strainer, NLA [ More info ]
|
| #16 | 21-16615 | CHECK VALVE KIT (1 required per assembly) |
  |
|
21-16615 - Check Valve Kit, NLA [ More info ]
|
| #17 | 16621 | PLATE (1 required per assembly) |
|
|
16621 - PLATE NLA [ More info ] Unavailable |
| #18 | 16622 | MODULE KIT (1 required per assembly) |
|
|
16622 - 16622 - MODULE KIT [ More info ] Unavailable Replaced by -19264 |
|
|
19264 - 19264 - MODULE KIT [ More info ] Unavailable Replaced by -19265 |
|
|
19265 - Module Kit, NLA [ More info ]
|
| #19 | 16623 | BRACKET KIT (1 required per assembly) |
|
|
16623 - BRACKET KIT NLA [ More info ] Unavailable |
| #20 | 27-16616 | GASKET KIT (1 required per assembly) |
  |
|
27-16616 - Oil Tank Gasket Kit [ More info ]
|
| #21 | 84-14585A 1 | WIRING HARNESS, AUTO-BLEND (1 required per assembly) |
|
|
84-14585A 1 - Harness Assembly, NLA [ More info ]
|
