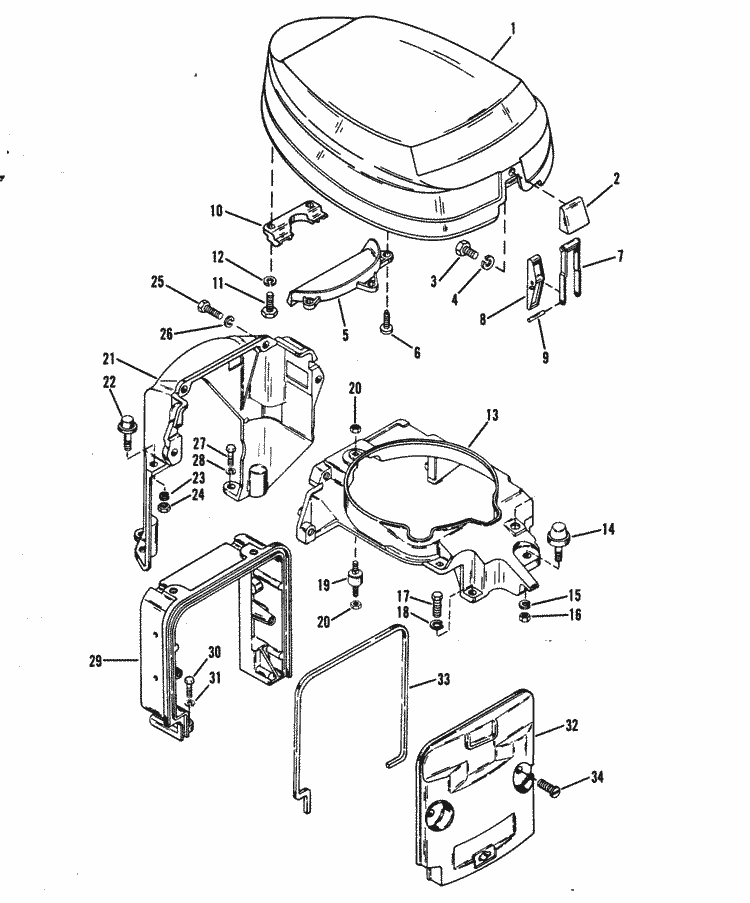

Parts for Mercury Marine 75 HP (4 Cylinder) Top Cowl & Support Brackets
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 2114-7934 | TOP COWL, MERCURY (1 required per assembly) |
 |
|
2114-7934 - 2114-7934 - TOP COWL ASSEMBLY [ More info ] Unavailable Replaced by 2114-7934T |
|
|
2114-7934T - TOP COWL NLA [ More info ] Unavailable |
| #2 | 93122A 1 | RETAINER ASSEMBLY, TOP COWL MERCURY (1 required per assembly) |
|
|
93122A 1 - RETAINER ASSEMBLY NLA [ More info ] Unavailable |
| #3 | 10-53167 | SCREW, RETAINER TO TOP COWL (7/8") MERCURY (1 required per assembly) |
  |
|
10-53167 - 10-53167 - SCREW (.312-18 x [ More info ] Unavailable Replaced by 10-53167T |
|
|
10-53167T - Screw - Priced Individually [ More info ]
|
| #4 | 13-39107 | LOCKWASHER, RETAINER SCREW MERCURY (1 required per assembly) |
|
|
13-39107 - LockWasher - Priced Individually [ More info ]
|
| #5 | 76370 | SHIELD, TOP COWL-REAR MERCURY (1 required per assembly) |
  |
|
76370 - Rear Shield, NLA [ More info ]
|

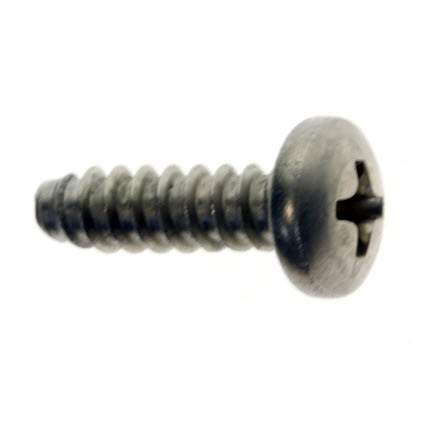

| #6 | 10-48409 | SCREW, SHIELD TO TOP COWL (5/8") MERCURY (3 required per assembly) |
  |
|
10-48409 - Screw - Priced Individually [ More info ]
|
| #1 | 2162-6392F 4 | TOP COWL MARINER (1 required per assembly) |
|
|
2162-6392F 4 - 2162-6392F 4 - TOP COWL ASSEMBLY [ More info ] Unavailable Replaced by 2162-6392T 6 |
|
|
2162-6392T 6 - TOP COWL ASSEMBLY NLA [ More info ] Unavailable |
| #2 | 76440 | RETAINER ASSEMBLY, TOP COWL MARINER (1 required per assembly) |
  |
|
76440 - Retainer, NLA [ More info ]
|
| #3 | 10-25299 | SCREW, RETAINER TO TOP COWL MARINER (1 required per assembly) |
  |
|
10-25299 - Screw - Priced Individually [ More info ]
|

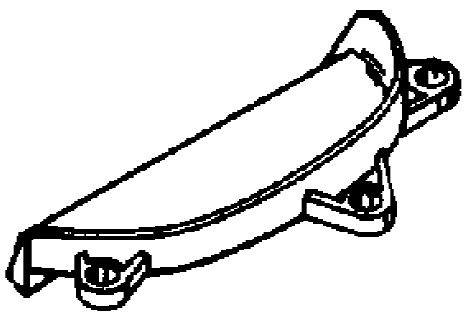

| #5 | 76433 | SHIELD, TOP COWL-REAR MARINER (1 required per assembly) |
  |
|
76433 - Shield, NLA [ More info ]
|
| #7 | 52739 | HINGE,COWL LATCH-TOP COWL (1 required per assembly) |
  |
|
52739 - HINGE NLA [ More info ] Unavailable |
| #8 | 94918T | LEVER, COWL LATCH HINGE (1 required per assembly) |
  |
|
94918T - 94918T - LEVER [ More info ] Unavailable Replaced by -94918F1 |
|
|
94918F 1 - Lever [ More info ]
|
| #9 | 17-58998 | PIN, COWL LATCH LEVER TO HINGE (1 required per assembly) |
|
|
17-58998 - Pin -roll [ More info ]
|
| #10 | 55455 | HOOK, TOP COWL LTECH-REAR (1 required per assembly) |
|
|
55455 - Hook, NLA [ More info ]
|
| #11 | 10-22956 | SCREW, REAR HOOK TO TOP COWL (7/8") (2 required per assembly) |
|
|
10-22956 - Screw, NLA [ More info ]
|
| #12 | 13-26992 | LOCKWASHER, REAR HOOK SCREW (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #13 | 73401 | FRAME, SUPPORT-TOP COWL (1 required per assembly) |
|
|
73401 - 73401 - FRAME [ More info ] Unavailable Replaced by -73401T |
|
|
73401T - FRAME NLA [ More info ] Unavailable |
| #14 | 37640 | MOUNT, RUBBER-SUPPORT FRAME (1 required per assembly) |
  |
|
37640 - Mount, NLA [ More info ]
|
| #15 | 13-26993 | LOCKWASHER,RUBBER MOUNT (1 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
|
|
13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable |
| #16 | 11-28770 | NUT, RUBBER MOUNT (1 required per assembly) |
  |
|
11-28770 - Nut (5/16-24) [ More info ]
|
| #17 | 10-37562 | SCREW, SUPPORT FRAME TO FRONT FAME (1") (2 required per assembly) |
  |
|
10-37562 - Screw - Priced Individually [ More info ]
|
| #19 | 90435 | MOUNT, RUBBER-TOP COWL FRAME (3 required per assembly) |
  |
|
90435 - Rubber Mount [ More info ]
|
| #20 | 11-20184 | NUT, RUBBR MOUNT (UPPER) (6 required per assembly) |
  |
|
11-20184 - Nut, (1/4-28x7/32) [ More info ]
|
|
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #21 | 52468 | BRACKET, TOP COWL SUPPORT-REAR (1 required per assembly) |
|
|
52468 - BRACKET NLA [ More info ] Unavailable |
| #22 | 31014 | MOUNT, RUBBER-REAR SUPPORT BRACKET (2 required per assembly) |
  |
|
31014 - Mount, NLA [ More info ]
|
| #24 | 11-29598 | NUT, RUBBER MOUNT (2 required per assembly) |
  |
|
11-29598 - Nut (1/4-28) [ More info ]
|
| #29 | 99649T | FRAME, FRONT SUPPORT (1 required per assembly) |
|
|
99649T - Frame, NLA [ More info ]
|
| #32 | 89590 | COVER, SILENCER (1 required per assembly) |
|
|
89590 - COVER NLA [ More info ] Unavailable |
| #33 | 27-76168A 2 | GASKET, SILENCER COVER (1 required per assembly) |
  |
|
27-76168A 2 - GASKET NLA [ More info ] Unavailable |
| #34 | 10-28638 | SCREW, COVER TO FRONT SUPPORT FRAME (3/4") (2 required per assembly) |
  |
|
10-28638 - Screw - Priced Individually [ More info ]
|
