Parts for Mercury Marine 75 HP (4 Cylinder) Power Trim Pump (Eaton Rectangular Motor)

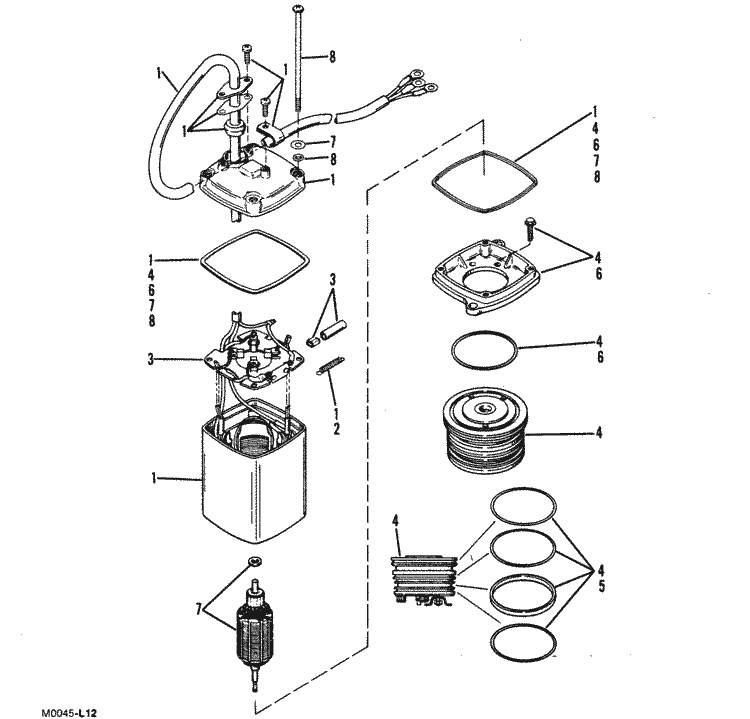

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 99186T | POWER TRIM PUMP (1 required per assembly) |
 |
|
99186T - 99186T - PUMP AND MOTOR [ More info ] Unavailable Replaced by -991861 |
|
|
991861 - 991861 - ->826729A4 [ More info ] Unavailable Replaced by -826729A4 |
  |
|
826729A4 - 826729A4 - ->826729A07 [ More info ] Unavailable Replaced by -826729A07 |
|
|
826729A07 - 826729A07 - POWER TRIM KIT [ More info ] Unavailable Replaced by -826729A08 |
|
|
826729A08 - 826729A08 - POWER TRIM KIT [ More info ] Unavailable Replaced by -826729A09 |
  |
|
826729A09 - 826729A09 - POWER TRIM KIT [ More info ] Unavailable Replaced by -826729A10 |
  |
|
826729A10 - POWER TRIM KIT [ More info ] Unavailable |
  |
|
TT2000 - PTT System 3-Wire Mercury Replaces Mercury 3-Ram 3-Wire 1985-95 [ More info ]
|
  |
|
18-6273-1 - Tilt Trim Motor and Pump [ More info ]
|
  |
|
8M0168223 - Power Trim Kit [ More info ]
|
  |
|
13506 - Brush Card Kit, NLA [ More info ]
|
|
|
12660 - Ord 99186 1A, NLA [ More info ]
|
|
|
12659 - Frame & Field Kit [ More info ]
|
| #1 | 12659 | FRAME AND FIELD KIT (1 required per assembly) |

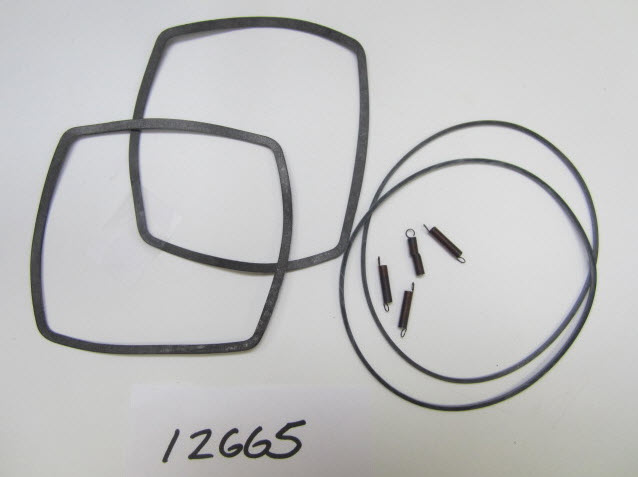

| #2 | 12665 | BRUSH SPRING KIT (1 required per assembly) |
  |
|
12665 - Brush Spring Kit [ More info ]
|
| #3 | 13506 | BRUSH CARD KIT (1 required per assembly) |
| #4 | 12662 | PUMP AND END FRAME KIT (1 required per assembly) |
|
|
12662 - PUMP AND END FRAM NLA [ More info ] Unavailable |

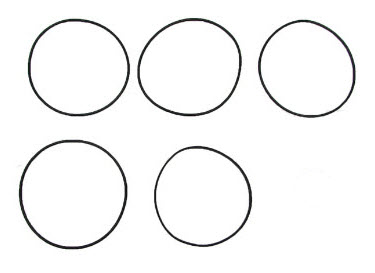

| #5 | 12663 | PUMP SEAL KIT (1 required per assembly) |
  |
|
12663 - 12663 - SEAL KIT Pump [ More info ] Unavailable Replaced by -126631 |
  |
|

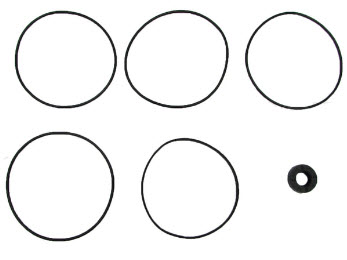

12663 1 - Seal Kit [ More info ]
|
| #6 | 12660 | END FRAME KIT (1 required per assembly) |

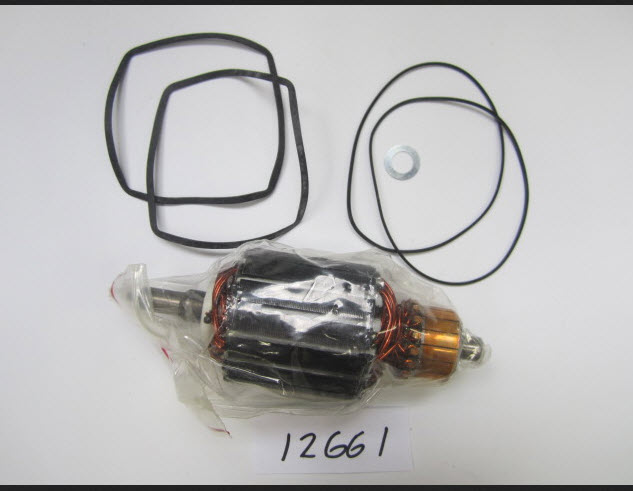

| #7 | 12661 | ARMATURE KIT (1 required per assembly) |
  |
|
12661 - ARMATURE KIT NLA [ More info ] Unavailable |

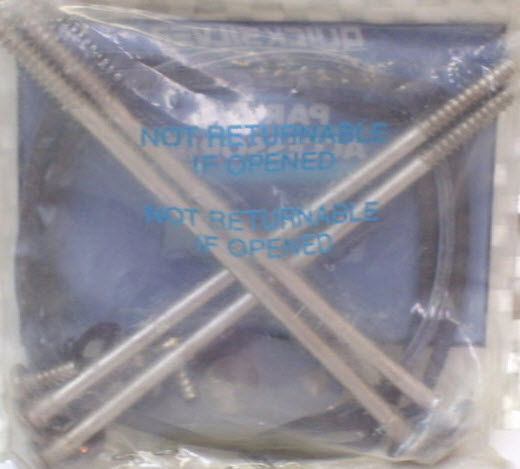

| #8 | 12664 | THRU BOLT KIT (1 required per assembly) |
  |
|
12664 - Thru Bolt Kit, NLA [ More info ]
|
