Parts for Mercury Marine 75 HP (4 Cylinder) Gear Housing (Propeller Shaft)

Revise Search: All Models > 75 HP (4 Cylinder) > 7208573 & Up (Canada) > Gear Housing (Propeller Shaft)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

LOOKING FOR A PROP?
• Try our prop finder.

COMPLETE GEARCASE?
• Aftermarket gearcase may be available for less than $900 USD. 70 HP+ only. Please call.

Engine section

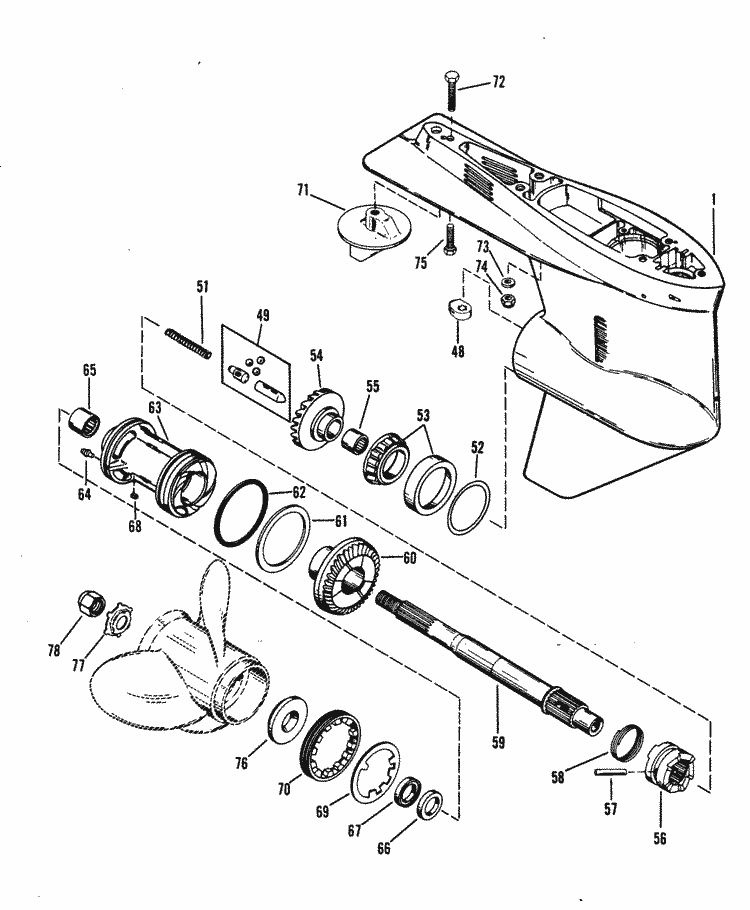

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	1655-7333A41	GEAR HOUSING ASSEMBLY (1 required per assembly)
		1655-7333A41 - GEAR Housing, NLA [ More info ] Unavailable
#	1655-7333A25	GEAR HOUSING ASSEMBLY (1 required per assembly)
		1655-7333A25 - GEAR Housing, NLA [ More info ] Unavailable
#1	1655-7333A23	GEAR HOUSING ASSEMBLY (1 required per assembly)
		1655-7333A23 - Gear Housing Assembly [ More info ] Unavailable
		1655-7333T23 - Gear Housing [ More info ] Unavailable
#1	1655-7333A43	GEAR HOUSING ASSEMLBY (1 required per assembly)
		1655-7333A43 - Gear Housing [ More info ] Unavailable
#48	76039	SHIFT CAM (1 required per assembly)
		76039 - Shift Cam, Priced Individually [ More info ] Unavailable
		76039 4 - Shift Cam - Priced Individually [ More info ] $37.55 9 In Stock.
#49	44532A 1	CAM FOLLOWER (1 required per assembly)

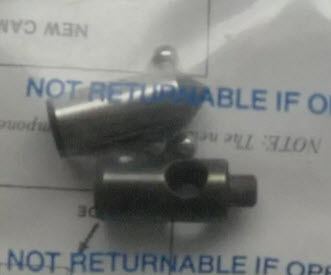

		44532A 1 - Cam Follower Kit [ More info ] $64.08 Available to Order: Usually ships within 10 days.
#51	24-30622	SPRING, COMPRESSION - CAM FOLLOWER (1 required per assembly)
		24-30622 - Spring, Cam Follower [ More info ] $6.40 10+ In Stock.
#52	15-30923A 1	SHIM, BEARING OUTER RACE TO GEAR HOUSING (AR required per assembly) (.002-3-5-10)
		15-30923A 1 - Shim Set, NLA [ More info ] $10.70 2 In Stock.
#53	31-30894A 1	TAPERED ROLLER BEARING ASSEMBLY (1 required per assembly)
		31-30894A 1 - Tapered Roller Bearing [ More info ] $58.17 Available to Order: Usually ships within 10 days.
		18-1156 - Bearing 31-30894A1 [ More info ] $52.99 $44.21 In Stock
#54	43-75314A 2	FORWARD GEAR (1 required per assembly)
		43-75314A 2 - Forward Gear Assembly [ More info ] Unavailable
		43-75314T 2 - Forward Gear Assembly [ More info ] $299.92 Available to Order: Usually ships within 10 days.
#55	31-30895	ROLLER BEARING, FORWARD GEAR (1 required per assembly)
		31-30895 - Roller Bearing -Forward Gear [ More info ] $18.88 10+ In Stock.
		31-30895T - Bearing - Roller [ More info ] $21.78 Available to Order: Usually ships within 10 days.
#56	52-34239	RATCHET, SLIDING CLUTCH (1 required per assembly)
		52-34239 - Clutch [ More info ] Unavailable
		52-12777 - Clutch [ More info ] Unavailable
		52-814756 - Sliding Clutch [ More info ] Unavailable
		52-822539 - Clutch [ More info ] Unavailable
		52-822539T - Clutch [ More info ] Unavailable
		18-2236 - Clutch Dog 52-822539T [ More info ] $249.99 $226.48 2 In Stock.
#57	17-30632	CROSS PIN, RATCHET TO PROPELLER SHAFT (1 required per assembly)
		17-30632 - Pin - Cross - Priced Individually [ More info ] $3.32 10+ In Stock.
		17-8M0020941 - Pin, Cross [ More info ] Unavailable
		17-8M0084681 - Pin - Priced Individually [ More info ] Unavailable
		17-8M0100263 - Pin - Priced Individually [ More info ] $4.30 Available to Order: Usually ships within 10 days.
		18-2357 - Pin, 17-30632 [ More info ] $4.99 Available to Order: Usually ships within 10 days.
#58	24-30893	SPRING, RETAINING - CROSS PIN (1 required per assembly)
		24-30893 - Spring, Reatiner - Cross Pin [ More info ] $2.60 $1.87 10+ In Stock.
		18-2348 - Spring, 24-30893 [ More info ] $3.69 $2.99 7 In Stock.
#59	44-93003	PROPELLER SHAFT (1 required per assembly)
		44-93003 - Prop Shaft [ More info ] $654.64 $183.30 4 In Stock.
#60	43-77562	REVERSE GEAR (1 required per assembly)
		43-77562 - Reverse Gear [ More info ] Unavailable

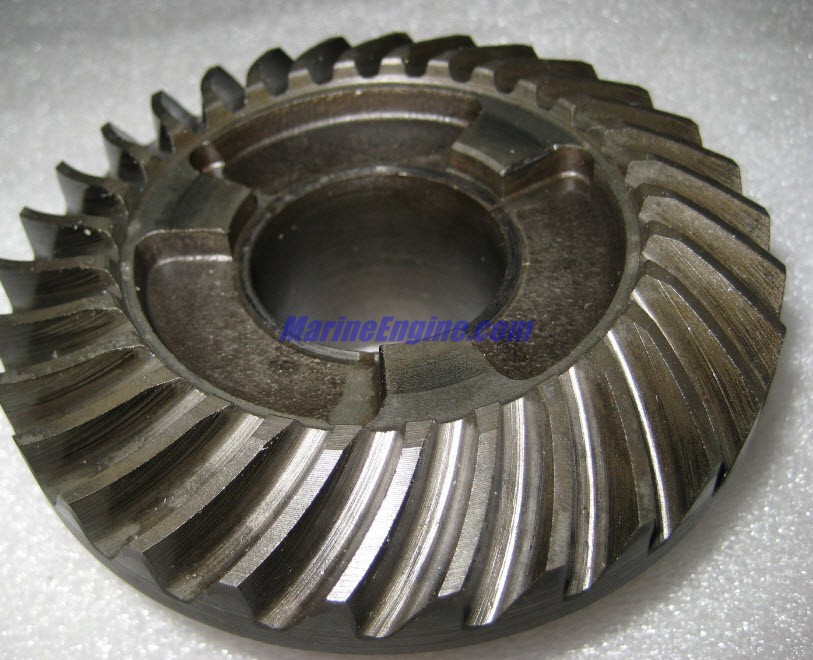

		43-77562T - Reverse Gear [ More info ] $510.21 Available to Order: Usually ships within 10 days.
#61	12-76358	THRUST WASHER (1 required per assembly) BEARING CARRIER TO GEAR HOUSING
		12-76358 - Thrust Washer [ More info ] Unavailable
#62	25-29976	"O" RING, BEARING CARRIER (1 required per assembly)
		25-29976 - O-Ring, Bearing Carrier [ More info ] $5.90 10+ In Stock.
		18-7157 - O-Ring 25-29976 [ More info ] $4.81 $4.45 Available to Order: Usually ships within 10 days.
#63	41529A 1	BEARING CARRIER ASSEMBLY (1 required per assembly)
		41529A 1 - Carrier Assembly [ More info ] Unavailable
		41529A 2 - CARRIER ASSY [ More info ] Unavailable

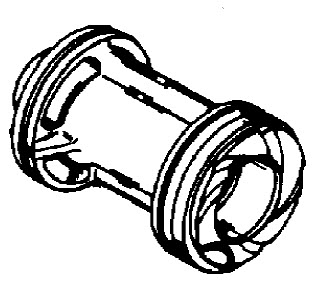

		41529T 2 - Carrier Assembly [ More info ] Unavailable
#64	22-98727	GREASE FITTING (2 required per assembly)
		22-98727 - Fitting [ More info ] $2.78 8 In Stock.
		22-8M0169588 - FITTING [ More info ] Unavailable
#65	31-30956	ROLLER BEARING, BEARING CARRIER (1 required per assembly)
		31-30956 - Roller Bearing - Bearing Carrier [ More info ] Unavailable
		31-30956T - Roller Bearing [ More info ] $20.43 5 In Stock.
		18-1158 - Bearing 31-30956, 387247 [ More info ] $15.99 $14.48 1 In Stock.
#66	26-76868	OIL SEAL, BEARING CARRIER - INNER (1 required per assembly)
		26-76868 - Gearcase Seal - Priced Individually [ More info ] Unavailable
		26-8M0204670 - Gearcase Seal, Priced Individually E/J O/B [ More info ] $18.50 10+ In Stock.
		18-2002 - Seal 26-76868, 320862 [ More info ] $13.99 $11.77 10+ In Stock.
#67	26-70081	OIL SEAL, BEARING CARRIER - OUTER (1 required per assembly)
		26-70081 - Seal [ More info ] Unavailable
		26-8M0205729 - Gear Housing Outer Oil Seal, Outboard [ More info ] $22.11 2 In Stock.
		18-2053 - Seal 26-70081 [ More info ] $18.99 $17.62 10+ In Stock.
#68	28-30281	KEY, LOCATING - BEARING CARRIER (1 required per assembly)
		28-30281 - Key - Priced Individually [ More info ] $2.90 10+ In Stock.
#69	14-52700	TAB WASHER, GEAR HOUSING COVER (1 required per assembly)
		14-52700 - Tab Washer - Priced Individually [ More info ] $26.20 10+ In Stock.
#70	52699	COVER, GEAR HOUSING (1 required per assembly)
		52699 - Gear Housing Cover [ More info ] $39.99 10+ In Stock.
		0775418 - Spanner Nut [ More info ] $31.49 $30.92 Available to Order: Usually ships within 10 days.
#71	31640A 1	TRIM TAB, GEAR HOUSING (1 required per assembly)
		31640A 1 - Trim Tab [ More info ] Unavailable
		31640 3 - 31640 3 - TRIM TAB [ More info ] Unavailable Replaced by -31640 4
		31640 4 - Anode/Trim Tab [ More info ] Unavailable
		97-31640Q4 - Anode/Trim Tab [ More info ] $17.92 7 In Stock.
		18-6241 - Trim Tab Anode, Magnesium, 31640 [ More info ] $24.39 $22.37 In Stock
		18-6011A - Trim Tab Anode, Aluminum [ More info ] $16.59 $15.04 4 In Stock.
		18-6011 - Trim Tab, Zinc, 31640A1 [ More info ] $18.35 7 In Stock.
		97-31640T 4 - Trim Tab Anode [ More info ] $17.92 10+ In Stock.
#72	10-66024	SCREW, TRIM TAB TO GEAR HOUSING (1-3/4") (1 required per assembly)
		10-66024 - Screw - Priced Individually [ More info ] $9.30 10+ In Stock.
#73	12-45176	WASHER, DRIVE SHAFT HOUSING STUDS (2 required per assembly)
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.40 4 In Stock.
		18-4858-9 - Washer, 12-45176, 10PK [ More info ] $24.99 $23.30 2 In Stock.
#74	11-34933	NUT, DRIVE SHAFT HOUSING STUDS (2 required per assembly)
		11-34933 - Nut (7/16-20) [ More info ] Unavailable
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.10 10+ In Stock.
		18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ] $19.49 $13.18 Available to Order: Usually ships within 10 days.
#75	10-65210	SCREW, GEAR HOUSING (1") (1 required per assembly)

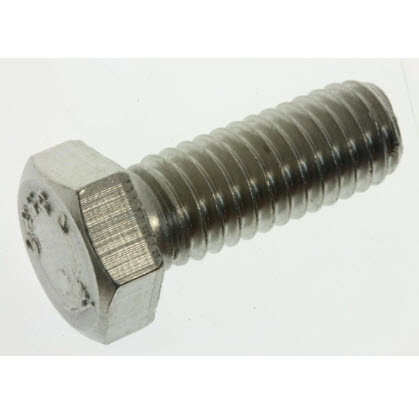

		10-65210 - Screw - Priced Individually [ More info ] $2.80 Available to Order: Usually ships within 10 days.
#76	75282A 1	THRUST HUB (1 required per assembly)
		75282A 1 - Thrust Hub [ More info ] $7.78 6 In Stock.

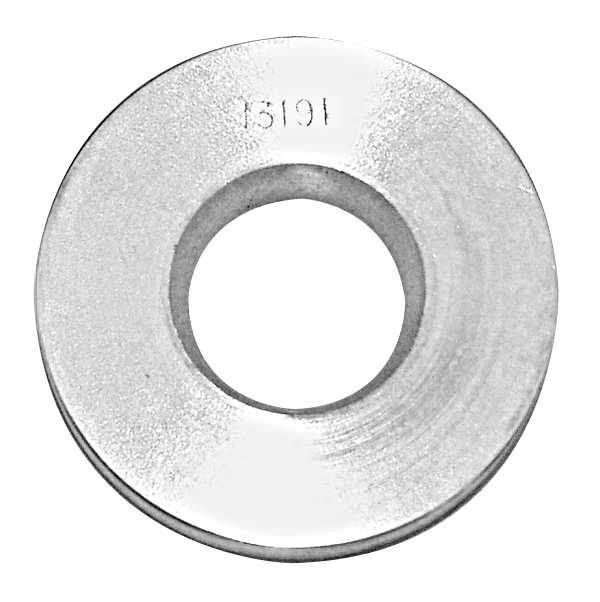

		13191A 1 - Thrust Washer [ More info ] $13.99 2 In Stock.
		13191Q01 - Thrust Washer - Priced Individually [ More info ] $28.29 Available to Order: Usually ships within 10 days.

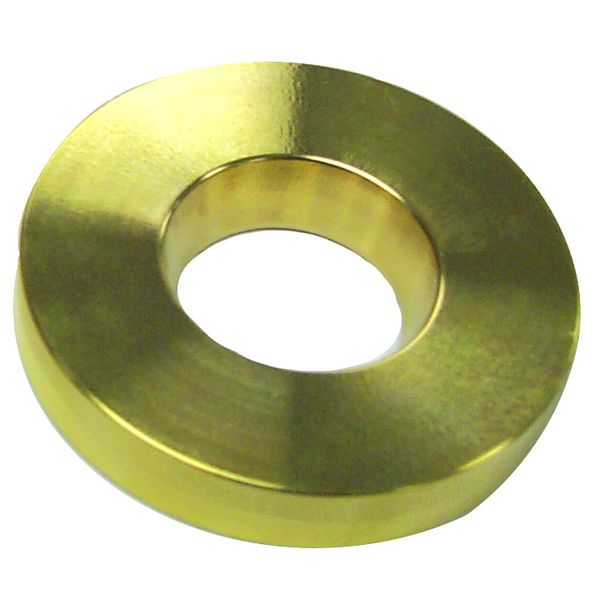

		18-4221 - Washer 13191A1 [ More info ] $34.99 $32.11 4 In Stock.

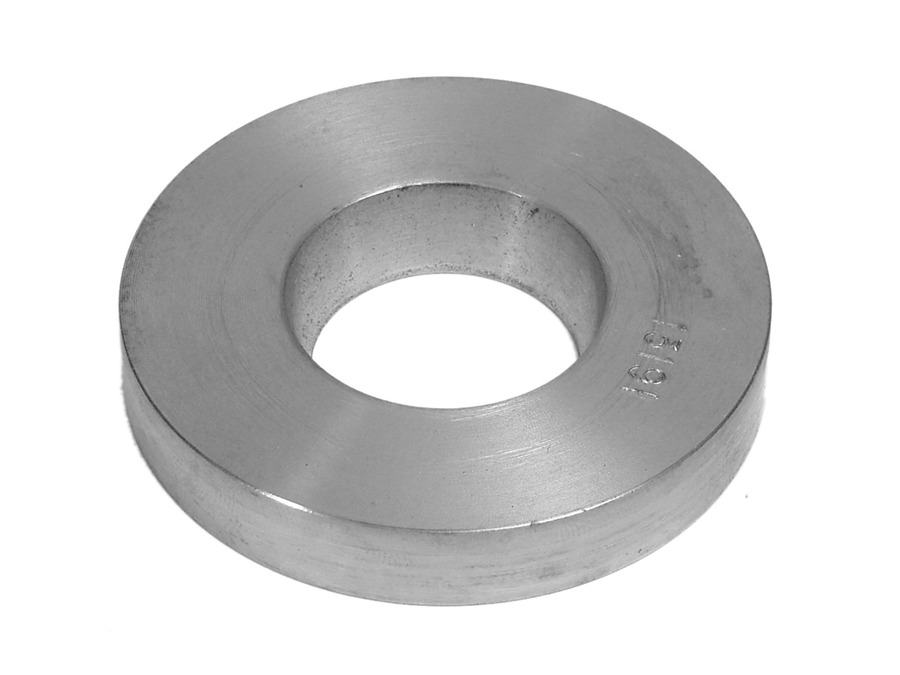

		13191K01 - Thrust Washer - Priced Individually [ More info ] $28.29 Available to Order: Usually ships within 10 days.
#77	14-31210	TAB WASHER, PROPELLER NUT (1 required per assembly)
		14-31210 - Tab Washer - Priced Individually [ More info ] Unavailable
		14-816629 - Tab Washer [ More info ] $3.99 10+ In Stock.
		14-816629Q - Tab Washer - Priced Individually [ More info ] $5.75 3 In Stock.
		18-3200-9 - Washer, 14-816629, 10PK [ More info ] $78.09 $71.73 7 In Stock.
		14-816629K - Tab Washer - Priced Individually [ More info ] $5.66 Available to Order: Usually ships within 10 days.
#78	11-52707A 1	PROPELLER NUT (1 required per assembly)
		11-52707A 1 - Prop Nut Kit [ More info ] Unavailable
		11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ] $16.01 2 In Stock.
		18-3701 - Nut Kit, 11-52707A1 [ More info ] $23.99 $21.76 8 In Stock.
		18-3700 - Prop Nut Only, 11-52707 [ More info ] $13.99 $13.89 2 In Stock.
		11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.01 4 In Stock.
